The CORMAK 800 Series metal lathes are equipped with rapid feeds, a multi-plate clutch and digital readouts. Thanks to modern design solutions and rich standard equipment, this lathe is perfect for professional and industrial applications, ensuring precision, reliability and performance in demanding machining environments.

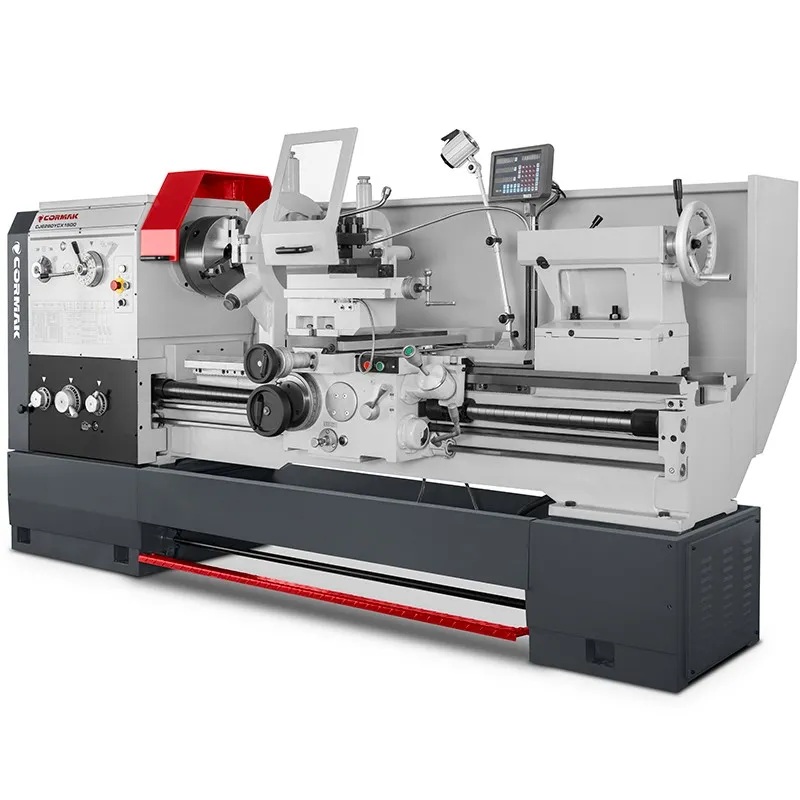

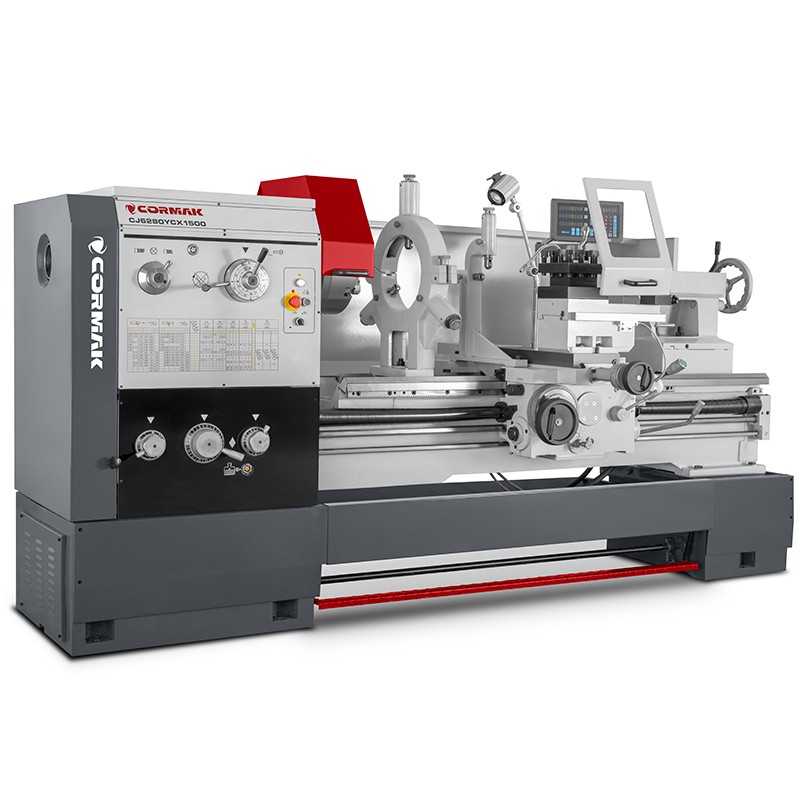

The CORMAK 800x1500 universal lathe is a robust industrial conventional machine designed for precise metalworking in production plants, tool rooms and maintenance workshops. With its large turning diameter, rigid cast-iron structure and three-axis digital readout (DRO), the lathe guarantees high accuracy, efficiency and operator safety even under heavy loads. It is an ideal choice for professionals seeking reliability, durability and smooth control of workpieces.
The CORMAK 800x1500 conventional lathe has been designed for maximum precision and durability. Its high-quality cast-iron bed is induction-hardened and precision-ground to minimise guideway wear. The spindle mounted on precision bearings ensures rotational stability and low vibration levels, resulting in smooth surface finishes. The powerful main motor – 7.5/9 kW – enables efficient machining of steel, cast iron and other hard metals.
The machine is equipped with a cooling system that ensures optimal cutting conditions and 24V halogen lighting for excellent visibility and setup precision. The rapid feed mechanism allows quick carriage movement, improving overall efficiency and ergonomics.
Exceptional machining accuracy is achieved through a thoughtful mechanical design and modern metrological systems. The three-axis DRO allows precise monitoring of all machining parameters down to hundredths of a millimetre. The spindle speed range of 25–1600 rpm provides optimal cutting speeds for different materials and tools, extending tool life and improving surface finish quality.
The CORMAK 800x1500 universal lathe is designed for a wide range of turning operations – from roughing large steel workpieces to precise finishing of large-diameter parts. It is ideal for:
Its versatility and large swing over bed make it the perfect choice for workshops that demand flexibility without compromising on accuracy.
| Max swing over bed | 800 mm with LCD readout |
| Max swing over cross slide | 460 mm |
| Swing in gap | 900 mm |
| Distance between centres | 1500 mm |
| Bed type | Induction-hardened |
| Bed width | 500 mm |
| Chuck diameter | 315 mm |
| Spindle bore | 105 mm |
| Spindle nose | D1-8 DIN 55029 |
| Spindle speed range | 25–1600 rpm |
| Max tool dimensions | 25×25 mm |
| Longitudinal feed range | 0.044–1.480 mm/rev |
| Cross feed range | 0.022–0.740 mm/rev |
| Metric thread range | 0.35–120 mm |
| Inch thread range | 7/16–80 TPI |
| Tailstock quill travel | 235 mm |
| Tailstock taper | MT5 |
| Digital readout | 3-axis |
| Main motor power S1/S6 | 7.5/9 kW |
| Overall dimensions | 4800×1320×1580 mm |
| Net weight | 3820 kg |
The CORMAK 800x1500 conventional lathe is designed for demanding users who require reliability, accuracy and durability. Its robust construction, modern equipment and wide parameter range make it a professional metalworking lathe capable of meeting the toughest industrial and workshop tasks.
Contact us for a quotation and technical advice. Invest in a proven solution – choose the CORMAK 800x1500 universal lathe and enhance your machining capabilities.
