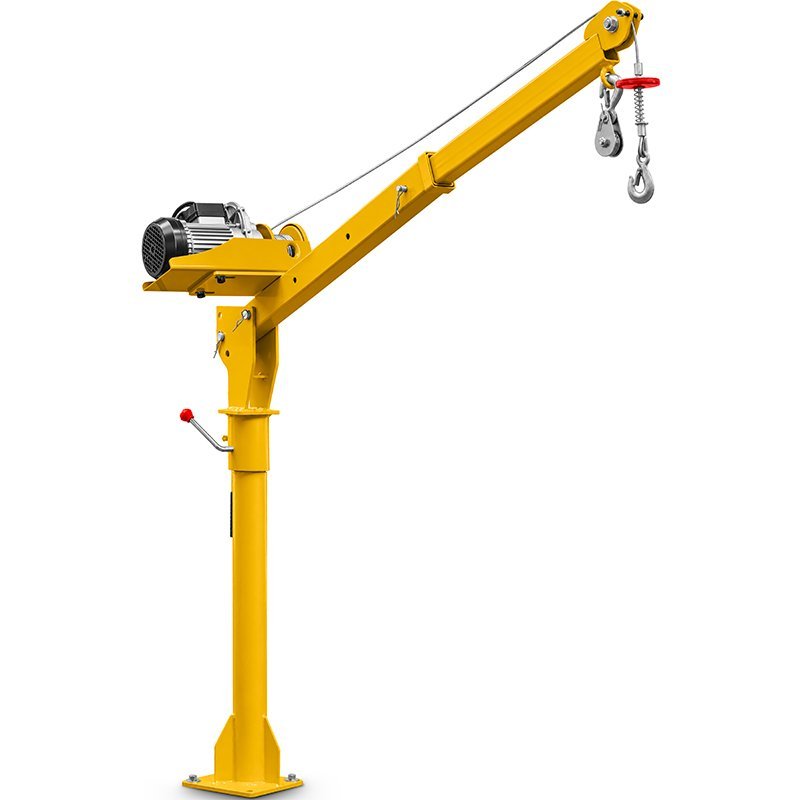

CORMAK DSA500 workshop jib crane with a 230V electric hoist facilitates lifting parts, components and materials during workshop, maintenance and loading operations. The electric drive reduces the physical effort required to lift loads. The hoist has a lifting capacity of up to 500kg with a pulley block or 250kg without a pulley block. These two configurations allow operators to choose between higher hoist capacity and faster lifting of lighter loads. The configuration must be selected according to the load weight and the permissible load capacity of the complete crane assembly.
CORMAK DSA500 combines a workshop jib crane structure with an electric hoist. Two hoist configurations allow the lifting capacity and lifting speed to be matched to the task.
The stated lifting capacities apply to the hoist. The permissible load capacity of the complete crane assembly must be determined from the crane documentation, taking into account its installation conditions.
In workshops and maintenance operations, the DSA500 assists with lifting parts during repairs and component replacement. During loading operations, it helps lift components and materials prepared for transport.
| Model | CORMAK DSA500 |
| Hoist type | Electric |
| Hoist power supply | 230V |
| Hoist lifting capacity with pulley block | Up to 500kg |
| Lifting speed with pulley block | 5m/min |
| Hoist lifting capacity without pulley block | Up to 250kg |
| Lifting speed without pulley block | 10m/min |
| Hoist power | 1,000W |
| Hoist duty cycle | S3 – 20% / 10min |
| Hoist dimensions (W × H × L) | 147 × 178 × 385mm |
Choose the CORMAK DSA500 for your workstation. Contact us to discuss the weight of the components to be lifted and the crane's intended operating conditions.
