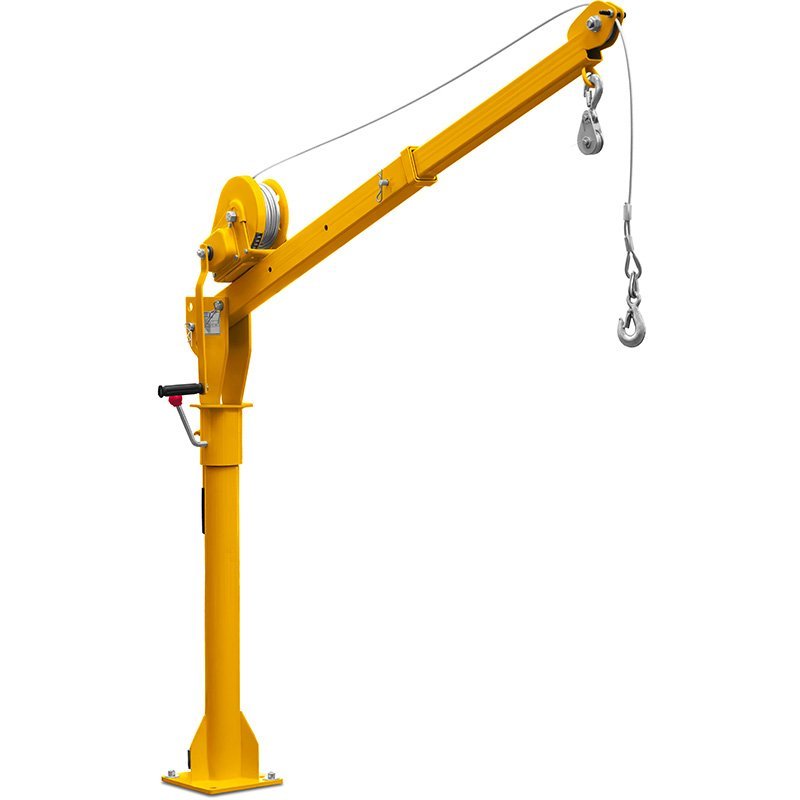

Manual Davit Crane CORMAK DS500 with Hand Winch – 500kg

CORMAK DS500 Manual Jib Crane for Workshop, Assembly and Loading Operations

CORMAK DS500 is designed for lifting and positioning parts, components and technical equipment during workshop, assembly, maintenance and loading operations. Its adjustable construction allows the lifting point to be positioned according to the task.

Key Benefits

• Adjustable reach to suit the load – several boom positions make it easier to select a suitable reach according to the position of the load and the available working space.
• Manual operation without electrical power – hand-crank operation allows the crane to be used at workstations without access to an electrical supply.
• Reduced manual lifting – using the winch to lift loads reduces the need to lift heavy parts and components by hand.

Adjustable Boom – Selecting the Reach and Lifting Capacity

The boom length is 1,180–1,680mm, while the horizontal reach can be adjusted within a range of 760–1,500mm. The overall structure height is adjustable from 1,220–2,140mm.

The permissible load depends on the boom position: up to 500kg at the shortest reach, up to 250kg at the intermediate reach and up to 100kg at the maximum reach. When selecting a configuration, consider both the weight of the component and the required lifting reach.

5:1 Manual Winch with 15m Cable

The winch, with a 5:1 gear ratio, assists with lifting and controlling load movement using a hand crank. It is equipped with a 15m cable.

The winch itself has a lifting capacity of 810kg. This specification applies to the winch component, not to the permissible load of the complete crane. The maximum lifting capacity of the DS500 is 500kg; lower limits apply when the boom is extended further.

CORMAK DS500 Technical Specifications

Choose the CORMAK DS500 to suit your workshop requirements. Contact us to discuss selecting a crane based on the weight of the components to be lifted and the required working reach.
