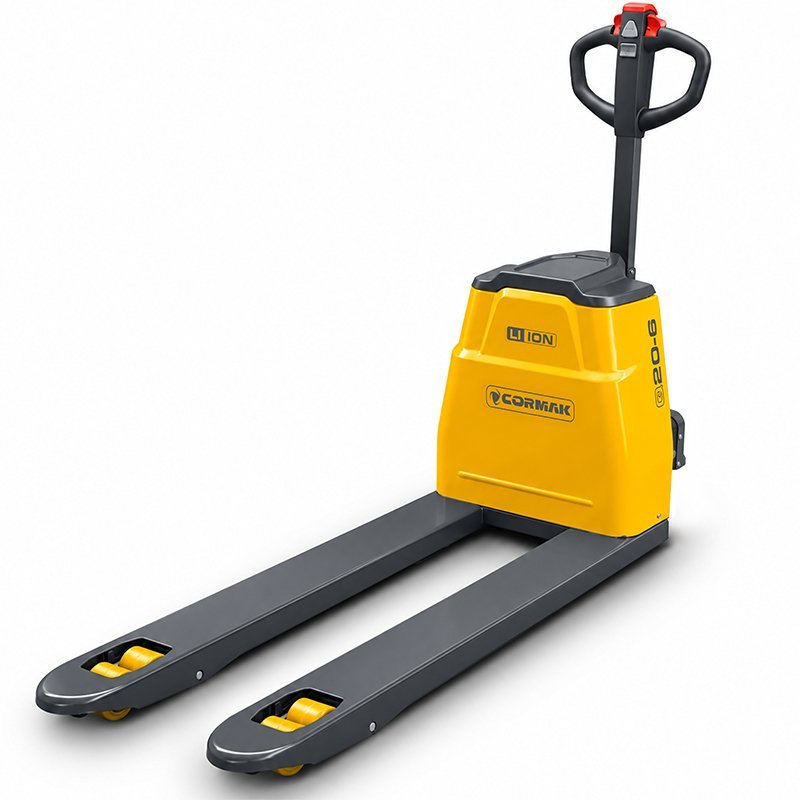

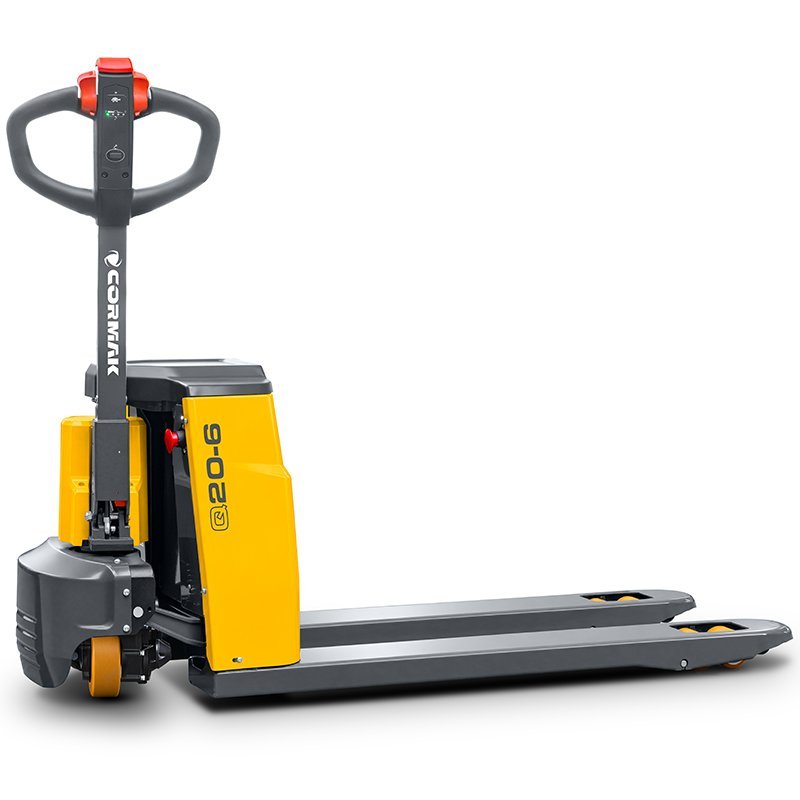

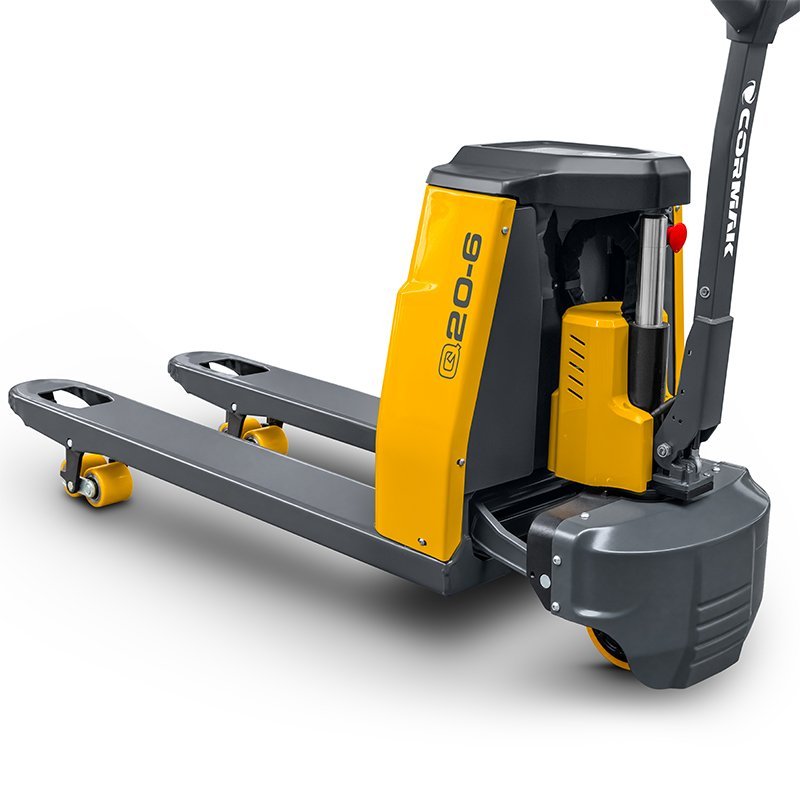

The CORMAK 2000kg electric pallet truck is designed for transporting pallets in warehouses, wholesale facilities and manufacturing plants. Electric travel and lifting, powered by 850W and 700W motors respectively, reduce operator effort when moving loads. The 1150mm forks with an overall outside width of 550mm enable efficient pallet handling, reaching a maximum height of 195mm. Power is supplied by a 48V battery with a capacity of 10, allowing the energy reserve to be matched to operational needs. The truck features polyurethane wheels and travels at 4km/h when laden and 4.5km/h when unladen.
The CORMAK 2000kg electric pallet truck is designed for horizontal pallet transport in warehouses, wholesale facilities and manufacturing plants. Electric travel and lifting reduce operator effort when moving loads weighing up to 2 tonnes.

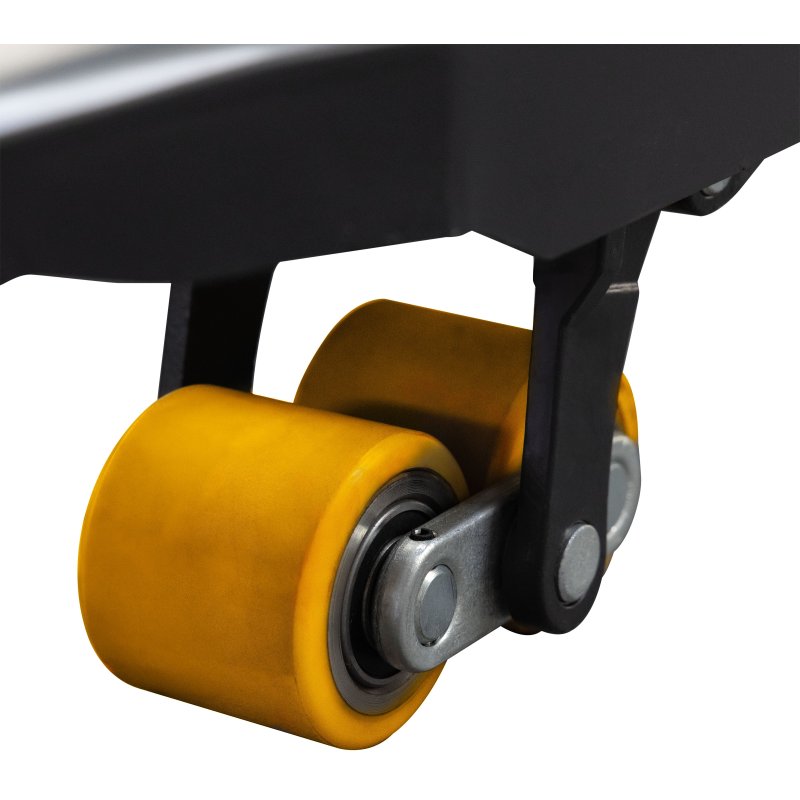

The battery-powered pallet truck uses separate motors for travel and lifting. Travel speed is 4km/h when laden and 4.5km/h when unladen. The polyurethane wheels comprise a front wheel measuring 160 × 55mm and rear rollers measuring 80 × 70mm. The 1x/4 wheel configuration consists of one driven wheel and four rollers.

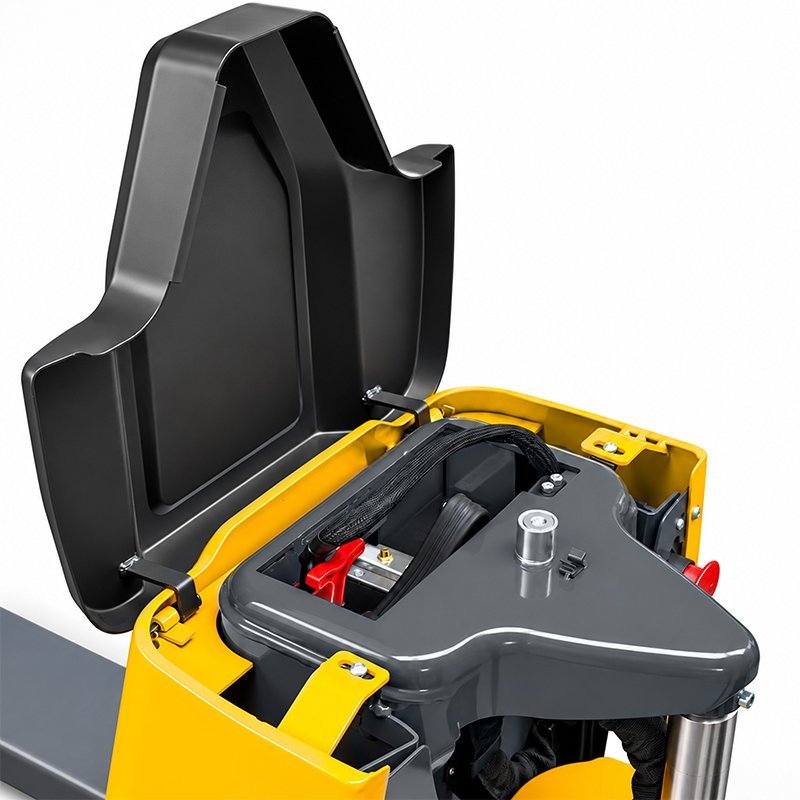

The specification includes a battery with a capacity of 10 or 20Ah. Selecting the battery capacity allows the energy reserve to be matched to internal transport requirements. A higher capacity at the same voltage means more energy stored in the battery.
In the lowered position, the forks are 80mm above the ground, making them easier to insert beneath a pallet. Lifting to 195mm allows the load to be raised for transport. The overall length of 1700mm and width of 550mm allow the equipment dimensions to be taken into account when planning pallet placement areas and transport routes.
The equipment is designed for moving incoming deliveries, supplying production workstations and transporting prepared pallets to dispatch areas. The electric pallet truck is suitable for repetitive transport cycles in which the operator regularly picks up and sets down loads.
| Parameter | Value |
|---|---|
| Load capacity | 2,000kg |
| Turning radius | 1,300mm |
| Raised fork height | 195mm |
| Lowered fork height | 80mm |
| Fork length | 1,150mm |
| Fork width | 550mm |
| Wheel dimensions | Φ160×55 / Φ80×70mm |
| Battery voltage / rated capacity | 48V/10Ah |
| Operating time on a fully charged battery | up to 3h |
| Charging time | approx. 2.5h |
| Brake | electromagnetic |
| Travel speed, laden / unladen | 4 / 4.5km/h |
| Maximum gradient, laden / unladen | 6%/10% |
| Wheel material | polyurethane |
| Weight | 118kg |
| Dimensions | 1,700 × 550 x 1,250mm |
| UDT inspection required | NO |
Contact a CORMAK adviser to select a battery configuration suited to the operating conditions in your facility.
