Key Features:
-
Front supports: 2 pieces ensuring stability during bending operations
-
Rear stop adjustment (X-axis): automatic
-
Beam adjustment (Y-axis): automatic
-
Finger height adjustment (R-axis): manual
-
Punch clamping: AMADA-type quick-change system, enabling rapid tool changes
-
Split punches
-

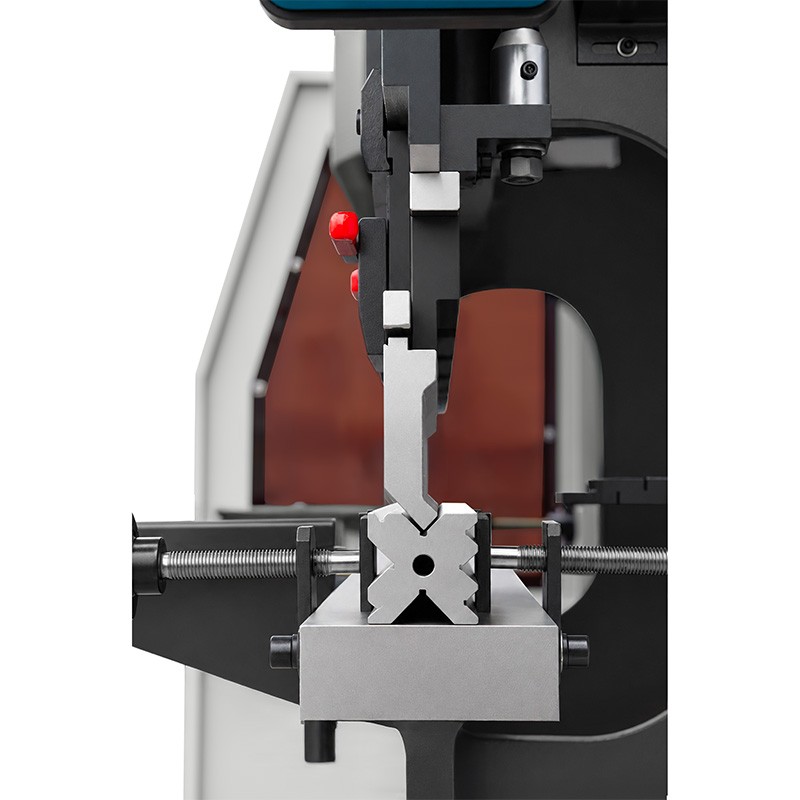

Four-sided multi-groove die allowing bending of sheet metal of various thicknesses
-
Bosch Rexroth hydraulics
-
High-performance electric motor
Technical specifications
|
BASE 63x2000 |
| Controller |
CR-41 |
| X-axis |
Servo |
| R-axis |
Manual adjustment |
| Nominal force |
630 kN |
| Maximum length of sheet metal to be bent |
2,000 mm |
| Beam cut-in depth (throat) |
250 mm |
| Maximum stroke of the moving beam |
100 mm |
| Maximum opening height |
300 mm |
| Distance between beams |
1500 mm |
| Motor power |
5.5 kW, standard |
| Length |
1600 mm |
| Width |
2,100 mm |
| Height |
2,930 mm |
| Weight |
3,800 kg |
Controls and Functionality:
%20Cormak%20CR-41%20controller.png" width="300" height="317" style="float: left; padding-right: 30px;" alt="CORMAK CNC EURO PB 40x1600 hydraulic press brake" />
CR-41 CNC
- fitted with a 10-inch touchscreen mounted on a movable arm, allowing freedom of movement across the machine’s entire working area
- Programmability: capacity to store up to 2,000 programmes, each with 30 steps, allowing for flexible adaptation to various tasks
- Ergonomic operation: an intuitive menu with English abbreviations facilitates a quick familiarisation with the machine
The machine combines advanced technology with ease of use, making it the ideal choice for both precision manual tasks and efficient batch production. High-quality components and advanced safety features guarantee reliability and safe operation.
Safety
Laser safety system
Optionally available: a top-of-the-range laser safety system, which protects the operator and more than doubles the speed of the bending process.
%C4% 99edging/laser%20presses.jpg" alt="CORMAK CNC EURO PB 40x1600 hydraulic press brake" width="600" height="400" style="display: block; margin-left: auto; margin-right: auto;" />
__ETS_EMBED_MQ==__
With a laser
- A laser safety curtain is used
- The laser creates a ‘barrier’ right next to the bending zone — if a hand enters the beam’s path, the machine immediately stops the beam’s movement.
- Protects the operator without reducing productivity.
Without a laser
- The press only stops when someone breaches the safety guard at a greater distance from the tool.
- The safety measures are more traditional:
- light curtain safety barriers fitted further away from the tool
- two-hand control
- mechanical devices
With a laser
- Minimum safety distance — the operator can work closer to the tools.
- The machine can operate faster, as the system tracks the tool in real time.
- The biggest advantage: maximum productivity + safety.
Without a laser
- Greater safety distance = slower operation.
- The beam must decelerate earlier.
- More time lost between bending cycles.
With laser
- The laser can detect a finger or even a small component right next to the bending zone.
- The system operates a millimetre from the die.
Without a laser
- Light curtains only detect movement within a specific zone — usually 100–200 mm from the tool.
- Protection is less precise.
With a laser
- The operator can work naturally whilst using the tool.
- They do not need to keep their hands at a considerable distance.
- Very convenient for single-unit production and short runs.
Without a laser
- The operator must work under greater restrictions.
- It requires more steps, such as frequently pressing two start buttons.
We don’t cut corners on safety! A top-of-the-range BOSCH REXROTH hydraulic pump, along with hydraulic connections and safety valves designed in Poland.
%C4% 99edges/pump.jpg" width="400" height="400" alt="CORMAK CNC EURO PB 40x1600 hydraulic press brake" />
%C4% 99dziowych/zaw %C3% B3r %20steruj% C4%85cy.jpg" width="400" height="400" alt="CORMAK CNC EURO PB 40x1600 hydraulic press brake" />
Beware of pseudo-safety measures such as gates or light curtains, as they do not comply with CE standards and put workers at risk of injury. As an employer, you are responsible for your employees’ health!
CE-compliant safety guards
%C4% 99edge/gates %20do% 20press.jpg" alt="CORMAK CNC EURO PB 40x1600 hydraulic press brake" width="600" height="323" style="display: block; margin-left: auto; margin-right: auto;" />
Ergonomics and Additional Features:
- Mobile controller on a movable boom
- 2 supports
%C4%99di%20press%20kraw/panel.jpg" width="300" height="263" style="float: right;" alt="CORMAK CNC EURO PB 40x1600 hydraulic press brake" />
We
care about the safety of our customers and their teams, which is why our press brakes are equipped with a range of advanced safety features. These include clear markings, side guards, a rear safety gate and easily accessible emergency stop buttons.
Each machine is supplied with a clear and detailed operating manual in Polish.
The fact that a machine has a CE declaration does not mean it is safe. What matters is what safety systems it is fitted with!
%C4%99%20presses%20/signs%20%20bezpiecze%C5%84stwa.png" width="800" height="488" alt="CORMAK CNC EURO PB 40x1600 hydraulic press brake" />
Punch and die mounting:
- Four-sided dies and split punches as standard
- The basic system used in CORMAK press brakes is the AMADA-type manual system (European), enabling quick tool changes
- Punches are fitted from the side of the machine and secured with bolts
Terms of cooperation
- 24-month warranty.
- The machine is brand new
- Warranty and post-warranty servicing provided by the seller
