The SG1000SD grinding and deburring machine is ideal for preparing stamped and laser-cut components for further processing. It removes burrs and rounds edges more evenly than alternative machining methods.
This single-sided machine transports workpieces on a conveyor belt beneath two abrasive belts and three flap brushes operating from above. The rotating brushes process the edges of the workpieces.
CORMAK SG1000SD is a professional machine for deburring, burr removal and edge rounding of sheet metal components. The machine has been designed primarily for laser-cut, plasma-cut and punched parts, providing high-quality finishing of both small workpieces and larger components with widths of up to 1,000mm.
The combination of a wide belt grinding head, planetary unit and vacuum table enables several finishing stages to be completed in a single process. The SG1000SD effectively removes burrs, smooths surfaces and provides uniform rounding of sharp edges.
The machine enables efficient processing of components following laser cutting and other material cutting operations. Individual working units perform successive stages of workpiece finishing:
The SG1000SD has been designed for production facilities requiring high repeatability and fewer manual operations. Its working system combines deburring, grinding and edge rounding in a single machine.

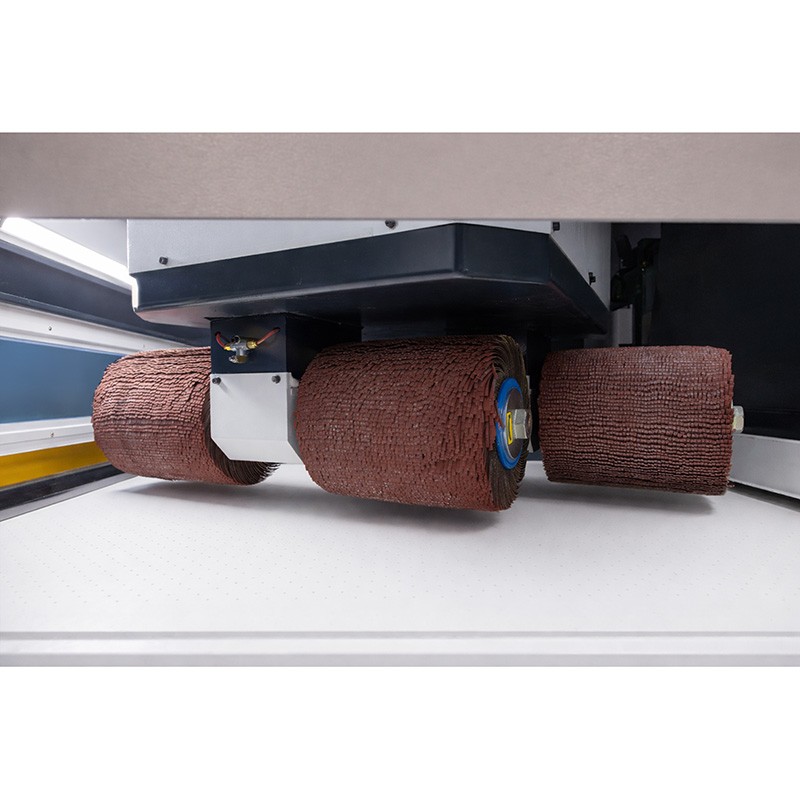

The specialised planetary system processes workpieces from multiple directions, enabling uniform finishing of external edges, holes and internal contours.
The vacuum table improves workpiece stability and enables the processing of components with minimum dimensions of just 50 × 50mm. This solution is particularly useful when processing lightweight, thin and perforated sheet metal components.
Important: The vacuum generator is not included in the standard equipment.
The machine is particularly suitable for processing:
The SG1000SD is equipped with a control system that allows precise adjustment of process parameters according to the type and dimensions of the workpieces. Control of operating parameters helps maintain high machining repeatability and reduces the time required for machine setup.
The system also takes into account wear of the working components, helping to maintain consistent results during prolonged operation.
| Maximum working width | 1,000mm |
| Working thickness range | 0–80mm |
| Minimum workpiece dimensions | 50 × 50mm |
| Feed speed | 1–5m/min |
| Wide Belt Grinding Head | |
| Roller diameter | 130mm |
| Abrasive belt dimensions | 1,000 × 2,005mm |
| Main motor power | 30kW |
| Planetary Head | |
| Abrasive roller dimensions | Ø300 × 290mm, bore Ø32mm |
| Roller drive motors | 2 × 2.2kW |
| Roller rotational speed | 30–1,300rpm |
| Planetary rotation motor | 5.5kW |
| Planetary rotation speed | 1–17rpm |
| Dust extraction connection diameter | 200mm |
| Operating temperature range | +5 to +40°C |
| Permissible humidity | 5–85% |
| Noise level | Approx. 80dB |
| Power supply | 400V AC |
| Machine dimensions | 2,570 × 1,620 × 1,980mm |
| Weight | 2,450kg |
CORMAK SG1000SD is a solution for production facilities, metalworking workshops, sheet metal fabrication companies and businesses using laser cutting technology. The machine significantly improves the preparation of workpieces for subsequent production stages, such as painting, welding, assembly and powder coating.
The combination of a large working width, high-performance belt grinding unit and planetary system makes the SG1000SD a versatile machine for deburring, grinding and rounding sheet metal edges, designed for intensive industrial operation.
*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.
