Category: Metal Chip & Dust Extractors

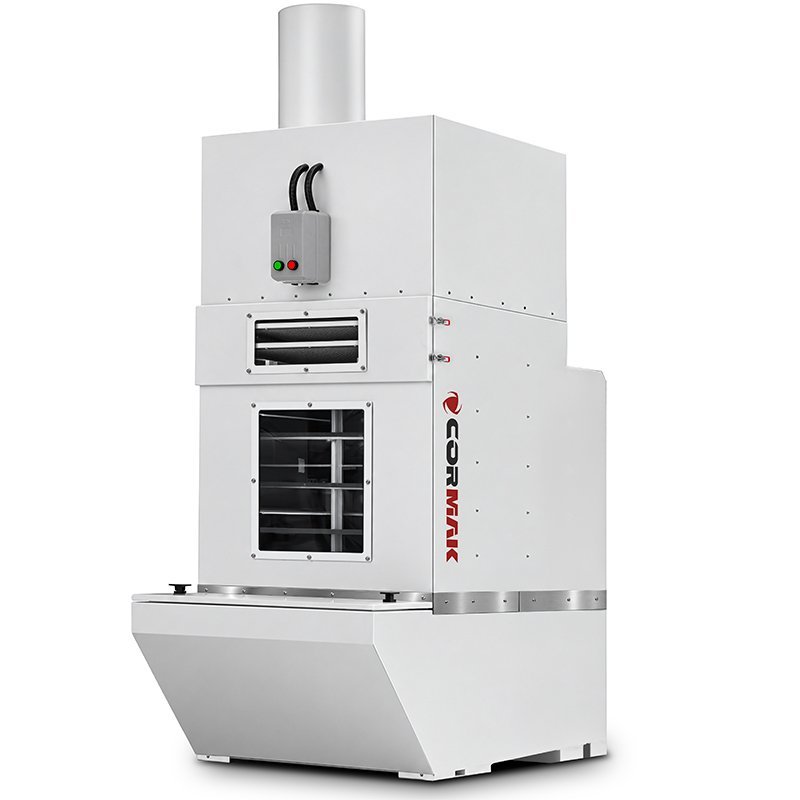

Wet Dust Extraction System for Deburring Machines CORMAK SGDCW1000 7.5kW

The CORMAK SGDCW1000 wet dust extraction system for deburring machines, with a 7.5kW motor and 3,000m³/h airflow capacity, is an essential solution for metalworking facilities prioritising fire safety. With a maximum pressure of 4,600Pa, a robust weight of 450kg, two Ø200mm suction connections and advanced mesh filters, it ensures reliable dust extraction even during intensive deburring operations. Choose the CORMAK SGDCW1000 for clean air, machine protection and employee safety.

tax included €29,631.00
excl. tax €24,900.00
This product is in stock; however, due to its weight exceeding 1,000 kg, it cannot be shipped internationally using our standard delivery service. To discuss available shipping options and delivery terms, please contact our Export Department.
Contact Export Department
tax included €29,631.00
excl. tax €24,900.00
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Wet Dust Extraction System for Deburring Machines CORMAK SGDCW1000 7.5kW
excl. tax €24,900.00
tax included €29,631.00

Related categories

Metal Chip & Dust Extractors Metalworking Machines Products

Description

CORMAK SGDCW1000 7.5kW Wet Dust Extraction System for Deburring Machines

The CORMAK SGDCW1000 industrial wet dust extraction system is an advanced unit specifically designed for use with deburring machines and grinding stations. It is ideally suited for the safe extraction of dust with an increased risk of ignition and explosion, particularly aluminium dust, as well as dust generated during stainless steel and carbon steel processing. By immersing contaminated air in water, it effectively reduces fire hazards during production processes.

Main Advantages and Features

  • Fire safety: Wet separation of metal dust (aluminium, magnesium) significantly reduces the risk of explosions and spark ignition within the deburring machine's extraction system.
  • High filtration efficiency: The extracted air passes through a water bath, where microscopic dust particles are permanently captured in the tank.
  • Heat recovery: After filtration, the air reaches an optimal humidity level (approximately 60%) and can be safely recirculated into the production hall.
  • Durable and robust construction: The unit is manufactured from high-quality, corrosion-resistant materials and designed for continuous operation in demanding industrial environments.
  • Easy maintenance: Convenient access to the filtration area and water tank simplifies daily cleaning and servicing.

Technical Specifications

Motor power 7.5kW
Maximum airflow capacity 3,000m³/h (at 20°C and a medium density of 1.2kg/m³)
Fan speed 2,900rpm
Maximum pressure 4,600Pa
Weight 450kg
Filters Mesh filters, 2 × 750 × 810mm

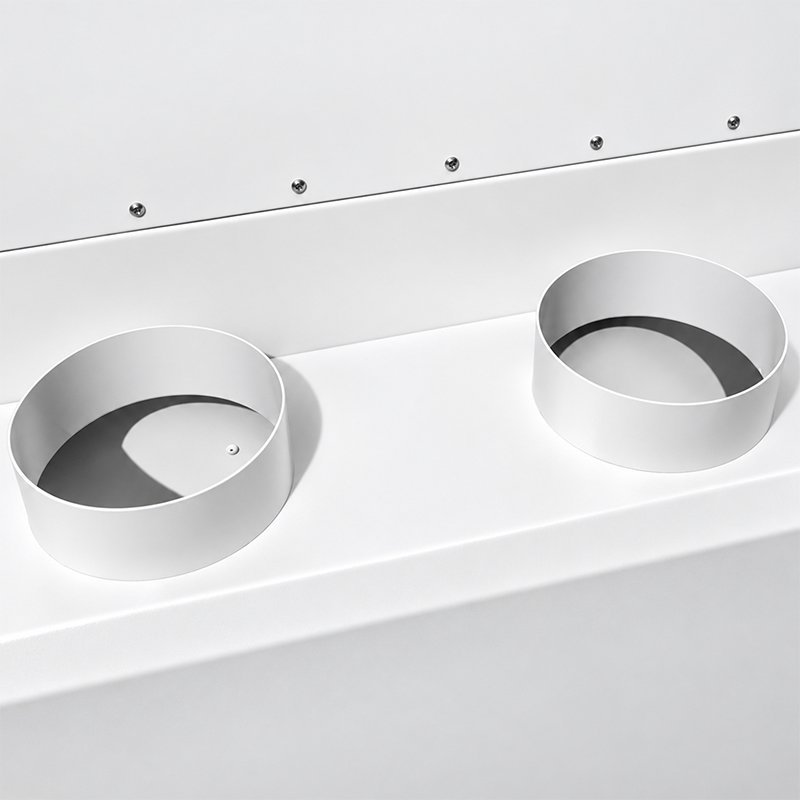

Suction connections 2 × Ø200mm
Fan outlet flange Ø180 / Ø225mm
Overall dimensions (W × D × H) 1,400 × 850 × 2,170mm

Construction and Standard Equipment

The wet dust separator has been optimised for seamless integration with modern deburring machines and surface finishing equipment. Standard equipment includes:

  • A high-performance industrial fan with a high rotational speed, designed to generate strong negative pressure.
  • Two advanced mesh filters measuring 750 × 810mm.

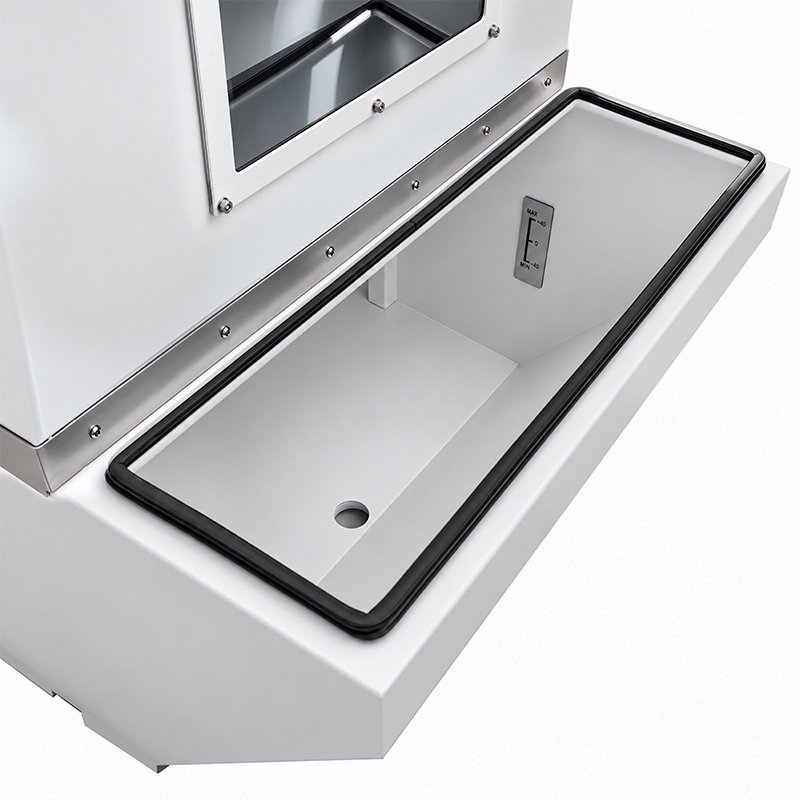

  • A spacious water tank with a drain for water replacement.

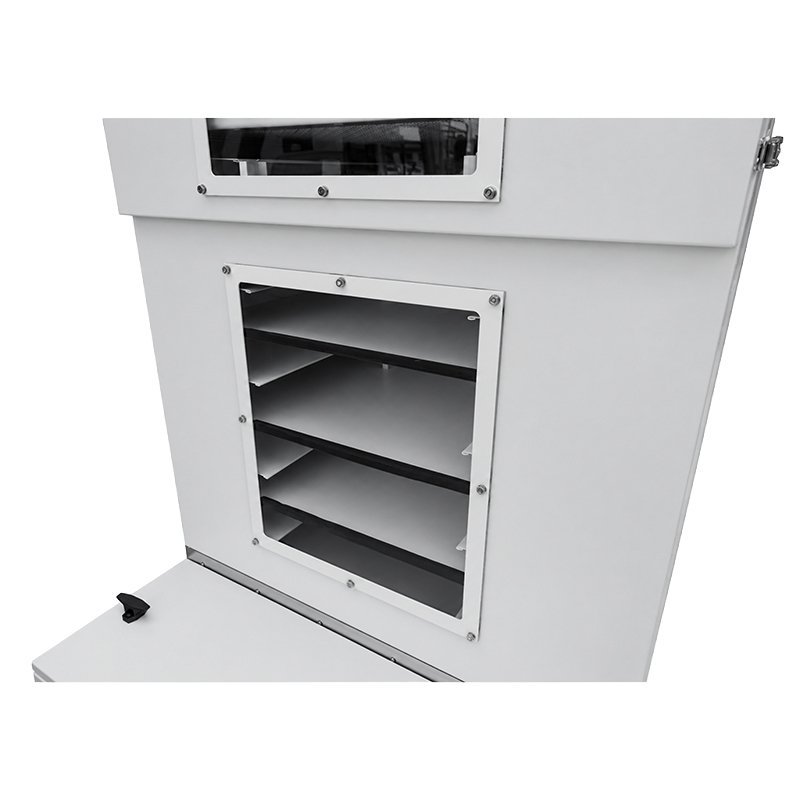

  • Ergonomic inspection panels providing continuous visual monitoring of the filtration process.

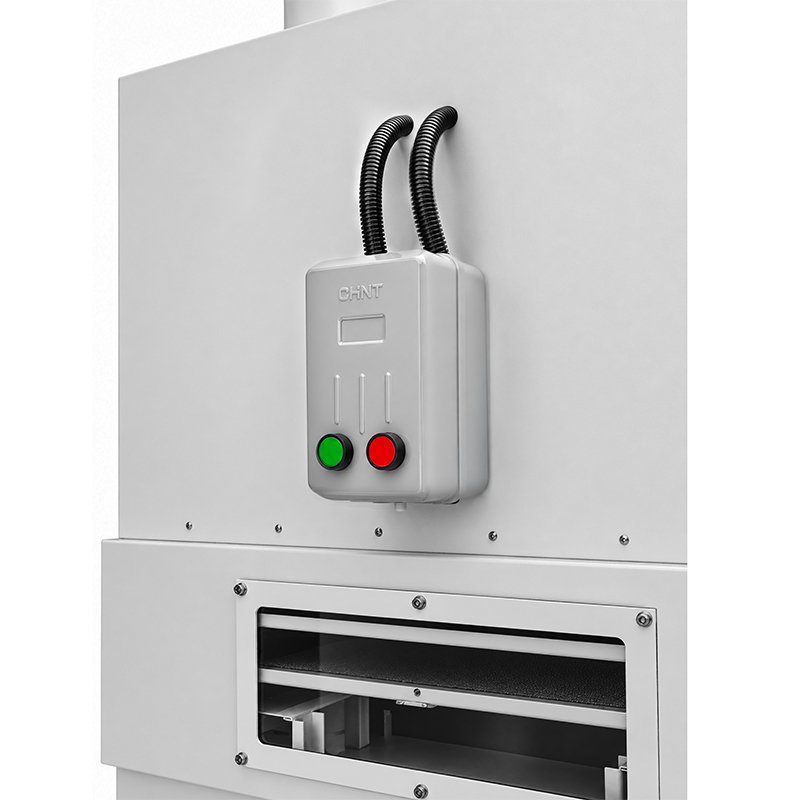

  • A safe electrical system designed to meet stringent industrial standards.
