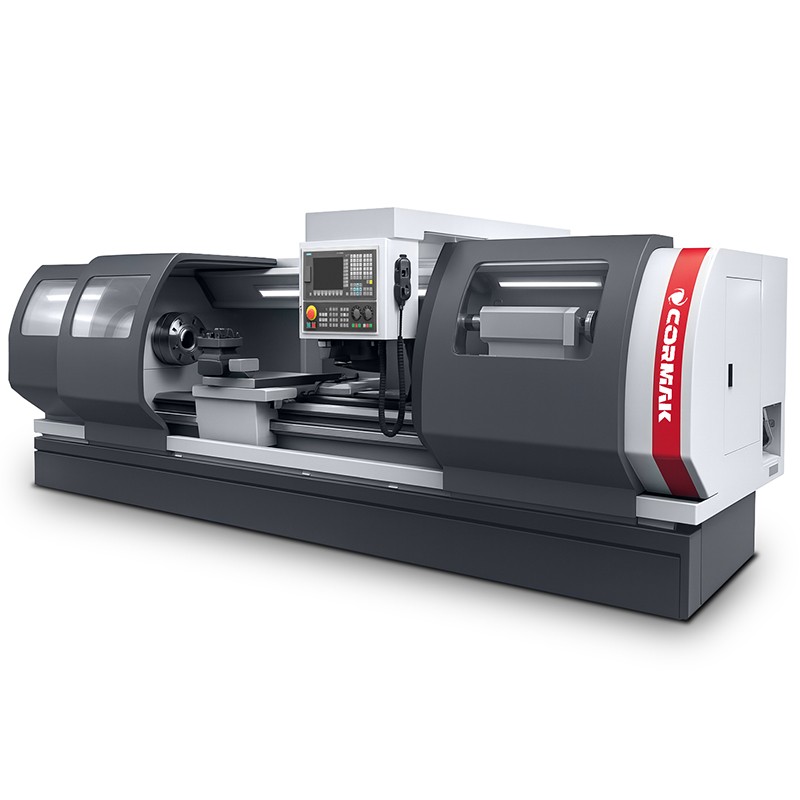

CNC Lathe CORMAK 1200x1500/2000/3000 SIEMENS SINUMERIK

CNC Lathe 1200 – Precision and performance in metal machining | CORMAK

CNC Lathe 1200 is a professional numerical machine tool designed for precise metal machining in demanding industrial applications. Owing to its robust construction and advanced control systems, it ensures reliability and high efficiency in both series and unit production.

Main advantages of the CNC Lathe 1200

Numerical lathe 1200 combines advanced technology with functionality, offering users key benefits that enhance production efficiency. Below are the machine’s main advantages:

• High machining accuracy: Maximum turning diameter over the bed of 1200 mm and over the carriage of 850 mm allow precise processing of large components.
• Versatility: Available between-centres distances (1500 mm, optional 2000/3000 mm) enable machining of workpieces of various lengths.
• Production efficiency: Spindle speed ranges of 14–60, 60–210, 210–750 rpm and rapid feed in X/Z axes (6/4 m/min) reduce machining cycle times.
• Durability and reliability: The automatic lubrication system for gears and guides minimises wear and operating costs.
• Advanced automation: The 6-position turret head (optional 8) increases efficiency during multi-stage machining.
• Intuitive operation: Siemens Sinumerik 808D control system, with optional Sinumerik 828D or Fanuc Oi-TF, ensures simple programming and easy handling.
• Safety and ergonomics: 24V halogen lighting and a cooling system provide operator comfort and protection.

Construction and technology

1200 CNC metal lathe has been designed for durability and accuracy under demanding industrial conditions. The key construction elements include:

• Robust machine bed: Width of 550 mm ensures stability during machining of large components.
• Large-bore spindle: Spindle through-hole of 105 mm allows the machining of long and heavy parts.
• Powerful spindle drive: 11 kW main motor guarantees high performance when machining various materials.
• Automatic lubrication system: Reduces maintenance needs and extends the life of gears and guides.
• Turret head: Standard 6-position (optional 8) provides rapid tool change, enhancing automation.
• Cooling system: Ensures optimal tool and workpiece conditions, improving machining quality.
• Manual 3-jaw chuck: Secures firm clamping of workpieces of different shapes.

Precision and work efficiency

Industrial lathe 1200 delivers exceptional precision thanks to advanced Siemens Sinumerik and Fanuc Oi-TF control systems. They enable easy programming of complex cycles such as threading, grooving and drilling. The rapid feed rate in the X axis (6 m/min) and Z axis (4 m/min) together with Siemens servo drives guarantee high machining accuracy and repeatability. The dynamic spindle drive optimises production time, which is crucial for serial manufacturing processes.

Applications

CNC metal lathe 1200 is an ideal solution for a wide range of industrial applications, including:

• Automotive industry: Production of large components such as shafts, bushings, and gears.
• Machinery industry: Machining of large-sized machine parts requiring high accuracy.
• Serial and unit production: Flexibility to handle both large batches and individual parts.
• Energy and aerospace industries: Turning of components with high technical requirements, such as turbine parts or axles.
• Shipbuilding industry: Machining of large metal components up to 3000 mm in length.

The machine is an excellent choice for production facilities seeking a reliable and versatile solution.

Technical specifications of the CNC Lathe 1200

Standard equipment

• SIEMENS SINUMERIK 808D control
• Siemens servo drives
• Manual 3-jaw lathe chuck
• 6-position turret head
• Set of soft jaws
• Manual tailstock
• Cooling system
• Automatic lubrication system for gears and guides
• 24V halogen lighting
• User manual
• CE declaration

Optional equipment*

• SIEMENS SINUMERIK 828, Fanuc, GSK control systems
• Travelling steady rest
• Fixed steady rest
• Hydraulic chuck
• Hydraulic tailstock
• Tool probe
• Chip conveyor
• Additional soft jaws
• Hard jaws
• Collet chucks
• Finished parts catcher
• Bar feeder
• Tool holders
• CAD/CAM software

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.

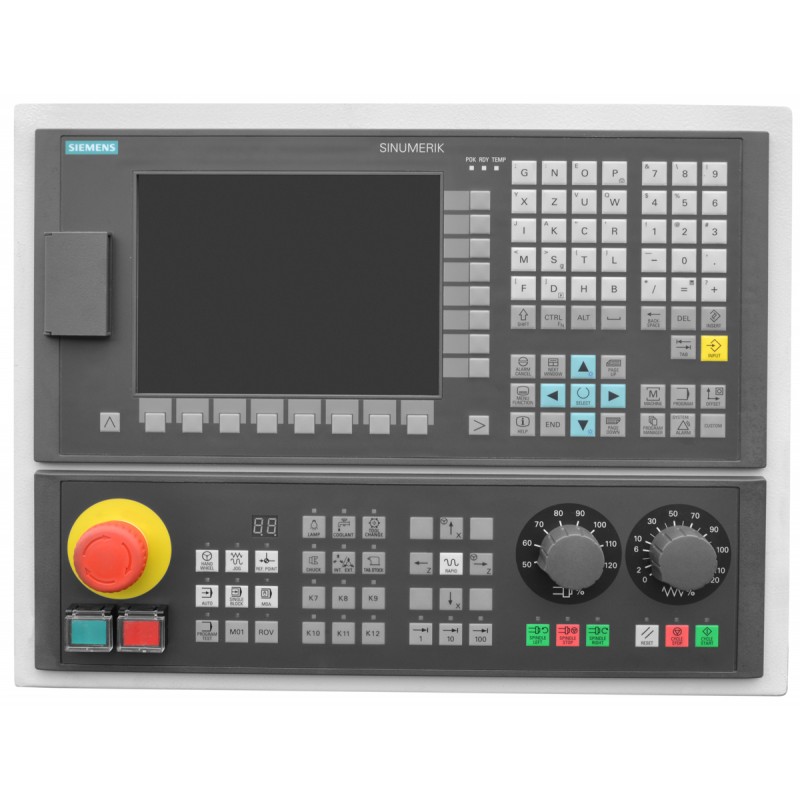

CNC control systems – Siemens Sinumerik 808D, 828D and Fanuc Oi-TF

CNC metal lathes from the 1200 series are equipped with renowned Siemens Sinumerik and Fanuc Oi-TF control systems, providing precision, reliability and ease of operation. Selecting the appropriate control system allows the machine to be tailored to specific production requirements.

Siemens Sinumerik 808D

Siemens Sinumerik 808D is an economical CNC control system for entry-level users, offering an intuitive interface, high reliability and compatibility with standard machines.

Siemens Sinumerik 828D

Siemens Sinumerik 828D is an advanced control system for demanding processes, featuring high computing power, complex machining cycles and full CAD/CAM integration capability.

Fanuc Oi-TF

Fanuc Oi-TF provides exceptional stability and precision in turning operations, with an intuitive interface and advanced functions ideal for series production.

Trust the CORMAK experience

With over 20 years of experience in supplying industrial machinery, CORMAK offers reliable solutions and professional service. Our CNC lathes comply with European safety standards and are supported by a team of qualified engineers.

• 16 years of experience in CNC Siemens control service.
• 15,000 m² warehouse area with approximately 12,000 machines in stock.
• Professional consultancy in selecting machines and technical solutions.

User manuals

SIEMENS SINUMERIK 828/840

Download manual

SIEMENS SINUMERIK 808

Download manual

Order the CNC Lathe 1200 today!

Contact us for a detailed offer and professional advice in selecting the right CNC metal lathe. Invest in precision and productivity with CORMAK! Contact us
