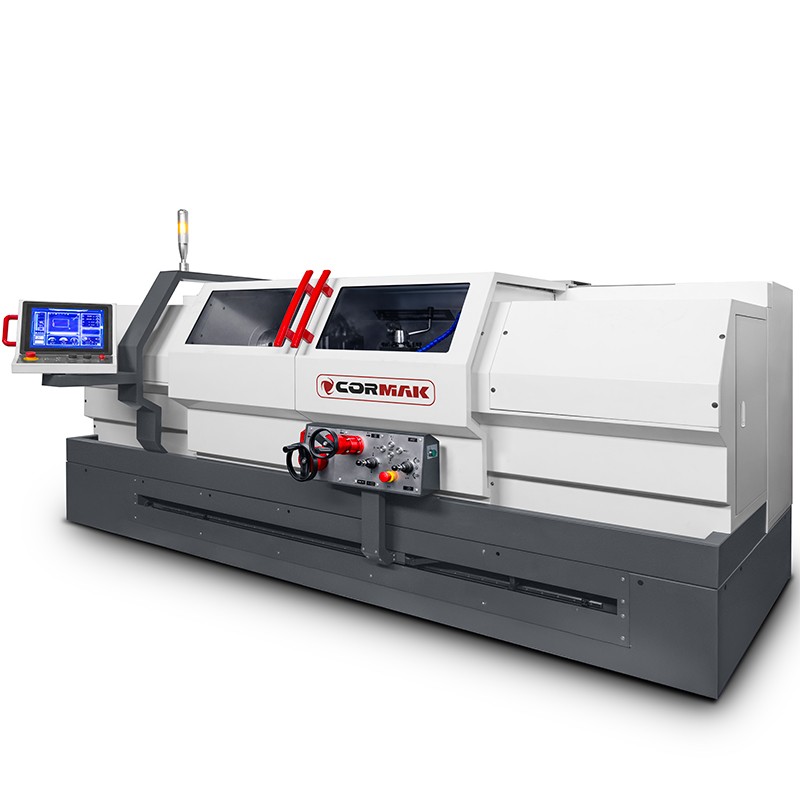

Conventional Lathe with NC Control CORMAK EASY NC-500 500x1500

Main advantages of the machine

• 12.1” touchscreen with a clear interface and interactive guide – intuitive even for beginner operators.
• Automated machining cycles for quick preparation of threads, tapers and simple contours by entering parameters.
• NC and manual modes – flexibility for production and educational applications.
• Constant cutting speed – ensures uniform surface quality regardless of workpiece diameter.
• Rigid bed construction and precision guides guarantee stable operation even with large workpieces.
• Modern X and Z axis servomotors ensure smooth, rapid feed motion, reducing cycle time.
• Efficient chip removal system – drawer-type collector keeps the workspace clean.

Design and technology

The EASY NC-500 lathe has been designed for maximum efficiency and durability. The wide 400 mm bed minimises vibration and enhances machining quality. The spindle bore 80/104 mm (depending on version) enables machining of long and heavy components. The 11 kW spindle motor provides up to 1085 Nm of torque, allowing effective turning of hard materials. Servo-driven operation ensures dimensional repeatability and reduces setup time.

Precision and efficiency

With automated machining cycles and simultaneous two-axis turning capability, the EASY NC-500 ensures high precision and reduced production time. Threading operations — metric, inch, module and D.P. — are simplified to basic parameter input, with the machine performing the rest automatically.

Applications

The CORMAK EASY NC-500 conventional lathe with NC control is suitable for:

• Small and medium production workshops producing single or small-batch components,
• Maintenance and repair departments requiring flexibility and quick setup,
• Technical schools and training centres – ideal for teaching machining fundamentals and NC programming thanks to its intuitive control.

Standard equipment

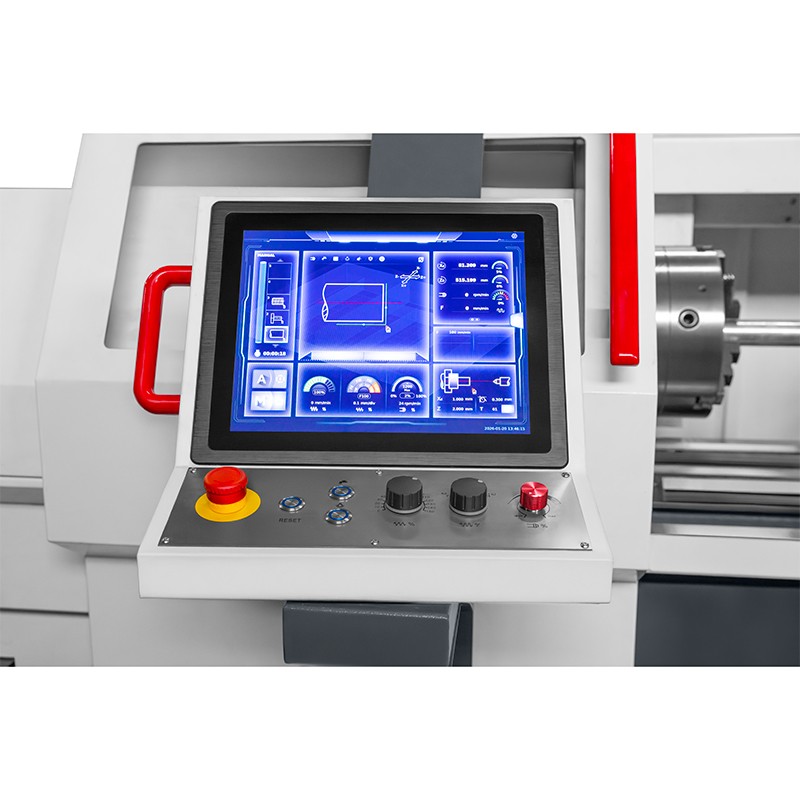

• NC control system with 12.1” touchscreen
• Digital readout (DRO)
• 4-position tool post
• Coolant system
• LED working area lighting
• Chip removal drawer system
• 3-jaw chuck

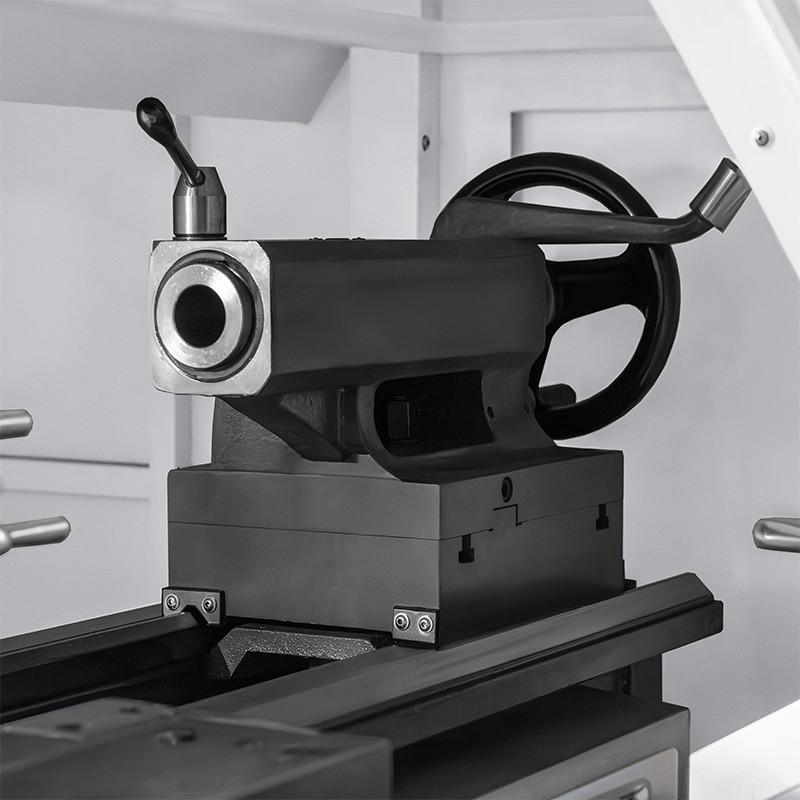

• Tailstock centres type MT5

Optional equipment

• 4-jaw self-centring or independent chuck (option*)
• Fixed and travelling steadies (option*)
• Quick-change tool post (option*)
• Collet chuck (option*)

Technical data

Choose precision and reliability – choose CORMAK EASY NC-500

If you are looking for a robust NC lathe that combines intuitive operation, machining precision and production flexibility, the CORMAK EASY NC-500 is the perfect solution. Please contact our technical consultant to learn more about available configurations.

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
