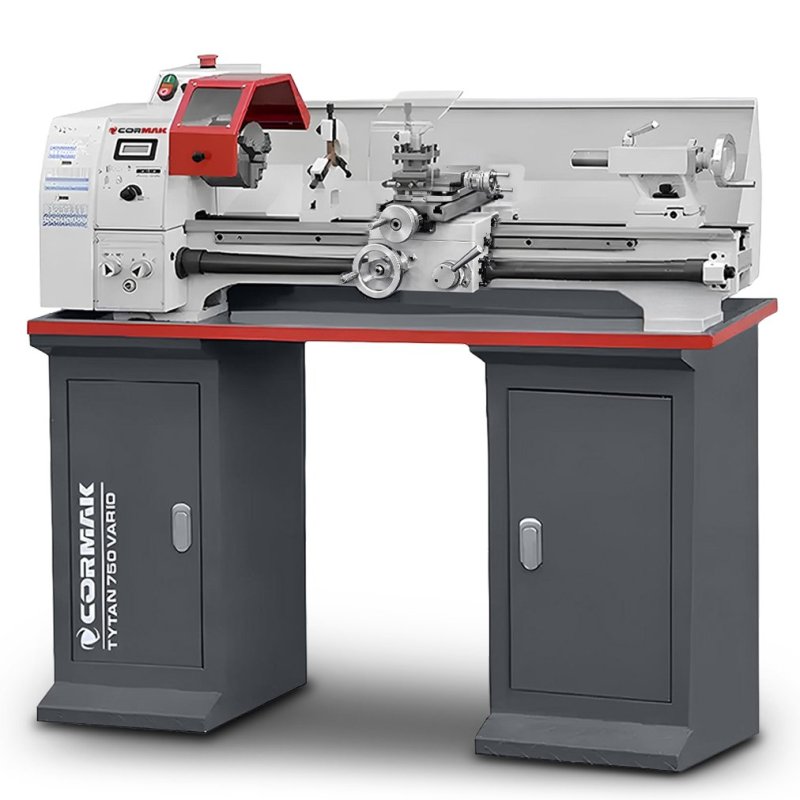

Conventional Universal Lathe CORMAK TYTAN 250x750 VARIO 230V

Machine description:

Universal lathe TYTAN 750 PRO (VARIO) 230V with smooth spindle speed regulation is an ergonomic machine tailored to user needs. Shortened setup time for machining parts of various dimensions increases efficiency and ease of operation.
VARIO version – electronic, stepless spindle speed control via DC motor and voltage regulator ensures excellent rotational accuracy of the chuck, resulting in a higher surface quality of machined components.

Main advantages:

• Modern DC motor with variable spindle speed control provides convenience and shortens setup time.

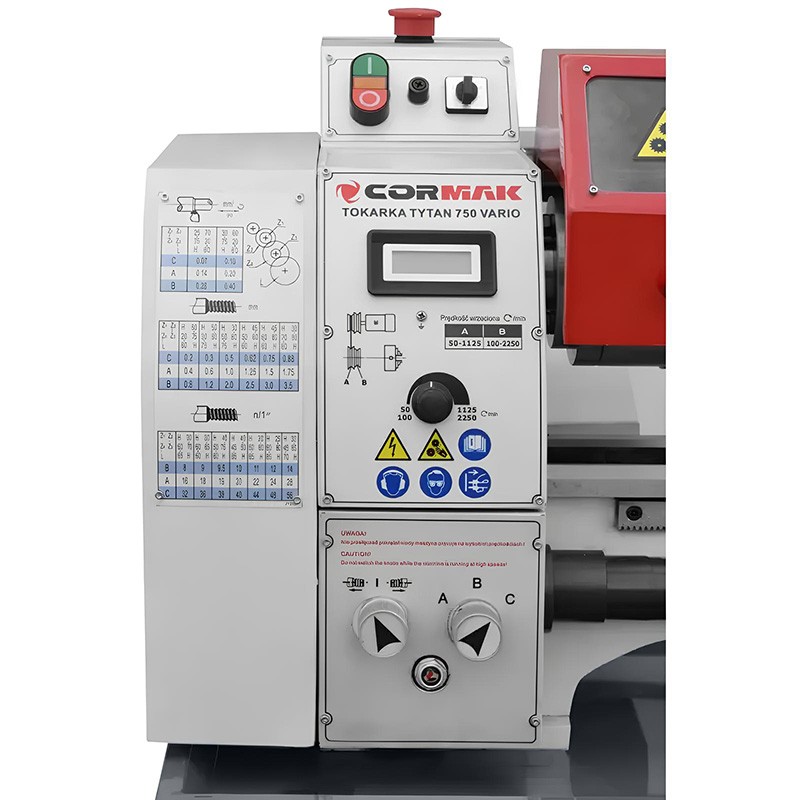

• LCD display showing spindle speed allows quick adjustments during cutting and threading.
• Two spindle speed ranges: low (50–1125 rpm) for machining hard steels and high (100–2250 rpm) for precise finishing operations.
• Thread cutting: metric – 18 steps (0.2–3.5 mm), inch – 21 steps (8–56 TPI); capability for both right- and left-hand threads.
• Automatic longitudinal feed with 6 speed settings (0.07–0.40 mm/rev) reduces machining time without compromising quality during long-part turning.
• Fully compliant with EU directives (CE) and DIN industrial standards.

Technical specifications

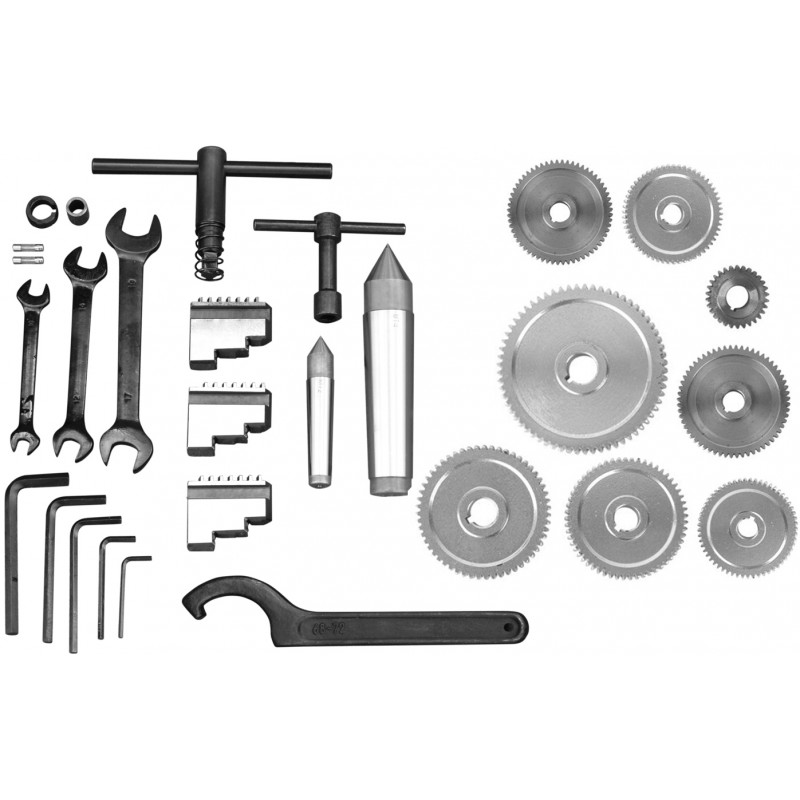

Standard equipment

• 3-jaw chuck (125 mm)
• Fixed and travelling steady rests

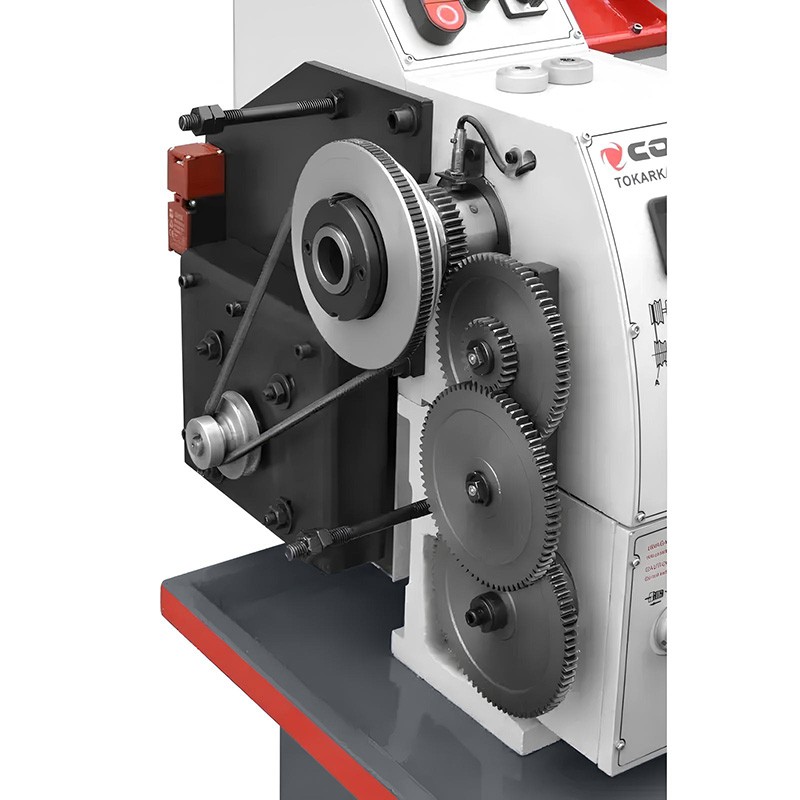

• Change gears
• Dead centres MK2 and MK4
• Left and right jaws (1 set)
• Oil gun
• Chip tray
• Keys for chuck and tool post
• Service tool kit
• Safety guards compliant with CE
• User manual
• CE Declaration of Conformity

Optional equipment

• Machine stand
• 12 × 12 mm turning tool set (11 pcs with brazed inserts)
• Live centre MK2
• Drill arbor MK2/B16
• Drill chuck B16 3–16 mm
• HSS-Co5 cobalt drill set (1–13 mm)
• Universal coolant system
• Cutting oil ES-12 (1L)
