The presented configuration represents the most popular choice among customers – a proven and efficient option for series production
Main Features:
-
Front supports: 2 pieces on linear guides, ensuring stability during bending operations
-
Y1, Y2 axes control: automatic
-
Back gauge adjustment (X axis): servo drive with encoders
-
R axis adjustment: servo drive with encoders
-
Automatic crowning compensation
-
Dual-sided punch clamping: quick AMADA-type mounting for fast tool changeovers
Available configurations are adapted to production needs and the type of processed parts – machine specifications are determined individually depending on the application and technological requirements.
Technical parameters
| Max. sheet thickness (S235) |
up to 8.0 mm |
| Nominal pressure |
1600 kN |
| Maximum bending length |
3200 mm |
| Throat depth |
320 mm |
| Maximum ram stroke |
180 mm |
| Maximum open height |
455 mm |
| Distance between frames |
2600 mm |
| Back gauge travel |
600 mm |
| Motor power |
11.0 kW |
| Length |
3300 mm |
| Width |
1650 mm |
| Height |
2500 mm |
| Weight |
9500 kg |
Automatic back gauge (X axis) and R axis adjustment (manual option*). R axis facilitates bending of larger radii, e.g. with the step bending system.
Optional adjustment of fingers in Z1, Z2, R1, R2, X1, X2 axes with servomotors.
To achieve a satisfactory step bending result, it is necessary to perform several calculations based on key parameters related to the bending process, such as:
- Arc length – the distance between the ends of the curved section of the sheet, measured along the inner side of the bend;
- Number of bends – the number of single bends required to obtain a sheet with a specific radius; the greater the number of bends, the smaller the angle of each bend and the smoother the arc;
- Distance between bends – the distance between individual bends performed during the process.
Although the step bending process may seem quite complex, CORMAK machines and software are so advanced that they take over many operations from the operator.
Automatic crowning compensation
Ensures a consistent bending angle along the entire bending length – (option*)
Manual crowning compensation (option*)
Ensures a consistent bending angle along the entire bending length – (option*)
High-quality components:
- Electrical system components by Schneider / Delta / Eaton
Control and Functionality:

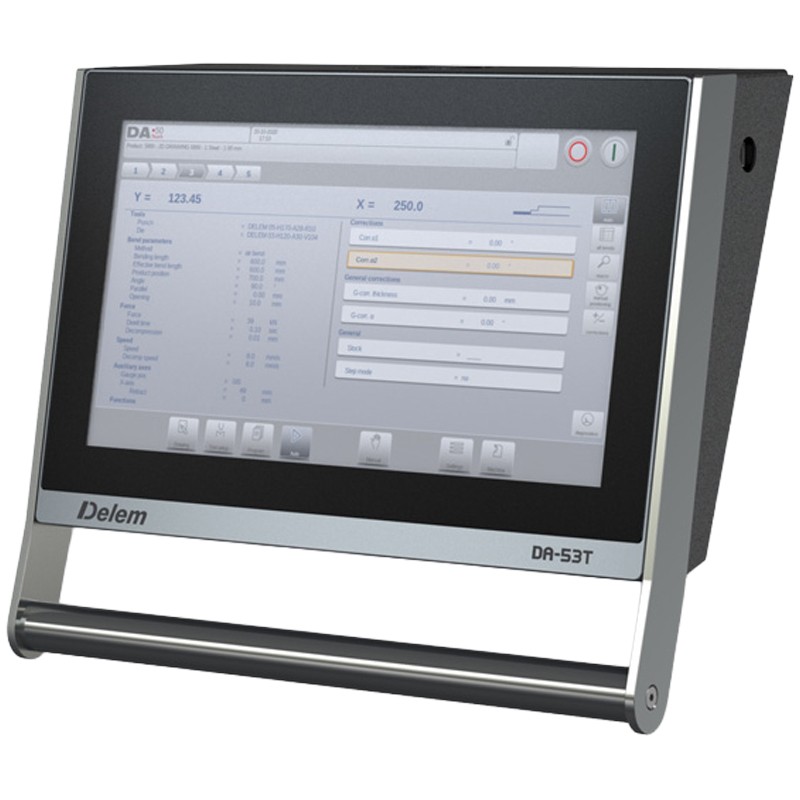

DELEM DA-53TX
- Equipped with a 15” touchscreen mounted on a movable arm, allowing convenient operation across the entire working area
- Advanced programming algorithms with automatic bending sequence calculation
- Control of up to four axes for complex operations
- Compatible with many press brake models
- Option*: create a drawing of the bent element directly on the controller display /2D/
- Option*: create a bending program based on an imported drawing /2D/
- Option*: real-time 2D visualisation of the bending sequence during operation
Optionally available controllers: DELEM DA-53T+2D, DA-66T as well as DA-69T and CYBELEC 12
DA-53T+2D
Display
- 10.1" TFT LCD touchscreen
- colour display
External software
- optional offline Profile-53TL workstation license (creation of bending sequences on a PC)
System
- Windows operating system
- 200 MHz processor
- 1GB internal memory
- control logic preventing axis collisions
Functions
- library of punches and dies /30 punches & 60 dies/ – descriptive and graphic library
- program library with graphic preview and product cataloguing
- material database /possibility to add new material types/
- drawing creation directly on controller display /2D/
- bending program creation based on drawing /2D/
- 2D bending sequence preview in real time
- 2D simulation with collision preview (step-by-step)
- warning messages (e.g. tool overload alerts)
- possibility to change bending order, modify steps
- data correction and memory storage
- manual mode available
- manual positioning of individual back gauge axes
- control logic excluding collisions of X, R, Y1, Y2 axes
- automatic calculation of beam stroke
- automatic calculation of bending force depending on material
- automatic back gauge positioning
- automatic inner radius and flat length calculation
- backup creation for tools and products
- USB port
DA-58T
Display
- 15" TFT LCD touchscreen
- colour display
External software
- optional offline Profile-53TL workstation license (creation of bending sequences on a PC)
System
- Windows operating system
- 200 MHz processor
- 4MB operating memory
- max. number of programs: 9999 (25 steps max)
- max. repetition per step: 99
- control logic excluding axis collisions
Functions
- library of punches and dies /30 punches & 60 dies/
- descriptive and graphic library
- program library with graphical preview and product cataloguing
- material database /possibility to add new bending materials/
- drawing creation on controller display /2D/
- program creation based on imported drawing /2D/
- real-time 2D bending sequence visualisation
- 2D bending simulation with collision preview (step-by-step)
- warning messages (e.g. tool overload alerts)
- change of bending order, step modifications, and corrections
- manual operation mode
- manual back gauge axis positioning
- automatic beam stroke calculation
- automatic bending force calculation based on material
- automatic back gauge positioning
- automatic inner radius and flat length calculation
- product and tool backup creation
- USB port
DA-66T
Display
- 17” TFT LCD touchscreen
- colour display
External software
- optional LITE T2D workstation license (creation of bending sequences on a PC)
System
- intuitive controller interface
- stable Windows CE operating system
- 64MB RAM
- max. number of programs: 1000 /1GB/
- max. repetition per step: 99
Functions
- 2D drawing creation directly on controller display
- automatic bending program generation from product drawing (2D)
- automatic calculation of beam stroke and bending force based on material
- automatic back gauge positioning according to bending program
- 3D visualisation of bending process (step-by-step simulation)
- automatic finger positioning behind specific punch and die segment
- tool–material collision detection and alerts
- overload warning messages for excessive tool pressure
- change of bending sequence and correction of program steps
- manual control of back gauge axes (jog wheel)
- manual operation mode
- material database
- tool and die library
- program library with graphical preview and product catalogue
- stroke and operating hours counter
- USB port
- backup creation for tools and products
DA-69T
Display
- 17” TFT LCD touchscreen
- colour display
External software
- optional LITE T3D workstation license (creation of bending sequences on a PC)
System
- intuitive controller interface
- stable Windows CE operating system
- 64MB RAM
- max. number of programs: 1000 /1GB/
- max. repetition per step: 99
Functions
- DXF file import
- 3D IGES & SAT import from LITE T3D software
- 3D drawing creation directly on the controller
- automatic bending program generation from 3D drawing
- automatic calculation of beam stroke and bending force based on material
- automatic back gauge positioning according to bending program
- 3D visualisation of bending process (step-by-step simulation)
CYBELEC 12
Display
- 12” TFT LCD touchscreen
- colour display
System
- intuitive controller interface
- stable Windows CE operating system
- max. punches: 100
- max. programs: 300
- max. steps per program: 24
- max. materials: 10
Functions
- User-friendly HMI interface
- 2D profile drawing and 3D visualisation
- Automatic bending sequence generation
- High bending precision with advanced algorithms
- Tandem operation support
- Tool import
- Pre-bend / post-bend options
- Angle measurement support
- Barcode reader compatibility
- Industry 4.0 connectivity
The machine combines advanced technology with simplicity of operation, making it ideal for both precise manual tasks and efficient serial production. High-quality components and advanced safety systems ensure reliability and user protection.
Safety

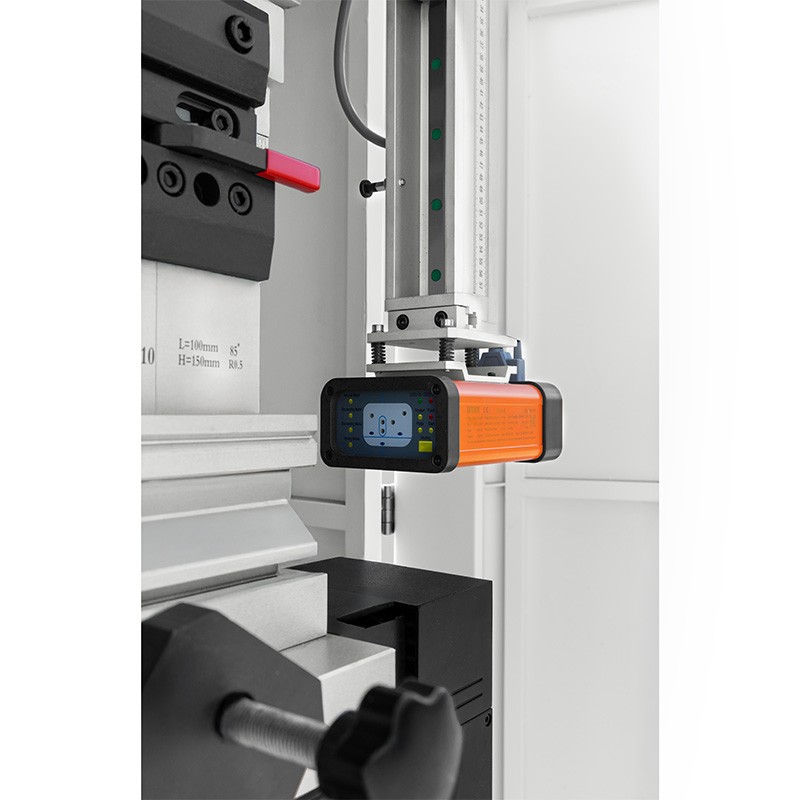

Laser safety system
Supplied as standard – a top-class laser safety system that protects the operator and doubles the bending process speed.
We do not compromise on safety! The machine is equipped with the highest-class hydraulic connections and safety valves designed for maximum reliability.
Be cautious with pseudo safety devices such as light curtains or gates that are not CE-compliant – they expose employees to serious injury risks. As an employer, you are responsible for their safety!
CE-compliant safety guards
Ergonomics and additional conveniences:
- Mobile controller on movable arm
- LED lighting: improves comfort and safety at work
- Supports on linear guides
- Follow-up supports (option*)
Follow-up supports on servomotors allow bending of larger sheet sizes, lifting them during the bending moment so that the bent radius does not deform and maintains the required angle.
▶
