The presented configuration represents the most commonly chosen equipment by customers – a proven and efficient choice for serial production.
Main Features:
-
Front supports: 2 pcs on linear guides, ensuring stability during bending operations
-
Axis Y1, Y2 adjustment: automatic
-
Back gauge adjustment (X axis): servo drive with encoders
-
Axis R adjustment: servo drive with encoders
-
Automatic deflection crowning system
-

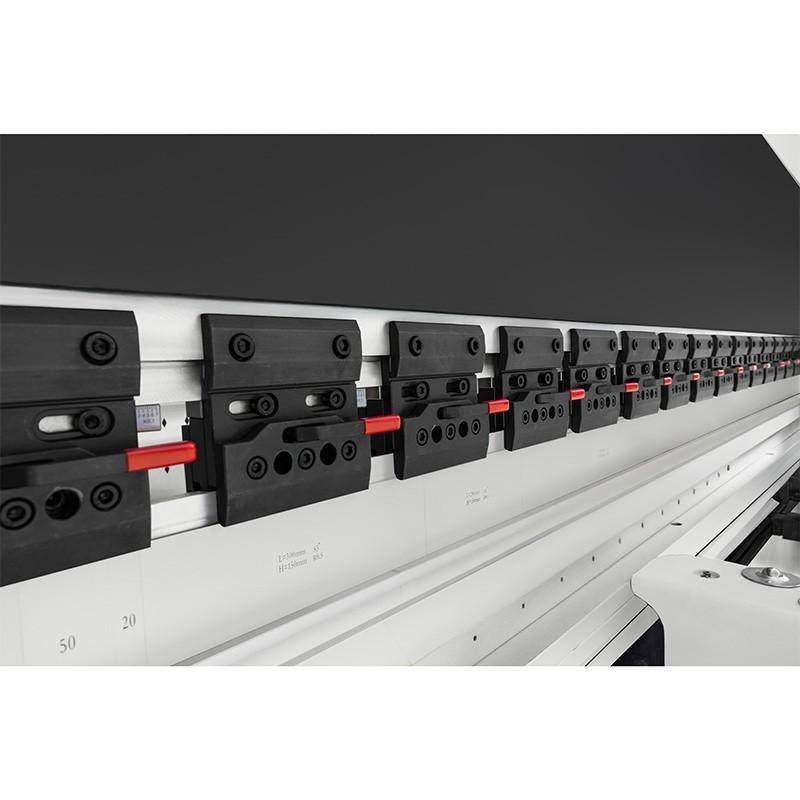

Double-sided punch clamping: quick AMADA-type mount, allowing fast tool changes
Available configurations are tailored to production needs and the type of processed components – machine specifications are determined individually according to the application and technological requirements.
Technical Parameters
| Max. sheet thickness (S235) |
up to 4.0 mm |
| Nominal pressure force |
800 kN |
| Maximum bending length |
2500 mm |
| Throat depth (gap in frames) |
250 mm |
| Maximum ram stroke |
120 mm |
| Maximum opening height |
385 mm |
| Distance between frames |
2000 mm |
| Back gauge travel distance |
600 mm |
| Motor power |
5.5 kW |
| Length |
2600 mm |
| Width |
1450 mm |
| Height |
2300 mm |
| Weight |
4800 kg |

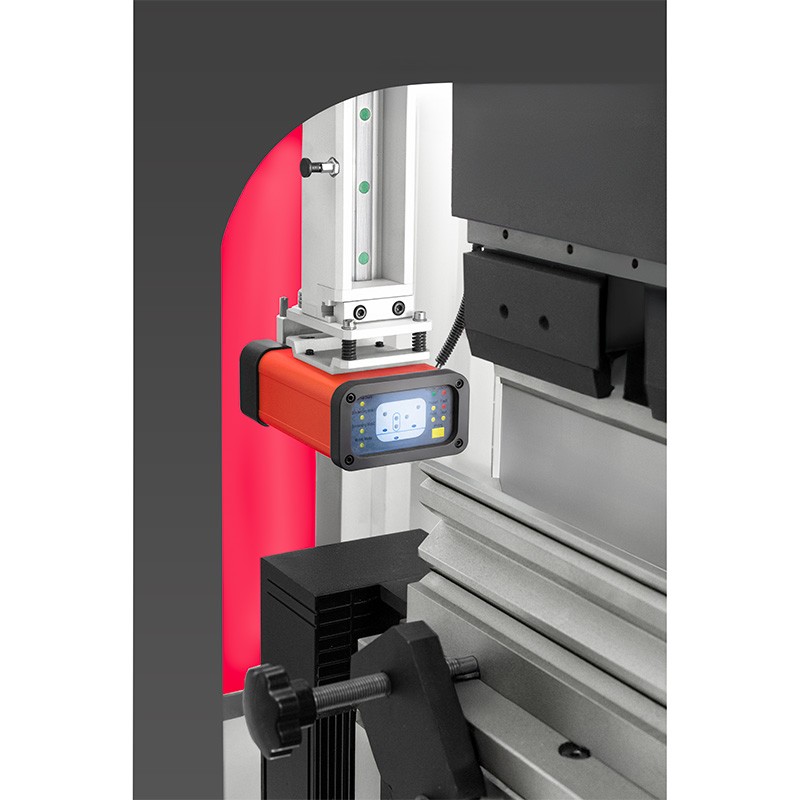

DSP laser safety system
- DSP laser safety system, front supports on linear guides, quick tool clamps, oil cooling system and sectional upper and lower tools
Automatic adjustment of the back gauge (X axis) and R axis (manual option*). The R axis facilitates bending with larger radii, e.g. using a step bending system.
Optional adjustment of backgauge fingers on axes Z1, Z2, R1, R2, X1, X2 with servomotors.
To achieve satisfactory results in step bending, certain calculations are necessary, requiring knowledge of several key parameters related to the bending process — these include:
- Arc length – the distance between the ends of the bent sheet curve measured along the inner side of the bend;
- Number of bends – the number of single bends that must be performed to obtain a bent sheet with a specific radius; the greater the number of bends, the smaller the individual bending angle, resulting in a smoother curve;
- Distance between bends – the spacing between individual bends made during the process.
Although the step bending process may seem quite complex, CORMAK machines and software are so advanced that they take over many of these calculations and adjustments from the operator.

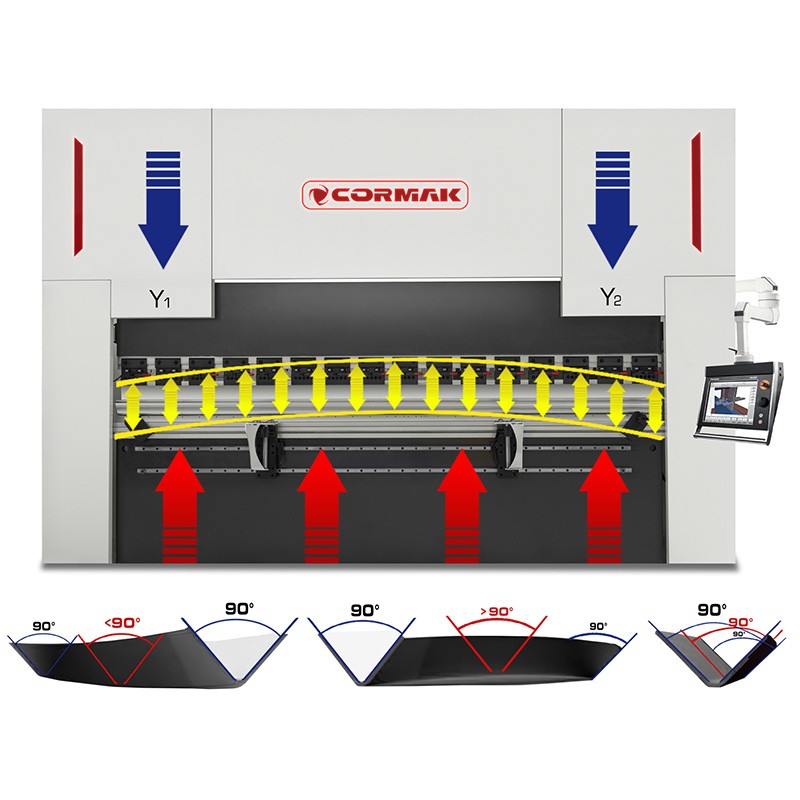

Automatic deflection crowning compensation
Ensures a constant bending angle along the entire bending length – (option*)
Manual deflection crowning compensation (option*)
Ensures a constant bending angle along the entire bending length – (option*)
High-quality components:
- Electrical system components by Schneider/Delta/Eaton
Control and Functionality:

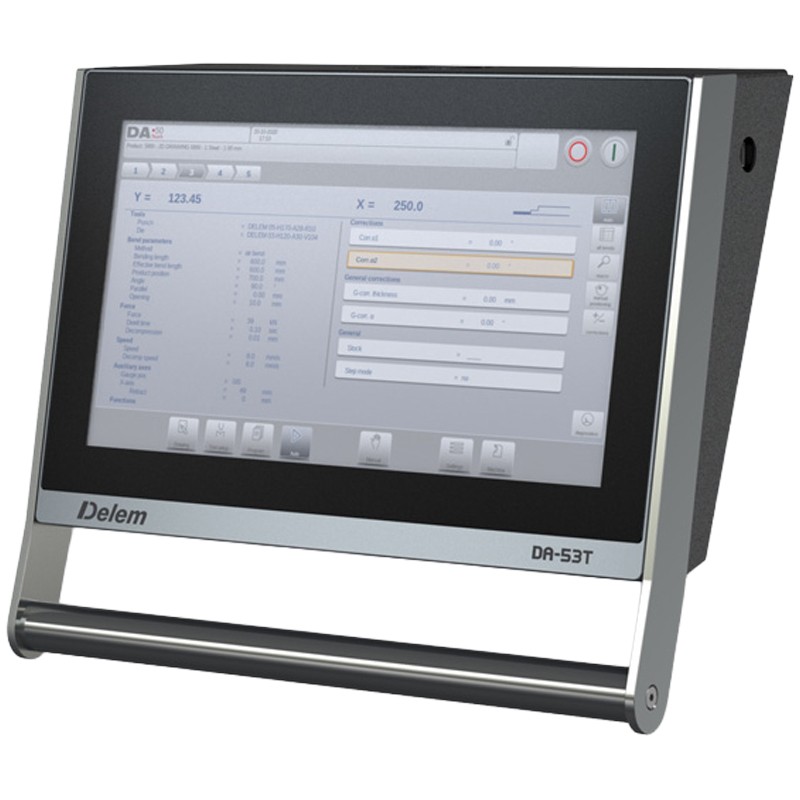

DELEM DA-53TX
- Equipped with a 15-inch touchscreen installed on a movable arm, providing full freedom of operation across the entire workspace
- Advanced programming algorithms with automatic bending sequence calculation
- Supports up to four axes, allowing for more complex operations
- Compatible with multiple press brake systems
- Option: creating a drawing of the bent part on the controller display /2D/
- Option: creating a bending program based on an entered product drawing /2D/
- Option: machine operation with real-time 2D bending sequence view
Optional DELEM controllers available: DA-53T+2D, DA-66T and DA-69T, or CYBELEC 12
DA-53T+2D
Display
- 10.1" TFT LCD touchscreen
- Colour display
External software
- optional offline Profile-53TL workstation license (creation of bending sequences on a PC)
System
- Windows operating system
- 200 MHz processor
- 1GB internal memory
- Control logic preventing axis collision
Functions
- Library of punches and dies /30 punches & 60 dies/ – descriptive and graphical database
- Program library with graphical preview and product cataloguing
- Material database /possibility to add new bent material types/
- Creation of the bent element drawing directly on the display /2D/
- Bending program generation based on product drawing /2D/
- Machine operation with real-time 2D bending sequence preview
- 2D bending simulation with step-by-step collision view
- Warning messages (e.g. tool overload)
- Possibility to change bending order and modify program steps
- Correction storage and manual mode available
- Manual axis positioning of the back gauge
- Automatic beam stroke and bending force calculation depending on material
- Automatic calculation of back gauge position and inner radius
- Backup and restore capability for tools and products
- USB port
DA-58T
Display
- 15" TFT LCD touchscreen
- Colour display
External software
- optional offline Profile-53TL workstation license (creation of bending sequences on a PC)
System
- Windows operating system
- 200 MHz processor
- 4MB working memory
- Max. number of programs: 9999 (25 steps max)
- Max. step repetition: 99
- Control logic preventing axis collision
Functions
- Library of punches and dies /30 punches & 60 dies/
- Descriptive and graphical library
- Program library with graphical preview and product cataloguing
- Material database /possibility to add new materials/
- Creation of the bent element drawing /2D/
- Program generation based on product drawing /2D/
- Machine operation with real-time 2D simulation
- 2D bending simulation with collision preview
- Warning messages (e.g. tool overload)
- Manual mode and correction memory
- Manual back gauge positioning (axes X, R, Y1, Y2)
- Automatic calculation of beam stroke, bending force, back gauge position, inner radius and material development
- Backup capability for tools and products
- USB port
DA-66T
Display
- 17” TFT LCD touchscreen
- Colour display
External software
- optional LITE T2D workstation license (creation of bending sequences on a PC)
System
- Intuitive control system
- Stable Windows CE operating system
- 64MB working memory
- Max. programs: 1000 /1GB/
- Max. step repetition: 99
Functions
- Creation of the bent element drawing (2D)
- Automatic program generation from product drawing (2D)
- Automatic stroke and bending force calculation depending on material
- Automatic back gauge positioning according to the bending program
- 3D visualisation of the bending process (step-by-step simulation)
- Automatic positioning of back gauge fingers under the selected punch and die
- Collision and overload warnings
- Possibility to change bending order and correct program steps
- Automatic sheet development calculation
- Manual mode and handwheel navigation control
- Material and tool databases
- Cycle and working hour counter
- USB port
- Backup capability for products and tools
DA-69T
Display
- 17” TFT LCD touchscreen
- Colour display
External software
- optional LITE T3D workstation license (creation of bending sequences on a PC)
System
- Intuitive Windows CE controller
- 64MB working memory
- Max. programs: 1000 /1GB/
- Max. step repetition: 99
Functions
- DXF file import
- 3D import IGES & SAT from LITE T3D software
- 3D drawing of the bent part directly on display
- Automatic bending program creation (3D)
- Automatic stroke and force calculation
- Automatic back gauge positioning according to program
- 3D bending visualisation (step-by-step simulation)
CYBELEC 12
Display
- 12” TFT LCD touchscreen
- Colour display
System
- Intuitive Windows CE control system
- Max. punches: 100
- Max. dies: 100
- Max. programs: 300
- Max. steps per program: 24
- Max. materials: 10
Functions
- User-friendly HMI interface
- 2D profile drawing and 3D visualisation
- Automatic bending sequence
- High bending precision thanks to advanced algorithms
- Tandem mode
- Tool import
- Pre-bend / Post-bend functions
- Angle measurement support
- Barcode reader support
- Industry 4.0 configurable
The machine combines advanced technology with ease of operation, making it an ideal choice for both precise manual tasks and efficient serial production. High-quality components and advanced safety systems ensure reliability and operational safety.
