The presented configuration represents the most commonly chosen equipment by customers – a proven and efficient solution for serial production.
Main Features:
-
Front supports: 2 units on linear guides, ensuring stability during bending operations
-
Axis Y1, Y2 control: automatic
-
Backgauge adjustment (X-axis): servomotor with encoders
-
R-axis adjustment: servomotor with encoders
-

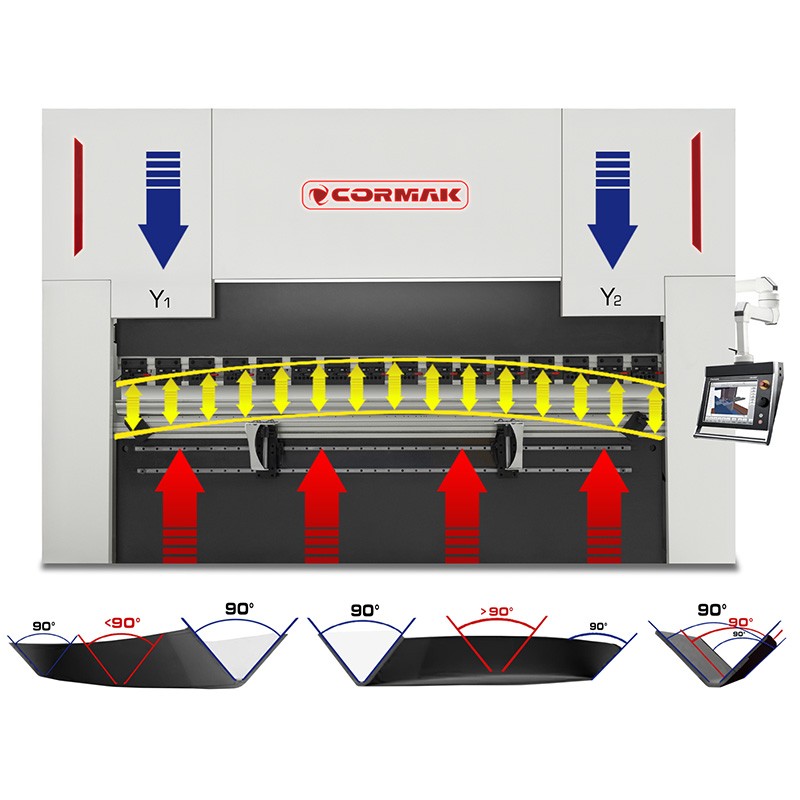

Automatic crowning compensation
-

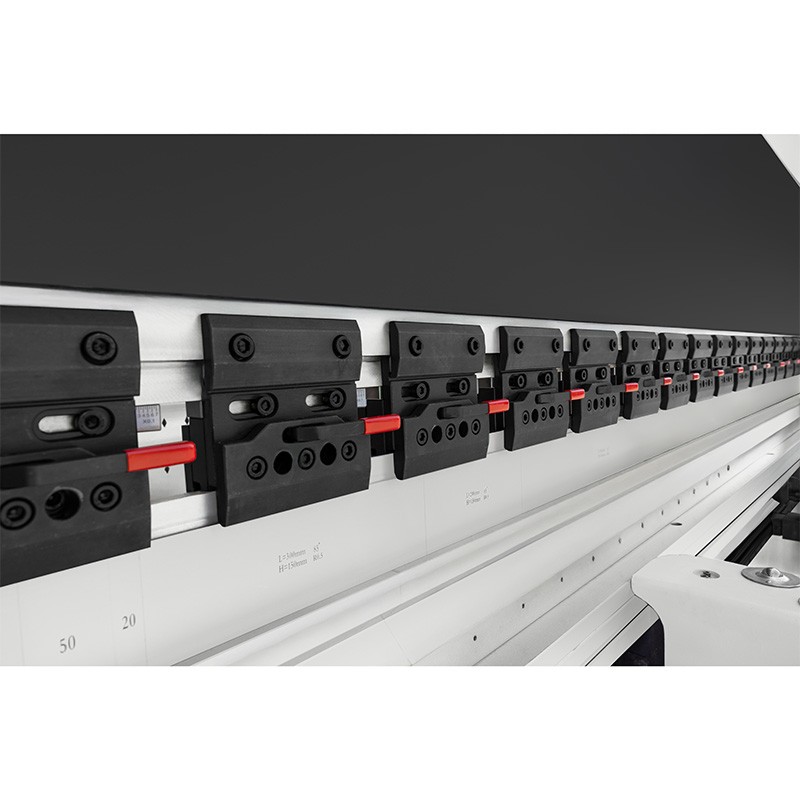

Double-sided punch clamping: quick AMADA-type system enabling fast tool changes
Available configurations are tailored to production needs and the type of processed components – the machine specification is individually defined according to application and technological requirements.
Technical Parameters
| Max. sheet thickness (S235) |
up to 10.0 mm |
| Nominal pressure |
2500 kN |
| Max. bending length |
3200 mm |
| Throat depth |
400 mm |
| Max. ram stroke |
250 mm |
| Max. opening height |
535 mm |
| Distance between uprights |
2500 mm |
| Backgauge travel |
600 mm |
| Main motor power |
18.5 kW |
| Length |
3300 mm |
| Width |
1850 mm |
| Height |
2900 mm |
| Weight |
12,400 kg |
Automatic adjustment of the backgauge travel (X-axis) and R-axis (manual in option*). The R-axis facilitates bending of larger radii, for example, by the step bending system.
Optionally, finger adjustment in axes Z1, Z2, R1, R2, X1, X2 with servomotors.
To achieve satisfactory results in step bending, it is necessary to perform certain calculations that require knowledge of several key parameters related to the bending process:
- Arc length – the distance between the ends of the curved section of the sheet measured along the inner bend line.
- Number of bends – the number of single bends required to achieve a specific radius; the higher the number, the smaller the single bending angle, resulting in a smoother curve.
- Distance between bends – the distance between successive bends performed during the process.
Although the step bending process may seem quite complex, CORMAK machines and software are so advanced that they automate most of the operations, making the operator’s work significantly easier.
Automatic crowning compensation
Ensures a constant bending angle along the entire bending length – (option*)
Manual crowning compensation (option*)
Ensures a constant bending angle along the entire bending length – (option*)
High-quality components:
- Electrical system components by Schneider / Delta / Eaton
Control and Functionality:
DELEM DA-53TX
- Equipped with a 15” touchscreen installed on a movable arm, ensuring comfortable operation across the entire working area.
- Advanced programming algorithms with automatic bend sequence calculation.
- Supports up to four axes for complex bending operations.
- Compatible with various press brake systems.
- Option*: Creation of the bent element drawing directly on the controller display (2D).
- Option*: Generating the bending program based on the entered 2D product drawing.
- Option*: Machine operation with real-time 2D sequence preview.
Optionally available DELEM controllers: DA-53T+2D, DA-66T and DA-69T, or CYBELEC 12
DA-53T+2D
Display
- 10.1” TFT LCD touchscreen
- Full colour
External software
- optional offline Profile-53TL workstation license (creation of bending sequences on a PC)
System
- Windows operating system
- 200 MHz processor
- 1GB internal memory
- Control logic preventing axis collision
Functions
- Punch and die library /30 punches & 60 dies/ – descriptive and graphical database
- Program library with graphic preview and product cataloguing
- Material database /possibility to add new bending materials/
- 2D part drawing creation directly on the controller
- 2D program creation based on the drawn product
- Real-time 2D bending sequence visualisation during operation
- 2D bending simulation with collision preview (step-by-step)
- Warning messages (e.g., tool overload)
- Changeable bend order and step editing
- Correction input and saving in memory
- Manual mode operation
- Manual axis positioning of the backgauge
- Automatic stroke, force and position calculation depending on the material
- Automatic inside radius and flat length calculation
- Backup creation for tools and products
- USB port
DA-66T
Display
- 17” TFT LCD touchscreen
- Full colour
External software
- optional LITE T2D workstation license (creation of bending sequences on a PC)
System
- Intuitive controller interface
- Stable Windows CE operating system
- 64MB RAM
- Up to 1,000 programs (1GB)
- Up to 99 step repetitions
Functions
- 2D part drawing on display
- Automatic bend program generation from product drawing (2D)
- Automatic stroke and bending force calculation
- Automatic backgauge positioning according to bend program
- 3D bending process visualisation (step-by-step simulation)
- Automatic positioning of fingers relative to punch/die segments
- Collision and overload warning messages
- Bend order modification
- Automatic flat length calculation
- Manual axis control via navigation knob
- Manual or automatic mode
- Material, tool and program library with graphic preview
- Work cycle and time counter
- USB port and backup capability
DA-69T
Display
- 17” TFT LCD touchscreen
- Full colour
External software
- optional LITE T3D workstation license (creation of bending sequences on a PC)
System
- Windows CE operating system
- 64MB RAM
- Up to 1,000 programs (1GB)
- Up to 99 step repetitions
Functions
- DXF file import
- 3D import via IGES & SAT from LITE T3D software
- 3D drawing and simulation of bending operations
- Automatic stroke and bending force calculation depending on material
- Automatic backgauge setting according to the program
- 3D real-time simulation of the bending process
CYBELEC 12
Display
- 12” TFT LCD touchscreen
- Full colour
System
- Windows CE operating system
- Max punches: 100
- Max programs: 300
- Max step repetitions: 24
- Max materials: 10
Functions
- User-friendly HMI interface
- 2D graphical profile and 3D visualisation
- Automatic bending sequence
- High precision bending with advanced algorithms
- Tandem operation support
- Tool import
- Pre-bend / final bend functions
- Angle measurement supported
- Barcode reader support
- Industry 4.0 connectivity
The machine combines advanced technology with ease of operation, making it an ideal choice for both precise manual work and efficient serial production. High-quality components and advanced safety systems ensure reliability and operator protection.
Safety
Laser Safety System
Only at CORMAK — a top-class laser safety system provided as standard, protecting the operator and more than doubling the bending speed.
We never compromise on safety! Top-quality hydraulic connections and safety valves designed for optimal reliability.
Beware of pseudo-protective devices such as light curtains or gates — they do not comply with CE standards and may endanger operators’ health. Remember — as the employer, you are responsible for the safety of your workers!
CE-Compliant Safety Guards
Ergonomics and Additional Features:
- Mobile controller on a movable arm
- LED lighting for better visibility and comfort
- Front supports on linear guides
- Follow-up supports (option*)
Follow-up supports with servomotors enable bending of larger sheets, which are lifted synchronously during bending, preventing deformation and ensuring the desired angle.
▶
