Modern FIBER-based device designed for welding various types of metals, offering precision far superior to traditional methods. The 3in1 function enables laser welding, cleaning and cutting, making it versatile and efficient across many industrial applications. Advanced technology ensures repeatable, high-quality welds even on demanding materials, while minimising deformation risks.

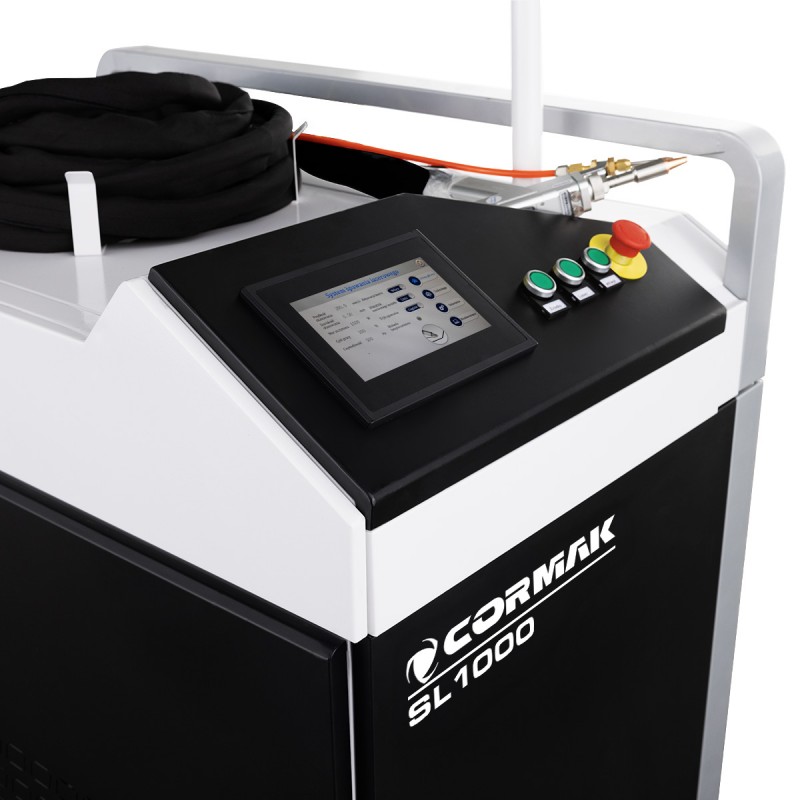

CORMAK SL1000 Laser Welder is a compact and efficient FIBER solution combining laser welding, cutting and cleaning in one unit. With 1000 W power and a modern head design, it delivers high-quality welds with low energy consumption, making it an excellent choice for manufacturing and service companies seeking a cost-effective industrial-grade system.
The CORMAK SL1000 Laser Welder is built on a stable 1080 nm fiber source and a water-cooling system allowing continuous operation without overheating. It includes an ergonomic welding head with a 7 m fibre cable for greater freedom of movement. Integrated connections for shielding gas and cooling ensure full functionality without external adapters.

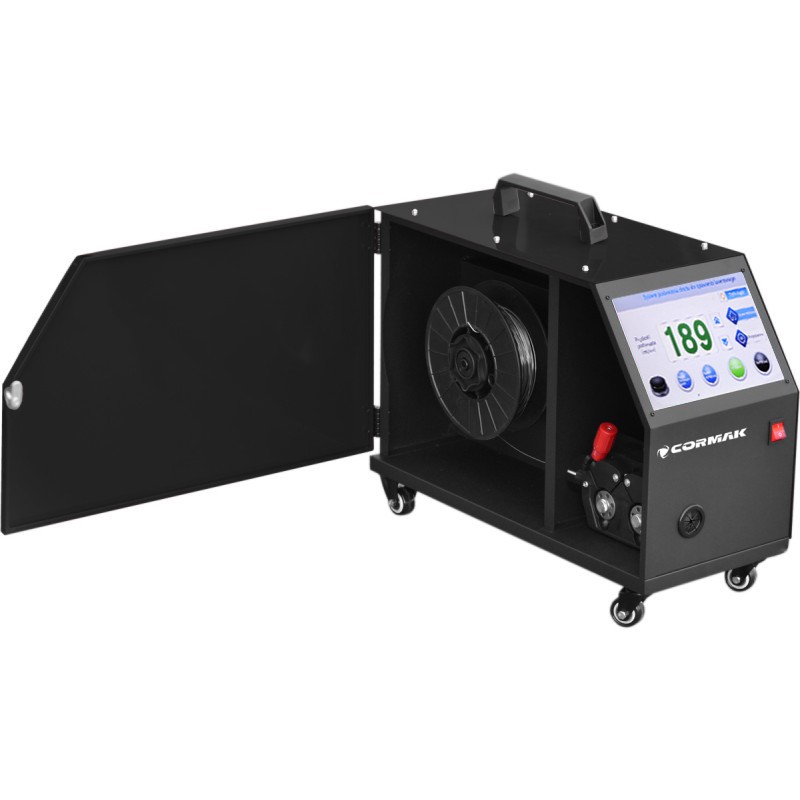

With a maximum speed of 120 mm/s and penetration depth up to 2.68 mm for stainless steel, the CORMAK SL1000 delivers clean, durable and repeatable welds. The optional wire feeder (Ø 0.8–1.2 mm) enables flexible welding configurations suited to different materials and production requirements.
| Maximum power | 1000 W |
| Laser wavelength | 1080 nm |
| Penetration depth (stainless steel 1 m/min) | 2.68 mm |
| Penetration depth (carbon steel 1 m/min) | 2.06 mm |
| Penetration depth (aluminium 1 m/min) | 2.0 mm |
| Penetration depth (brass 1 m/min) | 2.0 mm |
| Welding speed | 0–120 mm/s |
| Automatic wire feeder | Ø 0.8–1.2 mm |
| Maximum power consumption | ≤3 kW |
| Cooling system | Water-cooled |
| Operating voltage | 230 V |
| Shielding gas consumption | approx. 10–12 L/mm Ø wire |
| Dimensions | 600 × 1100 × 1100 mm |
| Weight approx. | 120 kg |
| WELDABLE MATERIAL THICKNESS | ||||
| Material | WELDER POWER | |||
| 1000 W | 1500 W | 2000 W | 3000 W | |
| Stainless steel | 0.5–3.0 mm | 0.5–4.0 mm | 0.5–5.0 mm | 0.5–8.0 mm |
| Carbon steel | 0.5–2.5 mm | 0.5–3.5 mm | 0.5–4.5 mm | 0.5–8.0 mm |
| Galvanised steel | 0.5–1.2 mm | 1.5–1.8 mm | 1.5–4.0 mm | 1.5–7.0 mm |
| Aluminium | 0.5–1.2 mm | 1.5–1.8 mm | 1.5–4.0 mm | 1.5–7.0 mm |
| Brass | 0.5–1.2 mm | 1.5–1.8 mm | 1.5–2.5 mm | 1.5–4.0 mm |
New-generation head: ergonomic, lightweight, allows welding at various angles with quick replacement of protective lens.
Training materials and tutorial videos available online support quick operator onboarding.
Note: The appearance of the housing may vary depending on the production batch. Designations SL and WL are used interchangeably – without affecting functionality or technical parameters.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
▶
