The new, more compact design of the CORMAK WL2000 laser welding machine is a major advantage for plants where ergonomics and space saving matter. The CORMAK WL2000 3-in-1 laser welding machine is a modern device for welding, cutting and cleaning metal, designed for fast, precise and repeatable work in industrial conditions.
Laser technology provides aesthetic welds, low heat impact on the material and significantly higher efficiency compared with traditional welding methods. The WL2000 is ideal for processing stainless steel, mild steel and aluminium, especially where speed, precision and reduced additional post-weld processing are important.
The CORMAK WL2000 3-in-1 laser welder is an advanced industrial machine that utilises fibre-optic technology for precise welding, cutting and cleaning. The new, more compact design means the machine takes up less space at the workstation, whilst maintaining high performance, repeatability and low thermal impact on the material. The new, more compact design takes up less space, makes it easier to organise the workstation and allows for more convenient use of the machine in a workshop, production hall or during assembly work.
The new, more compact design of the CORMAK WL2000 laser welder significantly reduces the space required to set up the machine, making it easier to organise the workstation in a workshop or production hall. However, the smaller footprint does not compromise the machine’s capabilities — the WL2000 retains the full functionality of a 3-in-1 welder, offering efficient laser welding, cutting and cleaning whilst maintaining high precision, operational stability and ease of use.

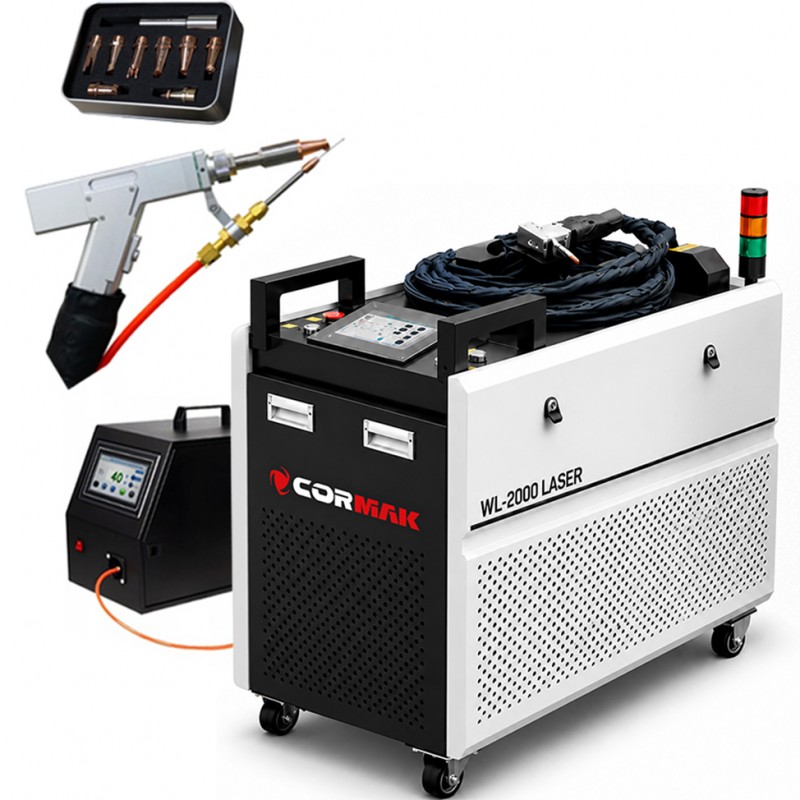

The WL2000 handheld laser welder is equipped with a 2000 W laser source, water cooling and a state-of-the-art welding head. The new version of the machine features a significantly more compact housing, which makes it easier to organise the workstation and allows the machine to be positioned more conveniently, even in confined spaces. The control system allows for easy switching between welding, cutting and cleaning functions. The design enables work in hard-to-reach areas, whilst interchangeable nozzles allow operation at various angles.
Thanks to its focused beam and minimal heat input, the CORMAK laser welder enables the creation of precise and durable welds without the risk of deformation. Its penetration depth and operating speed make it the ideal tool for industrial applications where quality, speed and repeatability are essential.
CORMAK provides instructional videos on its YouTube channel to help with the commissioning and operation of the machine. This is essential support for operators, particularly during the first few days of using the machine.
| Maximum power | 2,000 W |
| Laser wavelength | 1080 nm |
| Melting depth (stainless steel, 1 m/min) | 4.60 mm |
| Melting depth (carbon steel at 1 m/min) | 3.60 mm |
| Melting depth (aluminium, 1 m/min) | 4.10 mm |
| Welding speed | 0–120 mm/s |
| Automatic wire feeder | Ø 0.8–1.6 mm |
| Maximum power consumption | ≤6.05 kW |
| Water-cooling system | water-cooled |
| Operating voltage | 230V |
| Shielding gas consumption | approx. 10–12 L/mm of wire diameter |
| Dimensions (WxHxD) | 460 x 780 x 935 mm |
| Weight | 170 kg |
| Material | 1000 W | 1,500 W | 2,000 W | 3000 W |
|---|---|---|---|---|
| Stainless steel | 0.5–3.0 mm | 0.5–4.0 mm | 0.5–5.0 mm | 0.5–8.0 mm |
| Mild steel | 0.5–2.5 mm | 0.5–3.5 mm | 0.5–4.5 mm | 0.5–8.0 mm |
| Galvanised steel | 0.5–1.2 mm | 1.5–1.8 mm | 1.5–4.0 mm | 1.5–7.0 mm |
| Aluminium | 0.5–1.2 mm | 1.5–1.8 mm | 1.5–4.0 mm | 1.5–7.0 mm |
Choose next-generation laser welding. The CORMAK WL2000 laser welder combines reliability, precision and efficiency with a compact design that makes it easy to organise your workspace. Take advantage of our special offer and gain a technological edge in your workshop. Please get in touch!
