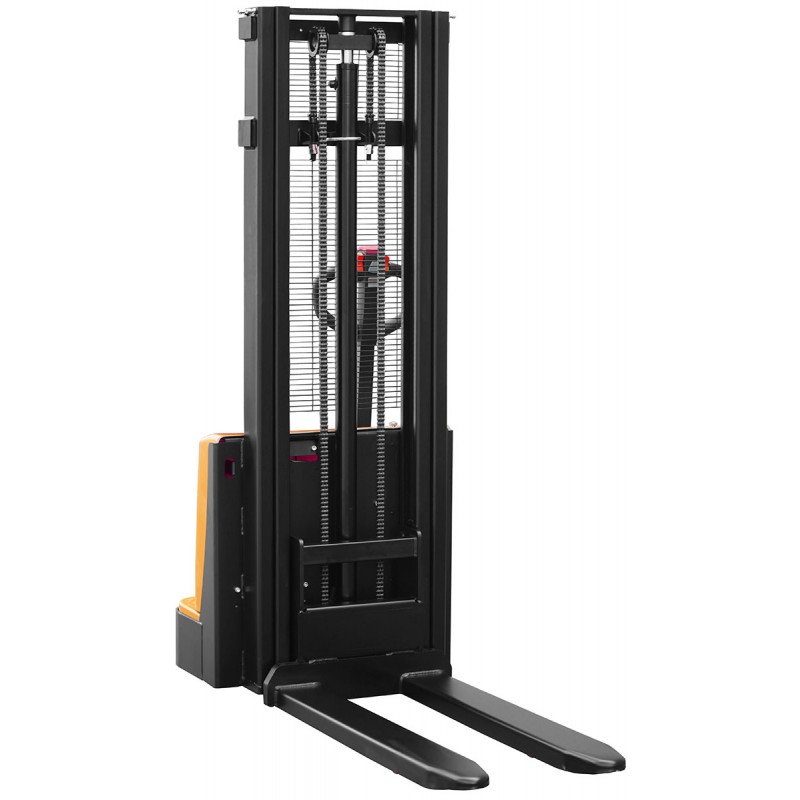

Electric Pallet Stacker CORMAK Q12E30 (1200kg, 3000mm lift height)

Electric Pallet Stacker Q12E30 – Efficiency, Precision and Reliability in Any Space

Electric pallet stacker Q12E30 is an innovative solution combining advanced technology with exceptional ease of use. Its main advantage is the combination of a 1200 kg load capacity and a 3000 mm lift height, making it an indispensable tool in warehouse operations. Thanks to its compact design and an overall height of just 2080 mm, the stacker performs perfectly in narrow aisles, confined spaces and in areas with limited height clearance. Ideal for use in warehouses, distribution centres and other logistics environments.

Main advantages of the Q12E30 stacker

• 1200 kg load capacity – safe and efficient transport of medium-sized loads, both vertically and horizontally.
• 3000 mm lift height – enables convenient lifting of goods to the required height, speeding up storage and transport processes.
• Compatibility with narrow spaces – ideal for operation in confined areas and passage through standard doorways.
• Polyurethane wheels – ensure durability, abrasion resistance and quiet operation, increasing working comfort, especially in environments requiring low noise levels.
• Operational safety – equipped with an emergency stop, a belly safety switch and an LED battery charge level indicator, ensuring safe operation of the device.

Construction and technology

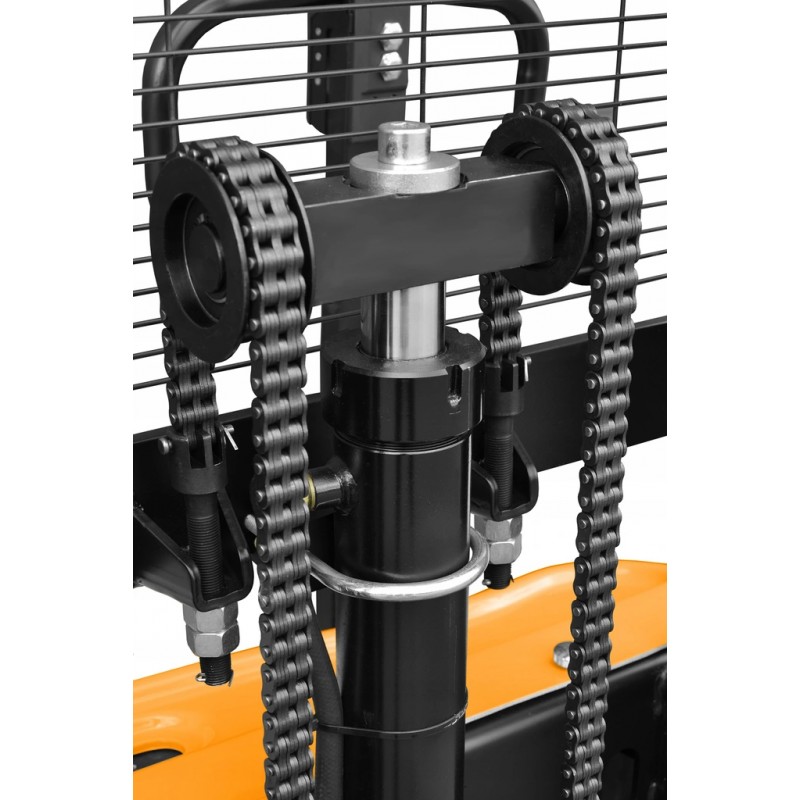

The Q12E30 stacker has been designed for intensive use in demanding conditions. The 0.75 kW drive motor provides adequate power for transporting loads, while the 2.2 kW lifting motor enables fast and precise lifting to the required heights. The unit is powered by 12V 85Ah batteries (2 pcs.), ensuring long operating time on a single charge. The built-in charger and rectifier allow convenient charging anywhere, eliminating the need for long downtime for charging.

Precision and working efficiency

The Q12E30 stacker offers exceptional precision thanks to the speed controller, allowing travel speed adjustment to working conditions. The “turtle” travel mode enables precise manoeuvring in narrow aisles, which is particularly important when working in areas with limited visibility. Additionally, electric control of lifting and lowering guarantees full control over the transport process, significantly increasing operational efficiency and safety.

Applications

Electric pallet stacker Q12E30 is suitable for a wide range of applications:

• In warehouses where fast lifting and transport of loads to medium heights is required.
• In distribution centres, for precise transport of goods in narrow working spaces.
• In production halls, where the stacker ensures convenient transport of materials between workstations.
• In other logistics environments where working space is limited and high manoeuvrability is required.

Standard equipment

• Electric pallet stacker Q12E30 with electric drive and lifting
• Built-in charger and rectifier
• Polyurethane wheels ensuring quiet operation and durability
• Emergency stop and belly safety switch
• “Turtle” travel mode for precise manoeuvres

Technical specifications

Electric pallet stacker Q12E30 is an excellent solution to increase the efficiency of warehouse operations. Contact us for more information and to place your order!
