The TYTAN CENTER 750 Vario lathe-milling machine combines two machines in one, providing convenience and workspace efficiency. It features smooth spindle speed control for both turning and milling functions. Turning: 250x750mm, 0.75kW/230V + Milling: 0.6kW/230V. Performs turning of external and internal cylindrical surfaces, threading and parting, as well as milling grooves, drilling and reaming. Commonly used in small industrial plants, workshops and garages.
Lathe-Milling Machine CORMAK TYTAN Center 750 Vario is a high-quality universal metal lathe with an integrated milling function, designed for metalworking shops, tool services and precision workshops. Thanks to its combined design and separate spindle drives, this unit merges the functionality of two machines, reducing setup time and increasing operational efficiency. Ideal for complex machining tasks without moving the workpiece between workstations.
The conventional lathe TYTAN 750 Vario is built on a robust cast-iron bed 135mm wide, providing excellent vibration damping. The lathe spindle with 29mm bore is mounted on precision bearings, ensuring high turning accuracy. The lathe motor (0.75/0.9kW) and milling motor (0.6kW) operate on single-phase 230V power, simplifying installation in workshop environments.

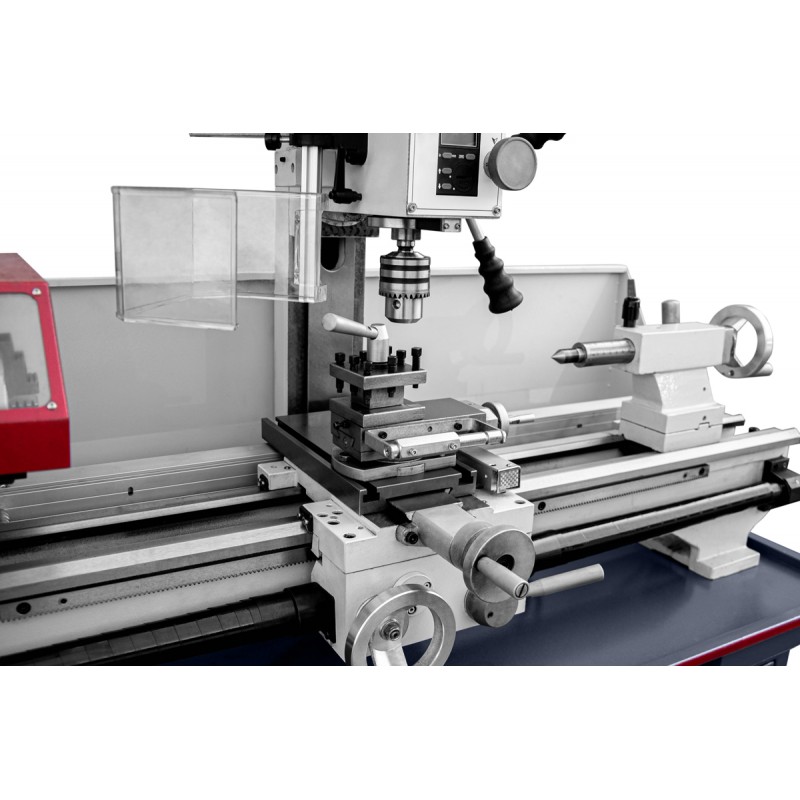

The milling spindle, fitted with a MT2 taper and 50mm quill travel, enables accurate drilling and angular milling (head tilt ±90°). The mechanical depth indicator improves drilling precision, reducing errors and material waste.
This machine performs a wide range of operations: turning, drilling, threading (metric 0.2–3.5mm and inch 8–56TPI), groove milling, chamfering and angular machining. Automatic longitudinal feed in six ranges and precise guideways ensure repeatability and excellent surface finish.
The Lathe-Milling Machine CORMAK TYTAN Center 750 Vario is a professional solution for:
An irreplaceable machine where precision, versatility and space efficiency are key.
| LATHE | |

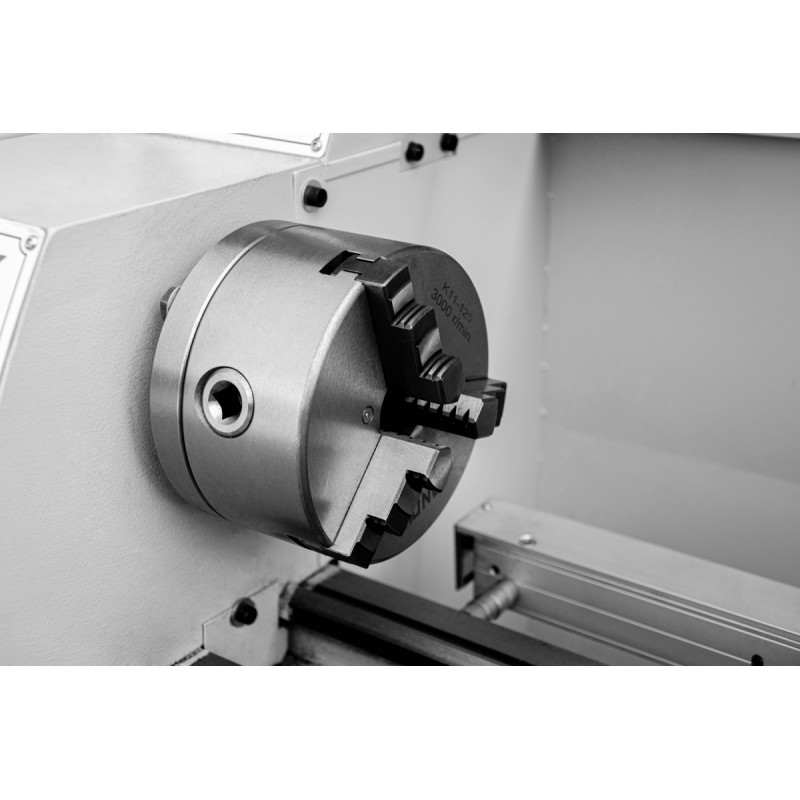

| 3-jaw chuck | 125 mm |
| Max. swing over bed | 250 mm |
| Swing over cross slide | 150 mm |
| Centre distance | 750 mm |
| Bed width | 135 mm |
| Spindle bore | 29 mm |
| Spindle taper | MT4 |
| Spindle speed control | Stepless (2 ranges) |
| Spindle speed | 50–1125 / 100–2250 rpm |
| Metric threads | (18) 0.2–3.5 mm |
| Inch threads | (21) 8–56 TPI |
| Longitudinal feed | (6) 0.07–0.4 mm/rev |
| Tool post dimensions | 65 x 65 x 20 mm |
| Max. tool size | 12 x 12 mm |
| Top slide travel | 70 mm |
| Cross slide travel | 130 mm |
| Longitudinal travel | 630 mm |
| Tailstock sleeve diameter | 30 mm |
| Tailstock travel | 70 mm |
| Tailstock taper | MT2 |
| Motor power (S1/S6) | 0.75 / 0.9 kW / 230 V |
| MILLING UNIT | |
| Max. drilling diameter | 16 mm |
| Spindle taper | MT2 |
| Spindle travel | 50 mm |
| Head tilt | –90° to +90° |
| Spindle-to-column distance | 170 mm |
| Spindle-to-table distance | 43–250 mm |
| Spindle speed range | 50–2250 rpm |
| T-slots (number and size) | 2 x 8 mm |
| Motor power | 0.6 kW / 230 V |
| GENERAL DATA | |
| Machine dimensions (L/W/H) | 1350 x 580 x 1630 mm |
| Weight | 230 kg |
CORMAK TYTAN Center 750 Vario is an advanced metal lathe with milling function meeting the expectations of professionals seeking reliability, precision and compact versatility. Independent spindle drives, wide speed range and extensive equipment make it the ideal choice for workshops requiring maximum efficiency in limited space.
Choose a proven solution – order the CORMAK TYTAN Center 750 Vario and expand your workshop’s capabilities today!
