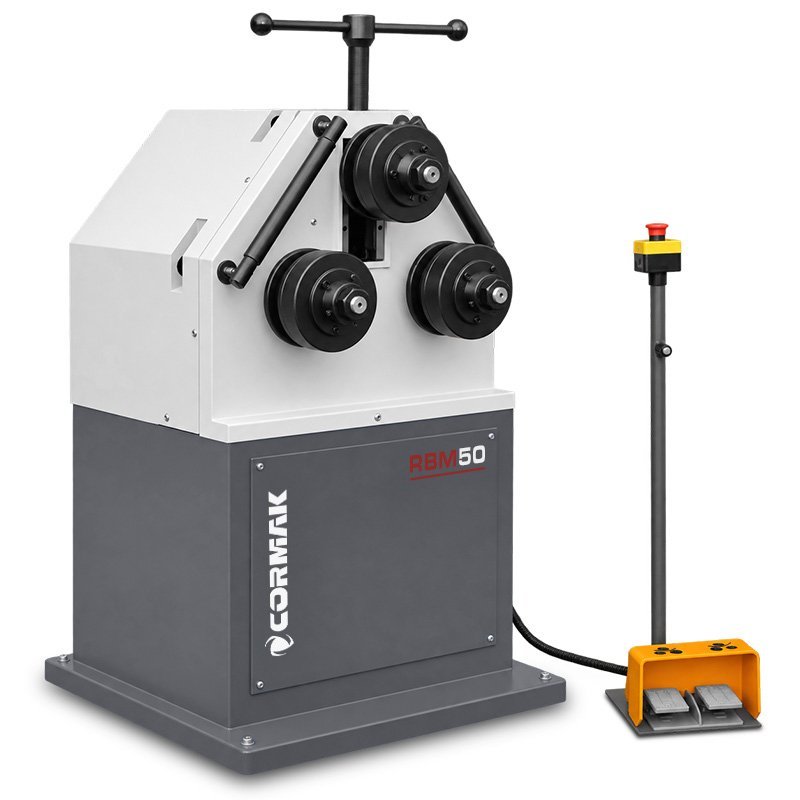

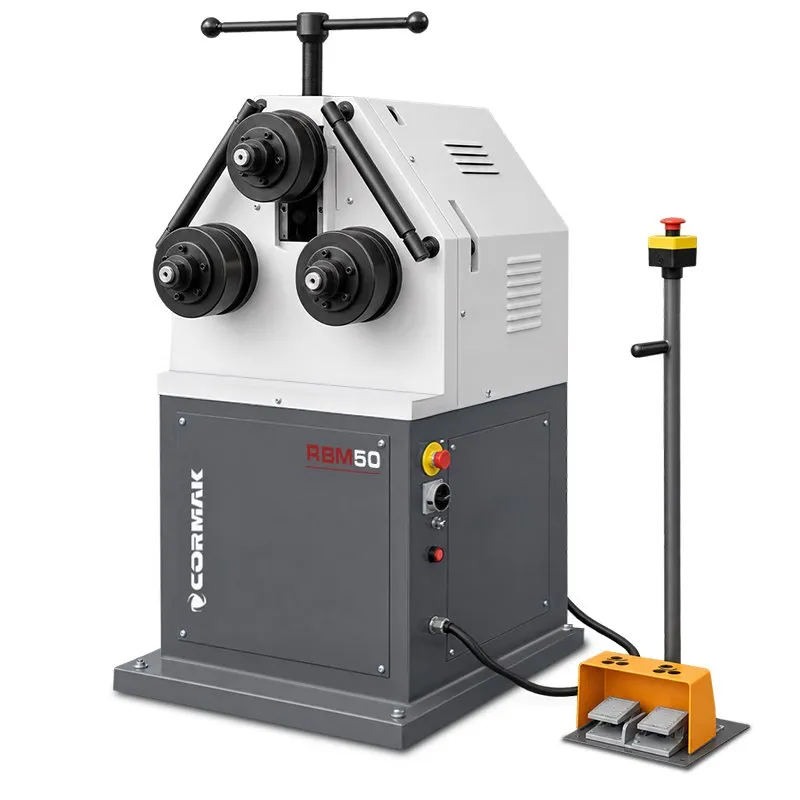

The CORMAK RBM50 is an electric bending machine for tubes, profiles, rods, and flat bars depending on the rollers used. Equipped with a mechanical top roller adjustment with vernier scale, it ensures precise bending control and high repeatability. Its heavy-duty structure provides exceptional stability during operation. The machine is supplied with a foot pedal for forward/reverse control and can bend tubes up to 70 mm in diameter, making it ideal for workshop and industrial use.
The CORMAK RBM50 electric bending machine is designed for bending tubes, profiles, rods, and flat bars depending on the rollers used. The machine features a mechanical top roller adjustment with a vernier scale, ideal for bending arcs, circles, spirals, and other complex forms. Its heavy steel frame ensures high stability during operation. A foot pedal allows convenient control of the left/right rotation. The maximum bending range for round tubes is 70 mm. Commonly used in metal workshops and construction sites.
The CORMAK RBM50 tube and profile bending machine is a high-efficiency, three-roller mandrel-free bender designed for steel tubes, box profiles, and solid bars. With its large roller diameter, powerful drive, and rigid structure, it is ideal for bending thick and hard materials. Developed for industrial applications, it offers outstanding precision, adjustment flexibility, and maximum component durability.

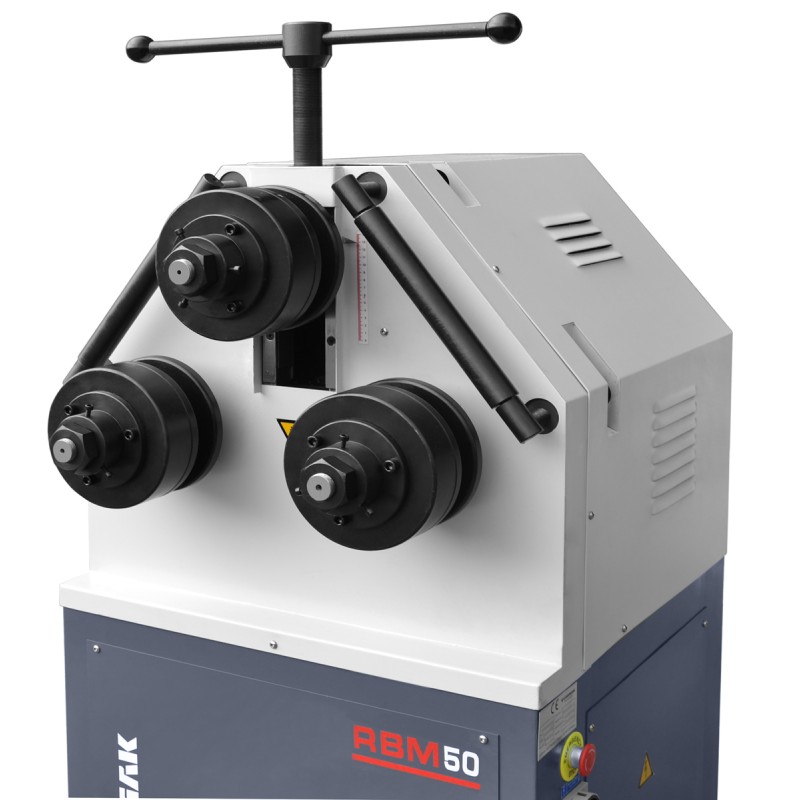

The CORMAK RBM50 is a three-roller bending machine equipped with 50 mm hardened steel rollers. Its rigid steel construction ensures structural stiffness and eliminates frame deformation during operation. The top roller pressure system with a precise vernier scale allows quick and accurate setting of bending radii without trial adjustments. The machine is powered by an industrial three-phase motor up to 2.2 kW (S6), enabling efficient work with larger profiles and materials.
Combining mechanical roller pressure, rigid structure, and hardened working components, the CORMAK RBM50 steel tube bender guarantees stable bending parameters and excellent repeatability. Bidirectional operation and foot pedal control significantly improve ergonomics and efficiency. The RBM50 model is the ideal solution for series production of construction tubes, railing elements, and structural components.
The CORMAK RBM50 rolling bender is designed for applications requiring high precision and flexibility in bending various shapes. Suitable for:
| Round tube [mm] | Ø 70 × 2 |
| Square profile [mm] | 60 × 60 × 3 |
| Round bar [mm] | Ø 35 |
| Solid rectangular bar [mm] | 35 × 35 |
| Roller diameter [mm] | 50 |
| Motor power [kW] | S1 1.5 / S6 2.2 |
| Power supply | 3-phase, 400 V |
| Dimensions (L × W × H) [mm] | 900 × 850 × 1,700 |
| Weight [kg] | 550 |
Choose industrial precision and reliability – opt for the CORMAK RBM50 tube and profile bending machine to optimise bending processes in your workshop. Contact our technical advisors to learn more about available configurations and accessories.
▶
