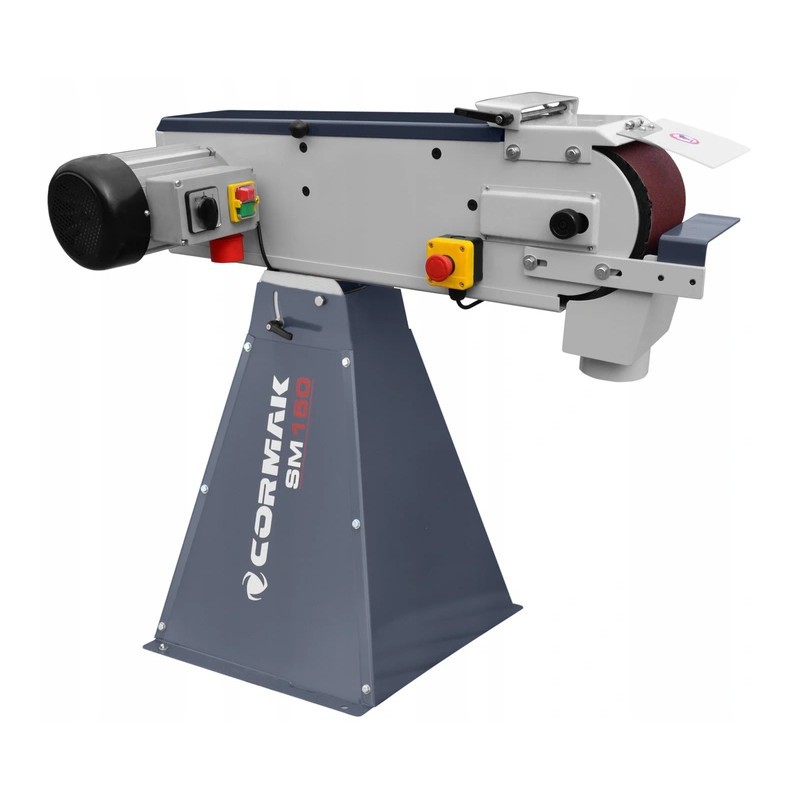

Belt Grinding Machine for Metal CORMAK SM150

The CORMAK SM150 belt grinding machine is an industrial metal belt grinder designed for intensive removal of material excess from large surfaces, edges, and welds. With a wide 150 mm belt and two-speed operation, the machine ensures high efficiency in metalworking shops, toolrooms, and maintenance departments. Its rigid structure, powerful motor, and ergonomic design make it a reliable tool for precise and safe metal finishing.

Main advantages of the machine

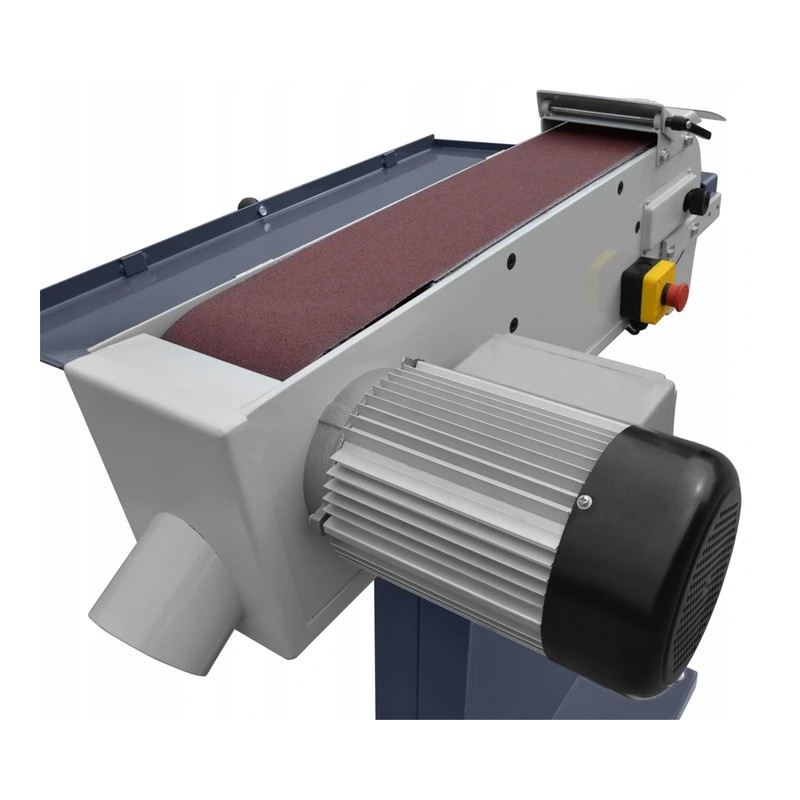

• Wide abrasive belt 2000 × 150 mm – ideal for processing large parts and flat surfaces requiring even finishing.
• Two belt speeds: 15 / 30 m/s – allow adjustment to material type and machining requirements.
• Powerful 2.8 kW motor – maintains constant speed under heavy load, ensuring consistent grinding quality.
• Spring-loaded belt tensioning system – automatically maintains correct belt tension, eliminating manual adjustment.
• Stable, wide-base construction – effectively absorbs vibration, improving operator comfort and machining accuracy.
• Easy grinding angle adjustment – enables quick and precise positioning of the belt relative to the workpiece.
• Two extraction nozzles – ensure efficient dust and particle removal, improving safety and cleanliness in the workspace.

Design and technology

The CORMAK SM150 belt grinding machine is built from reinforced steel components ensuring stiffness and long-term reliability. Built-in extraction nozzles and protected working areas enhance safety. The adjustable grinding table and large 200 × 150 mm contact area allow comfortable handling of workpieces of various shapes and sizes.

Precision and performance

Thanks to its wide belt and high motor power, the CORMAK SM150 belt grinder enables fast yet precise surface preparation for further processes such as painting, galvanising, or welding. The two-speed drive provides full control over both rough and finishing operations.

Applications

This machine is ideal for:

• grinding edges, welds, and large flat surfaces,
• processing structural steel, stainless steel, and aluminium,
• industrial workshops, maintenance, and locksmith environments,
• series and single-piece production,
• surface preparation for protective coatings.

Standard equipment

• Abrasive belt 2000 × 150 mm
• Eye shield
• Adjustable grinding table
• Two extraction nozzles
• Graphite layer reducing friction
• Motor protection switch
• Tensioning roller
• Vibration-damping base

Technical data

Need a powerful and reliable belt grinding machine? Choose the CORMAK SM150 – built for professional industrial use. Order now and achieve perfect grinding results in your workshop.
