A drill bit grinder for twist drills made of high-speed steel or carbide, offering precise sharpening and easy operation. Adjustable point angle from 90° to 135°. The grinder can sharpen drill bits with diameters from 2mm to 20mm!

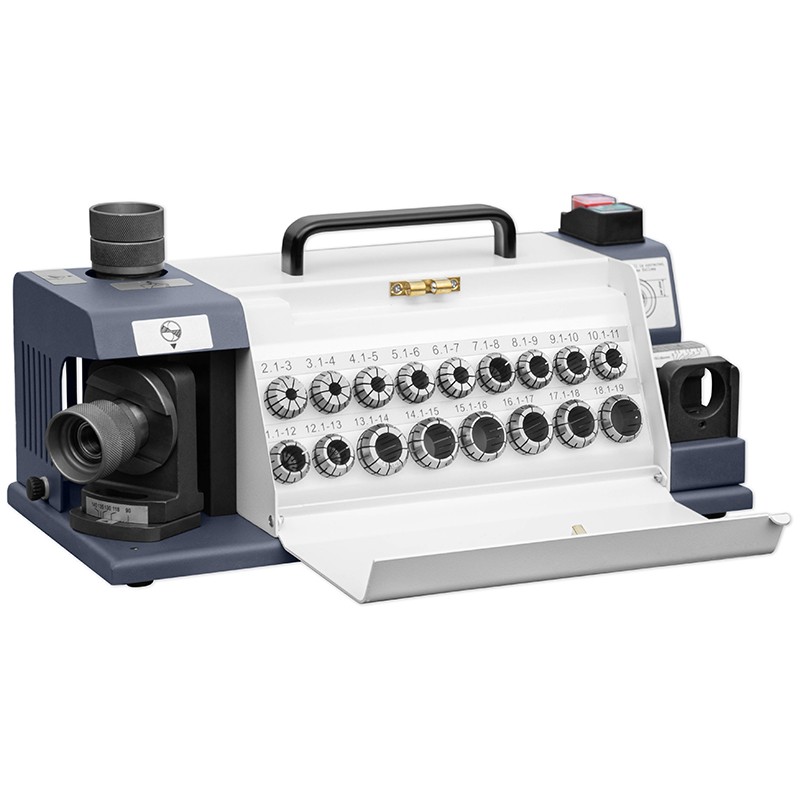

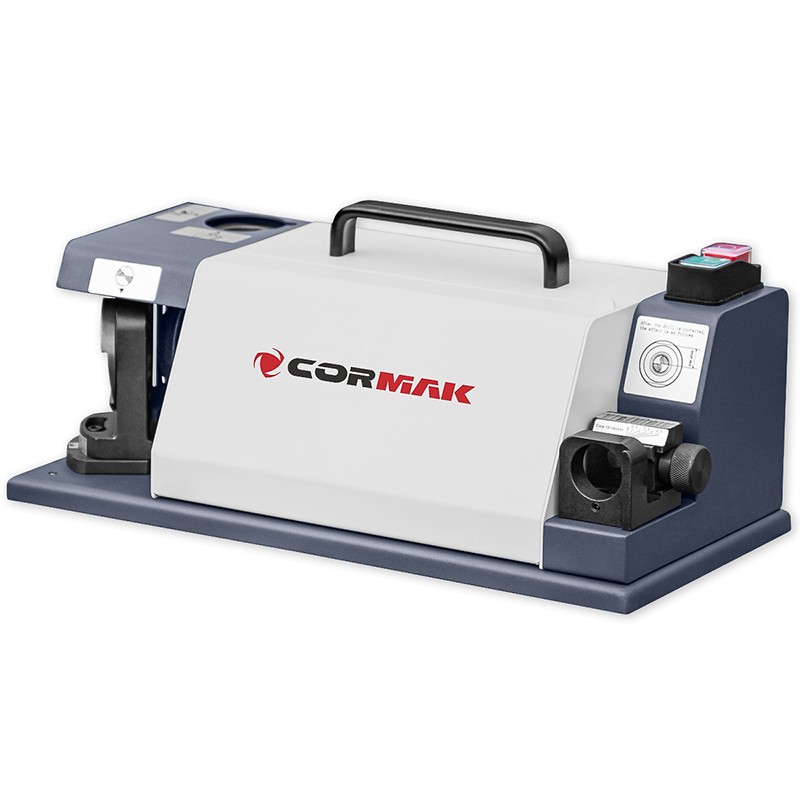

CORMAK DG20 Twist Drill Bit Grinder-Sharpener – precision sharpener for HSS and cobalt drill bits
CORMAK DG20 is an advanced twist drill bit sharpener designed for professional use in industrial plants, toolrooms and service workshops. It enables precise drill bit sharpening of high-speed steel (HSS) and cobalt steel drill bits with diameters ranging from ø2 to ø20mm. With its cubic boron nitride (CBN) grinding wheel, robust construction and complete set of collets, it delivers high quality and repeatability in the grinding process.
The CORMAK DG20 drill bit sharpener is manufactured from high-quality components, ensuring durability and precision in operation. The housing design eliminates vibration, contributing to greater grinding accuracy. The key component is the CBN grinding wheel, designed for intensive use and ensuring uniform sharpening of every cutting edge. The collet holder guiding system has been optimised for ergonomics and process repeatability, while the 180W motor provides sufficient power for efficient reconditioning of cutting tools.
Thanks to precise tool guidance and the appropriate grinding wheel, the CORMAK DG20 drill bit sharpener produces ideal cutting edge geometry, resulting in lower cutting resistance, improved hole quality and longer drill bit life. Operation requires no previous experience – simply place the drill bit in the appropriate collet, insert it into the holder and rotate it several times to obtain a fully functional cutting edge.
The DG20 model is suitable for:
| Drill bit diameter range | ø2–20mm |
|---|---|
| Point angle | 90°–135° |
| Power | 180W / 230V |
| Motor speed | 4,800rpm |
| Weight | approx. 11kg |
| Dimensions | 390 x 175 x 170mm |
CORMAK DG20 is an efficient and precise drill bit sharpener that ensures long tool life and maximum drilling efficiency. Regardless of production scale, its versatility and quality of construction make it an excellent choice for any professional. Order now and improve the efficiency of your workshop!
