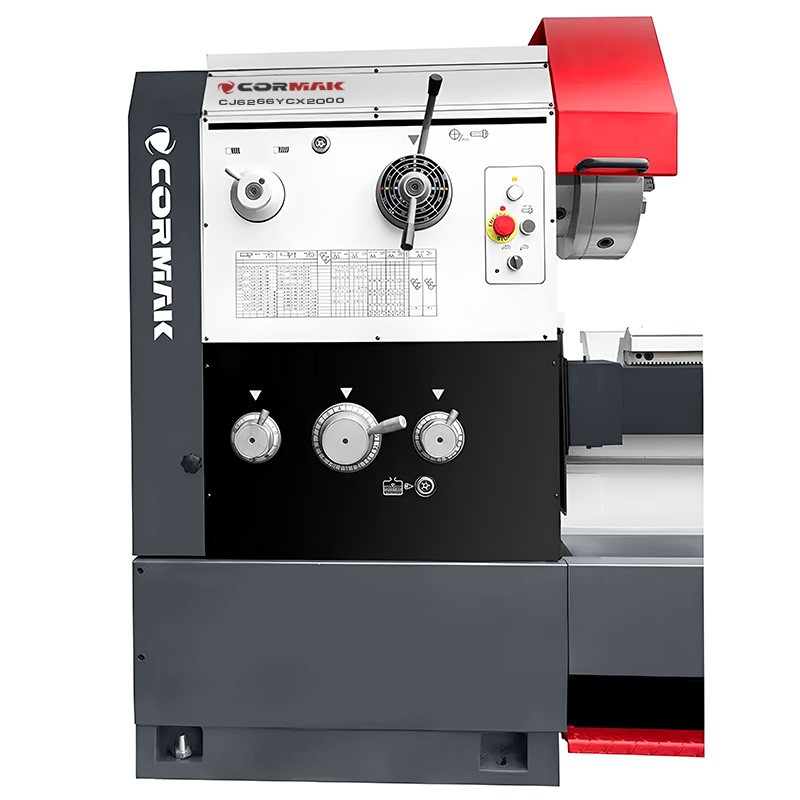

Conventional Universal Lathe CORMAK GOLIAT 660x2000 – precision and reliability in heavy-duty machining

Universal Lathe CORMAK GOLIAT 660x2000 is a precise industrial metalworking machine designed for demanding users. It combines high power, a large working area, and a rigid structure, enabling machining of large-sized components. It is an excellent choice for production plants, maintenance workshops, and service departments requiring efficiency, versatility, and long equipment life.

Main features and advantages

• Turning diameter over bed 660 mm and distance between centres 2000 mm – allows machining of large and long workpieces.
• Spindle bore 105 mm – enables smooth turning of pipes and shafts without pre-machining.
• Spindle speed range 36–1600 rpm in 12 steps – provides optimal performance for any material.
• Hardened and ground bed 400 mm wide – ensures long-term precision of carriage guidance.
• Rapid feed system (4.5 m/min longitudinal, 1.9 m/min cross) – increases productivity and shortens machining cycle time.
• 3-axis digital readout – immediate position control with hundredth-millimetre accuracy.
• Stable cast-iron base – reduces vibration and increases overall machine rigidity, even under heavy load.

Construction and manufacturing technology

The conventional lathe GOLIAT 660x2000 is based on a solid monolithic cast-iron frame ensuring resistance to torsion and micro-vibrations. The bed, induction-hardened and precisely ground, guarantees long-term geometric stability. The rolling spindle is mounted on high-quality bearings, providing smooth operation and durability of the drive system. The precision-hardened and ground gears inside the spindle gearbox increase reliability and service life.

Functions enhancing performance and operator comfort

• Joystick for rapid feed – intuitive control of carriage movement in both axes.
• Threading dial indicator – accurate return of the tool to the thread’s starting point.
• Removable bridge – enables turning of components up to 870 mm in diameter.
• Ergonomic control panel – quick and convenient adjustment of speed and feed parameters.

Applications

The machine is ideal for use in:

• heavy and machine industries,
• toolrooms and maintenance departments,
• turning and repair workshops,
• shipbuilding and energy industries, where machining of long or massive components is required.

Standard equipment

• 3-jaw chuck
• 4-jaw chuck
• Faceplate
• Fixed steady rest
• Follow rest
• Digital readout for 3 axes
• Spindle reducing sleeve
• Dead centre
• Change gears for gearbox
• Cooling system
• 24V halogen lighting
• Threading dial indicator
• Service tool set
• User manual
• CE Declaration of Conformity

Optional equipment

• Grinding attachment for shafts and holes
• Taper turning attachment
• Multifix quick-change tool post

Technical data

Choose industrial quality – choose CORMAK GOLIAT 660x2000

If you are looking for a conventional lathe capable of handling any metalworking task, the CORMAK GOLIAT 660x2000 model is your best choice. Order today or contact our technical advisor for an individual offer tailored to your production needs.
