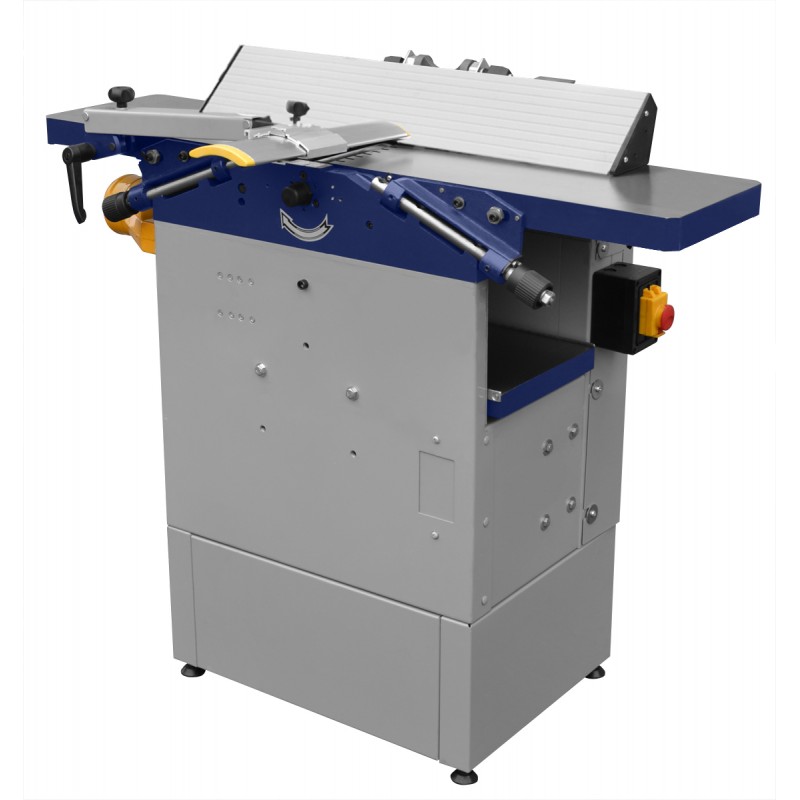

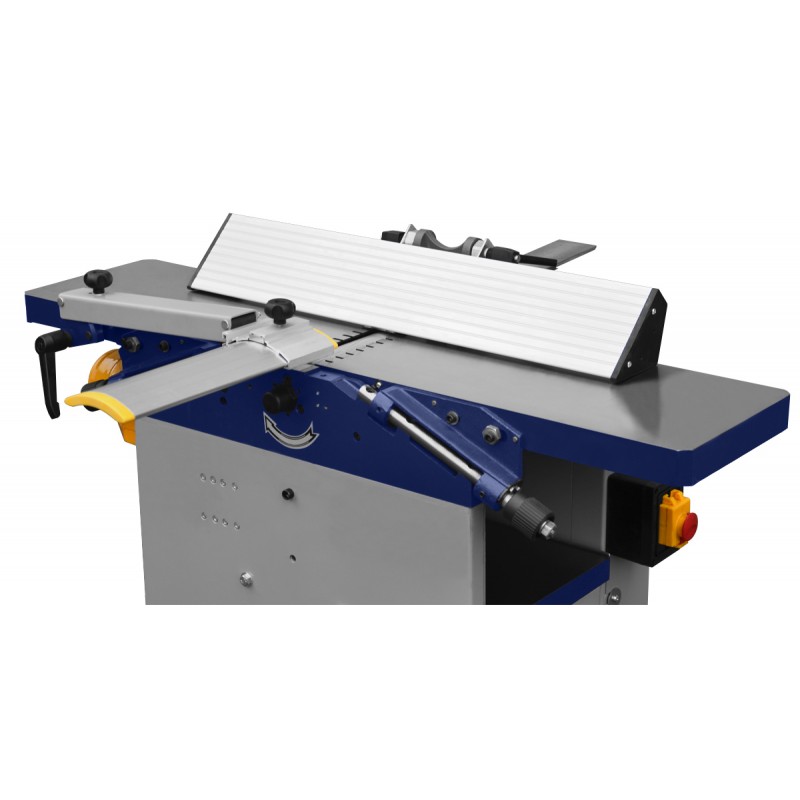

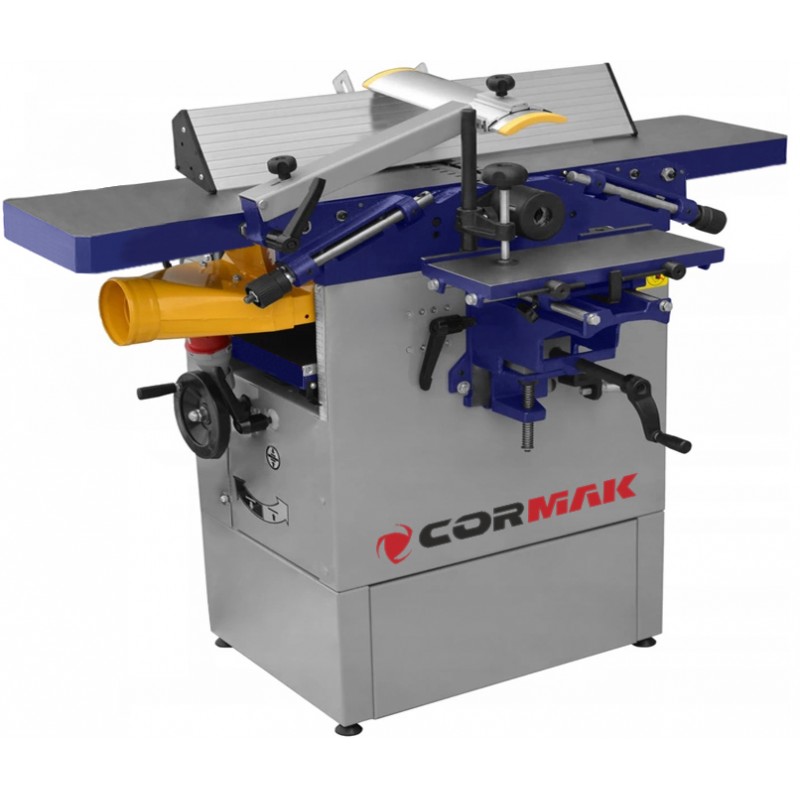

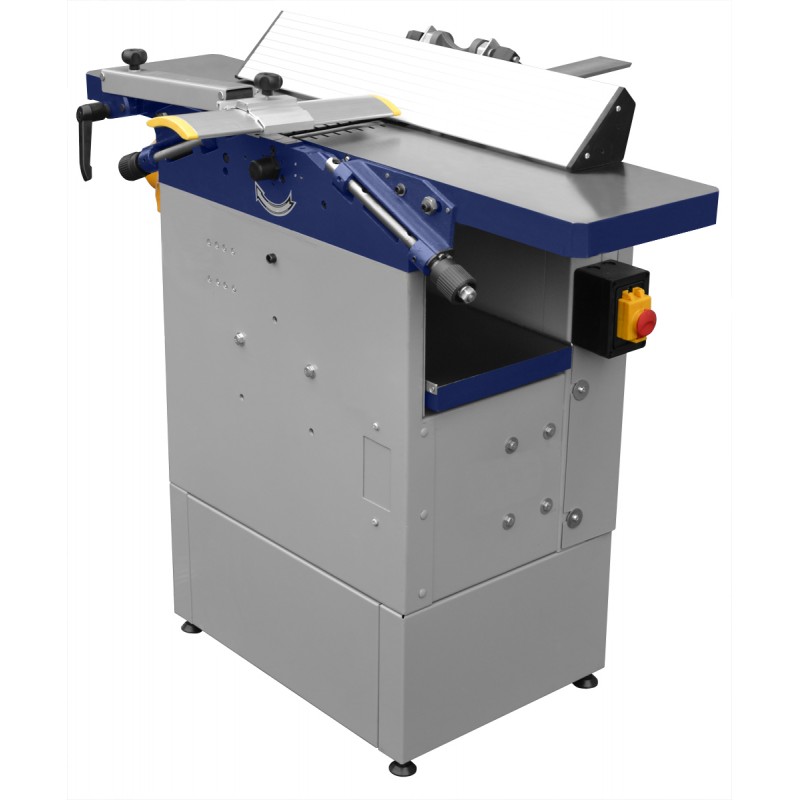

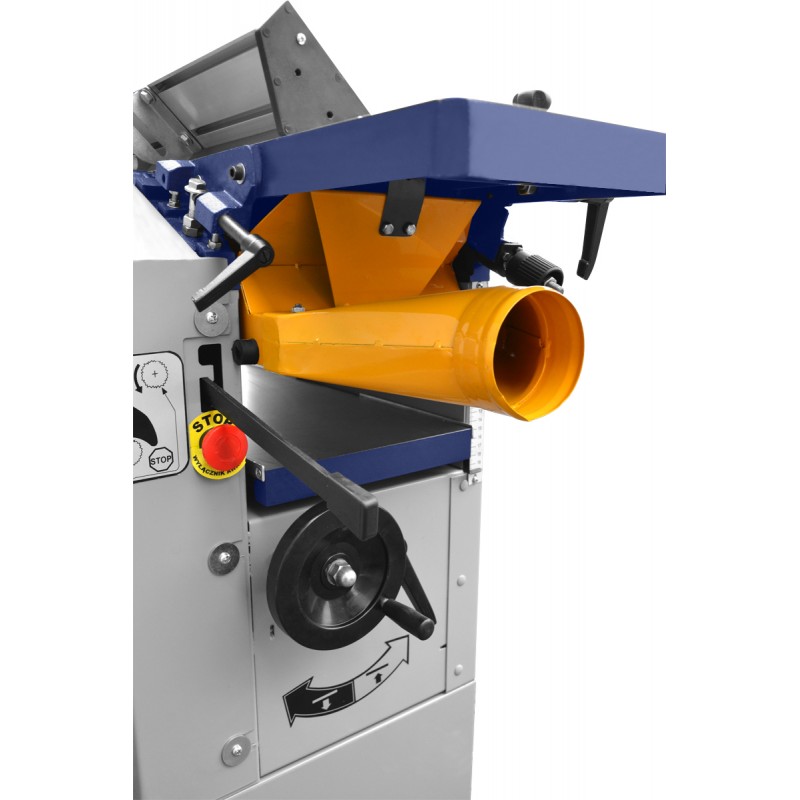

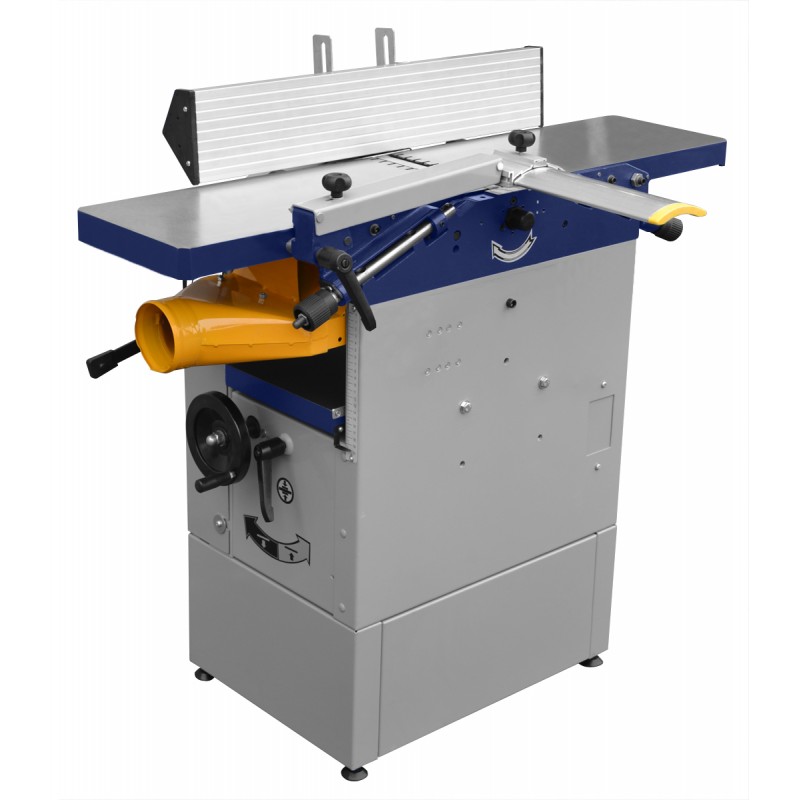

The CORMAK PT250 230V planer thicknesser enables operation in smaller woodworking workshops without 400V power. Its solid design, polished and ground tables, and powerful 2.6kW motor with a 3-knife cutterhead guarantee excellent results in any joinery workshop.
The CORMAK PT250 230V planer thicknesser is a precise and robust woodworking machine designed for the professional machining of both hardwood and softwood. This versatile planer thicknesser combines the functions of a surface planer and thicknesser, ensuring efficiency and space saving in the workshop. The machine performs perfectly in small carpentry shops, craft workshops, and for single or small-series production. With 230V supply, it offers a universal solution for many users.
The machine is made from high-quality cast iron, ensuring both stability and resistance to deformation during long-term use. The guide system and tilting fence (adjustable between 0°–45°) allow precise and repeatable material guidance. The cutter guard is fully adjustable in height, angle and extension, enhancing operator safety.
Three knives mounted on a 75mm cutterhead rotating at 4,000 rpm ensure accurate planing and smooth surfaces. The planing height up to 180mm allows the machining of a wide range of materials, while the maximum cutting depth of 3mm (thicknessing) and 2.5mm (planing) enables efficient work with even the hardest wood species.
The CORMAK PT250 230V planer thicknesser is intended for professional woodworking workshops, small production facilities, and craftsmen carrying out individual projects. It is ideal wherever high precision, reliability and flexibility are required – serving as a wood planer, thicknesser, and surface planer.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
| Cutterhead diameter [mm] | 75 |
| Cutterhead speed [rpm] | 4000 |
| Extraction port diameter [mm] | 100 |
| Fence tilt angle [°] | 0 - 45 |
| Number of knives | 3 |
| Knife dimensions [mm] | 250x30x3 |
| Maximum planing width [mm] | 254 |
| Maximum thicknessing width [mm] | 254 |
| Maximum planing height [mm] | 180 |
| Maximum thicknessing depth of cut [mm] | 3 |
| Maximum planing depth of cut [mm] | 2.5 |
| Feed speed [m/min] | 6 |
| Dimensions (L x W) [mm] | 1080 x 260 |
| Gross weight [kg] | 152 |
| Motor power | 2.6kW |
| Power supply | 230V |
| User manual | included |
| CE declaration | yes |
▶
