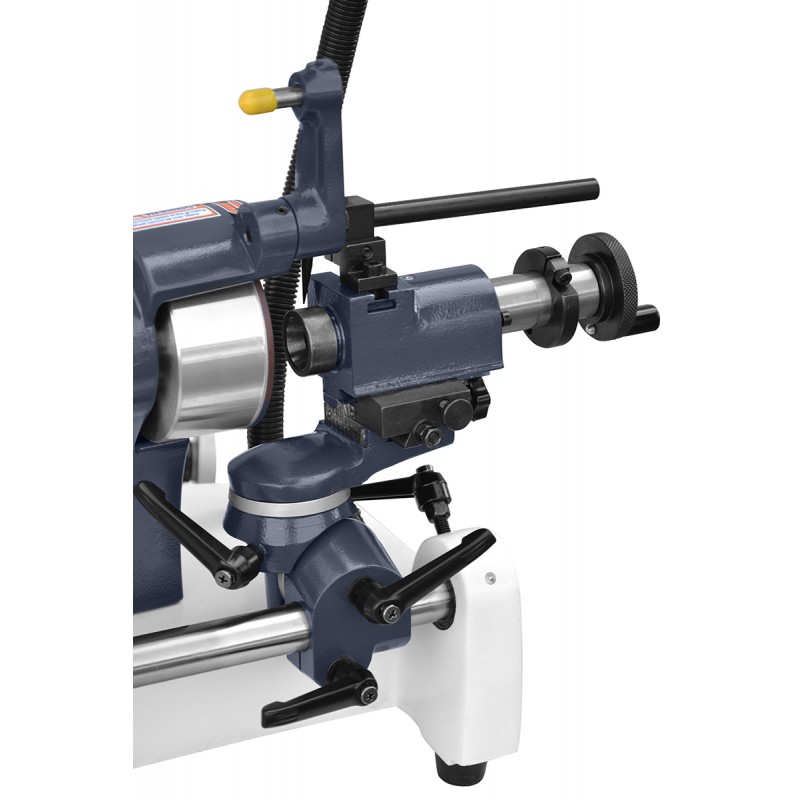

The CORMAK UWS3 universal grinder is a precision machine designed for sharpening and grinding cutting tools such as drills, milling cutters, lathe tools, and chisels. With its robust construction and adjustable holders, it ensures high accuracy and stable operation. The machine allows quick angle adjustment and comes with a wide range of accessories, enhancing its versatility. It’s a reliable solution for workshops and production plants, enabling tool reconditioning and reducing operating costs.
CORMAK UWS3 is a compact yet highly versatile tool and cutter grinder designed for sharpening a wide variety of cutting tools. With precise guidance and a fully adjustable head, this machine excels as a drill sharpener, milling cutter grinder, and for reconditioning lathe tools, electrodes, or centre points. Its stable cast-iron structure, high-precision spindle, and extensive set of holders make it an ideal choice for tool rooms and maintenance departments.
The CORMAK UWS3 tool grinder is engineered for long-term and intensive operation. Its compact yet rigid structure ensures precision in every position. The integrated head can tilt and rotate in multiple planes, allowing adjustment of rake, relief, and cone angles during sharpening. Fine adjustment of both the tool holder and spindle enables extremely accurate tool positioning relative to the grinding wheel.
Thanks to its high-quality components and vibration-free operation, the CORMAK UWS3 drill and cutter grinder guarantees repeatable results and significantly extends the life of sharpened tools. The ability to mount different types of holders and adjust a wide range of angles allows the machine to adapt to specific machining or regrinding tasks, even in small-batch production or tool repair environments.
The UWS3 model is ideal for use in:
| Grinding wheel diameter | 100 mm |
|---|---|
| Grinding wheel thickness | 50 mm |
| Wheel bore diameter | 20 mm |
| Spindle speed | 5200 rpm |
| Clamping range (max/min) | 3–16 mm |
| Cone angle | 0°–180° |
| Negative angle | 0°–52° |
| Relief angle | 0°–44° |
| Longitudinal holder travel | 140 mm |
| Fine adjustment of holder | 18 mm |
| Fine adjustment of spindle | 6 mm |
| Motor power | 0.25 kW / 230 V |
| Weight | 45 kg |
| Dimensions (L × W × H) | 450 × 350 × 340 mm |
CORMAK UWS3 is a robust, versatile, and precise drill sharpener and cutter grinder that meets the demands of any professional workshop. Its versatility, stable construction, and precise guidance make it an indispensable tool for regrinding cutting tools. Order now and enhance your workshop’s tool sharpening capability!
