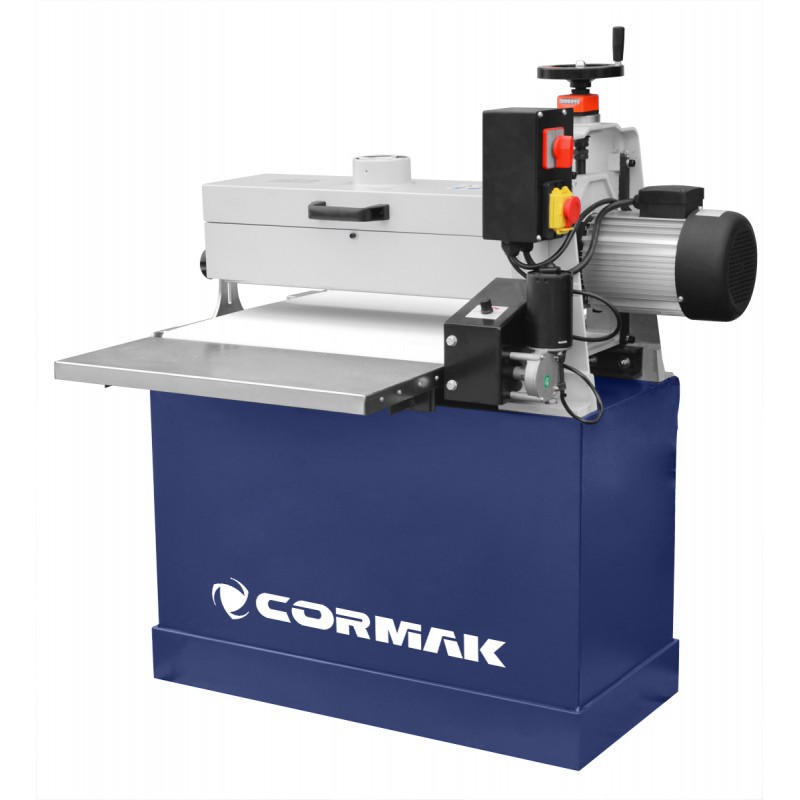

Belt Sander CORMAK MM3156C 400V

The CORMAK MM3156C 400V drum sander is an advanced through-feed sanding machine designed for precise, repeatable surface finishing. Its solid construction, smooth operation and interchangeable sanding drums make it ideal for sanding solid wood, veneers, furniture panels, as well as metals and plastics. The MM3156C model is built for continuous operation in production facilities and woodworking shops, where precision, repeatability and reliability are essential.

Main machine features

• Interchangeable sanding drums – quick adaptation for various materials: wood, veneer, metal.
• Dual drum speed – 750/1440 rpm enables adjustment for coarse or fine sanding depending on material type.
• High precision – a rigid frame with cast-iron arm and hardened guides ensures accurate drum alignment and consistent sanding quality.
• Mechanical thickness gauge – allows precise setting and control of sanding parameters.

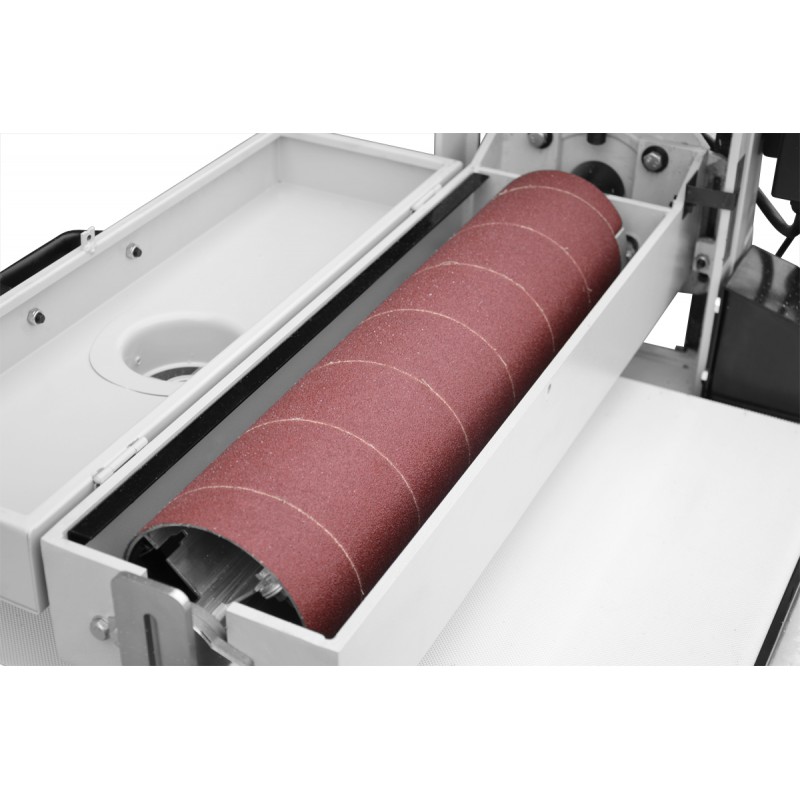

• Aluminium self-cooling drum – dynamically balanced to prevent overheating during continuous use.

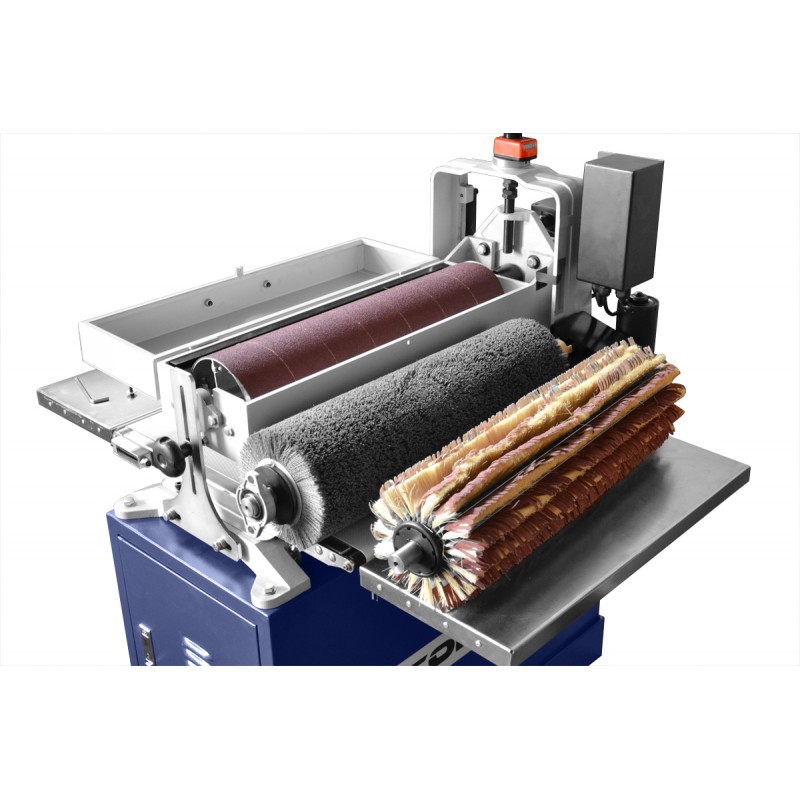

• Option for brush drums – machine can be equipped for wood texturing or ageing applications.

Construction and technology

The CORMAK MM3156C drum sander is engineered for industrial use. Its reinforced sanding shaft and bronze bushings ensure long service life and smooth operation without backlash. The reinforced coupling efficiently transmits torque from the 1.5 kW main motor to the sanding drum. The machine features infinitely variable feed speed control from 0–3 m/min, allowing adjustment to material type and required finish.

The table guidance system with hardened rails and a cast-iron base eliminates vibrations and increases rigidity. A working width of 560 mm and maximum workpiece height of 80 mm make this model ideal for both serial and precision single-piece production.

Precision and efficiency

The CORMAK MM3156C through-feed sander ensures industrial-level precision thanks to its rigid structure and vibration-damping design. The minimum workpiece thickness is 3.5 mm and the minimum length 600 mm. The sanding drum, measuring 133 × 560 mm, removes material evenly up to 0.5 mm per pass. The integrated Ø100 mm dust extraction port allows connection to an external dust collector, maintaining a clean and safe working environment.

Applications

The CORMAK MM3156C drum sander is suitable for:

• carpentry and furniture production workshops,
• manufacturing of fronts, countertops, panels and laminated boards,
• surface levelling and finishing,
• processing of metal and plastic elements,
• wood brushing and ageing (with optional brush drums).

Standard equipment

• Aluminium sanding drum
• Mechanical thickness setting gauge
• Main motor 2.0 kW total (S1: 1.5 kW, 400V)

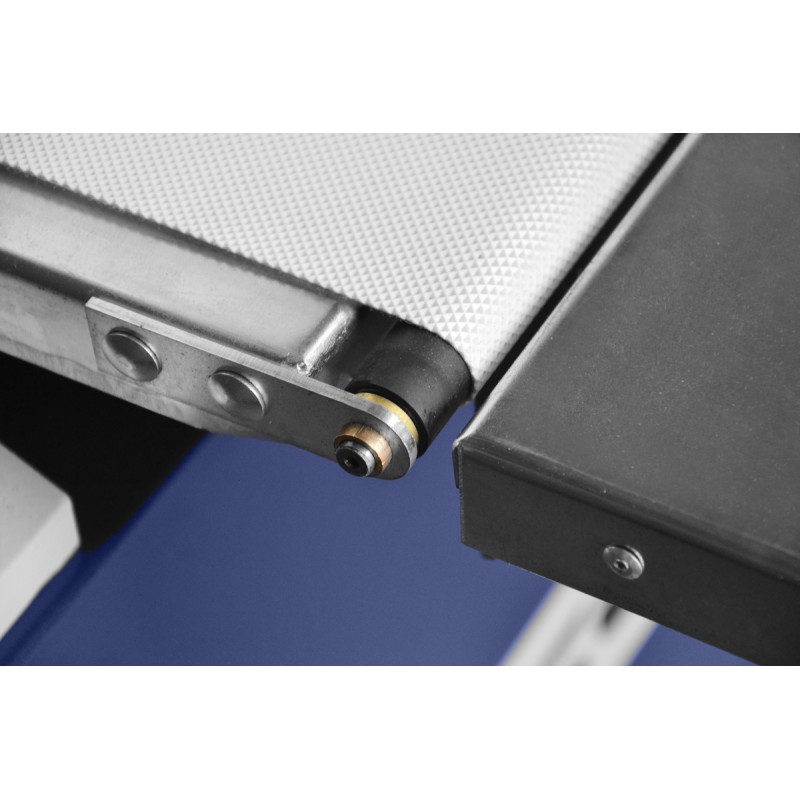

• Feed system with 0–3 m/min adjustment
• Feed belt tensioners
• Side guide for workpieces
• Dust extraction port Ø100 mm

Optional equipment

• Brush drums for wood ageing
• Spare abrasive sleeves (various grits)
• Industrial dust extraction system
• Roller infeed/outfeed tables

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.

Invest in precision, durability and performance. Choose the CORMAK MM3156C 400V drum sander and optimise your sanding process today.

Technical specifications:
