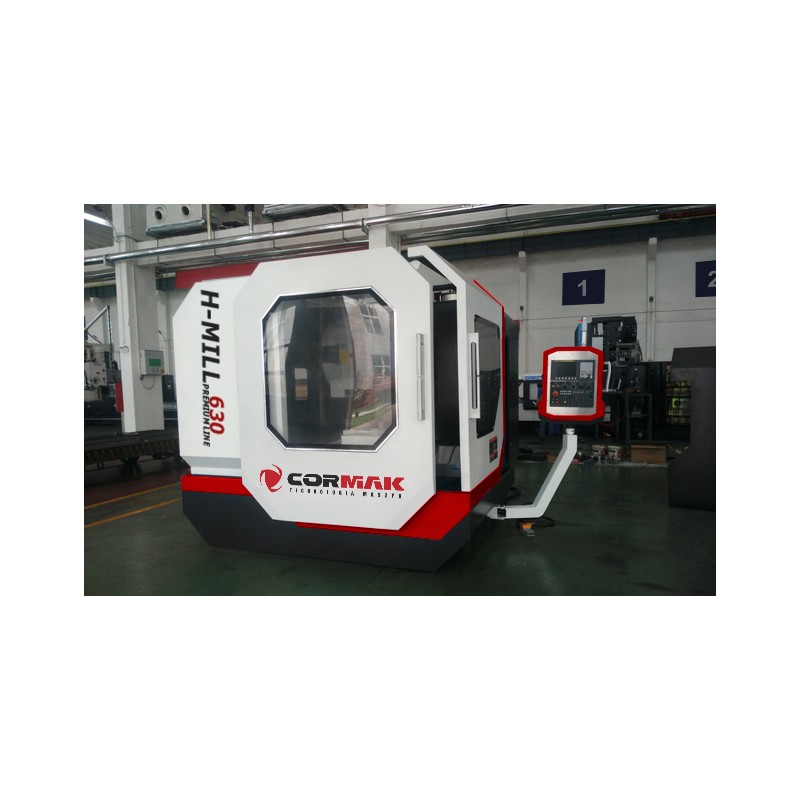

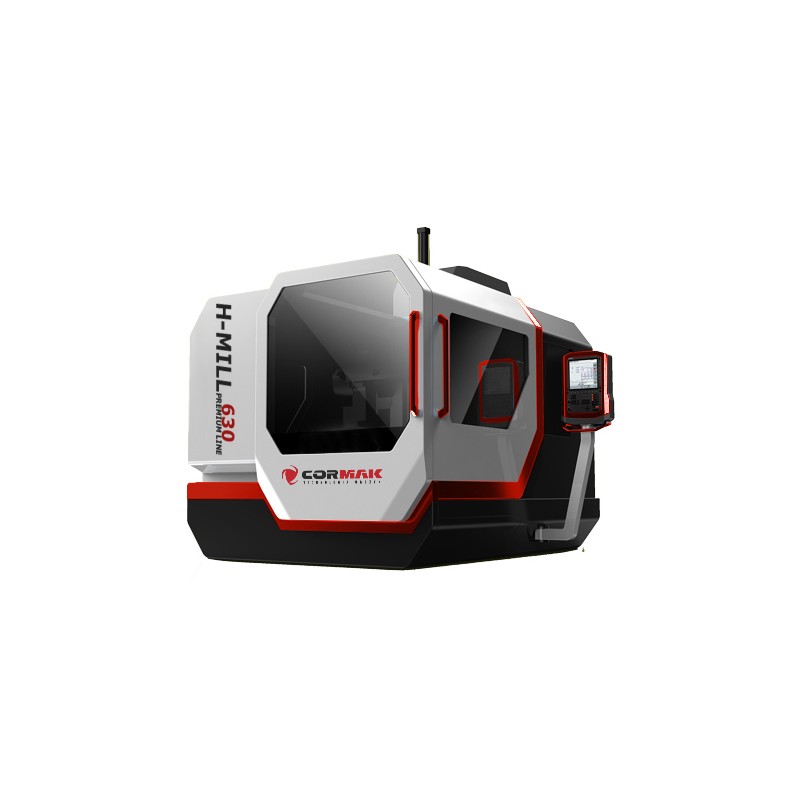

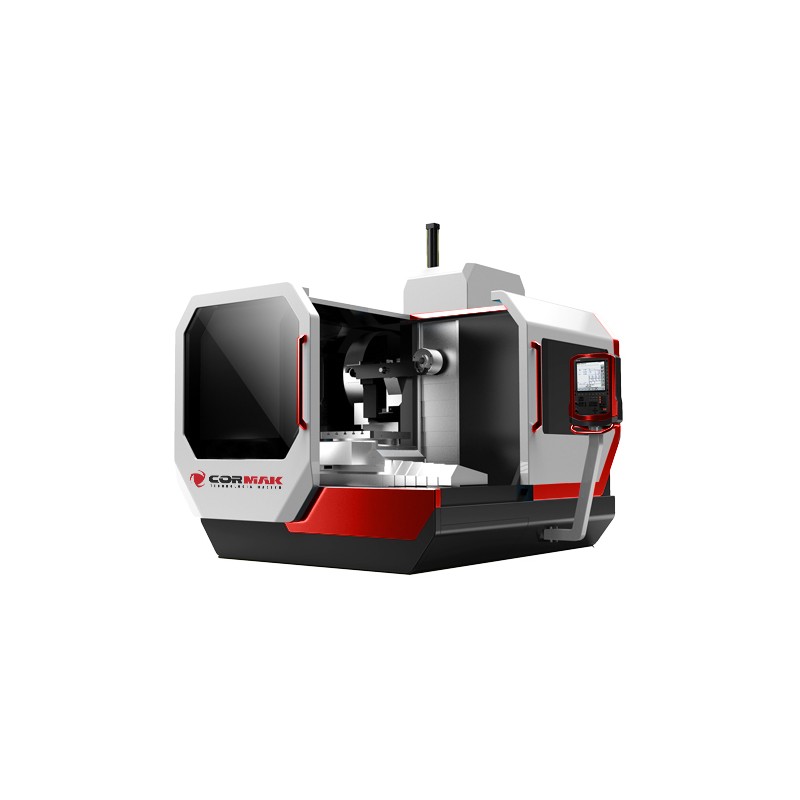

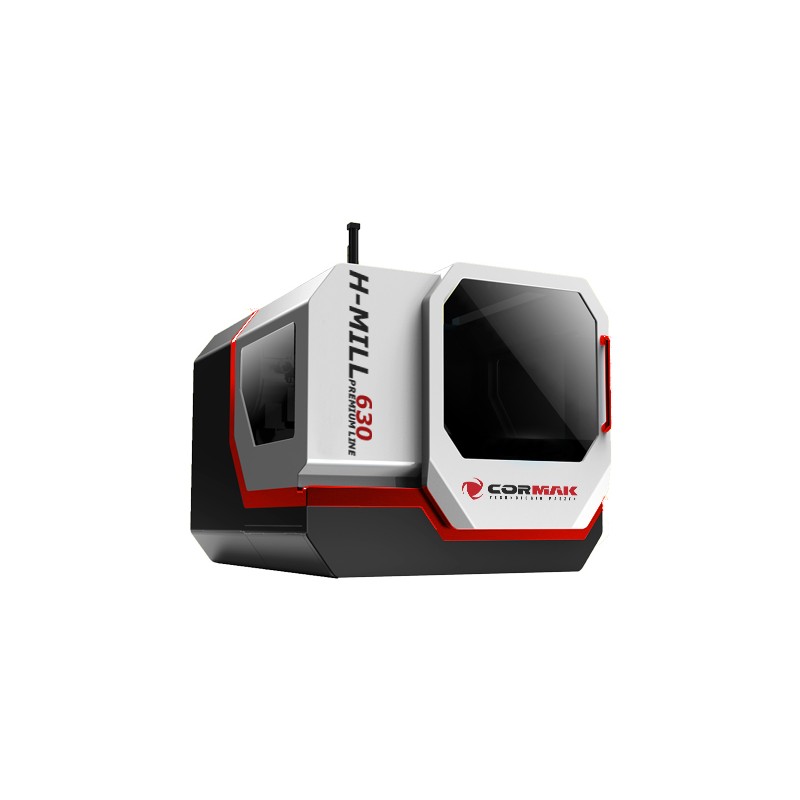

Horizontal Machining Centre H-MILL 630 – precision and performance in metalworking
Horizontal Machining Centre H-MILL 630 is an advanced CNC machine designed for precise milling and drilling operations in demanding industrial environments. Equipped with Siemens Sinumerik 808D control and a rigid structure, it provides exceptional accuracy, reliability and efficiency, ideal for production plants seeking versatile solutions.
Main advantages of the H-MILL 630 machining centre
Horizontal Machining Centre H-MILL 630 is a professional industrial solution combining advanced CNC technology with a robust structure, dedicated to facilities requiring top-class cutting precision. As a metal machining centre, it allows complex operations such as milling, drilling, tapping and contour machining, ensuring excellent surface quality and accuracy. Its key benefits include:
- Exceptional machining accuracy: Positioning accuracy of ±0.0025 mm JIS and repeatability of ±0.0015 mm JIS guarantee the highest quality finish of components.
- Large working area: Axis travel X/Y/Z 800×700×750 mm and a table size of 630×630 mm allow machining of large and complex parts.
- High spindle performance: Speed range 2400/6000 rpm with a BT50 spindle taper enables machining of various materials, from steel to light alloys.
- Intuitive control: Siemens Sinumerik 808D control system with Siemens servo drives provides easy operation and minimises programming time.
- Rigid construction: Net weight of 8,500 kg and overall dimensions of 2900×3200×2650 mm ensure stability when machining heavy workpieces up to 1,000 kg.
- Tool efficiency: A 24-position tool magazine with a maximum tool weight of 15 kg accelerates tool changes, shortening production cycle times.
- Fast axis movement: Rapid feed rates of X/Y/Z 32/24/32 m/min increase machining efficiency.
- Enhanced safety: Hermetic machine enclosure and three-colour warning lights minimise error risk and ensure operator safety.
- Component durability: Automatic lubrication system for linear guides reduces wear and extends machine lifespan.
- Optimal cooling: The cooling system ensures thermal stability, protecting both tools and workpieces during intensive machining.
- Versatile applications: Ideal for precision machining in the mechanical, automotive, aerospace and tooling industries, suitable for both serial and small-batch production.
- Operational economy: Motor power of 15/18.5 kW combines high performance with energy efficiency.
- Integration with machining cycles: Compatible with machining operations such as milling, drilling and tapping – only basic parameters need to be entered, with no G-code knowledge required.
- Advanced automation: Options such as through-spindle cooling, tool probe or chip conveyor increase production process efficiency.
- Customisation possibilities: A wide range of options, including Fanuc Oi-TF or Sinumerik 828D control, workpiece probe or CAD/CAM software, allow full machine adaptation to specific needs.
- European safety standards: CE compliance declaration confirms conformity with strict occupational safety regulations.
Construction and technology of the H-MILL 630 machining centre
Horizontal Machining Centre H-MILL 630 has been designed for reliability and precision in demanding production conditions. The key structural elements include:
- Solid machine construction: A net weight of 8,500 kg minimises vibrations, ensuring stability when machining heavy components.
- High-performance spindle: Speed of 2400/6000 rpm with a BT50 taper guarantees versatility in machining various materials.
- Linear guides: Provide smooth movement and high positioning accuracy for the X/Y/Z axes.
- Tool magazine: 24 positions with a maximum tool weight of 15 kg enable quick tool change and operational flexibility.
- Worktable: Dimensions 630×630 mm and load capacity of 1,000 kg support large workpieces.
- Siemens servo drives: Guarantee smooth movement and high positioning precision.
- Automatic lubrication system: Central lubrication of linear guides reduces component wear.
- Cooling system: Maintains optimal temperature, improving machining quality and tool life.
- Hermetic enclosure: Protects the operator and the work environment, ensuring safety and cleanliness.
- Lighting and warning lights: 24V halogen lighting and three-colour alarm lamps increase visibility and operational safety.
Precision and performance
CNC Horizontal Machining Centre H-MILL 630 ensures exceptional precision thanks to the Siemens Sinumerik 808D control system and Siemens servo drives. Advanced machining cycles, such as milling, drilling, tapping and contour processing, simplify programming and reduce machining time. Rapid traverse rates of X/Y/Z (32/24/32 m/min) combined with positioning accuracy of ±0.0025 mm JIS and repeatability of ±0.0015 mm JIS guarantee high performance and superior quality.
Applications of the H-MILL 630 machining centre
Horizontal machining centres such as H-MILL 630 are used in various industrial sectors, including:
- Mechanical industry: Production of precision components such as housings, casings and machine parts.
- Automotive industry: Machining of engine parts, gearboxes and suspension components.
- Aerospace industry: Manufacturing of components requiring high precision and surface quality.
- Toolmaking industry: Production of moulds, dies and complex-shaped parts.
- Serial and small-batch production: Ideal for medium-series production and rapid prototyping in R&D departments.
The machine is an excellent choice for companies seeking a versatile metal milling centre offering high precision and reliability.
Standard equipment
- Siemens Sinumerik 808D control
- Siemens – 2-year warranty
- Spindle speed 8000 rpm
- Linear guides
- 24-position tool magazine
- Three-colour alarm lights
- 24V halogen lighting
- Hermetically sealed machine enclosure
- Automatic lubrication system
- Pneumatic system
Optional equipment*
- Fanuc 0i Mate control
- Siemens Sinumerik 828D control
- Rotary table
- Screw chip conveyor
- Tool measuring probe
- Workpiece measuring probe
- Oil mist collector
- Through-spindle cooling
- Starter tool package
*The price quoted is for the machine only, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.
Technical parameters
| AXIS TRAVEL X,Y,Z |
800×700×750 mm |
| TABLE SIZE |
630×630 mm |
| TABLE LOAD CAPACITY |
1,000 kg |
| RAPID FEED RATE X,Y,Z |
32/24/32 m/min |
| SPINDLE SPEED |
2400/6000 rpm |
| SPINDLE TAPER |
BT50 |
| MOTOR POWER |
15/18.5 kW |
| TOOL MAGAZINE |
24 |
| MAXIMUM TOOL WEIGHT |
15 kg |
| POSITIONING ACCURACY |
±0.0025 mm JIS |
| REPEATABILITY |
±0.0015 mm JIS |
| WEIGHT |
8,500 kg |
| DIMENSIONS |
2900×3200×2650 mm |
CNC control systems – Siemens and Fanuc
Horizontal Machining Centre H-MILL 630 offers advanced CNC control systems such as Siemens Sinumerik 808D, Siemens Sinumerik 828D and Fanuc Oi-TF, ensuring precision, reliability and ease of operation:
Siemens Sinumerik 808D
- Intuitive interface: Easy to operate, ideal for smaller workshops and novice users.
- Reliability: Robust design resistant to tough industrial conditions.
- Cost efficiency: Dedicated for standard milling and turning applications.
Siemens Sinumerik 828D
- High computing power: Enables dynamic machining and operation of complex cycles.
- CAD/CAM integration: Simplifies cooperation with design software.
- Advanced functions: Tool path optimisation and option to expand with additional modules.
Fanuc Oi-TF
- Stability: Reliable in serial production and continuous operation.
- Advanced milling cycles: Perfect for precision cutting, milling and drilling operations.
- Intuitive operation: Clear interface speeds up programming.
User manuals
SIEMENS SINUMERIK 828/840
Download manual
SIEMENS SINUMERIK 808
Download manual
