Reference:
JSN12
Manufacturer:
CORMAK

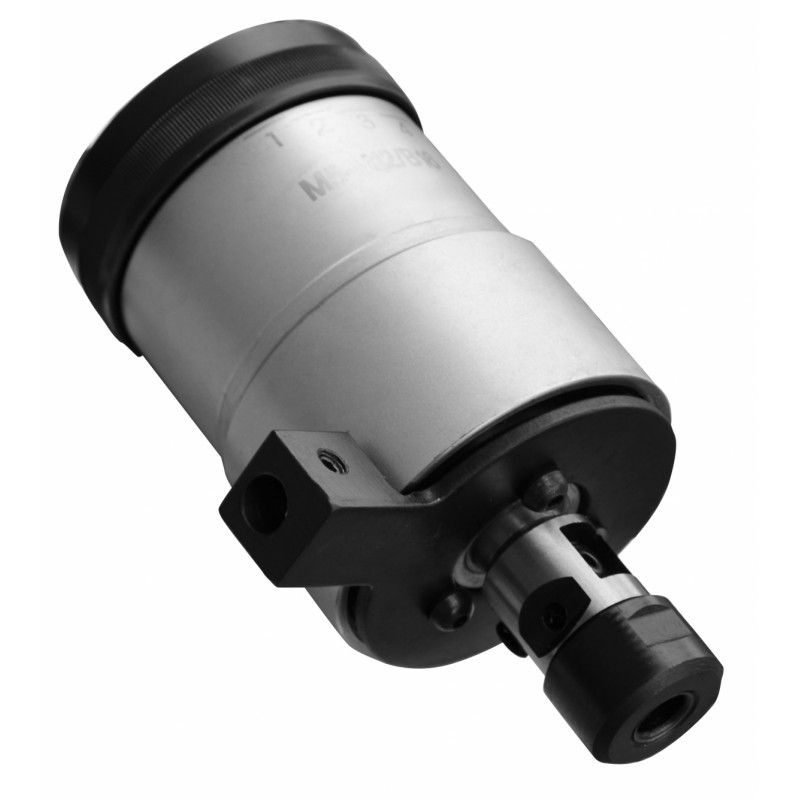

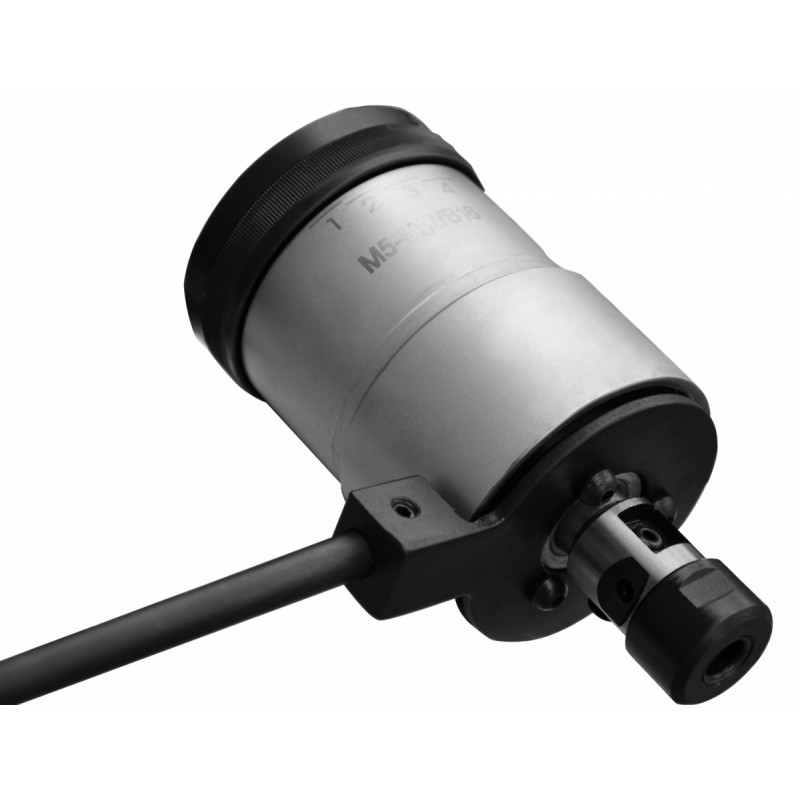

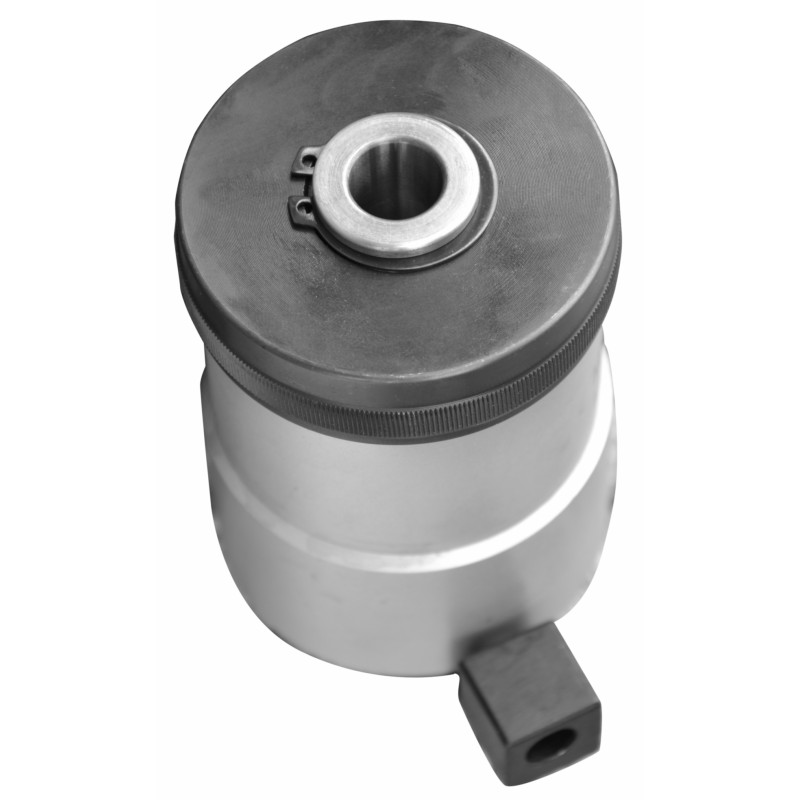

Auto-Reversing Tapping Head CORMAK JSN 12 is designed for use on both conventional and CNC machines. It automatically reverses rotation upon reaching the preset thread depth, allowing efficient threading of both through and blind holes. The set includes Morse taper shanks No. 3 and No. 4, two Rubberflex collets, a depth stop, and service spanners.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Device Description
- Automatic reverse mechanism
- Suitable for vertical machine applications
- Allows threading of both through and blind holes
- Automatic reversal at the set thread depth
- Equipped with friction clutch
|
SPECIFICATION |
|
|---|---|
| Overall length | 156mm |
| Outer diameter | 75mm |
| Shank | MK3 and MK4 |
| Speed range | 100–300rpm |
| Gear ratio (FWD–REV) | 1:1.75 |
| Threading range | M5–M12 |
| Mount | B16 |
| Weight | 4.2kg |
