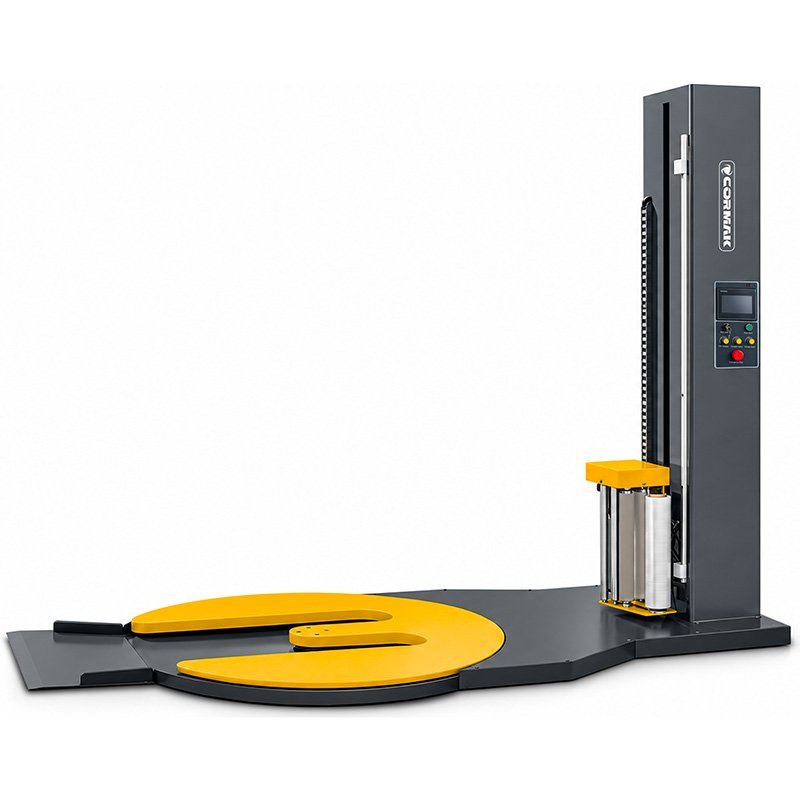

The CORMAK FUTURA1620P pallet stretch wrapper is designed for securing loads with stretch film and features an E-shaped turntable. Special cut-outs allow pallets to be loaded and unloaded using a standard pallet truck without the need for an access ramp. This solution simplifies daily operation at the packing station and reduces the need to use a forklift truck.

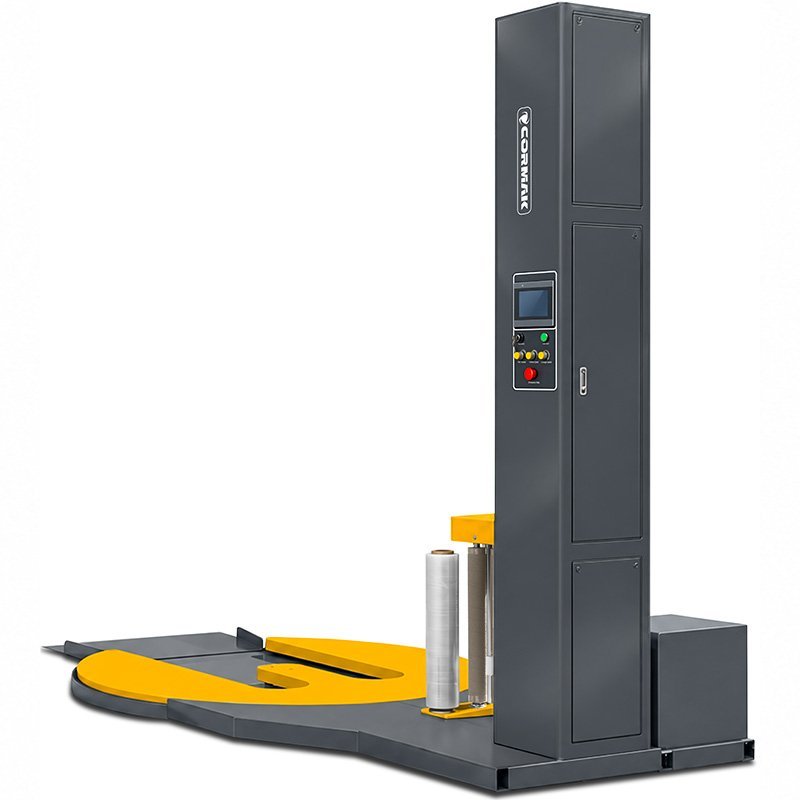

The CORMAK FUTURA1620P is a pallet stretch wrapping machine equipped with an E-shaped rotating turntable, designed to secure loads with stretch film in warehouses, logistics centres and manufacturing facilities. Cut-outs in the platform allow pallets to be positioned and removed using a standard manual pallet truck – without an additional access ramp.
A 2,000kg load capacity, 2,000mm wrapping height and 1,650mm turntable diameter allow loads of varying dimensions to be prepared for transport, provided they remain within the machine's operating limits. Adjustable rotation speed and a capacity of up to 40 wrapping cycles per hour make it easier to adapt the packing station to regular dispatch operations.

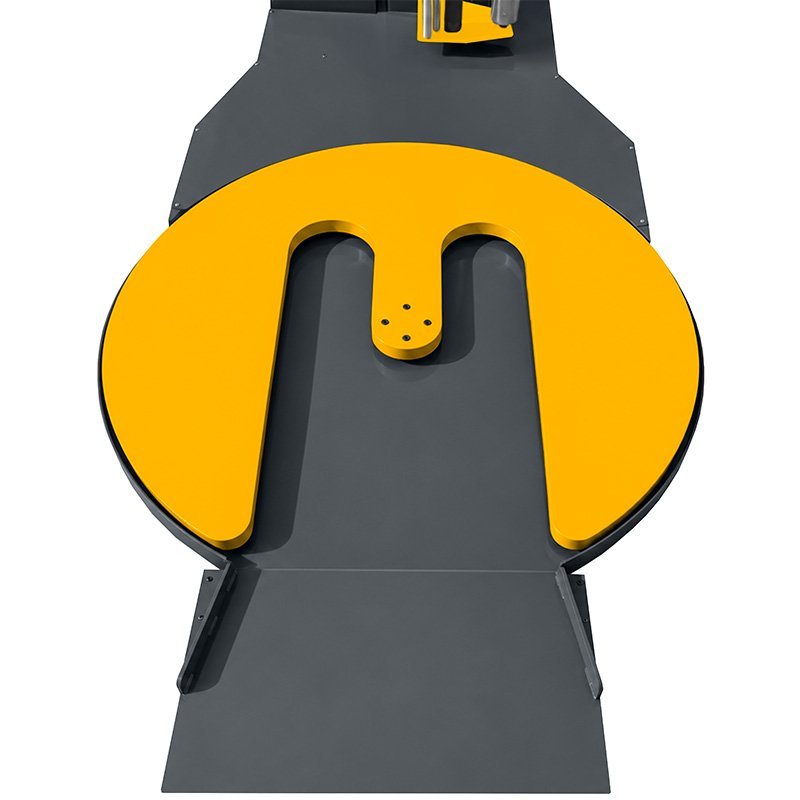

The main distinguishing feature of the FUTURA1620P is its rotating platform with cut-outs arranged in the shape of the letter E. The spaces between the turntable's load-bearing sections allow the forks of a compatible pallet truck to be inserted without having to drive onto a raised platform via a ramp. This solution is particularly useful where pallets are routinely moved using manual pallet trucks.

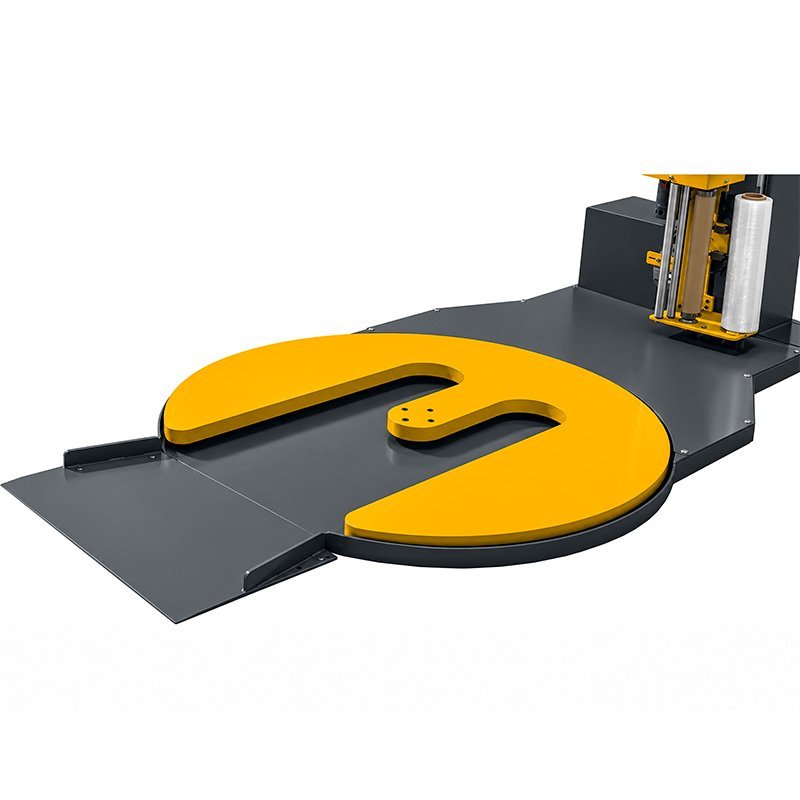

In front of the platform cut-outs are side guides for positioning the pallet truck. They help the operator align the truck correctly with the turntable and insert the forks precisely into the designated spaces. This makes loading more organised, particularly when handling successive pallets at the same packing station.
Loading involves a few simple steps: the operator approaches with the pallet, inserts the forks into the cut-outs, lowers the load onto the turntable's load-bearing surfaces and withdraws the pallet truck. After wrapping, the pallet can be lifted again with the pallet truck and moved to the storage or dispatch area. The absence of a ramp eliminates the need to manoeuvre a loaded pallet truck up an incline and avoids allocating additional space for an access ramp in front of the machine.
The permissible load capacity of 2,000kg allows the pallet wrapper to be used for securing pallets containing bulk packaging, industrial components, warehouse materials and finished products. Correct operation requires stable load positioning, adequate pallet support and compliance with the machine's permissible operating parameters.
The 2,000mm wrapping height enables both lower and taller palletised loads to be secured. Meanwhile, the 1,650mm turntable diameter defines the size of the rotating platform. When selecting a pallet wrapper, the dimensions of the pallet base, the overall load outline and the space required for safe rotation must also be considered.

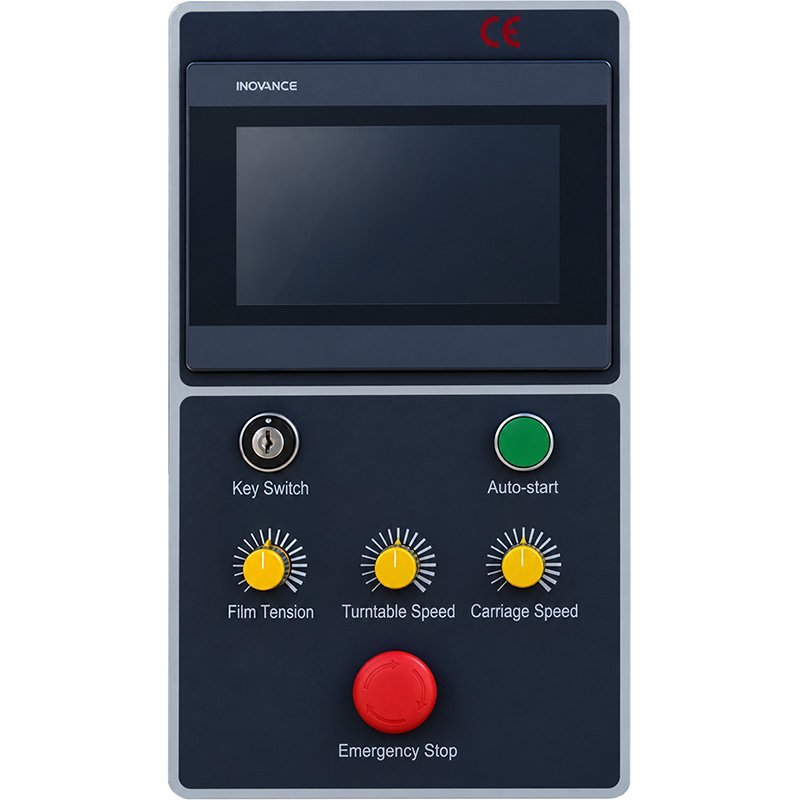

The pallet wrapper allows turntable rotation speed to be adjusted from 0–12rpm. A lower speed can be selected for tall or less stable loads, while a higher speed can be used for sufficiently stable pallets when efficient cycle completion is important. This makes it easier to adapt packing station operation to the type of shipments being prepared.
The maximum wrapping capacity is 40 pallets per hour, enabling efficient preparation of loads for storage and transport. Actual throughput depends on pallet height, the number of wrapping revolutions and the time required to load and remove finished pallets.
The CORMAK FUTURA1620P is suitable for packing stations where palletised loads are regularly prepared for transport and manual pallet trucks are the primary means of moving them. Typical applications include:
The E-shaped turntable is compatible with manual pallet trucks with dimensions suitable for the geometry of the cut-outs. Before use, it is important to check the fork width and length, wheel positioning and construction of the pallet being handled. The term "standard pallet truck" does not automatically mean that every pallet truck model is compatible.
The packing station should provide sufficient space for manoeuvring the pallet truck, placing and removing pallets, and allowing the load to rotate freely. Proper machine positioning makes it possible to take full advantage of ramp-free loading while maintaining the necessary working clearance.
| Parameter | Value |
|---|---|
| TURNTABLE DIAMETER [mm] | 1650 |
| LOAD CAPACITY [kg] | 2000 |
| MAXIMUM LOAD DIMENSIONS [mm] | 1200 × 1000 |
| WRAPPING HEIGHT [mm] | 2000 |
| TURNTABLE SHAPE | E |
| TURNTABLE ROTATION SPEED [rpm] | 0–12 |

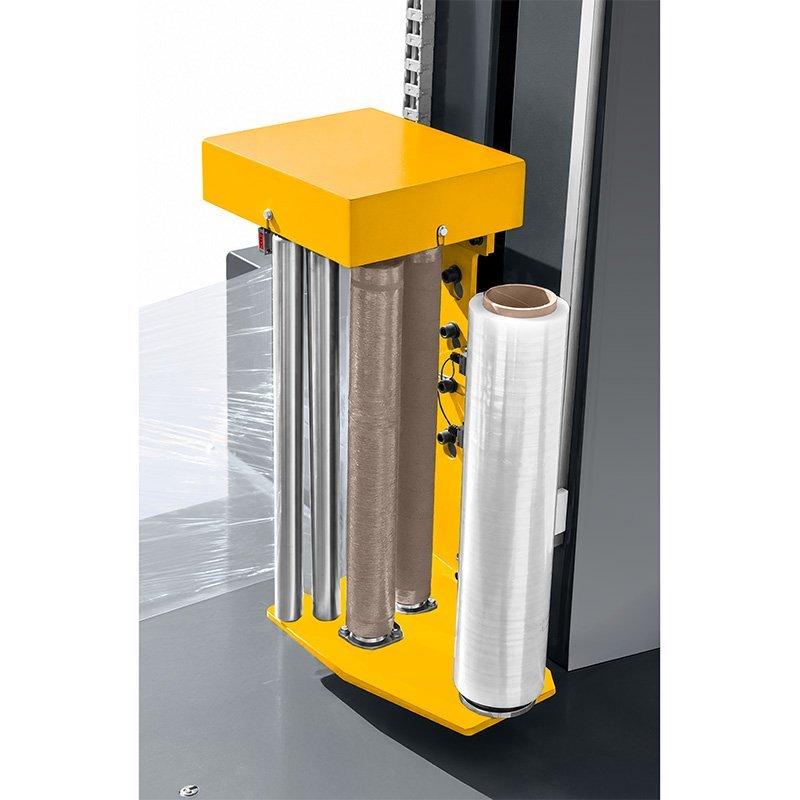

| FILM PRE-STRETCH | YES |
Choose the CORMAK FUTURA1620P pallet wrapper if you want to combine mechanised stretch film wrapping with convenient pallet loading using a manual pallet truck. The E-shaped turntable, side positioning guides and elimination of the need for an access ramp help organise the packing station around the internal transport equipment already in use.
