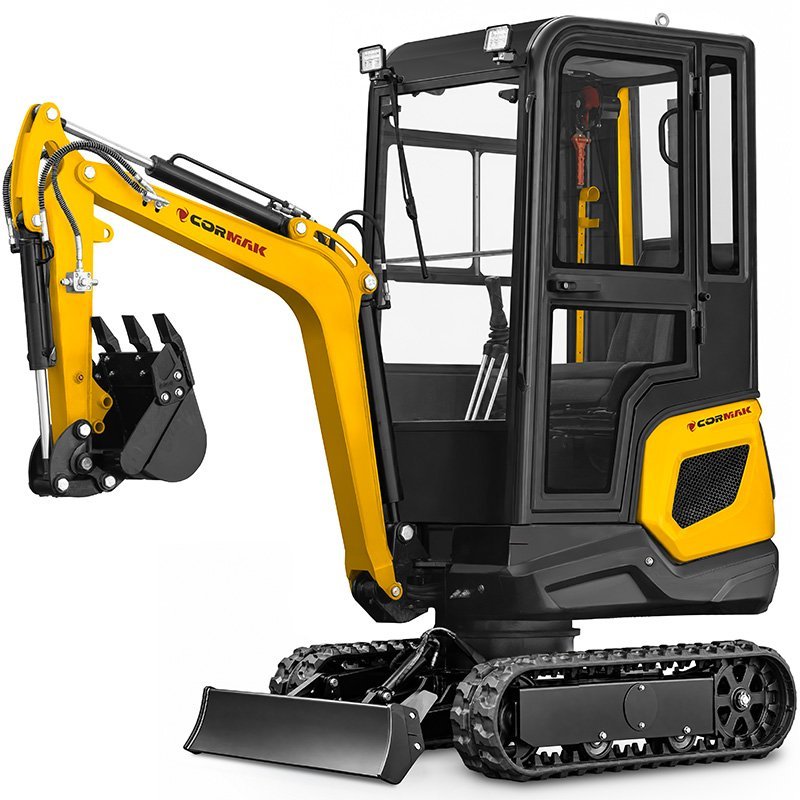

Tracked Mini Excavator with Cab 1200kg for Earthworks CORMAK KL12

Tracked Mini Excavator CORMAK KL12 – Compact Machine for Earthworks

The CORMAK KL12 tracked mini excavator, with an operating weight of 1,200kg, is designed for excavation, installation work, ground preparation and landscaping. Its compact construction allows operation on plots, private properties and construction sites where limited space makes it difficult to use a larger excavator.

The machine is equipped with a motor rated at 7kW, a variable-width tracked undercarriage and an upper structure that rotates through 360°. These features facilitate earthmoving operations in areas where frequent changes in the working direction of attachments are required.

A digging reach of 2,507mm allows excavation work for utility installations, gardening and small construction projects to be planned within the mini excavator's operating capabilities.

Key Advantages of the CORMAK KL12 Mini Excavator

• Joystick control – precise, smooth and ergonomic control of attachments and machine movements, ensuring operator comfort throughout the working day.
• Adjustable tracked undercarriage width – allows the track spacing to be adapted to the available space, particularly useful when accessing properties and working between buildings.
• 360° upper structure rotation – allows excavated material to be deposited on different sides of a trench without having to reposition the undercarriage each time.

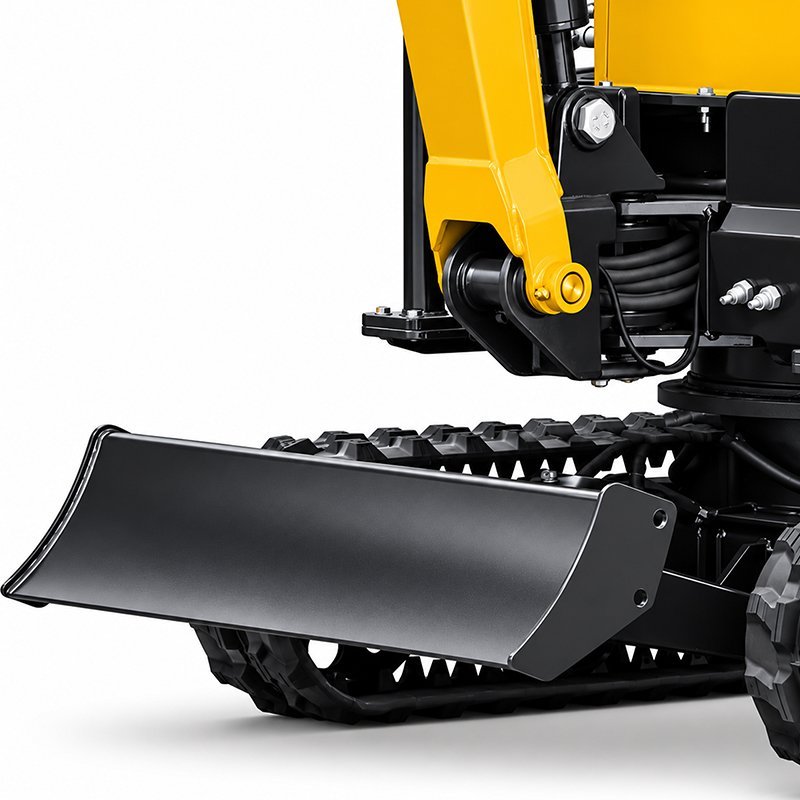

• Dozer blade with adjustable width of 850/1,100mm – assists with ground levelling and moving loose soil during site preparation.
• 3 buckets included – a 400mm toothed bucket, a 600mm toothed bucket and a 1,000mm grading bucket provide versatility and readiness for various tasks without the need to purchase additional attachments.
• High hydraulic performance – enables reliable operation with various attachments (buckets of different widths, earth augers, hydraulic breakers, etc.).

Set of 3 Buckets – Advantages and Applications

The standard equipment of the CORMAK KL12 mini excavator includes three carefully selected bucket types that contribute to the machine's versatility:

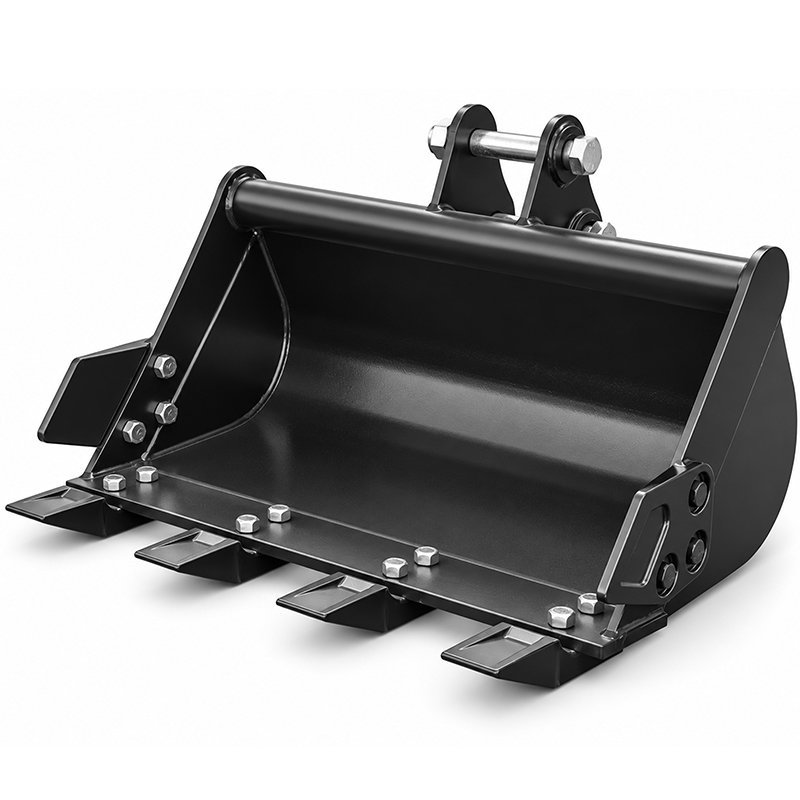

• 400mm toothed bucket – ideal for precise and deeper trench excavation. The teeth make it easier to loosen and penetrate harder, compacted soil. Particularly suitable for digging narrow trenches for water, electrical and gas connections or irrigation systems.
• 600mm toothed bucket – a versatile working bucket with a larger capacity, designed for standard earthworks, foundation work and excavating larger volumes of soil. Its teeth efficiently handle obstacles in the ground, speeding up soil excavation and general material removal.

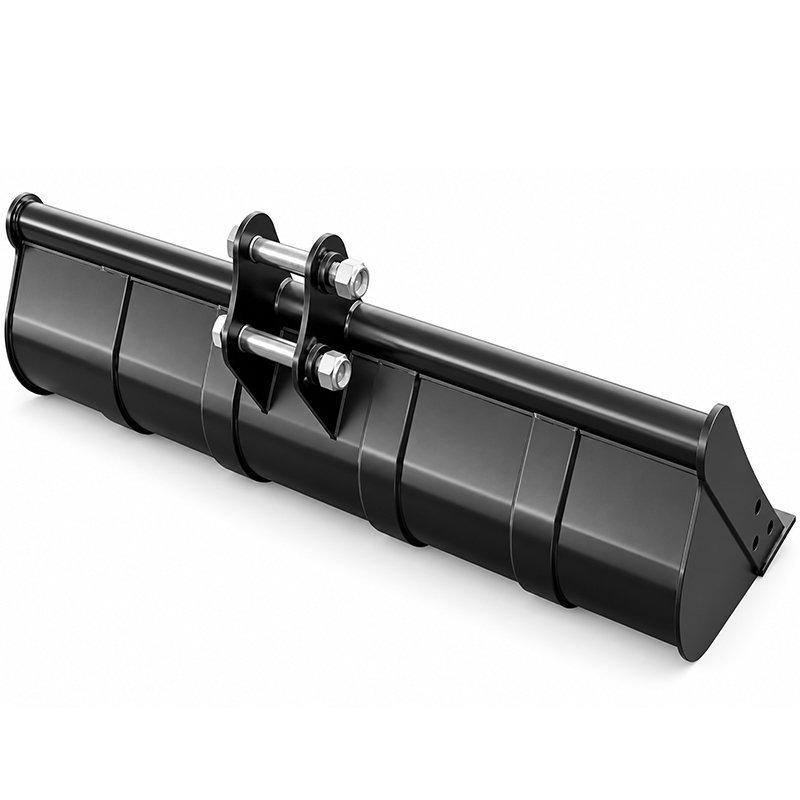

• 1,000mm grading bucket (without teeth) – a wide bucket with a smooth cutting edge, designed for finishing work, slope profiling, landscaping, levelling embankment slopes and surface cleaning. It provides a perfectly smooth slope finish and enables efficient levelling and spreading of loose soil.

Adjustable Tracks and Upper Structure Rotation – Working in Confined Spaces

The adjustable track width is useful when passing through narrow access points and working on properties with limited space.

The 360° upper structure rotation makes it easier to excavate soil and deposit material beside the trench without frequently moving the entire mini excavator. This is particularly important in working areas where manoeuvring space is limited.

Digging Range and Operating Capabilities of the KL12 Mini Excavator

The operating parameters of the CORMAK KL10 allow users to assess the machine's suitability for utility trench excavation, ground preparation and depositing excavated material.

The 2,507mm digging reach is important when excavating soil from the machine's operating position and planning subsequent sections of a trench.

A dumping height of up to 1,698mm facilitates planning the deposition of excavated material into a pile or a container of suitable height.

Bucket widths of 400, 600 and 1,000mm allow the attachment to be selected according to the type of excavation and earthmoving work. A narrower bucket can be used for utility trenches, while a wider bucket is suitable for excavating soil over a larger area.

Applications of the CORMAK KL12 Mini Excavator

Utility installation work: Excavating trenches for electrical cables, water supply systems, drainage systems and other utility connections, taking into account project requirements and ground conditions.

Gardening and landscaping: Preparing soil for planting, digging trenches, removing selected soil layers and shaping the ground around buildings.

Paving work: Excavating sub-base areas for pavements, paths and driveways, preparing the ground for paving surfaces and moving excavated material.

Small construction projects: Excavation and preparation work on private properties and construction sites where using a larger machine is difficult.

Technical Specifications of the CORMAK KL12 Mini Excavator
