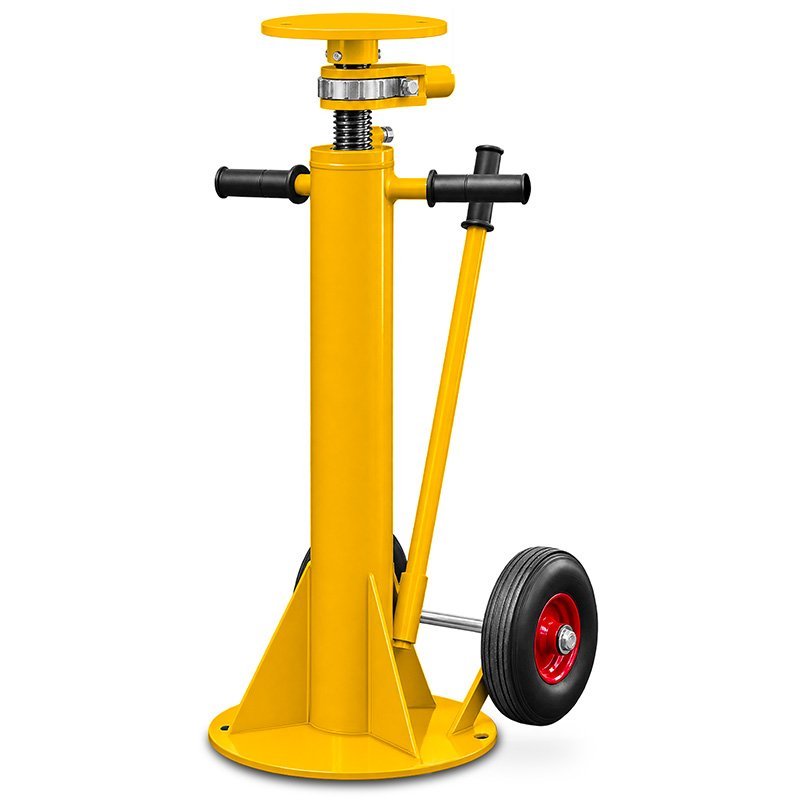

Trailer Support Stand CORMAK PN40A – 15t Lifting Capacity, 40t Static Load Capacity

The CORMAK PN40A trailer support stand is designed to provide additional support for semi-trailers during loading, unloading and maintenance operations. Its adjustable height and support plate make it easier to position the support point in the appropriate location, taking into account the trailer structure and ground conditions.

Key Advantages of the PN40A Trailer Support Stand

• 15t lifting capacity – a load rating that must be considered when selecting the support stand for the intended task.
• Static load capacity of up to 40t – specifies the permissible load under static conditions and is not equivalent to the lifting capacity.
• 1,003–1,295mm height adjustment range – allows the stand to be adjusted to the height of the trailer support point.
• Ø200mm support plate – provides a defined contact surface with the supported component.
• Ø350mm base – provides a wide support surface on suitably prepared ground.
• Ø220mm transport wheel – makes the stand easier to move and position.

Additional Semi-Trailer Support During Loading and Unloading

The PN40A can be used as an additional support point during loading and unloading when a semi-trailer requires stabilisation at the work location. The height adjustment range is 292mm, allowing the support plate to be positioned at the appropriate support point.

Support Plate and Base – Adapting to the Work Area

The 200mm diameter support plate provides a contact surface with the trailer, while the 350mm diameter circular base supports the stand on the ground. Before use, the support point must be selected in accordance with the trailer's structural requirements, and suitable conditions for positioning the stand must be ensured.

CORMAK PN40A Technical Specifications
