CORMAK JDSA cordless strapping tool streamlines the securing of parcels, grouped packages and pallet loads using polyester PET strapping.
The tool handles straps from 13 to 16mm wide and 0.7 to 1.2mm thick. Adjustable tension force from 900–3,200N allows the operating parameters to be matched to the strap, secured product and required load stability.
The 14.4V, 4Ah Li-Ion battery provides approximately 250–350 strapping cycles per charge. The number of cycles depends on the selected tension force, strap type and operating conditions.
The ergonomically shaped handle provides a secure grip and facilitates tool control during tensioning, friction welding and strap cutting.
CORMAK JDSA is a portable electric strapping tool designed for securing parcels, cartons, grouped packages and pallet loads. The tool is compatible with polyester PET strapping from 13 to 16mm wide and 0.7 to 1.2mm thick.
The JDSA model is a handheld battery-powered strapping tool positioned directly on the strap by the operator. The tool tensions the strap, joins its ends by friction welding and then cuts off the excess material. The strapping process does not require additional metal or plastic seals.
Battery power enables cordless operation and unrestricted movement between packaged products. The ergonomically shaped handle improves grip security and makes the tool easier to control during successive strapping cycles.
The PET strapping tool is suitable both for securing individual consignments and for repetitive preparation of goods for storage and transport.
Adjustable tension force from 900 to 3,200N allows the strap tension to be matched to the type of product being secured. The tool combines the functions of a strap tensioner, friction welder and cutting mechanism.
Lower settings can be used for cartons and packaging susceptible to deformation. Higher settings provide greater tension when securing heavier and more resistant loads.
Correctly selected tension force helps stabilise goods and reduce their movement during handling, storage and transport.
The CORMAK JDSA strapping tool is compatible with PET strapping, allowing the material to be matched to the type of packaging, load weight and required level of securing.
PET strapping can be used for heavier loads requiring greater strength.
Strapping with a width and thickness compliant with the tool specification must be used.
A tensioning speed of 100 to 200mm/s streamlines the securing of successive parcels and loads.
Once the required tension has been achieved, the operator starts the friction-welding process. The strap ends are permanently joined and the excess strap is cut off by the tool.
The approximate welding time is 2 to 5 seconds and may depend on the tool settings and the type of strap used. The process does not require additional metal or plastic seals.

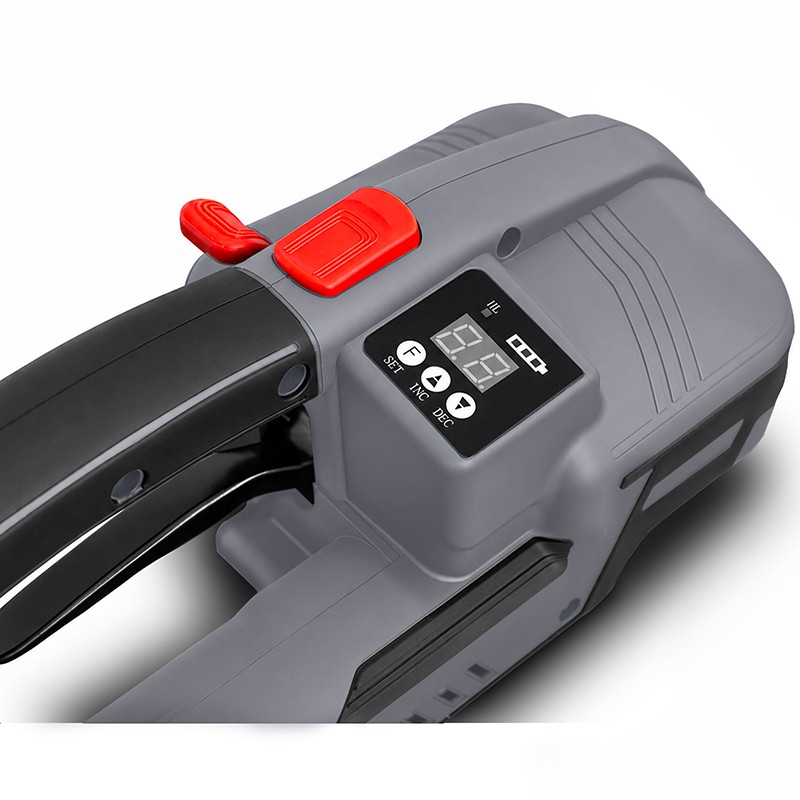

The ergonomically shaped handle fits comfortably in the hand, providing secure control of the strapping tool during tensioning, welding and strap cutting. The appropriately shaped grip section makes the tool easier to control and reduces hand strain during successive strapping cycles.
The compact design allows the strapping tool to be conveniently carried between packing stations.
The strapping tool is powered by a Li-Ion battery with a voltage of 14.4V and a capacity of 4Ah. One charge provides approximately 250–350 strapping cycles.
Actual performance depends, among other factors, on:
A full battery charge takes approximately 90 minutes. The absence of a power cable facilitates operation with larger products and pallet loads that would be difficult to move to a fixed packing station.
The cordless CORMAK JDSA strapping tool is suitable for securing:
The portable design allows the tool to be used as a mobile pallet strapping tool that the operator can carry directly to successive loads requiring securing.
The tool can be used in warehouses, manufacturing facilities, wholesalers, logistics centres and packing and dispatch departments. Electric strapping tools of this type reduce the effort associated with manually tensioning the strap and streamline repetitive packaging operations.
| Model | CORMAK JDSA |
| Tool type | Cordless strapping tool |
| Strap type | PET |
| Strap width | 13–16mm |
| Strap thickness | 0.7–1.2mm |
| Tension force | 900–3,200N |
| Tensioning speed | 100–200mm/s |
| Strap joining method | Friction welding |
| Approximate welding time | 2–5s |
| Battery type | Li-Ion |
| Battery voltage | 14.4V |
| Battery capacity | 4Ah |
| Charging time | Approximately 90min |
| Capacity per charge | Approximately 250–350 cycles, depending on settings and operating conditions |
| Tool dimensions | 380 × 130 × 130mm |
CORMAK JDSA speeds up the securing of consignments and loads, increases packaging efficiency and eliminates the need for additional seals. Battery power provides freedom of movement when working with parcels, grouped packages and pallet loads.
Tool colours may differ from those shown in the photographs.
