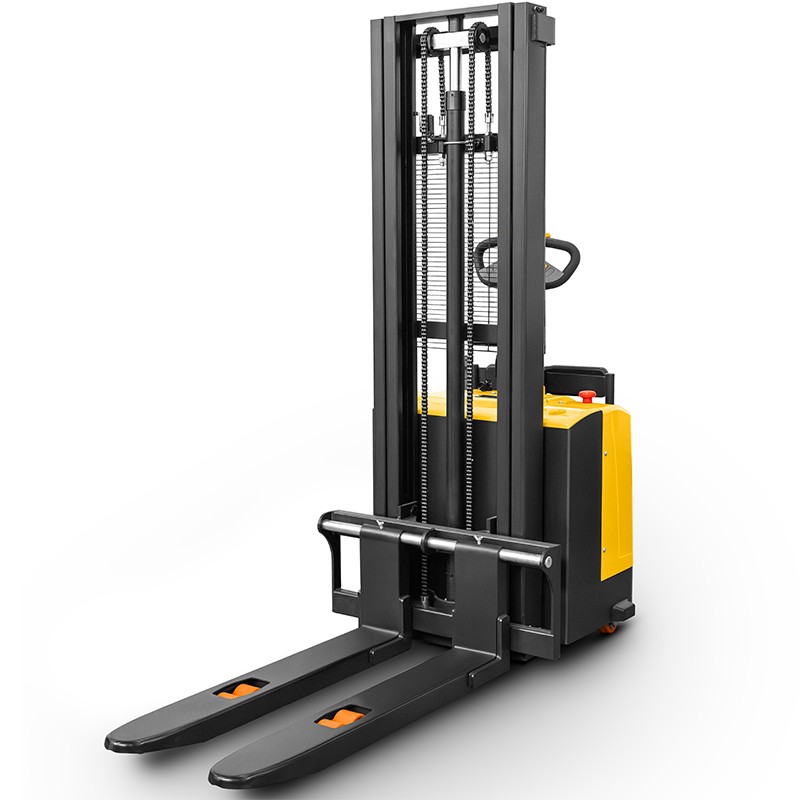

The electric stacker with a 1500kg capacity and 3000mm lifting height is designed for transporting loads and placing them on warehouse racking. Adjustable fork spacing up to 865mm enables the fork position to be adapted to different pallets and loads. The standard 1150mm-long forks provide stable support when lifting and transporting goods. The folding platform increases operator comfort during frequent and longer journeys. Electric travel and lifting streamline everyday work in warehouses, wholesalers and production facilities.
This electric mast forklift, with a lifting capacity of 1500 kg and a lift height of 3000 mm, is a versatile machine designed for transporting, lifting and placing loads on warehouse racking. It combines a high load capacity, a compact design and adjustable fork spacing, making it suitable for handling pallets and loads of various dimensions.
The truck’s width makes it easy to manoeuvre between racking, in aisles and in spaces where the use of larger handling equipment would be impractical. The maximum lifting height of 3,000 mm allows for the efficient use of warehouse space and the storage of goods on successive storage levels.
A major advantage of the truck is its adjustable fork spacing of up to 865 mm. This allows the fork position to be adapted to the type of load being handled, increasing the truck’s versatility during day-to-day operations in a warehouse, production facility or logistics centre.
Unlike trucks fitted with fixed-width forks, this model allows for fork adjustment. The maximum fork width of 865 mm enables the truck to be adapted to the width of the load being handled.
This solution is particularly useful in businesses where pallets, containers, crates or materials of varying dimensions are handled. Correctly positioned forks ensure stable support and allow the truck to be better suited to the task at hand.
Each fork measures 65 × 165 × 1,150 mm. The sturdy, wide arms provide an adequate contact surface with the load, which is important when lifting heavy items and goods requiring stable support.
A maximum lifting height of 3,000 mm allows the truck to be used not only for horizontal transport but also for stacking loads on racking. The truck can access both lower and upper storage levels, thereby streamlining goods reception, order picking and the supply of production workstations.
The overall height with the mast lowered is 2,080 mm. This makes it easier to plan routes through gates, passageways and storage areas. When the forks are raised to their maximum height, the total height of the truck is 3,550 mm, which must be taken into account when operating under overhead installations, ceilings or racking structures.
The electric drive and electric lifting system streamline the execution of repetitive transport tasks. The operator does not need to set the truck in motion manually or use physical force to lift the load, which reduces fatigue and allows a consistent work pace to be maintained.
The truck is well suited to both short operations at racking systems and the transport of goods between the warehouse, production, goods-in and dispatch areas. The combination of the operator’s platform and the compact design allows the handling method to be adapted to the task at hand.
The electric mast truck can be used, amongst other things, in:
The machine combines the specifications required for both horizontal transport and the storage of goods at height. A lifting capacity of 1,500 kg allows it to handle heavier loads, whilst a lifting height of 3,000 mm expands its range of applications within the warehouse.
The model’s key distinguishing feature is the ability to adjust the fork spacing. This means a single machine can be adapted to different types of loads, reducing the need for several separate internal transport vehicles.
The compact body width, fold-down platform and electric drive and lift controls provide a functional solution for businesses seeking efficiency, flexibility and comfortable operation in confined spaces.
| LIFT CAPACITY | 1,500 kg |
| MAXIMUM LIFTING HEIGHT | 3,000 mm |
| HEIGHT WITH FORKS LOWERED | 2,080 mm |
| HEIGHT WITH FORKS RAISED | 3,550 mm |
| HEIGHT OF LOWERED FORKS | 90 mm |
| OVERALL LENGTH WITHOUT PLATFORM | 2050 mm |
| FORK DIMENSIONS (WxDxL) | 65 × 165 × 1,150 mm |
| MAXIMUM FORK SPACING | 865 mm |
The 1500 kg / 3000 mm electric reach truck is the ideal solution for businesses requiring an efficient machine for transporting pallets, operating racking systems and handling loads of various dimensions. Adjustable forks, a compact body and an operator platform enhance the machine’s functionality during day-to-day warehouse operations.
Improve the efficiency of your internal transport and make better use of your available storage space.
