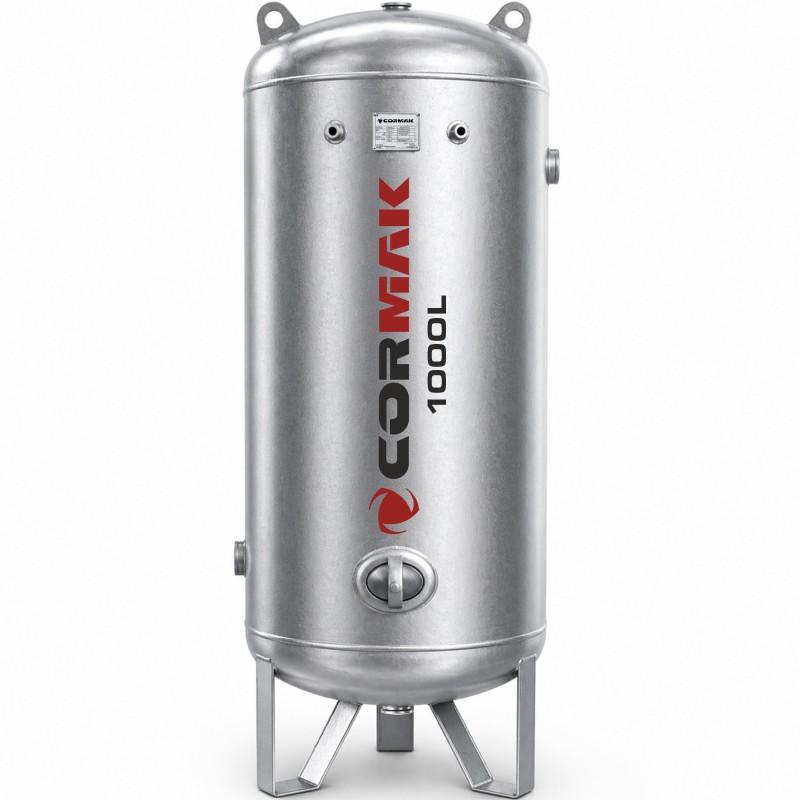

Galvanised Vertical Compressed Air Receiver CORMAK 11bar 1000L

1,000-LITRE GALVANISED COMPRESSED AIR TANK – HIGH-QUALITY PRESSURE TANK FOR COMPRESSED AIR SYSTEMS

The CORMAK pressure tank, with a capacity of 1000 litres and a working pressure of 11 bar, is designed to operate at a maximum pressure of 11 bar. The tank is constructed from galvanised sheet metal, which provides an excellent protective barrier against external factors and corrosion, significantly extending the service life of the unit compared to standard painted tanks. This is a reliable solution designed for storing compressed air in industrial plants, workshops and pneumatic systems. Its robust steel construction, compliance with European Union directives and UDT certification make this tank an indispensable component of any compressed air system. Thanks to its optimised design and high pressure resistance, this tank can serve both as a storage buffer and as a component stabilising the compressor’s operating parameters.

Key advantages of the 1000 L galvanised pressure tank

• Professional pressure vessel construction – made from high-grade 4 mm thick steel, resistant to pressure and corrosion.
• Galvanised finish: The surface of the tank is galvanised, ensuring an attractive appearance and high resistance to the harsh conditions found in workshops or production halls.
• UDT certification and CE marking – compliance with European safety and quality standards.
• Operating pressure of 11 bar – suitable for most pneumatic systems, including those with higher requirements.
• High capacity – 1,000 litres – ensures a stable supply to the pneumatic system and reduces the frequency with which the compressor is activated.

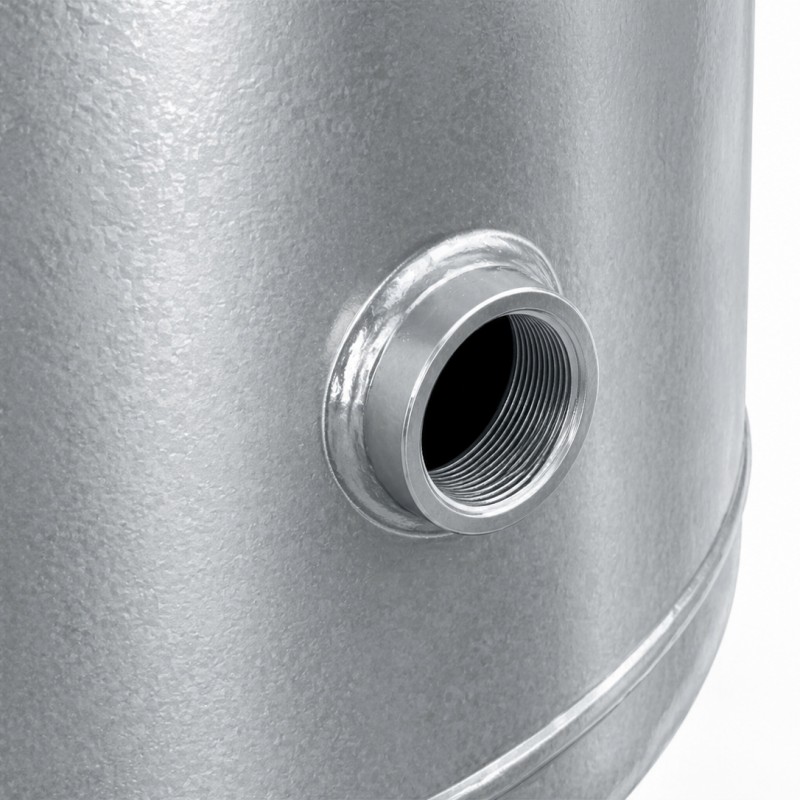

• Multi-connection system – as many as 6 connections with diameters of 1/2", 3/4" and 1 1/2" allow for flexible connection of the tank to various systems.
• High-quality construction – a durable coat of paint on the outside of the tank.

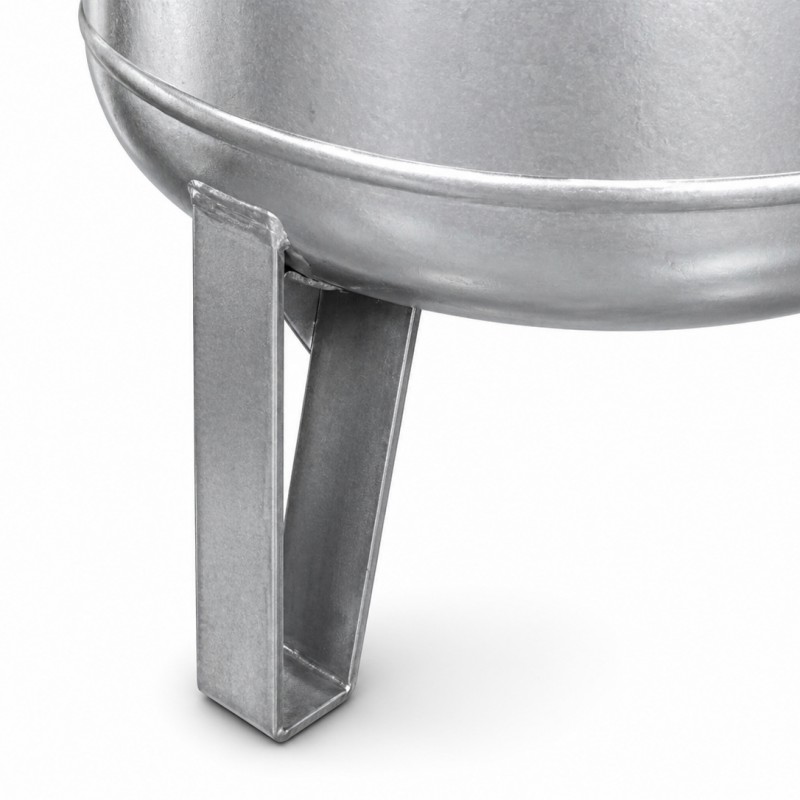

• Versatile installation position – the vertical design saves space in the workshop.
• Compliance with Standards: The tank meets the safety requirements for pressure equipment and is suitable for registration with the Technical Inspection Authority (UDT).

Design and technology – robust construction for demanding applications

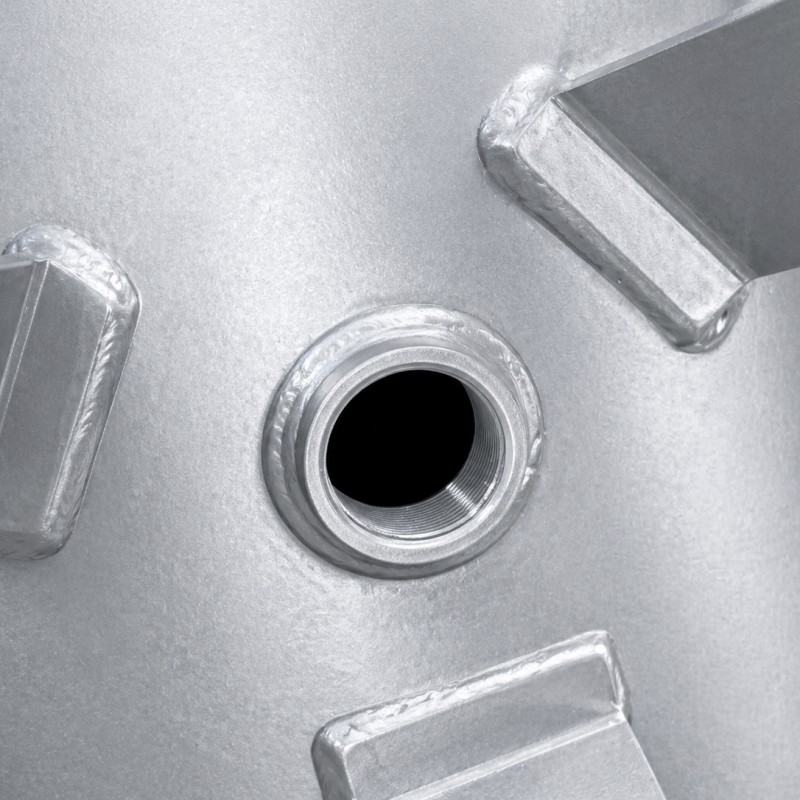

This compressed air tank has been designed for intensive use in industrial environments. The body, made of structural steel with a wall thickness of 4 mm, guarantees resistance to pressures of up to 11 bar and ensures long-term operation. All welds undergo rigorous quality control, and the tank’s surface is protected by a zinc coating resistant to external factors and corrosion.

The tank is fitted with a nameplate bearing the CE mark and the UDT notified body number, confirming its approval for use on the Polish and European markets. The set includes complete technical documentation, a product passport and material certificates.

Precision and operational efficiency – stable pressure and optimal compressor performance

Thanks to its large 1,000-litre capacity, the tank acts as an air buffer, stabilising the pressure throughout the entire pneumatic system. This ensures smooth operation of compressed-air-powered equipment and significantly extends the compressor’s service life by reducing the number of on/off cycles. The vertical design allows for compact installation, which is particularly important in facilities with limited space.

A tank correctly matched to the compressor minimises pressure drops and prevents the pneumatic system from becoming overloaded, resulting in greater efficiency and safety for the entire installation.

Applications – versatility in industrial and workshop settings

CORMAK galvanised pressure tanks are widely used across various industrial sectors, as well as in car workshops, manufacturing plants, construction companies and central compressed air systems. Thanks to their capacity and pressure resistance, they are ideal for use as:

• compressor tanks – for storing compressed air in pneumatic supply systems,
• compressor tanks – pressure buffers that reduce compressor operating frequency,
• compressed air tanks – for the continuous supply of pneumatic machinery and equipment,
• a component of industrial automation and paint spraying systems,
• a key component of pneumatic control systems.

Standard equipment

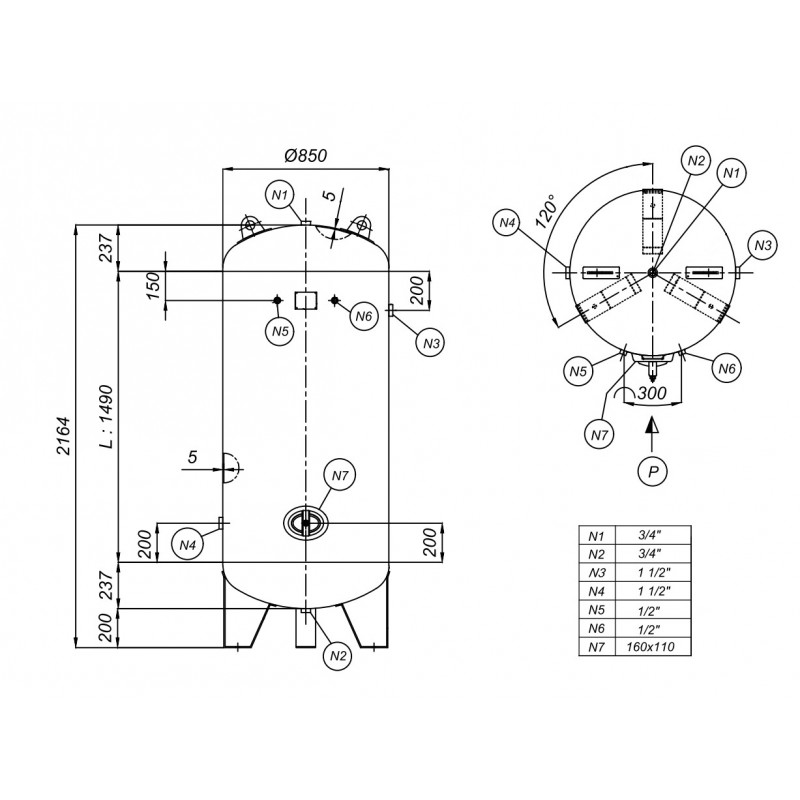

• Connection ports: 6 – diameters 1/2", 3/4", 1.1/2"
• Rating plate with the CE symbol
• UDT notified body number
• Full technical documentation and pressure certificate
• External anti-corrosion coating

Why choose CORMAK compressed air tanks?

• Proven quality – manufactured in accordance with the European PED 2014/68/EU directives
• Safety – compliance with UDT standards, resistance to overload and overpressure
• Durability – resistance to corrosion and mechanical damage
• Functionality – compatible with most piston and screw compressors
• Availability – various capacity options and configurations (horizontal, vertical)

Technical specifications:

Choose quality and safety – select a compressor air receiver from CORMAK

If you are looking for an air receiver that guarantees reliability, compliance with UDT standards and high performance for your pneumatic system, the CORMAK 1000 L model is the ideal choice. We offer not only the product itself, but also comprehensive technical support, spare parts availability and expert advice on selecting the right compressor tank.
