NEW ON THE POLISH MARKET

230 V screw compressor

SET INCLUDES:

• LUFT 400 SCREW COMPRESSOR.
• 150 L horizontal compressed air receiver.

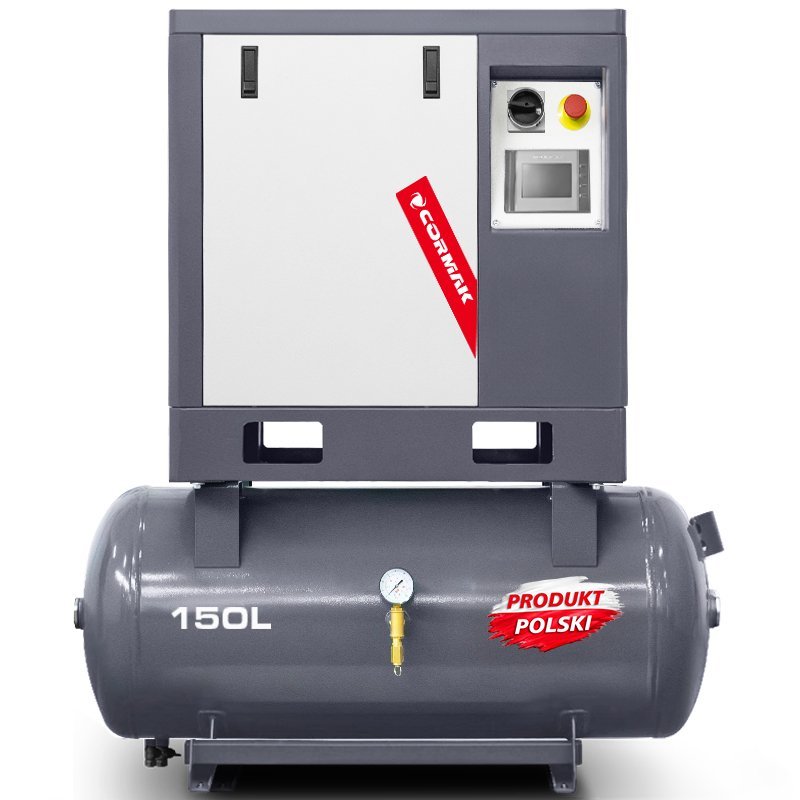

CORMAK LUFT 400 screw compressor – compact power for your business

Are you looking for an efficient and reliable compressor that will prove its worth in smaller workshops, service centres or for hobbyist applications, whilst also requiring a single-phase power supply? The CORMAK LUFT 400 screw compressor is the ideal solution. With a power output of 3.0 kW and an impressive actual flow rate of up to 400 l/min, it ensures a constant supply of compressed air, essential for the effective operation of impact wrenches, blow guns or paint spraying equipment.

This model, powered by 230V/50Hz, is designed for continuous operation, making it ideal for demanding applications such as smaller workshops, tyre service centres or craft trades. Investing in a CORMAK screw compressor is a step towards significantly improving your working comfort – say goodbye to noisy piston compressors and enjoy quieter and more stable operation.

The LUFT 400 stands out thanks to its reliable and robust direct-drive system, which eliminates vibrations and the need to adjust the belt drive. This tried-and-tested solution guarantees stable operation and a long service life, ensuring direct power transfer from the motor to the screw module.

The maximum pressure generated by this screw compressor is 10 bar. Full control over the unit’s operating parameters is provided by the intuitive MAM series electronic control panel, which gives you access to key information about the compressor, thereby increasing flexibility and control over processes.

✅ Pressure: up to 10 bar | ✅ Flow rate: up to 400 l/min | ✅ Power: 3.0 kW | ✅ Power supply: 230V

CORMAK screw compressors: When you expect the very best in quality and performance!

Are you looking for solutions that exceed market standards? CORMAK screw compressors are synonymous with innovation and reliability, designed for the most demanding applications.

• Innovative design: Our compressors are based on advanced engineering and European precision manufacturing. Their robust construction, enhanced with modern components, guarantees long-lasting and trouble-free operation in all conditions.
• Efficiency optimisation: Thanks to inverter technology and intelligent algorithms, the LUFT 400 dynamically adjusts energy consumption to the current demand for compressed air. This results in a significant reduction in operating costs whilst maintaining maximum efficiency.
• Proven drive system: The LUFT 400 compressor utilises a reliable direct drive system, which minimises stress on the screw block and motor, ensuring efficient operation and a long service life.
• Quiet operation and comfort: Designed with attention to detail, our compressors are characterised by exceptionally low noise levels. Effective sound-dampening and vibration-reduction systems ensure a comfortable working environment, which in turn improves operators’ concentration and well-being.
• Intelligent control: The intuitive MAM series electronic control panel is the command centre for your compressor. It allows for precise monitoring of parameters, maintenance scheduling and rapid diagnostics, ensuring the stability and protection of key components.
• Tailored to your needs: We understand that every application is unique. CORMAK compressors can be configured with additional air treatment systems, allowing them to be perfectly tailored to the specific requirements of your industry.
• Dynamic operating pressure: Automatic pressure regulation ensures that the compressor delivers exactly the amount of compressed air required at any given moment, maximising energy efficiency and minimising waste.
• Sustainability: We are committed to environmentally friendly solutions. The energy-efficient technologies used in our compressors not only reduce your bills but also minimise your environmental impact, whilst the heat recovery option allows for maximum energy utilisation.

CORMAK: Technology that drives your success!

Key advantages of permanent magnet (PM) motors

Permanent magnet motors (PM motors) represent an innovative approach to electric drives, offering a number of significant advantages over traditional induction motors.

• Higher energy efficiency: This is one of the key advantages. PM motors do not require current to be supplied to the rotor to generate a magnetic field, as this is generated by the permanent magnets themselves. This eliminates energy losses in the rotor (reactive power losses and Joule losses), resulting in significantly higher efficiency, often exceeding the requirements of the IE4 Super Premium class. Efficiency is also maintained at a high level across a wide range of loads and speeds, particularly at lower speeds.
• Higher power factor: PM motors are characterised by a higher power factor, which means they draw less current from the mains for the same useful power. This benefits the entire electrical installation by reducing the load on the mains supply and lowering costs associated with reactive power.
• Compact design and higher power output: Thanks to the strong, constant magnetic field generated by the magnets, these motors can deliver greater power within a smaller housing. They are lighter and more compact than induction motors of comparable power, which is crucial in applications where space and weight are critical (e.g. electric vehicles, robotics).
• Constant torque and high dynamics: PM motors can generate constant torque, even at low speeds, and are characterised by rapid dynamic response. The low rotor inertia allows for rapid speed changes and precise control, which is ideal for applications requiring accurate positioning, such as CNC machine tools or industrial robots.
• Wide speed control range: Thanks to the ability to use field-weakening strategies, these motors can operate over a very wide speed range whilst maintaining high efficiency.
• Enhanced reliability and durability: Reduced heat build-up, a simpler rotor design (no windings) and lower mechanical loads result in longer and more reliable operation.

Inverter – the key to optimising compressor operation

An inverter (also known as a frequency converter) is an advanced electronic device that is revolutionising the way screw compressors operate. Its use allows for smooth regulation of the compressor motor’s rotational speed depending on the current demand for compressed air.

Key advantages of compressors fitted with an inverter:

• Significant electricity savings: This is the greatest advantage of the inverter. Traditional compressors either run at full capacity or are switched off, and excess air is often released. The inverter allows air production to be perfectly matched to consumption. The compressor operates only at the power level currently required, eliminating idling and losses resulting from start/stop cycles. This can lead to energy savings of between 20 and 50 per cent, depending on the air consumption profile.
• Stable pressure in the system: Thanks to the smooth regulation of the motor speed, the inverter compressor maintains an almost perfectly constant pressure in the compressed air network, regardless of fluctuations in demand. This is crucial for the proper functioning of pneumatic tools and machinery, prevents pressure surges and enhances the precision of manufacturing processes.
• Reduction of inrush currents and mains loads: The inverter ensures a smooth motor start-up, eliminating the high inrush currents that occur with a conventional star-delta start. This protects the electrical network from overloads and extends the service life of the motor and other components.
• Extended service life of components: Fewer abrupt starts and stops, as well as operation under optimal load conditions, significantly reduce mechanical wear on the screw block, bearings and motor. This translates into a longer service life for the entire compressor and lower maintenance costs.
• Quieter operation: When air demand is lower, the inverter reduces the motor speed, which directly lowers the noise level emitted by the compressor. This improves working comfort in the production hall or workshop.
• Greater flexibility and adaptability to requirements: An inverter compressor is ideal for applications with fluctuating compressed air demand, which is typical of most production facilities. It can operate efficiently under both light and heavy loads.
• Advanced control and diagnostics: Modern inverters are integrated with control panels, offering extensive functions for monitoring operating parameters, fault diagnostics, remote control and maintenance planning, giving you full control over the compressed air system.

Investing in an inverter-driven compressor pays for itself quickly thanks to significant energy savings and greater operational reliability. This solution is ideal for businesses that value efficiency, durability and optimised running costs.

Screw module – the heart of your compressor

Cormak’s high-end screw compressors, such as the LUFT 400 model, are based on technologically advanced screw modules, which are key to their performance and reliability. By focusing on proven solutions and innovation, Cormak ensures that every module is refined down to the smallest detail to meet the demands of even the most intensive operation.

Key features of the screw modules in CORMAK compressors:

• Modern technology and efficiency: Screw modules guarantee excellent performance and exceptional operational efficiency. Their design focuses on maximum output with minimum energy consumption.
• Precision and control: Thanks to advanced technical solutions, screw modules enable precise control over the compressed air production process. This translates into stable pressure and optimal operation of the entire pneumatic system.
• Durability and reliability: The screw modules used in CORMAK compressors are designed for longevity. Their robust construction and the use of high-quality materials ensure reliability even in harsh industrial operating conditions, minimising the risk of downtime and the need for frequent repairs.

By choosing a Cormak compressor, you are investing in technology that is the result of many years’ experience in the industry and a constant drive for innovation, which translates into increased efficiency and productivity for your business.

Intuitive CORMAK control panel – full control at your fingertips

In Cormak screw compressors, such as the LUFT 400 model, the key element ensuring reliability and optimised operation is the advanced MAM series control panel. Designed with efficient management of the compressed air system in mind, this controller enables real-time monitoring and a rapid response to all operating parameters.

What does the Cormak control panel offer?

• Comprehensive monitoring: The panel allows real-time tracking of all key compressor operating parameters, such as pressure, temperature and operating status.
• Easy adjustment of settings: Thanks to its intuitive interface, the user can easily adjust settings and operating parameters to suit the current needs of the installation.
• Instant notifications: The controller is programmed to respond quickly to any operational events. In the event of an anomaly, such as a fault or the need for maintenance, it displays a relevant notification on the screen.

The Cormak control panel guarantees peace of mind and efficiency, enabling precise management of the compressed air system.

COMPLETE DOCUMENTATION FOR THE TECHNICAL INSPECTION AUTHORITY

Ensure peace of mind during inspections by the Technical Inspection Authority (UDT).

When you purchase our compressor, you will receive complete documentation, enabling you to register the compressor with the Technical Inspection Authority without any problems. Please note that registration with the Technical Inspection Authority is essential.

The documents include:

• Declaration of Conformity,

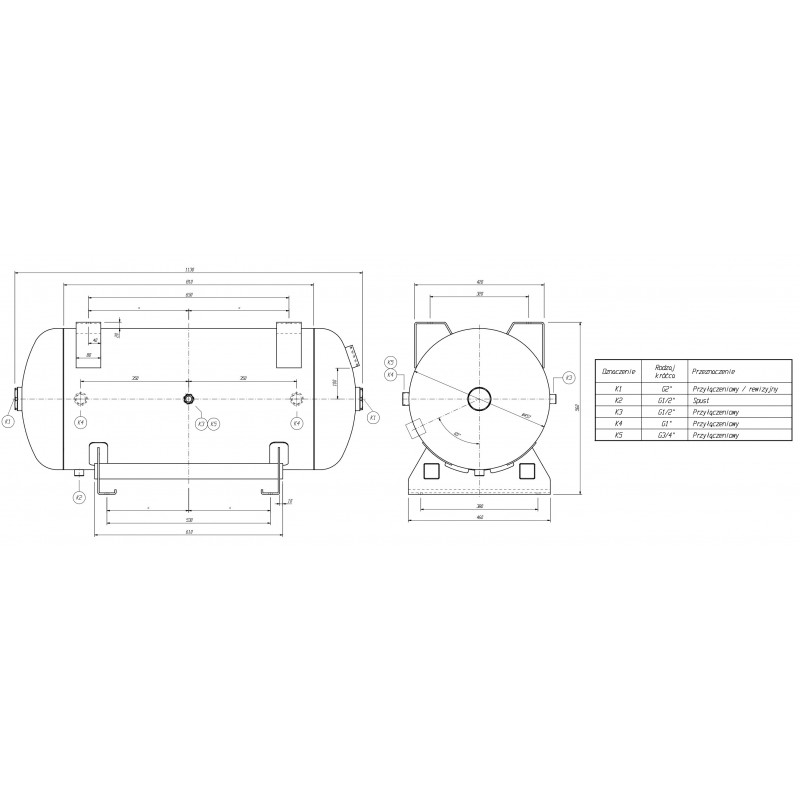

• A certificate for the tank, including a technical drawing,
• A certificate for the safety valve,
• An operating manual in Polish.

**Please note!**

By choosing our offer, you receive the unit directly from a Polish manufacturer with many years’ experience in selling compressors.

Get in touch with us and order a unit tailored to your installation!

Expand your capabilities – retrofit options

To tailor the unit even more closely to the specific requirements of your facility, we offer the option to retrofit the compressor with the following features:

• Remote monitoring and control (Wi-Fi): An optional built-in internet module enables connection to the cloud. This gives you full control over the unit’s operating status and the ability to remotely control the compressor from anywhere in the world.
• Integration with management systems (RS485 / Modbus RTU): An optional communication port allows the compressor to be connected to a computer or professional building management systems (BMS), enabling advanced monitoring and archiving of technical data.
• Cascade operation (Master): The unit can be configured to operate in a cascade system as the master unit, which is an ideal solution when expanding compressed air infrastructure.
• Maintenance-free operation: Automatic restart following a power cut eliminates production downtime and the need for manual operator intervention.
• Flexible scheduling: The integrated timer allows for the precise setting of a 7-day operating schedule, tailored to the production cycle.
• Full cost control: The built-in energy meter allows for precise monitoring of electricity consumption and optimisation of operating costs.
• Enhanced safety: The built-in alarm system (buzzer) immediately alerts you to any faults, enabling a swift response.
