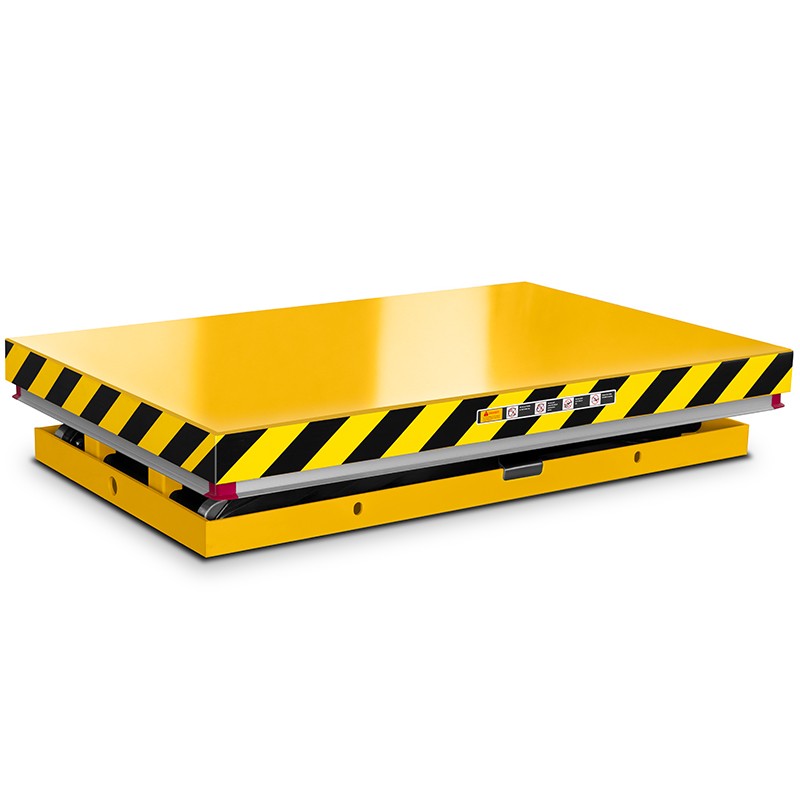

The stationary TA500/1380 scissor lift table is a robust and functional device for lifting loads weighing up to 500kg. Thanks to the 200–995mm lifting range, it allows convenient adjustment of the working height to suit the operator’s needs. The large 1300 × 820mm tabletop provides stability during work with various types of loads. The scissor construction ensures safe and smooth lifting. It is an ideal solution for warehouses, production and assembly workstations.
The TA500/1380 stationary scissor lift is a robust 500 kg hydraulic scissor lift designed for lifting, positioning and the ergonomic handling of loads in warehouses, production facilities, workshops and assembly stations. The unit facilitates work with heavy items, containers, production components and loads that need to be positioned at the correct working height.
With a lifting range of 200 mm to 995 mm, the TA500/1380 model allows the worktop height to be conveniently adjusted to suit the operator, a machine, a workbench or a production line. It is a practical solution wherever work ergonomics, repeatability of operations, safety and the rapid feeding and retrieval of materials are important.
The large worktop, measuring 1300 × 820 mm, provides stable support for the load. The table is well-suited to packing, order picking, assembly, quality control, component handling and preparing goods for further internal transport.
The TA500/1380 lifting table helps to reduce manual lifting, bending and the handling of heavy items between workstations. The operator can position the load at a comfortable height, which speeds up work and improves workplace organisation.
The model can function as a lifting platform, a workbench, a process lift or an auxiliary device on a production line. It is suitable for both one-off operations and repetitive work within a warehouse or production cycle.

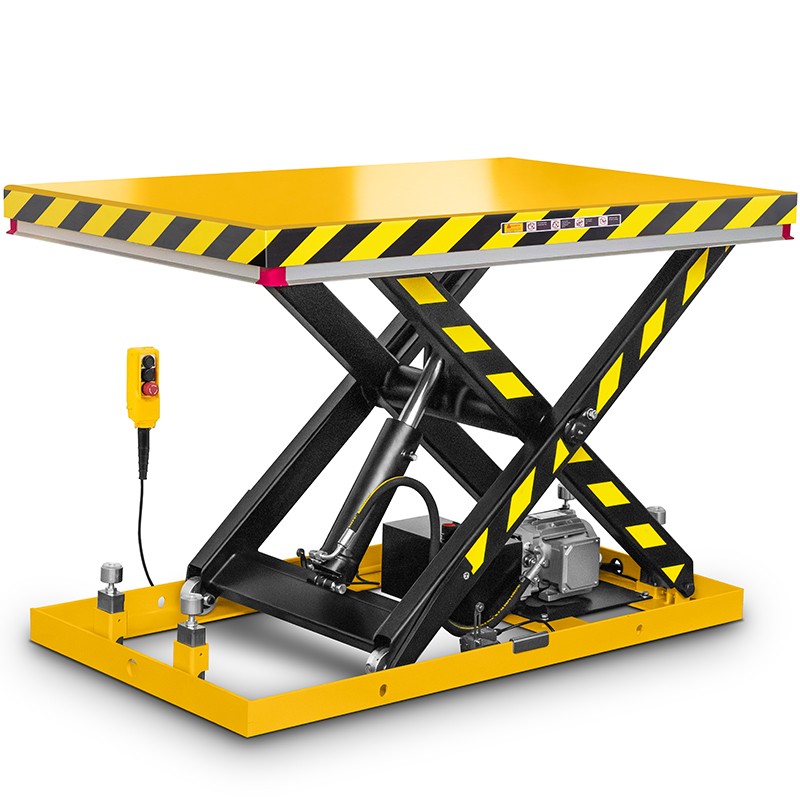

The electric lifting system eliminates the need for manual pumping. It is controlled via a convenient remote control, which allows the platform to be raised and lowered at the touch of a button.
The 400V power supply makes the TA500/1380 scissor lift table a good choice for industrial, workshop and production applications. Precise height control allows the worktop to be adjusted to suit the current process: assembly, packaging, quality control, collection of workpieces, or loading and unloading of materials.

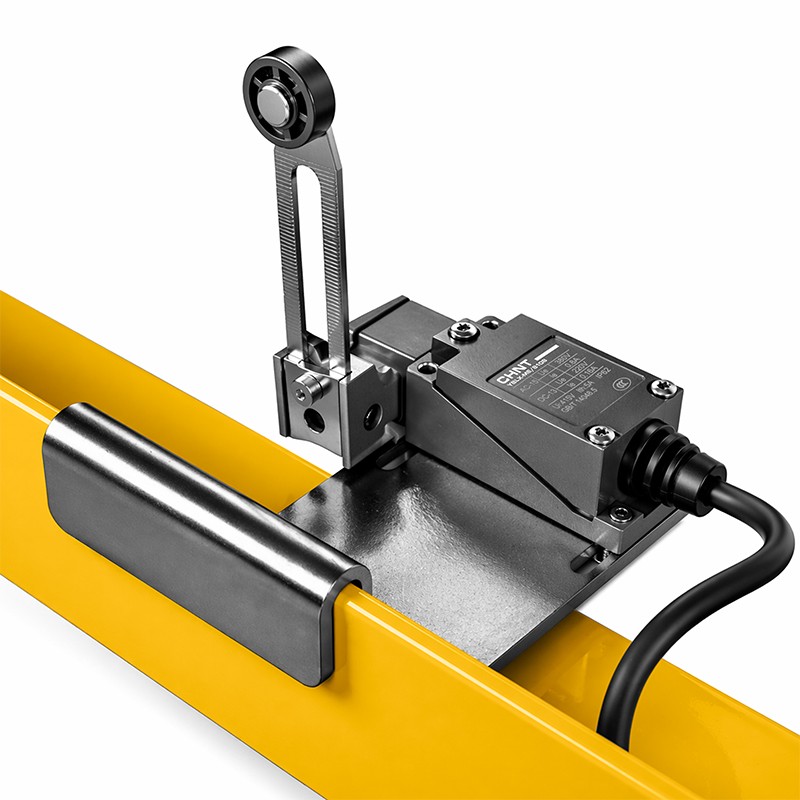

The scissor lift table is fitted with safety limit switches which automatically stop the lifting action once the maximum working height is reached. This protects the lifting mechanism and facilitates safe operation of the equipment.

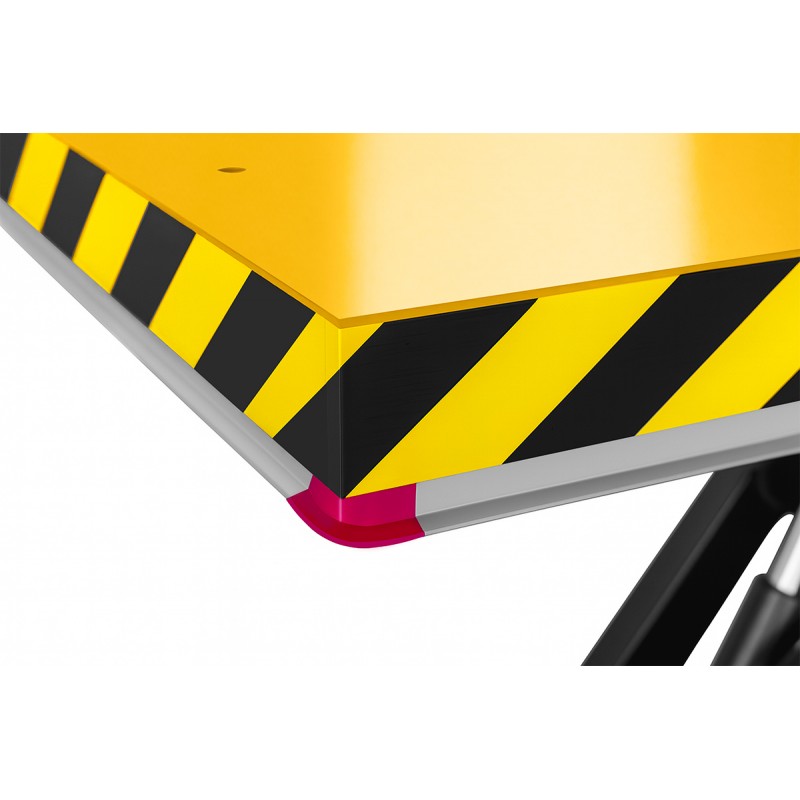

In addition, the model features a safety guard strip positioned beneath the edge of the worktop. Should an obstacle be encountered whilst lowering the platform, the strip halts the downward movement, protecting the operator, the load and any items within the working area.
The 500 kg stationary scissor lift table is ideal wherever stable load lifting is required, where items need to be positioned at the correct height, and where the ergonomics of the operator’s work need to be improved.
The TA500/1380 allows the load to be positioned at a height suited to the operator and the task at hand. This reduces the need for bending, stooping, manual lifting and the unergonomic handling of heavy items.
Better load positioning translates into a faster pace of work, reduced worker fatigue and greater consistency in operations. This is particularly important for tasks carried out repeatedly throughout the day: assembly, packing, sorting, quality control and the handling of production components.

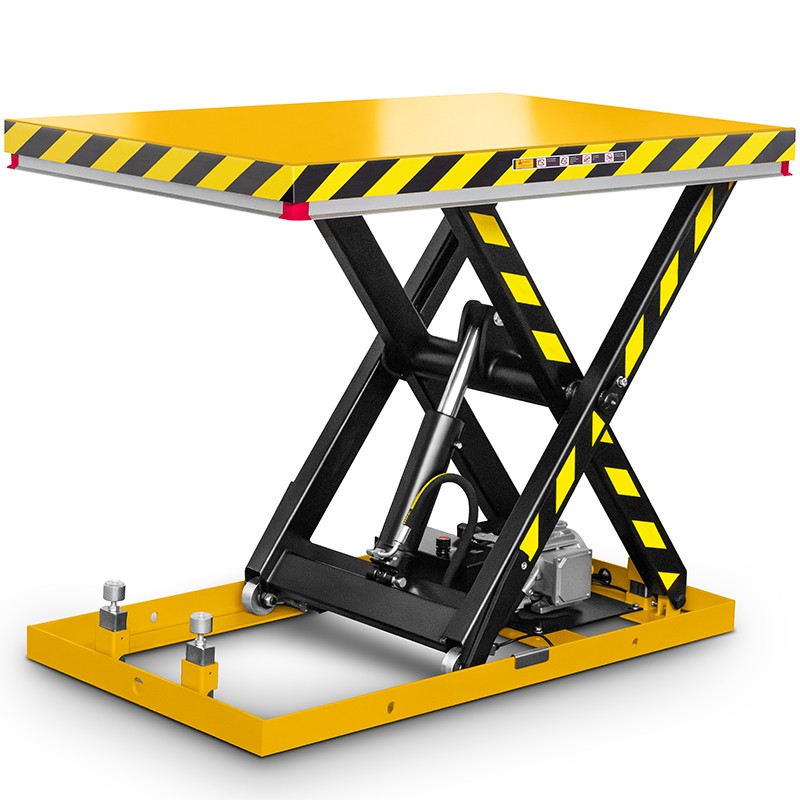

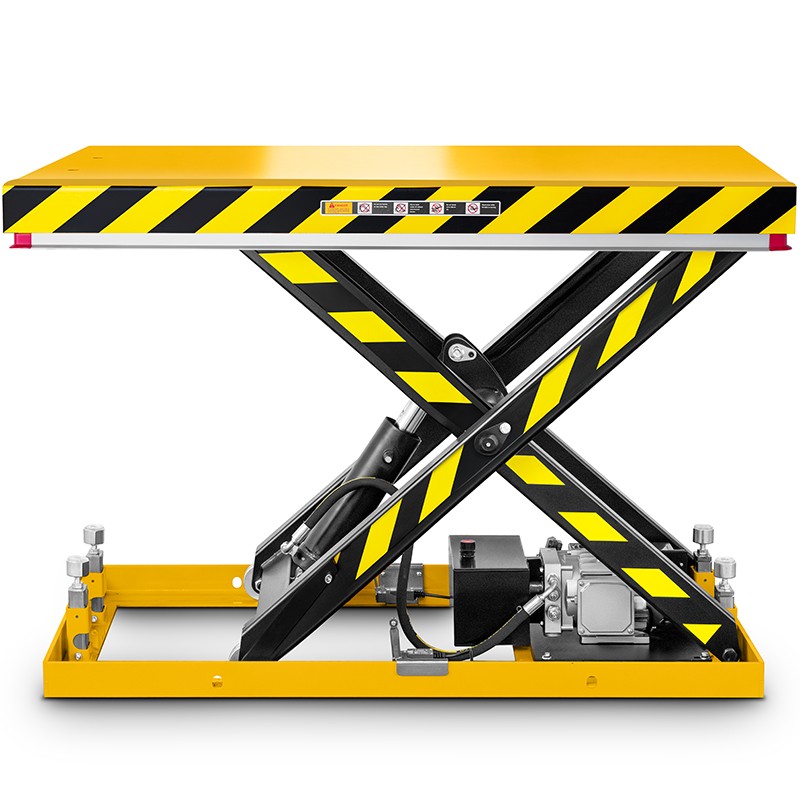

The TA500/1380 model is designed for regular use in warehouse, workshop and industrial environments. Its steel frame, stable platform and scissor mechanism ensure reliable load support during both lifting and lowering.
Its net weight of 175 kg contributes to the machine’s stability when operating under load. The scissor mechanism guides the platform evenly, allowing for convenient handling of loads within a range of 200 mm to 995 mm.
| Maximum load capacity | 500 kg |
| Minimum height | 200 mm |
| Maximum height | 995 mm |
| Table length | 1300 mm |
| Table width | 820 mm |
| Weight | 175 kg |
| Power supply | 400 V |
| UDT certification required | YES |
The TA500/1380 stationary scissor lift table is a good solution for businesses that need a stable lifting platform for loads weighing up to 500 kg. The unit facilitates the lifting, positioning and ergonomic handling of materials in warehouses, production facilities, workshops and on assembly lines.
With a large worktop measuring 1300 × 820 mm, a lifting range of 200–995 mm, a 400V power supply, remote control and safety features make the TA500/1380 well-suited as a lifting table, workstation lift and scissor lift for day-to-day operations.
Choose the TA500/1380 scissor lift table if you wish to improve workstation ergonomics, streamline material flow and reduce the need for manual handling of heavy loads.
