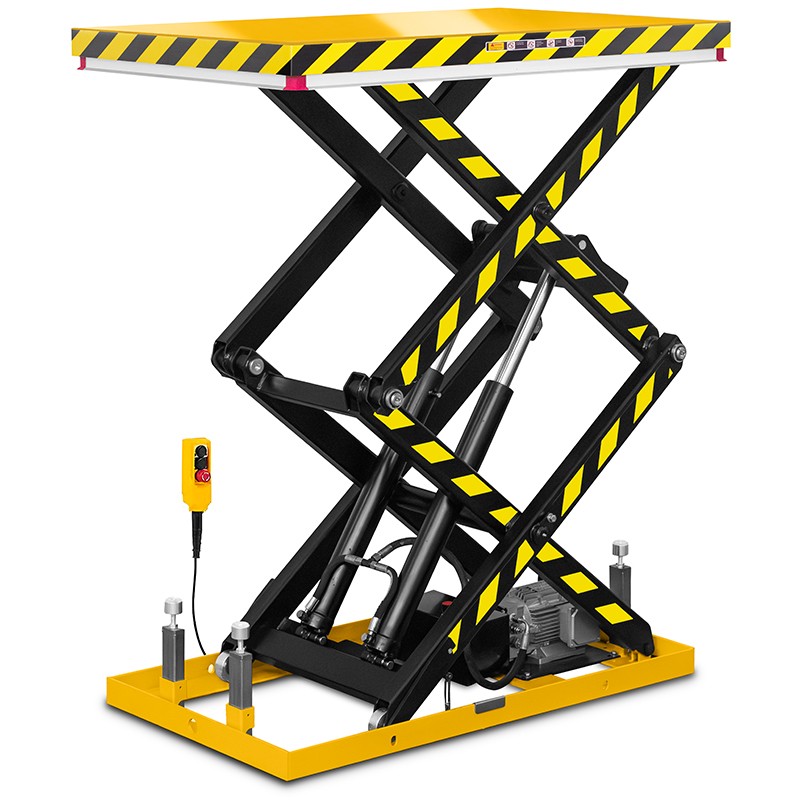

Electric Scissor Lift Table CORMAK TA100018 1000kg 1780mm

The TA100018 stationary scissor lift table is a high-performance hydraulic scissor lift designed to lift heavy loads to a high working height. With a lifting capacity of 1000 kg, a 400V power supply and a maximum lifting height of 1780 mm, this model is ideal for use in warehouses, production facilities, workshops, logistics centres and on production lines.

The equipment allows the load to be conveniently positioned at the appropriate working level, facilitating assembly, packaging, order picking, quality control, component feeding and the handling of heavy items without the need for manual lifting. It is a practical solution wherever ergonomics, repeatability of work and safe load lifting are important.

The working range of 300 mm to 1,780 mm allows for handling both low workstations and higher storage levels, racking, machinery and production lines. The TA100018 scissor lift table is ideal where a standard lift table with a shorter stroke does not provide sufficient working height.

The large worktop, measuring 1300 × 820 mm, provides stable support for loads, pallets, crates, containers or production components. The reinforced scissor-lift design and a net weight of 260 kg enhance the machine’s stability when lifting heavy materials.

400V electro-hydraulic lifting

The TA100018 lifting table utilises an electric lifting system, which eliminates the need for manual pumping. The operator can smoothly raise and lower the platform using a remote control, which speeds up day-to-day work and improves workplace ergonomics.

Precise height adjustment allows the worktop level to be tailored to the task at hand: assembly, collection of workpieces, setting aside materials, packing, order picking or feeding a production line. As a result, the scissor lift table can function as a workstation lift, a work platform or an auxiliary device for vertical transport.

Safety features and operational control

The TA100018 model is fitted with safety limit switches that stop movement once the maximum working height is reached. This solution protects the lifting mechanism, reduces the risk of overloading the structure and facilitates safe operation of the equipment.

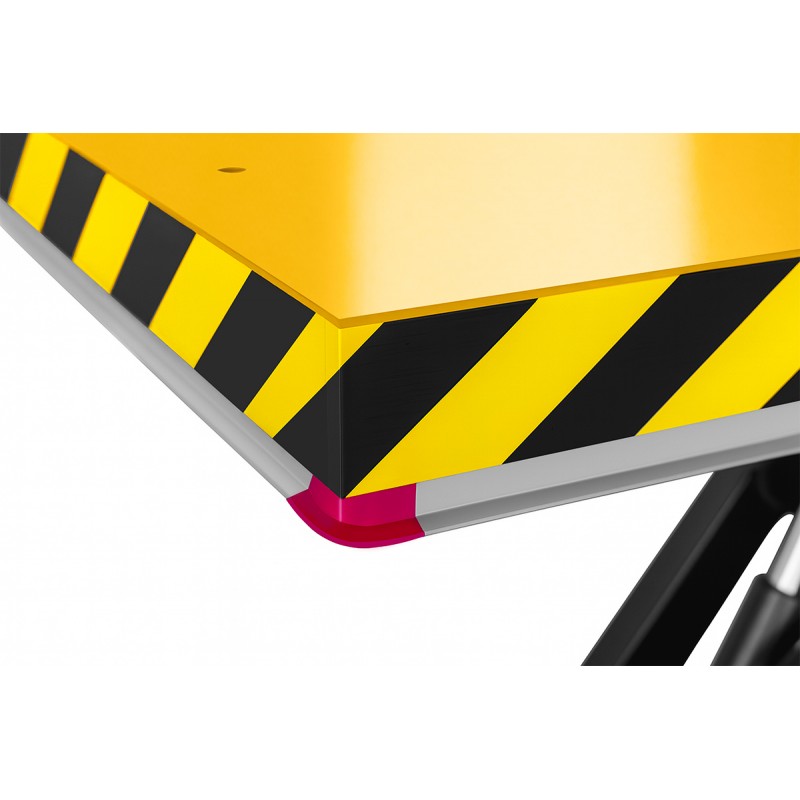

In addition, the table features a safety guard rail positioned beneath the edge of the worktop. Should an obstacle be encountered whilst lowering the platform, the strip stops the downward movement. This is an important safety feature in warehouse and production environments, where operators, materials, containers or workstation equipment may be located near the machine.

Key advantages of the TA100018 scissor lift table

• 1,000 kg lifting capacity – for lifting heavy loads, components, crates, containers and production materials.
• Lifting height up to 1,780 mm – a wide working range for use alongside production lines, racking and assembly stations.
• Height range 300–1,780 mm – convenient adjustment of the working level to suit the operator and the process.
• 1,300 × 820 mm worktop – a stable work surface for handling larger loads.
• 400 V power supply – a solution for intensive industrial and workshop use.
• Remote control – convenient operation for raising and lowering the platform.
• Safety limit switches – automatic stop when maximum height is reached.
• Protective strip – safeguards the area beneath the platform during lowering.
• Reinforced scissor mechanism – stable and smooth lifting of the load.
• Net weight 260 kg – greater stability when working with heavy items.

Applications of the TA100018 lifting table

The 1000 kg stationary scissor lift is used wherever it is necessary to safely lift, position and set down heavy loads at a specific height. It can be used as a workstation lift, a work platform, a component of a production line or a device to support internal transport.

• Warehouses and logistics centres – lifting loads, handling pallets, crates and containers.
• Manufacturing plants – feeding components to machines, assembly lines and workstations.
• Production lines – positioning materials at the correct working height.
• Assembly workstations – ergonomic positioning of heavy components during work.
• Packaging and order picking – adjusting the worktop height to suit the operator and the type of load.
• Industrial workshops – lifting parts, tools, structures and technical components.
• Quality control – positioning the product comfortably for inspection, measurement or further processing.
• Internal transport – vertical movement of loads between working levels.

Ergonomics for working at height

The TA100018 is designed for use in areas where loads need to be regularly lifted above standard working height. The high lifting height helps to minimise the manual handling of components, the use of additional platforms and excessive bending by the operator.

The adjustable platform height helps to adapt the workstation to the task at hand. The operator can work more comfortably, more quickly and with less physical strain, which is particularly important during repetitive production, assembly and warehousing operations.

Technical specifications

Why choose the TA100018 scissor lift table?

The TA100018 is a good choice for businesses that need a robust, stable and tall scissor lift table for handling loads of up to 1,000 kg. Its large lifting range, 1300 × 820 mm worktop, remote control and safety features make it well-suited to demanding warehouse, production and assembly processes.

If you need a machine to lift heavy loads to a great height, the TA100018 stationary scissor lift table will help improve workplace ergonomics, streamline material flow and enhance the safety of day-to-day operations.
