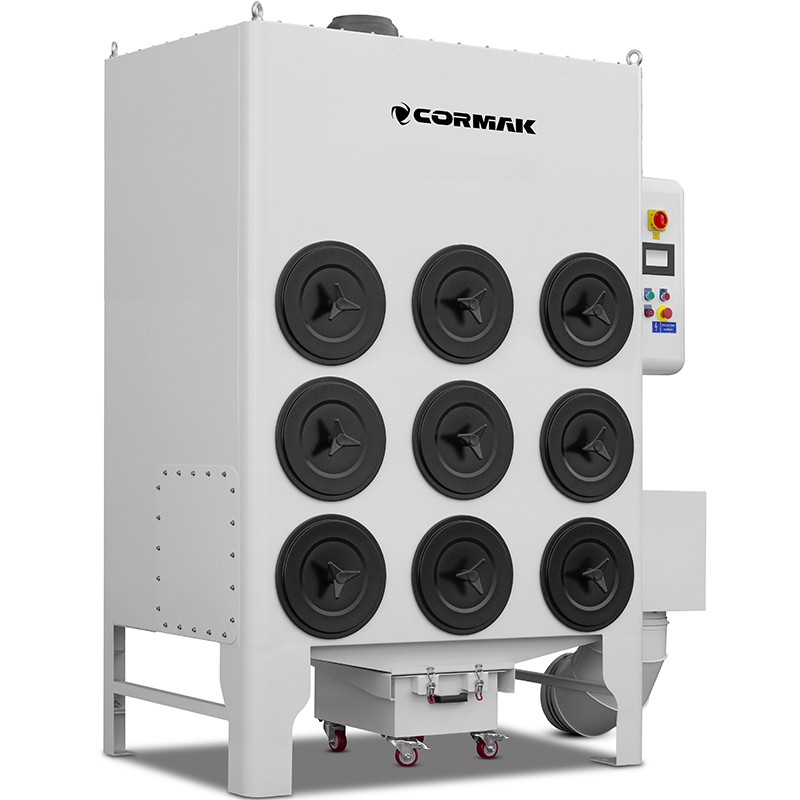

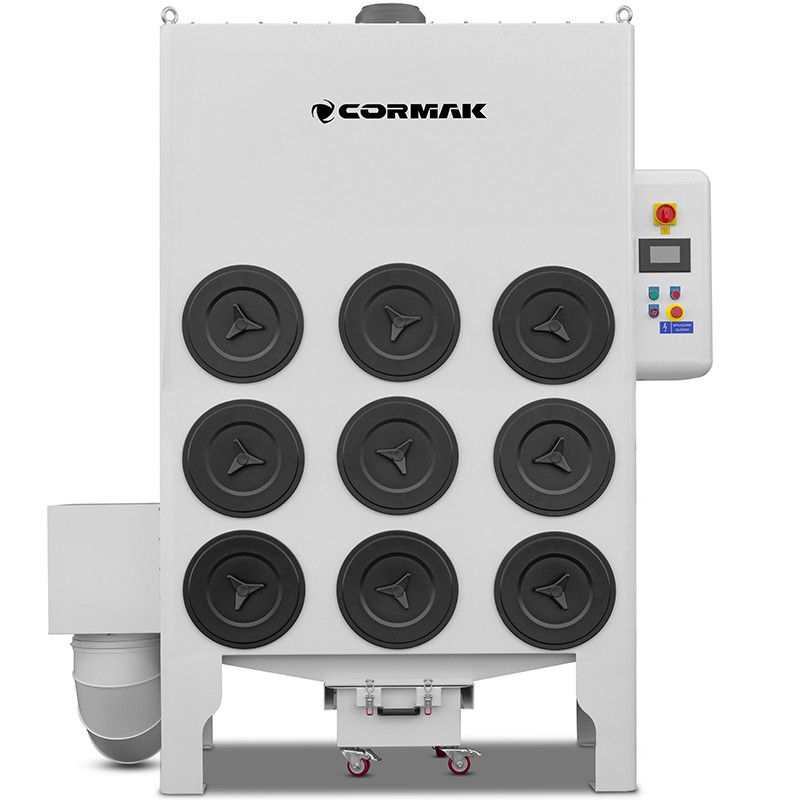

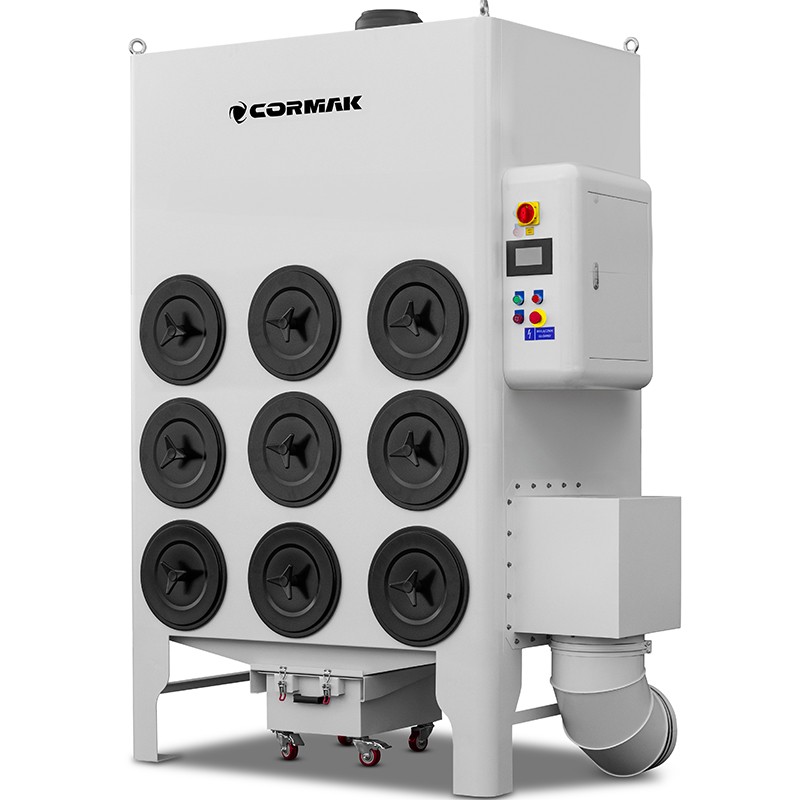

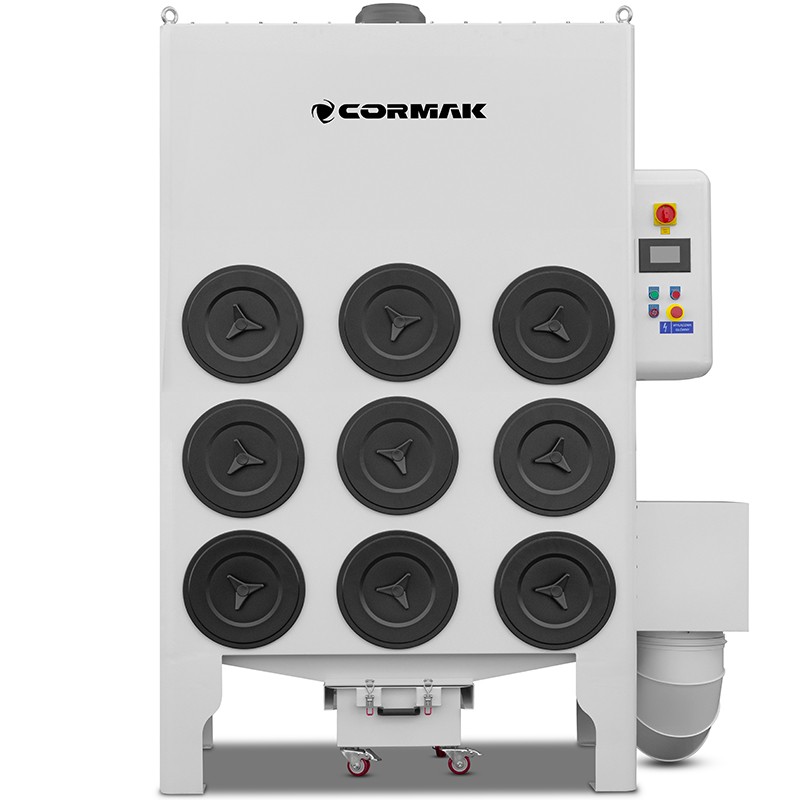

The extraction and filtration system CORMAK ODL9K is a modern solution that ensures safe working conditions for operators and effective protection of laser system components against contamination and damage. Filtration at a level of 99.9% removes dust and fumes, guaranteeing clean air in the workplace.
ODL9K stands out thanks to its automatic filter cleaning system, efficient fan, and compact, robust construction, which allows easy integration with various cutting systems. An additional advantage is the ergonomic dirt drawer, which enables quick and convenient emptying of collected waste.
It is a complete solution that increases safety, improves work efficiency and extends the service life of laser systems.
Laser machining produces harmful fumes and dust, which can adversely affect the operator’s health, the quality of work and the service life of the machinery. The state-of-the-art ODL9K extraction system ensures effective filtration of contaminants and protects the most critical components of the laser system.
The ODL9K combines automatic filter cleaning with compressed air, a high-performance fan generating significant negative pressure, and 99.9% filtration efficiency for particles as small as 0.3 μm, thanks to the use of appropriate filters.
The system is fitted with an ergonomic waste drawer, which allows for quick and convenient removal of accumulated dust without the need for disassembly. Furthermore, thanks to its modular design, extraction connections can be fitted on either the left or right-hand side of the unit, allowing the installation to be flexibly adapted to the layout of the production hall.
The ODL6K is a compact, efficient and reliable solution for any laser cutting system – enhancing safety, comfort and operational efficiency.
The main functions of the fume extraction and filtration system for laser processing are:
Key advantages of the CORMAK ODL9K extraction system:
The extraction system features automatic filter cleaning using compressed air. Under pressure, the filter is ‘shaken out’, which effectively cleans the filter cartridge and thus extends its service life. As a result, the system maintains its performance for a longer period.
The filter element used in the system is imported and made from high-quality material. The Nano-type fire-resistant filter is characterised by high filtration efficiency, trapping over 99.9 per cent of particles measuring 0.3 μm.
A large dust collection drawer allows for convenient dust collection and cleaning, which simplifies system maintenance.
The motors used in the system are fitted with overload protection, thereby ensuring a high level of safety and trouble-free operation.
A specially designed high-performance fan impeller generates high negative pressure, enabling the effective removal of laser fumes and ensuring high airflow capacity.
The system’s total filtration efficiency is 0.3 μm, with an efficiency of over 99.9 per cent, demonstrating the high effectiveness of the extraction system in removing harmful particles from the air. Furthermore, it features a compact design, which facilitates operation and maintenance.
| Number of filter cartridges | 9 |
| Air flow rate | 9,000 m³/h |
| Air pressure | 3,000 Pa |
| Filtration efficiency | 99.99% |
| Filter size | 350 x 660 mm |
| Fan power | 11 kW |
| Inlet diameter | 350 mm |
| Weight | 736 kg |
| Dimensions (L x W x H) | 1100 x 1800 x 2820 mm |
