Reference:
imak MULTIFIX C
Manufacturer:
CORMAK
Multifix tool posts are used for quick and precise clamping of cutting tools on a lathe. They enable rapid tool changes without having to reset them each time, which significantly speeds up work and improves machining repeatability. The Multifix system also provides stable tool clamping, accurate cutting edge height adjustment and greater operating convenience.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase

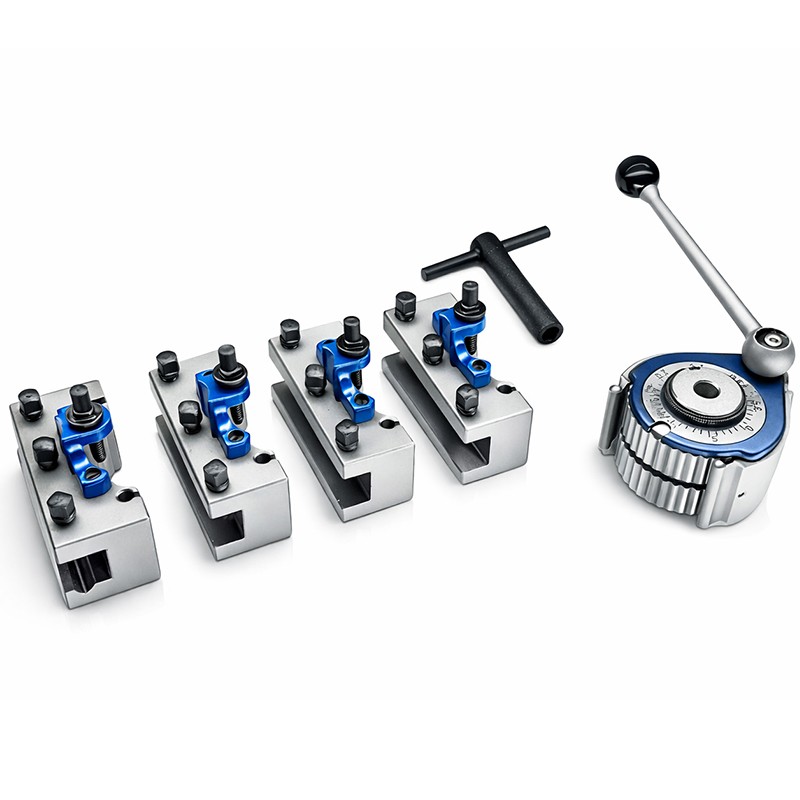

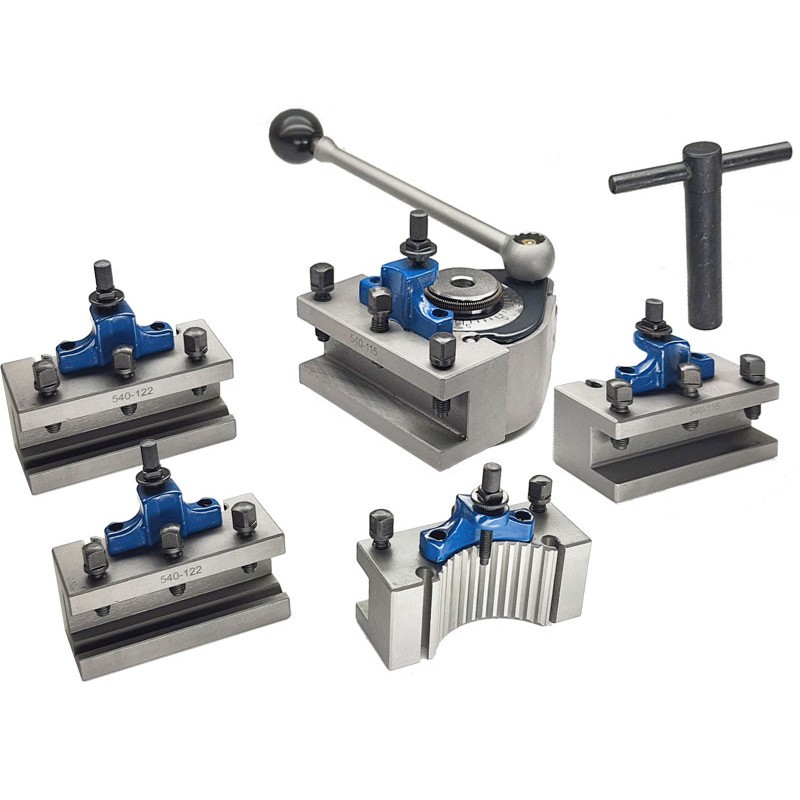

The set includes:
✔ body with clamping lever
head 540-200 x 1 pc

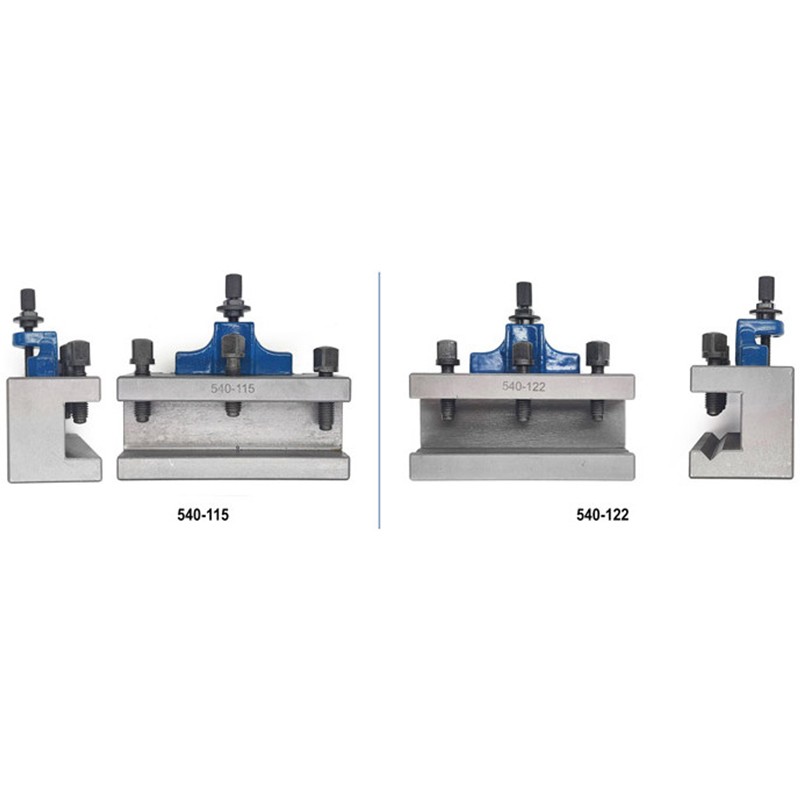

✔ tool holders
holder 540-211 x 3 pcs
holder 540-220 x 1 pc
✔ 1 square socket wrench
Features:
✔ Smooth adjustment of the tool tip position to the lathe spindle axis
✔ No spacer shims required
The hole in the centring disc must be bored to diameter R appropriate for the diameter of the carriage clamping screw.
| Dimension A | Dimension B | Tool post type | Dimension C | C max. | Dimension D | Dimension E | cscsc | |
| Size Aa | 18–26 mm | up to 12 mm | AaD1250 | 12 mm | 12 mm | 37 mm | 36 mm | 50 mm |
| Size A | 30–39 mm | up to 20 mm | AD2090 | 20 mm | 31 mm | 53 mm | 56 mm | 90 mm |
| Size B | 37–57 mm | up to 25 mm | BD25120 | 32 mm | 51 mm | 79 mm | 85 mm | 120 mm |
| Size C | 47–87 mm | up to 32 mm | CD32150 | 40 mm | 70 mm | 110 mm | 115 mm | 150 mm |
| Size E | 28–39 mm | up to 20 mm | ED20100 | 20 mm | 31 mm | 68 mm | 70 mm | 150 mm |
