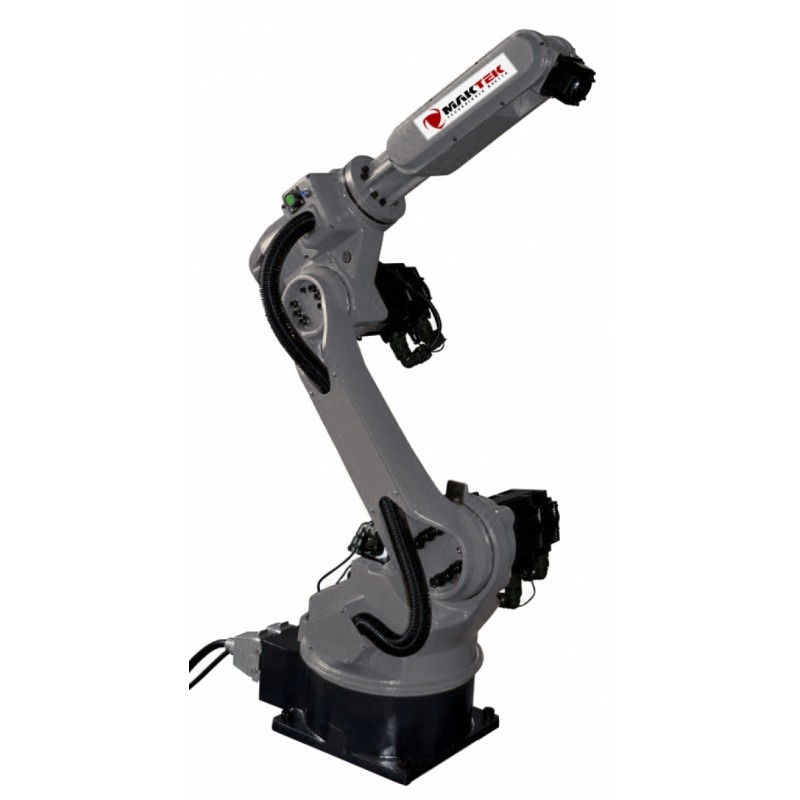

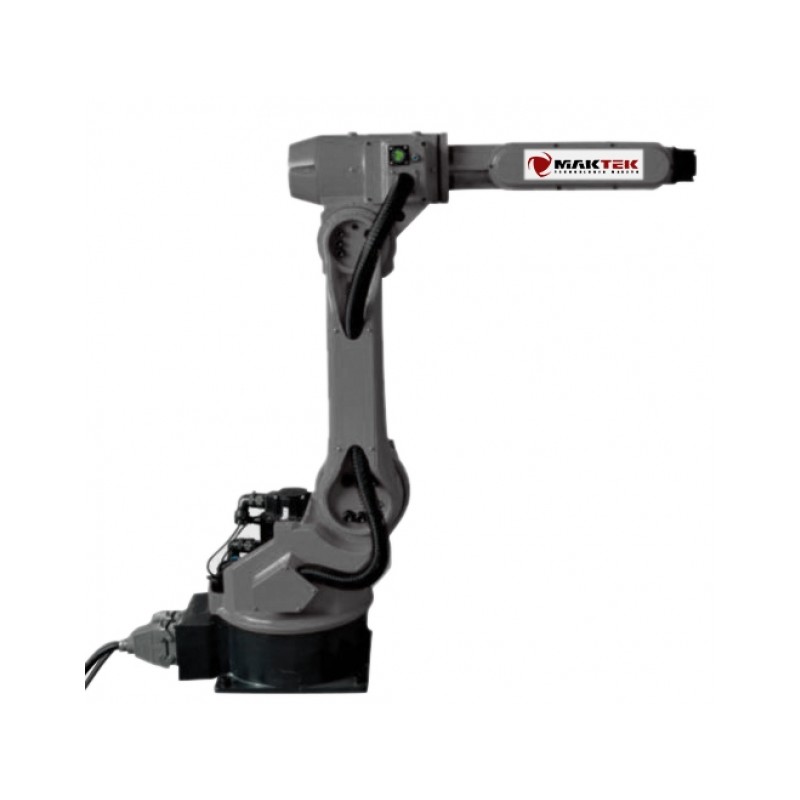

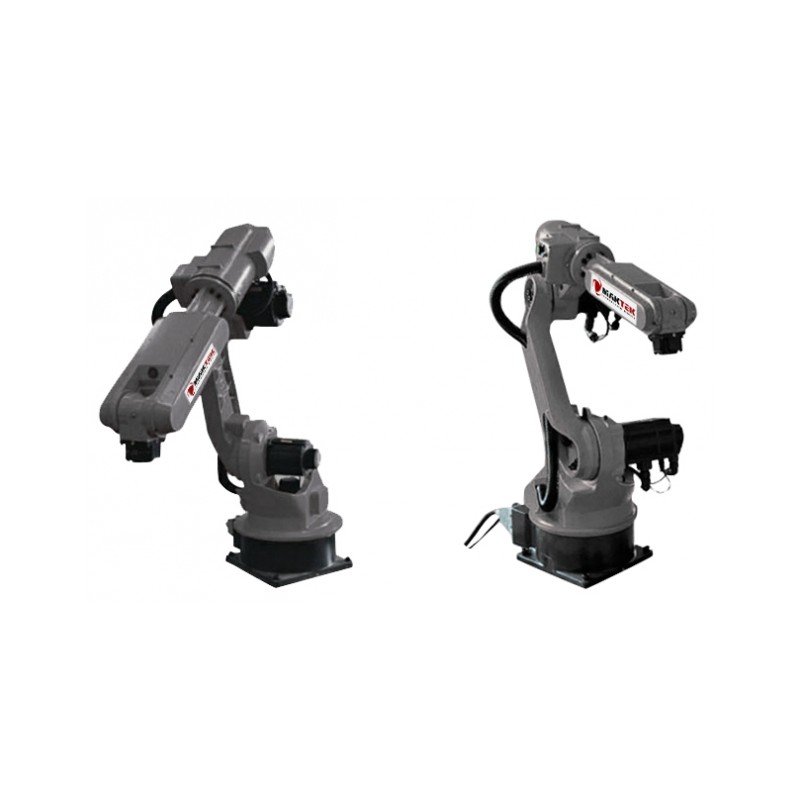

Industrial robots are used with production machines such as CNC lathes and machining centres. They replace operators by loading and unloading parts, especially during long production runs where work is repetitive and monotonous.
Industrial robots are used with production machines such as CNC lathes and machining centres. They replace operators by loading and unloading parts, especially during long production runs where work is repetitive and monotonous.
|
NUMBER OF AXES |
6 |
|
DRIVE SYSTEM |
AC servomotor |
|
MAXIMUM PAYLOAD |
8 kg |
|
POSITIONING REPEATABILITY |
±0.05 mm |
|

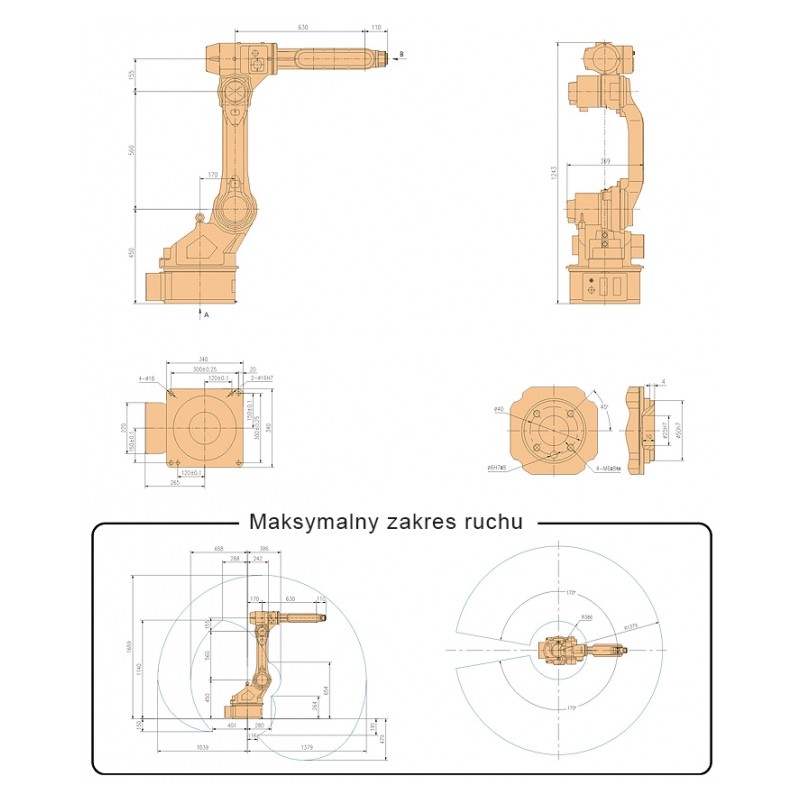

RANGE OF MOTION |
|
|
AXIS J1 |
±170º |
|
AXIS J2 |
+120º~-85º |
|
AXIS J3 |
+85º~-170º |
|
AXIS J4 |
±180º |
|
AXIS J5 |
±135º |
|
AXIS J6 |
±360º |
|
NOMINAL SPEED |
|
|
AXIS J1 |
2.09 rad/s, 120º/s |
|
AXIS J2 |
2.09 rad/s, 120º/s |
|
AXIS J3 |
2.09 rad/s, 120º/s |
|
AXIS J4 |
3.93 rad/s, 225º/s |
|
AXIS J5 |
2.53 rad/s, 145º/s |
|
AXIS J6 |
5.24 rad/s, 300º/s |
|
WEIGHT |
305 kg |
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
▶
▶
