An LPG and petrol-powered forklift truck with a lifting capacity of 3500 kg and a lift height of 3000 mm is a reliable tool for demanding applications where strength, durability, and operational continuity are essential. Designed for transporting heavy loads, it provides operational stability and high performance in a wide range of environments, both indoors and outdoors.
Internal combustion forklift truck 3500 kg with Nissan K25 engine – durability and reliability for heavy handling tasks
An internal combustion forklift truck with a lifting capacity of 3500 kg is a professional handling unit designed for intensive industrial, construction, and logistics applications. Thanks to a mast with a lift height of 3000 mm and pneumatic tyres adapted for operation in difficult terrain, this forklift ensures stable and efficient performance under high loads. Its robust construction, Nissan K25 engine rated at 50 HP, and automatic transmission guarantee smooth operation regardless of working conditions.
Main advantages of the machine
- Nominal lifting capacity of 3500 kg – safe transport of heavy loads, machinery, steel, and industrial components.
- Lift height of 3000 mm – optimal for low and medium storage in warehouses and production halls.
- Nissan K25 petrol/LPG engine – a proven power unit offering high efficiency.
- Power Shift transmission (automatic) – smooth operation without the need for manual gear changes.
- Pneumatic tyres – effective shock absorption and traction in varied terrain conditions.
- Side shift mechanism – lateral fork movement for precise handling in confined spaces.
- Robust mast with tilt function – improved stability and safety during load handling.
- Complete working lighting – efficient operation in low-visibility conditions.
Design and technology
The forklift is equipped with reinforced load-bearing components, a durable frame, and hydraulics designed for operation under maximum load. The Nissan K25 engine is a well-proven unit known for its resistance to overload and low fuel consumption. The automatic Power Shift transmission ensures smooth driving and increases operator comfort and safety, especially during frequent direction changes.

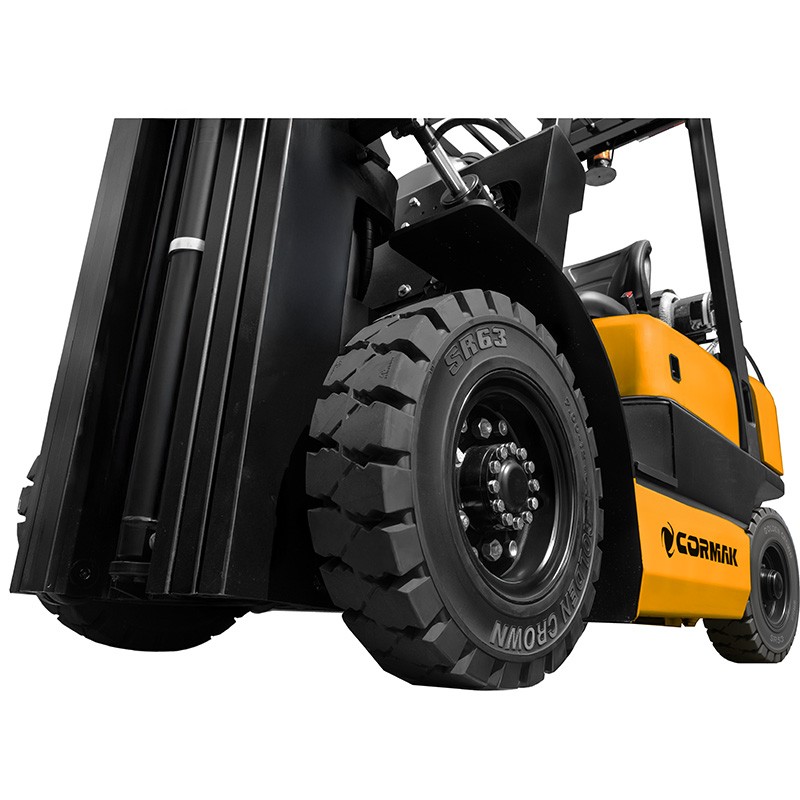

Pneumatic tyres with increased diameter and deep tread perform excellently on ramps, loading yards, and both paved and unpaved surfaces, effectively damping vibrations and reducing suspension wear.
Precision and operating efficiency
The side shift mechanism allows horizontal fork movement, significantly reducing cycle time during stacking and unloading operations. Thanks to manual fork spacing adjustment, quick adaptation to different pallet sizes is possible. Mast tilt forward and backward enhances safety when handling heavy loads, facilitating both precise placement and stabilisation during travel.
Applications
This model is used in:
- High-risk warehouses – where reliability and high lifting capacity are essential.
- Construction and heavy industry – transport of steel structures, prefabricated elements, and machinery.
- Logistics centres – intensive outdoor handling operations.
- Industrial production – where durability and adaptability to changing environmental conditions are required.
Standard equipment
- Nissan K25 engine
- Side shift – lateral fork movement
- Mast tilt adjustment (forward/backward)
- Manual fork spacing adjustment
- Pneumatic tyres
- LED working lights
- Reverse alarm and warning lights

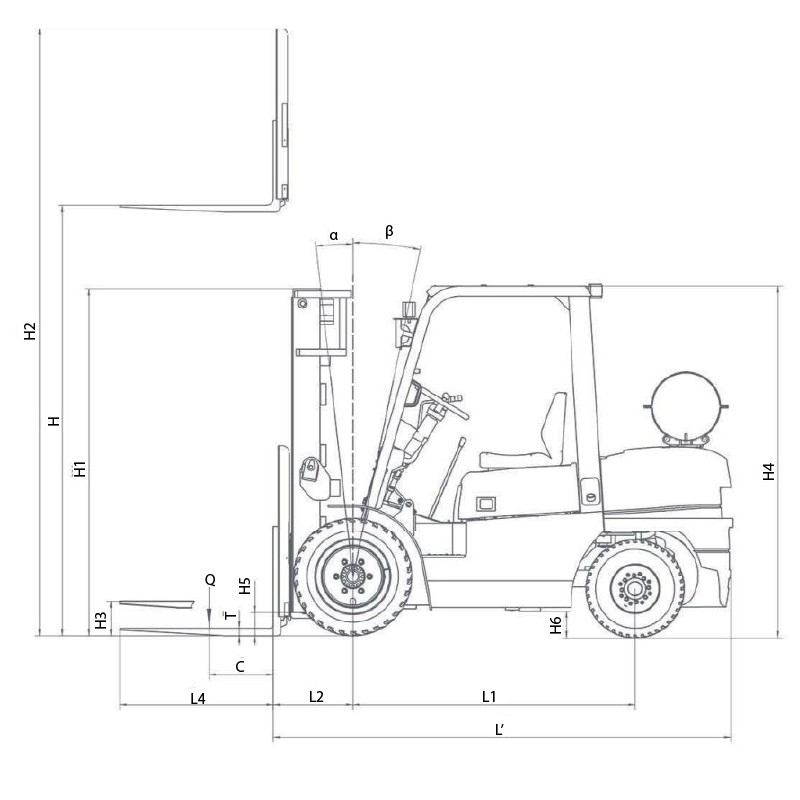

Technical data
| Load capacity | 3500 kg | |
| Lift height of forks | 3000 mm | |
| Lowered fork height | 40 mm | |
| Fork length | 1220 mm | |
| Side shift | Yes | |
| Mast tilt | Yes | |
| Engine | Nissan K25 | |
| Engine power | 50 HP | |
| Transmission | Automatic | |
| Travel speed with/without load | 12 / 13 km/h | |
| Tyre type | Pneumatic | |
| Overall length | 3800 mm | L |
| Overall length without forks | 2580 mm | L’ |
| Wheelbase | 1740 mm | L1 |
| Distance from front axle to fork face | 487 mm | L2 |
| Fork length | 1220 mm | L4 |
| Single fork width | 120 mm | W |
| Overall truck width | 1225 mm | W1 |
| Rear body width | 970 mm | W2 |
| Fork carriage width | 1000 mm | W3 |
| External fork spread | 1060 mm | W5 |
| Maximum lift height | 3000 mm | H |
| Mast height (lowered) | 2120 mm | H1 |
| Mast height (raised) | 4250 mm | H2 |
| Fork height from ground | 150 mm | H3 |
| Overall height (to overhead guard) | 2090 mm | H4 |
| Mast ground clearance | 120 mm | H5 |
| Ground clearance | 120 mm | H6 |
| Load centre distance | 500 mm | C |
| Rated capacity | 3500 kg | Q |
| Single fork thickness | 40 mm | T |
| Mast tilt angle (forward) | 6% | α |
| Mast tilt angle (backward) | 12% | β |
| Weight | 4700 kg |
Order now – professional support and a secure investment
Choose the CORMAK 3500 kg forklift truck – a reliable solution for heavy industrial applications. Contact our specialist to select the right configuration for your facility. CORMAK – professional machinery for demanding users.
