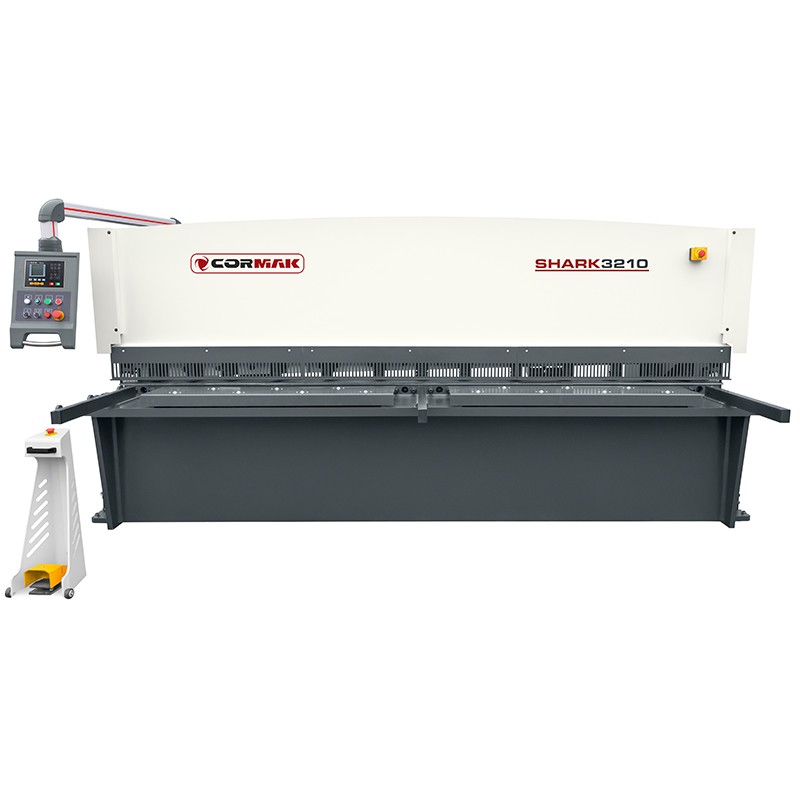

Hydraulic guillotine shears are advanced machines designed for precise cutting of sheets of varying thickness and hardness. With a hydraulic drive system, they ensure high cutting force, allowing efficient processing of even the most demanding materials. The robust construction and modern control systems guarantee accuracy, repeatability and operational safety. These machines are indispensable in industrial plants and workshops specialising in metalworking.
| Max. sheet thickness (S235) | up to 10.0 mm |
| Maximum sheet length | 3200 mm |
| Cutting angle | 1.5° |
| Number of strokes per minute | 6–20 |
| Back gauge travel | 600 mm |
| Motor power | 15 kW |
| Length | 4000 mm |
| Width | 1800 mm |
| Height | 2100 mm |
| Weight | 8400 kg |
The rear ramp is equipped with ball guides, ensuring smooth and precise movement of cut pieces. This design prevents material fragments from remaining on the machine, improving efficiency and operational safety.

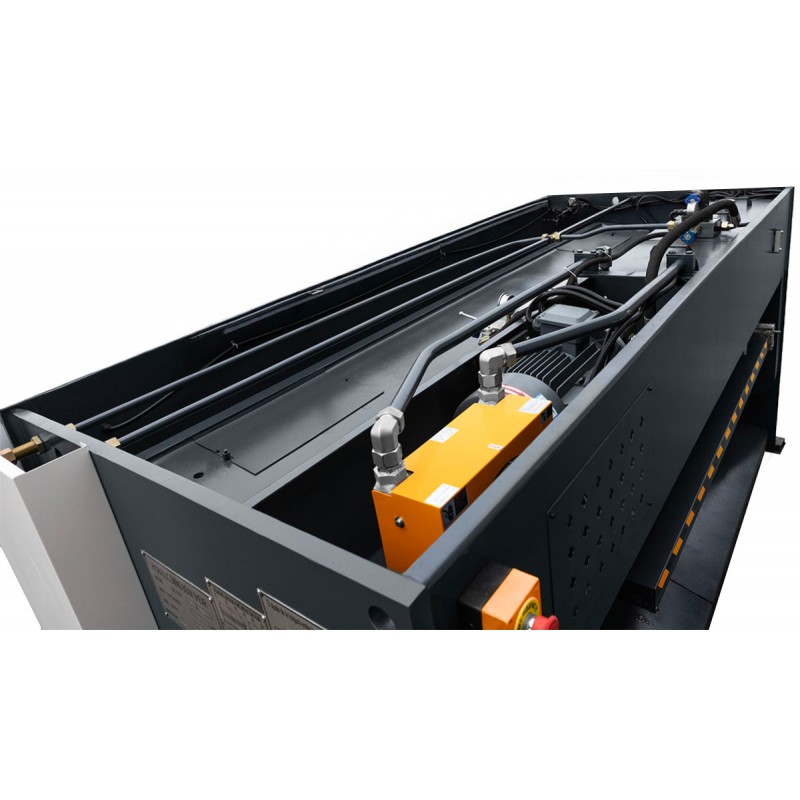

Using steel pipes in hydraulic systems instead of flexible rubber hoses significantly increases system tightness and minimises the risk of leaks in the future. Due to their rigidity and resistance to mechanical damage, steel pipes ensure durability and reliability of hydraulic connections.

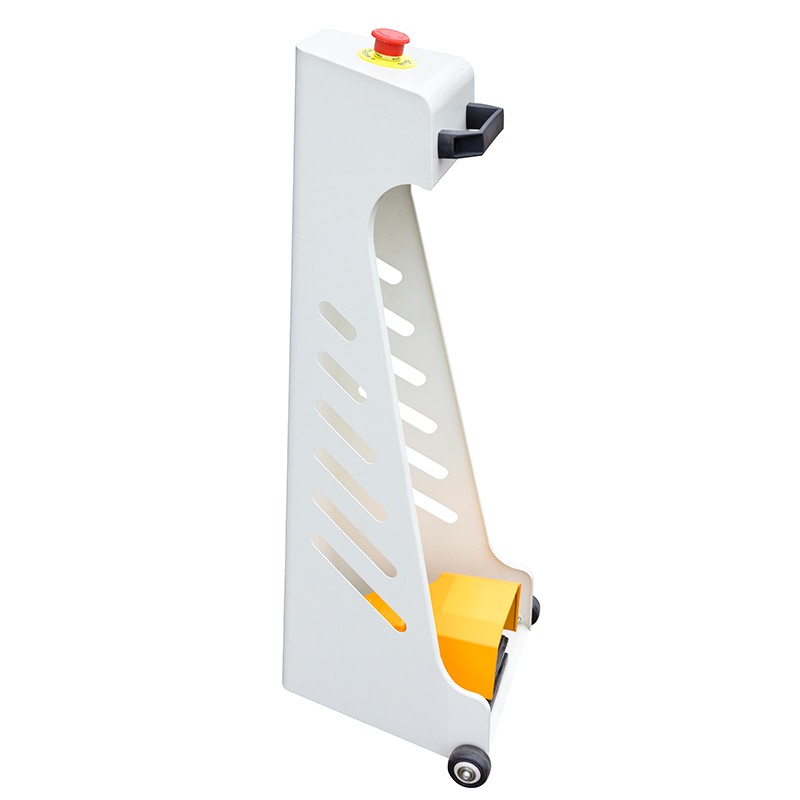

Thanks to the mobile controller and the control panel mounted on a movable arm, the operator gains full freedom of movement within the entire working area of the machine. Additional LED lighting and a laser indicator ensure excellent visibility of the processed elements, providing precision and comfort of work under all conditions.

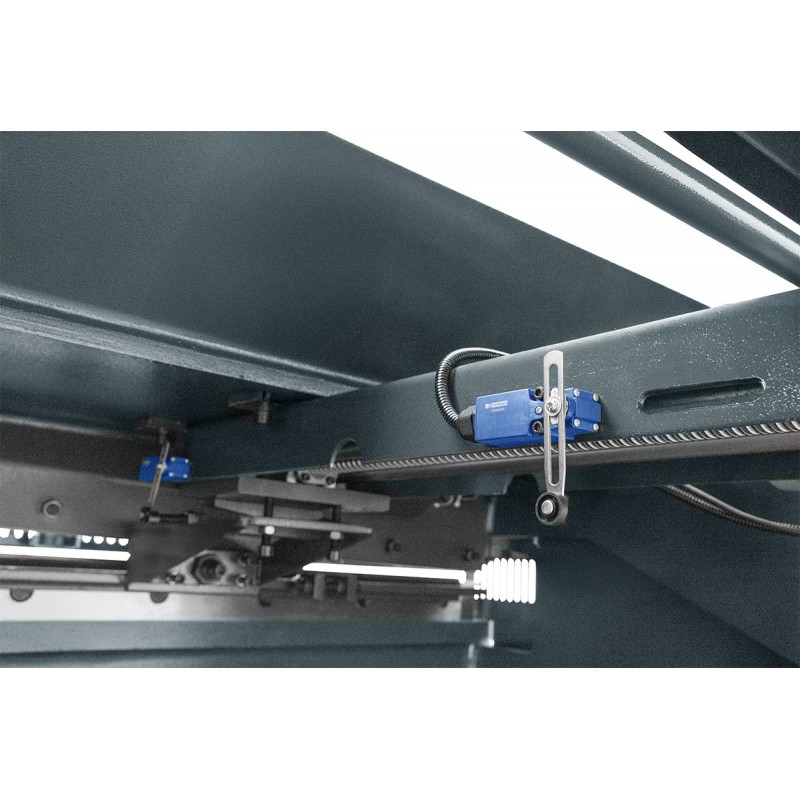

Designed with the safety of operators and employees in mind, our guillotine shears are equipped with a range of solutions minimising risk during operation:
Each machine is supplied with a user manual, ensuring full understanding of operating and maintenance principles. In addition, our devices come with CE certification confirming compliance with European safety and quality standards.
Standard equipment includes a system ensuring stable machine operating parameters even during long and continuous operation.
The pressure control system guarantees reliable blade performance for many years.
It is possible to arrange professional training and machine commissioning carried out by a Cormak technician — this service is priced individually.
