Hydraulic guillotine shears are advanced machines designed for precise cutting of sheets with different thicknesses and hardness. Thanks to the use of a hydraulic drive, they provide high pressure force, allowing efficient processing of even the most demanding materials. The robust construction and modern control systems ensure accuracy, repeatability, and work safety. These machines are indispensable in industrial plants and workshops involved in metalworking.
| Max. thickness of cut sheet (S235) | up to 12.0 mm |
| Maximum sheet cutting length | 4000 mm |
| Cutting angle | 2° |
| Number of strokes per minute | 6–20 |
| Rear stop travel | 600 mm |
| Motor power | 18.5 kW |
| Length | 4800 mm |
| Width | 2100 mm |
| Height | 2100 mm |
| Weight | 12,500 kg |
The rear ramp is equipped with ball guides, ensuring smooth and precise sliding of the cut pieces. As a result, no part of the material remains on the machine, increasing efficiency and work safety.

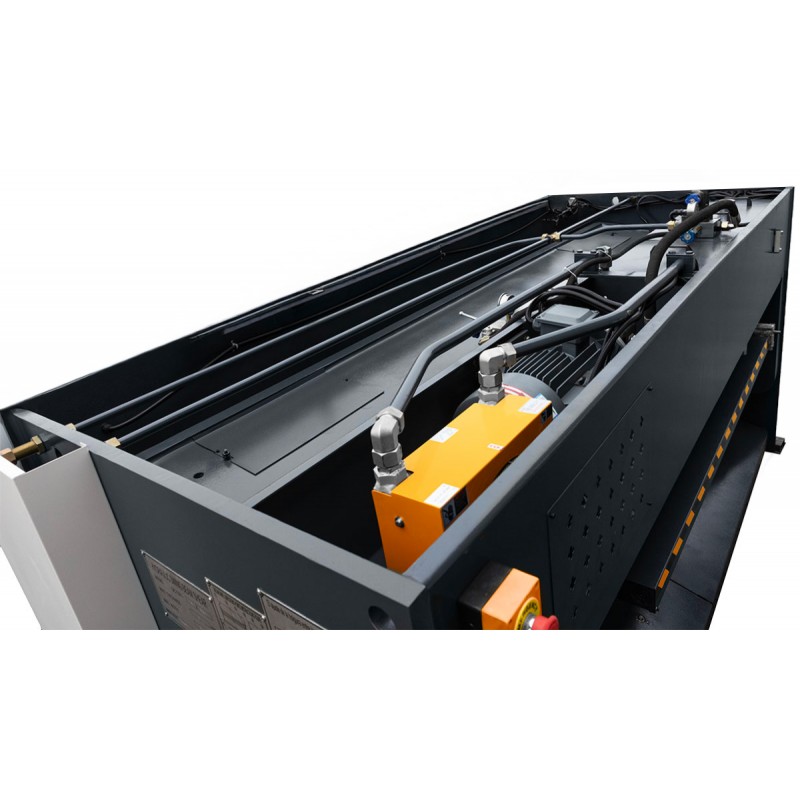

The use of steel pipes in hydraulic systems instead of flexible rubber hoses significantly increases system tightness and minimises the risk of leaks in the future. Due to their rigidity and resistance to mechanical damage, steel pipes ensure durability and reliability of hydraulic connections.

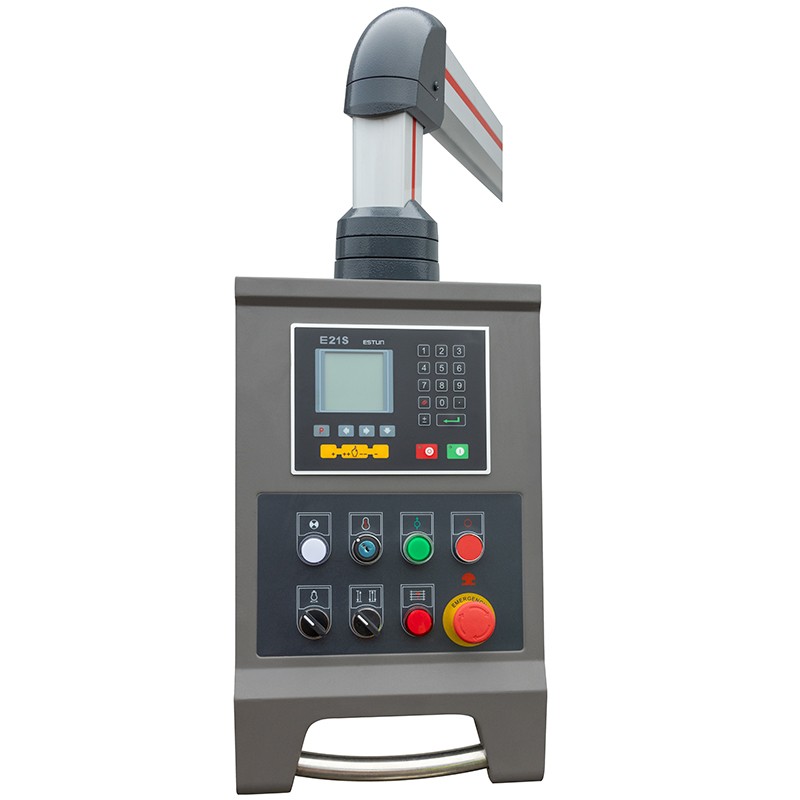

Thanks to the mobile controller and the control unit mounted on a movable arm, the operator has full freedom of movement across the entire working area of the machine. Additional LED lighting and a laser indicator provide excellent visibility of the processed parts, which translates into precision and comfort of work in all conditions.
With operator and worker safety in mind, our guillotine shears have been equipped with a range of solutions that minimise the risk during operation:
Each machine is supplied with a user manual, ensuring full understanding of operating and maintenance principles. In addition, our machines are CE certified, confirming compliance with European safety and quality standards.
Our standard system ensures stable machine performance parameters even after long, continuous operation.
The pressure control system guarantees reliable blade operation for many years.
You can always count on support from a specialist.
It is possible to arrange professional training and machine commissioning carried out by a Cormak technician — this service is priced individually.
Contact our advisor to get more information.
