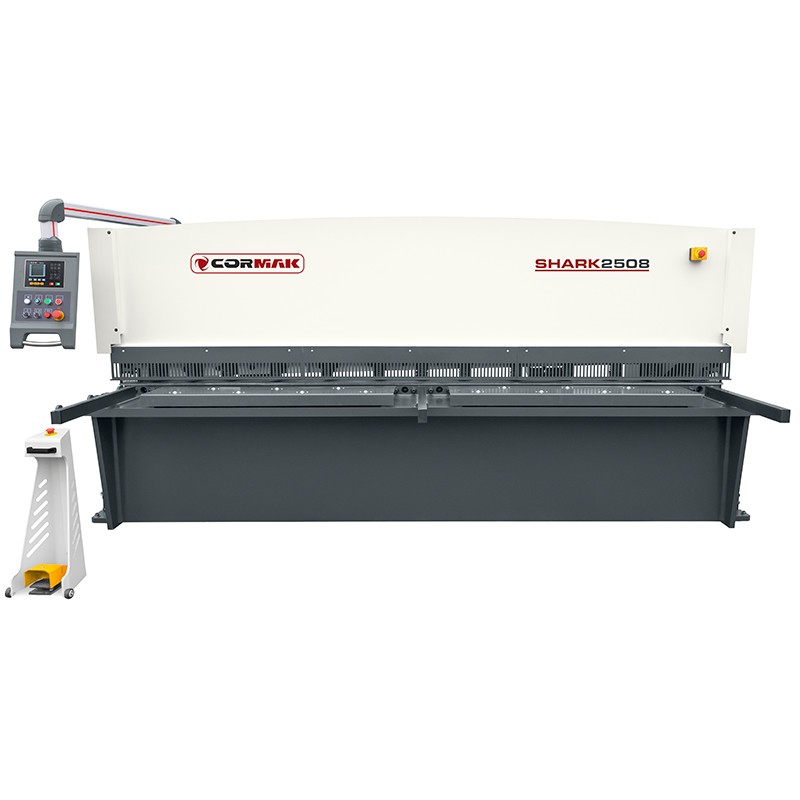

Hydraulic guillotine shears are advanced machines designed for precise cutting of sheet metal of varying thickness and hardness. Thanks to the hydraulic drive, they provide high pressing force, enabling efficient processing of even the most demanding materials. Their robust construction and modern control systems guarantee accuracy, repeatability and safe operation. These machines are indispensable in industrial plants and workshops involved in metalworking.
| Max. thickness of cut sheet metal (S235) | up to 8.0 mm |
| Maximum cutting length | 2500 mm |
| Cutting angle | 1.5° |
| Number of strokes per minute | 6-20 |
| Backgauge travel | 600 mm |
| Motor power | 7.5 kW |
| Length | 3200 mm |
| Width | 1700 mm |
| Height | 1900 mm |
| Weight | 6200 kg |
The rear ramp is equipped with ball guides, ensuring smooth and precise movement of the cut parts. As a result, no material fragment remains on the machine, which increases work efficiency and safety.
The use of steel pipes in hydraulic systems instead of flexible rubber hoses significantly increases system tightness and minimises the risk of future leaks. Thanks to their rigidity and resistance to mechanical damage, steel pipes ensure durability and reliability of the hydraulic connections.

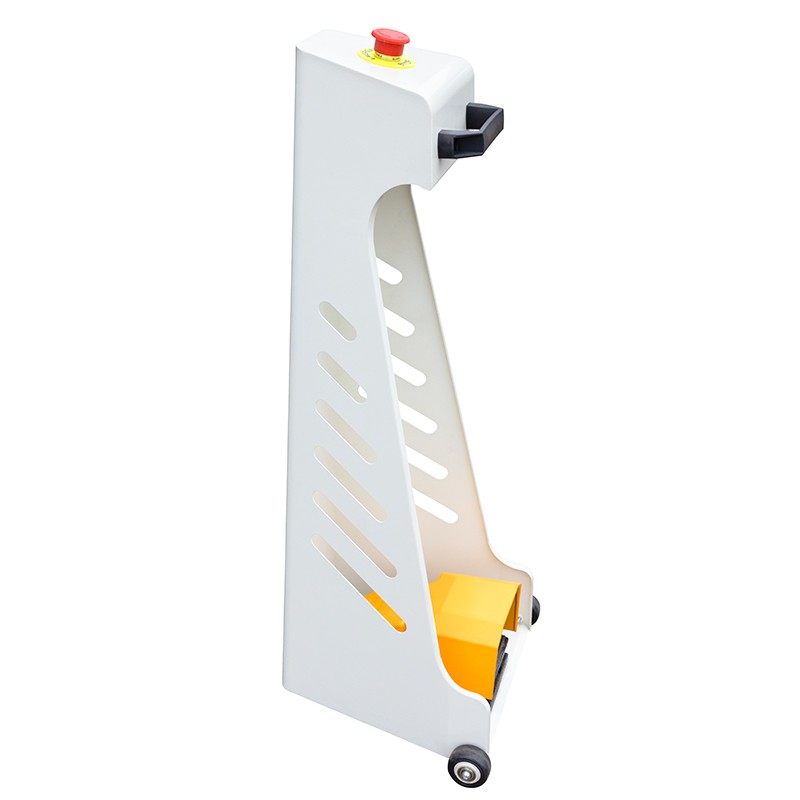

Thanks to the mobile controller and the control unit mounted on a movable arm, the operator gains full freedom of operation throughout the machine's working area. Additional LED lighting and a laser indicator ensure excellent visibility of the processed elements, which translates into precision and working comfort in all conditions.
With operator and staff safety in mind, our guillotine shears have been equipped with a range of solutions that minimise risk during operation:
Each machine is supplied with a user manual. In addition, our machines have CE certification, confirming compliance with European safety and quality standards.
Provided as standard, the system guarantees stable machine operating parameters even during long, continuous use.
The pressure control system guarantees reliable blade performance for many years.
You can always count on specialist support.
