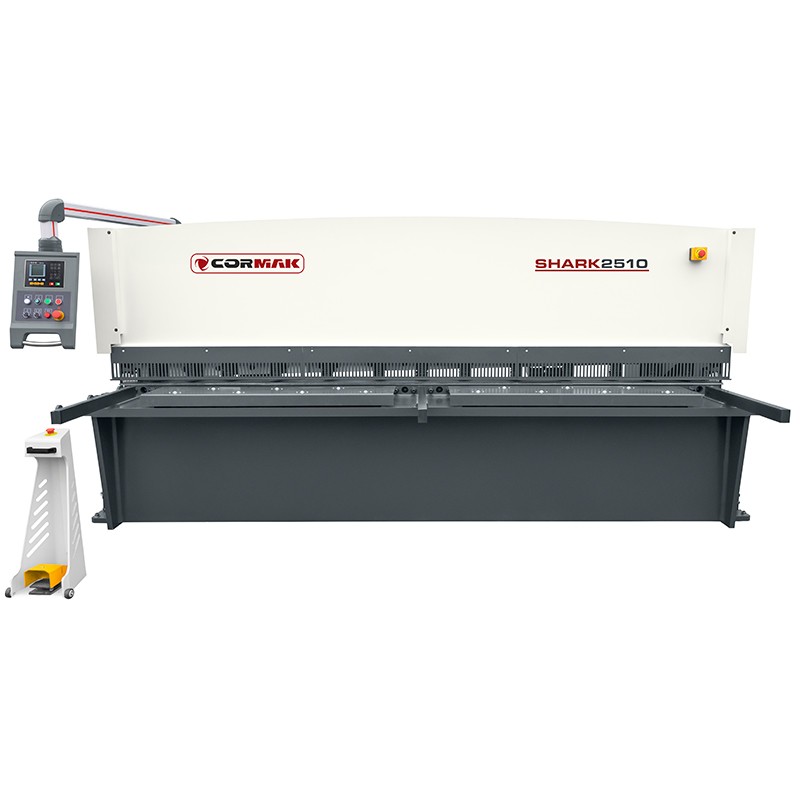

Hydraulic guillotine shears are advanced machines designed for precise cutting of sheets with varying thickness and hardness. The hydraulic drive provides high cutting force, enabling efficient processing of even the most demanding materials. The solid structure and modern control systems guarantee accuracy, repeatability, and work safety. These are indispensable machines for industrial plants and workshops involved in metal processing.
| Max. sheet thickness (S235) | up to 10.0 mm |
| Maximum sheet length | 2500 mm |
| Cutting angle | 1.5° |
| Number of strokes per minute | 6–20 |
| Back gauge travel | 600 mm |
| Motor power | 11 kW |
| Length | 3200 mm |
| Width | 1800 mm |
| Height | 1850 mm |
| Weight | 6300 kg |

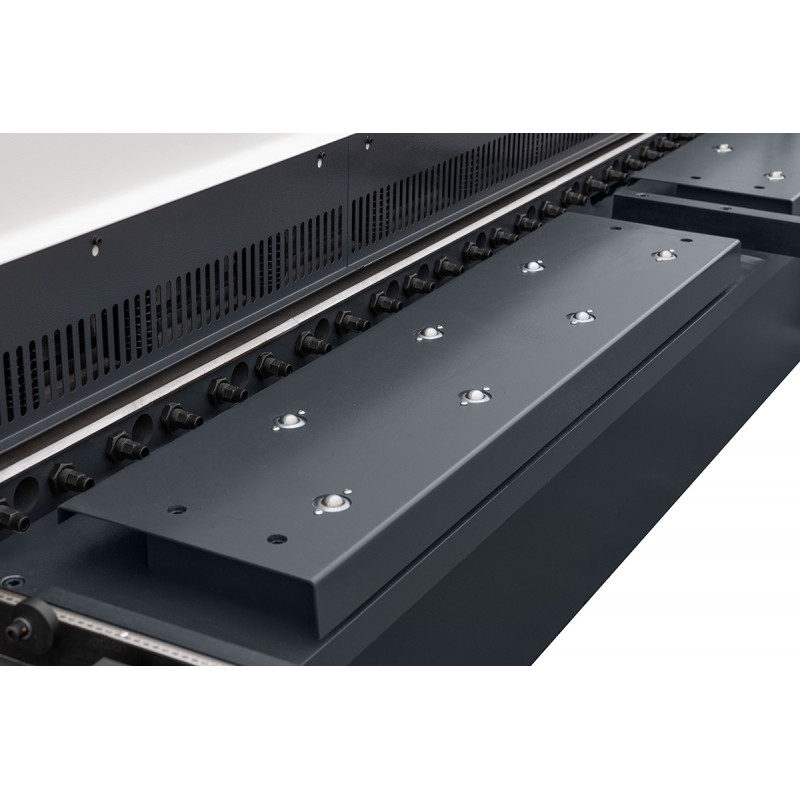

The rear ramp is equipped with ball guides, ensuring smooth and precise movement of cut pieces. This design prevents material fragments from remaining on the machine, improving efficiency and work safety.

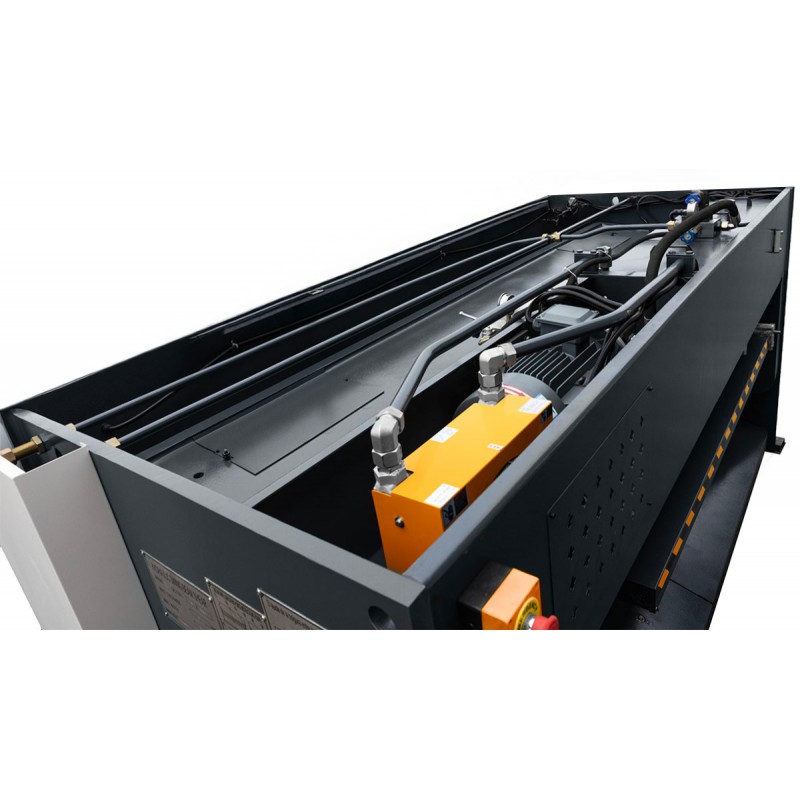

Using steel pipes in hydraulic systems instead of flexible rubber hoses significantly increases system tightness and minimises the risk of leaks in the future. Due to their rigidity and resistance to mechanical damage, steel pipes ensure durability and reliability of hydraulic connections.

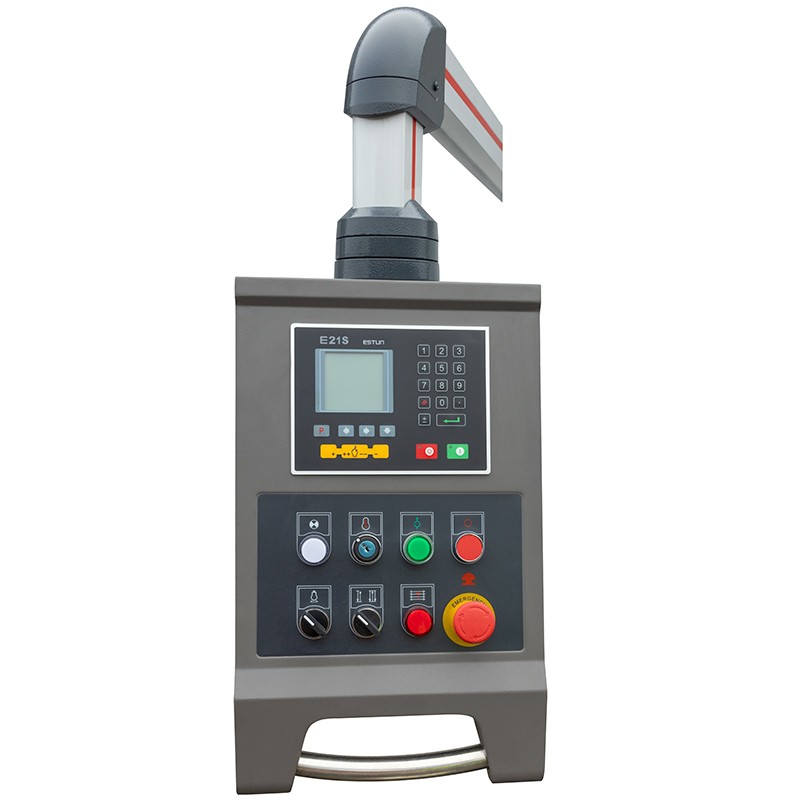

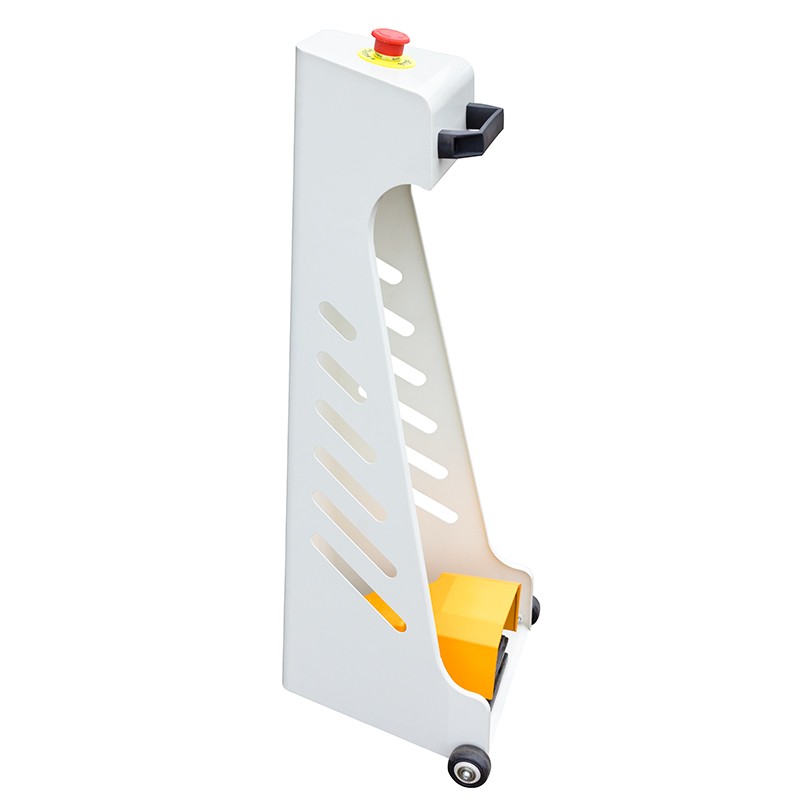

Thanks to the mobile controller and the control panel mounted on a movable arm, the operator gains full freedom of movement within the entire working area of the machine. Additional LED lighting and a laser indicator ensure excellent visibility of the processed elements, providing precision and comfort of work under all conditions.
Designed with the safety of operators and staff in mind, our guillotine shears are equipped with a number of solutions minimising the risk during operation:
Each machine is supplied with a user manual, ensuring complete understanding of operating and maintenance principles. In addition, our machines come with CE certification confirming compliance with European safety and quality standards.
Standard equipment includes a system ensuring stable machine operating parameters even during long and continuous use.
The pressure control system guarantees reliable blade performance for many years.
It is possible to arrange professional training and machine commissioning carried out by a Cormak technician — this service is priced individually.
Contact our advisor to get more information.
You can always rely on the assistance of our specialist.
