- Electric drive instead of hydraulic – Servo-electric presses use an electric drive, making them more energy-efficient, quieter and more precise than traditional hydraulic machines.
- Higher precision – Thanks to servo mechanism technology, servo-electric presses provide greater bending accuracy, essential for manufacturing components requiring high precision.
- Faster response and greater flexibility – The electric drive allows faster and more flexible adjustment of force and speed, enabling production process optimisation depending on material type and task.
- Lower operating costs – Servo-electric presses are more energy-efficient as they do not require constant hydraulic pressure or large oil tanks, resulting in lower running costs.
- Clean operation and no need for oil maintenance – Unlike hydraulic presses, servo-electric machines do not require hydraulic oil, reducing maintenance costs and eliminating leakage issues.
- Greater reliability – With no complex hydraulic system prone to failure, servo-electric presses are more reliable and require less maintenance.
- Increased energy efficiency – Equipped with servo motors, these presses consume energy only during operation, providing higher energy efficiency than conventional machines.
- Easy automation integration – Servo-electric press brakes can be easily integrated with automation systems, allowing full production automation and real-time parameter adjustments for improved flexibility.
- Quiet operation – Servo technology ensures significantly quieter performance than hydraulic machines, improving comfort in production halls.
- Better control of the bending process – The precise frame motion control gives the operator full command over bending, ensuring repeatability and high-quality results.

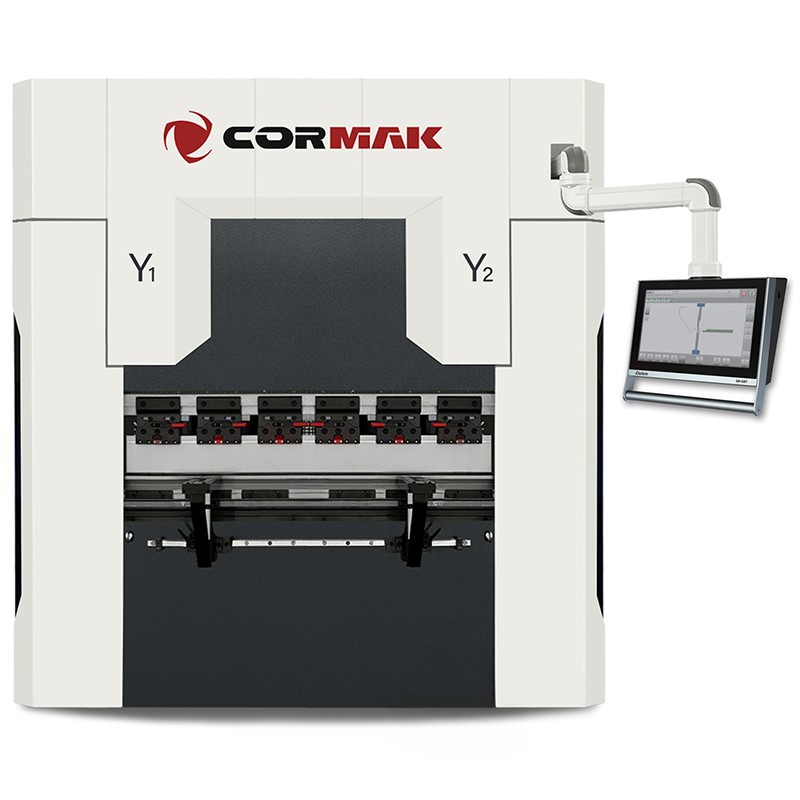

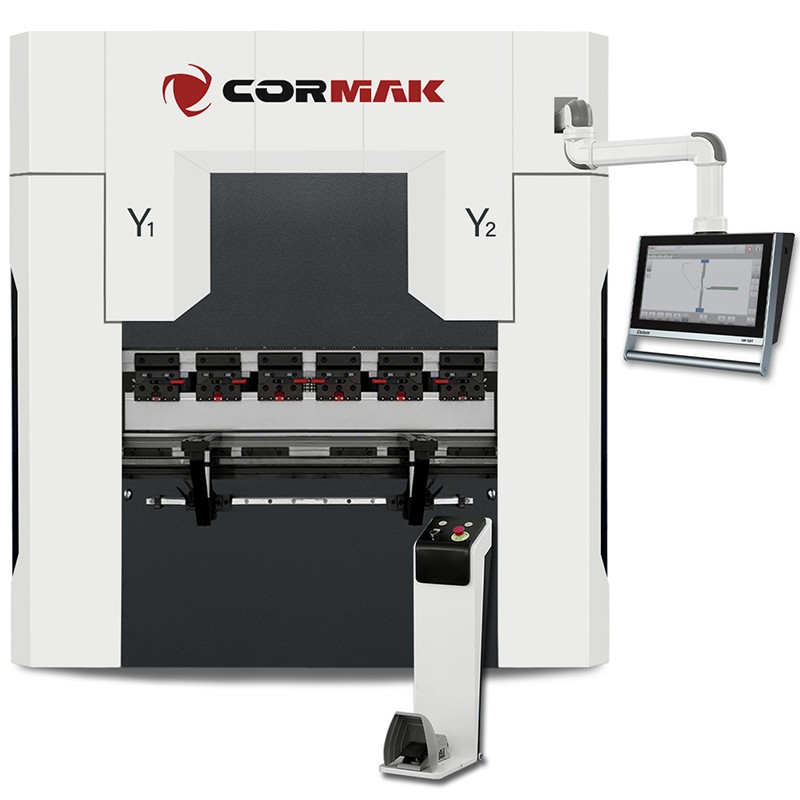

Servo-electric press brakes are increasingly popular in the industry due to their efficiency, energy savings and precision.
The presented configuration represents the most commonly selected setup by our customers – a proven and effective choice for serial production.
Main Features:

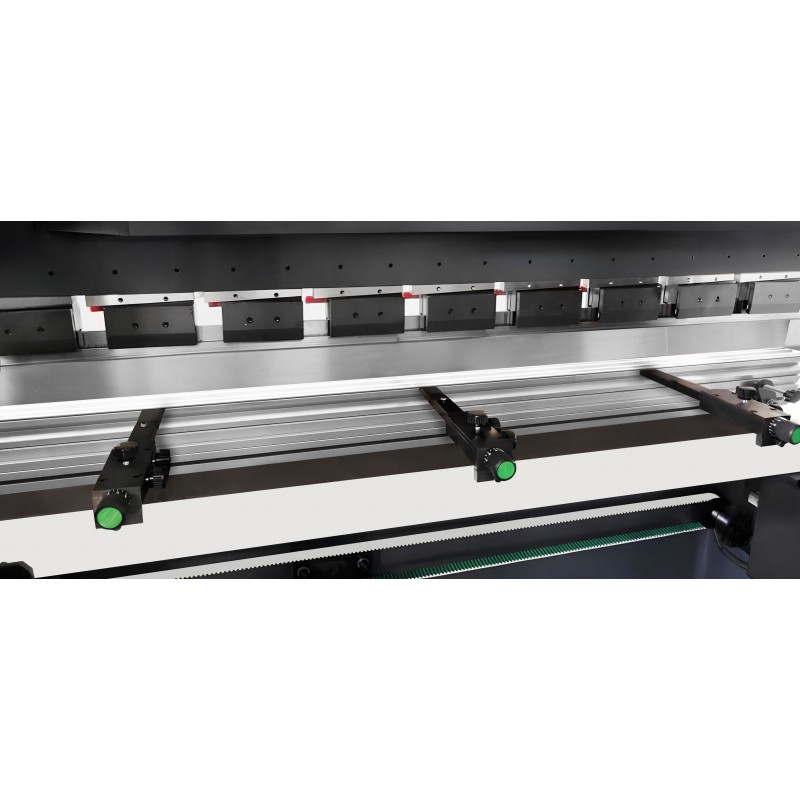

- Front supports: 2 units on linear guides, ensuring stability during bending operations.

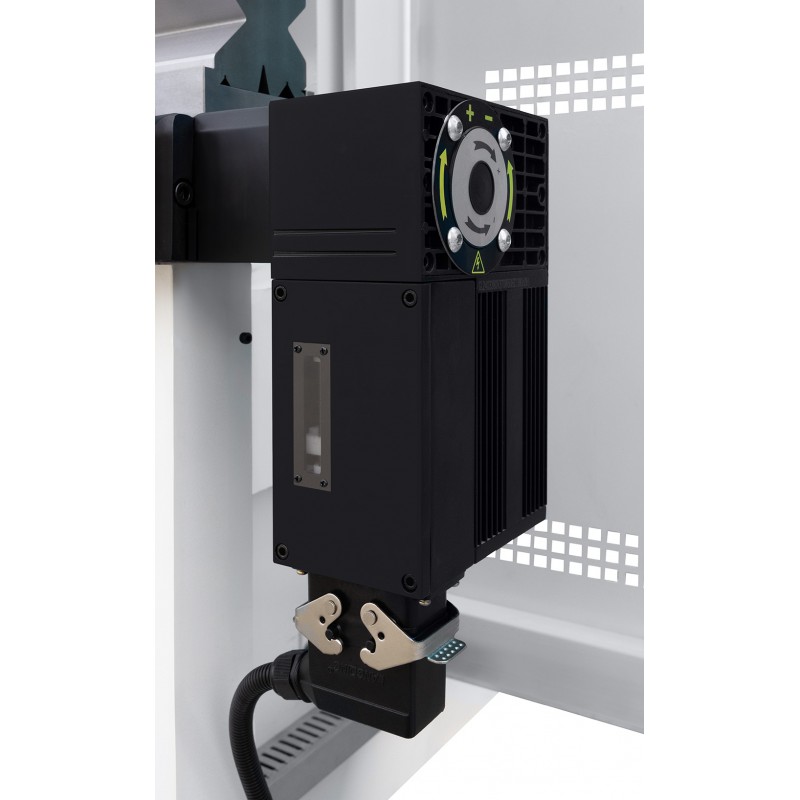

- Automatic control of Y1, Y2 axes: driven by servomotors.
- Backgauge control (X axis): servo drive with encoders.
- R axis control: servo drive with encoders.
- Automatic crowning compensation (option*)
- Double-sided punch clamping: quick AMADA-type system enabling rapid tool changes.
Available configurations are tailored to production needs and the type of processed parts – the specification of each machine is determined individually according to its application and technological requirements.
Technical Parameters
| Max. bending thickness (S235) |
up to 3.0 mm |
| Nominal pressure |
400 kN |
| Maximum bending length |
1600 mm |
| Throat depth |
300 mm |
| Max. ram stroke |
210 mm |
| Max. open height |
410 mm |
| Distance between frames |
1200 mm |
| Backgauge travel |
650 mm |
| Motor power |
3.5 kW |
| Length |
1800 mm |
| Width |
1200 mm |
| Height |
1850 mm |
| Weight |
4600 kg |
Automatic adjustment of backgauge travel (X axis) and R axis (manual option*). The R axis facilitates bending of larger radii, e.g., using the step-bending system.
Optional servo control for Z1, Z2, R1, R2, X1, X2 axes (option*).
To achieve the desired result with step bending, certain calculations are necessary, requiring knowledge of several key parameters of the bending process, including:
- Arc length – the distance between the ends of the bent sheet section measured along the inner bend line.
- Number of bends – the number of individual bends needed to form a sheet with the desired radius; the more bends, the smaller each bending angle and the smoother the curve.
- Distance between bends – the spacing between individual bends performed during the process.
Although the step-bending process may seem complex, CORMAK machines and software are highly advanced, automating most operations and assisting the operator throughout.
Automatic crowning compensation
Ensures a consistent bending angle along the full bending length – (option*).
Manual crowning compensation
Maintains a uniform bending angle along the full length – (option*).
High-Quality Components:
- Electrical components by Schneider / Delta / Eaton
Control and Functionality:
DELEM DA-53TX
- Equipped with a 15” touchscreen display mounted on a movable arm, allowing convenient operation throughout the entire working area.
- Advanced programming algorithms with automatic bending sequence calculation.
- Supports up to four axes, enabling complex bending operations.
- Compatible with multiple press brake models.
- Option: creation of bent part drawings directly on the controller screen (2D)
- Option: generation of bending programs based on imported product drawings (2D)
- Option: real-time 2D visualisation of the bending sequence
Optional controllers also available: DELEM DA-53T+2D, DA-66T, DA-69T or CYBELEC 12
DA-53T+2D
Display
- 10.1” TFT LCD touchscreen
- Colour display
External Software
- Offline Profile-53TL licence (for creating bending sequences on PC)
System
- Windows operating system
- 200 MHz processor
- 1GB internal memory
- Collision-prevention control logic for all working axes
Functions
- Library of punches and dies /30 punches & 60 dies/ – descriptive and graphical library
- Program library with graphical preview and product cataloguing
- Material database (possibility to add new materials)
- Creation of bent element drawing on the controller display (2D)
- Program generation based on imported drawing (2D)
- Real-time 2D visualisation of the bending sequence
- 2D bending simulation with collision preview (step-by-step mode)
- Warning system (e.g. exceeding tool strength)
- Ability to modify bend order and program steps
- Manual positioning of backgauge axes
- Automatic calculation of ram stroke and bending force according to material
- Automatic calculation of backgauge position
- Automatic calculation of inner radius and material development
- Backup function for tools and products
- USB port
DA-58T
Display
- 15” TFT LCD touchscreen
- Colour display
External Software
- Offline Profile-53TL licence (for creating bending sequences on PC)
System
- Windows operating system
- 200 MHz processor
- 4MB RAM
- Maximum number of programs: 9999 (25 steps max)
- Maximum repetitions per step: 99
- Collision-prevention control logic
Functions
- Library of punches and dies /30 punches & 60 dies/
- Descriptive and graphical tool library
- Program library with graphic preview and cataloguing
- Material database (add new bending materials)
- Creation of bent element drawing (2D)
- Program generation based on imported drawing (2D)
- Real-time 2D visualisation of bending sequence
- 2D simulation with collision preview (step-by-step)
- Warning system (e.g. exceeding tool pressure)
- Ability to modify bend order and steps
- Manual mode and positioning of backgauge axes
- Automatic calculation of stroke, force, backgauge position and inner radius
- Material allowance calculation
- Backup for tools and products
- USB port
DA-66T
Display
- 17” TFT LCD touchscreen
- Colour display
External Software
- Offline LITE T2D licence (for creating bending sequences on PC)
System
- Intuitive multilingual controller
- Stable Windows CE operating system
- 64MB RAM
- Maximum number of programs: 1000 (1GB)
- Maximum step repetitions: 99
Functions
- Creation of bent element drawings directly on the screen (2D)
- Automatic program generation based on imported 2D drawings
- Automatic calculation of ram stroke and bending force according to material type
- Automatic backgauge positioning according to program
- 3D bending visualisation (step-by-step simulation)
- Automatic positioning of backgauge fingers behind the selected punch and die segment
- Collision and overload warnings
- Automatic flat pattern development calculation
- Manual axis control (via navigation dial)
- Manual operating mode
- Material database
- Tool and product libraries with preview and cataloguing
- Stroke and working hours counter
- USB port
- Backup for tools and products
DA-69T
Display
- 17” TFT LCD touchscreen
- Colour display
External Software
- Offline LITE T3D licence (for creating bending sequences on PC)
System
- Intuitive multilingual controller
- Stable Windows CE operating system
- 64MB RAM
- Maximum number of programs: 1000 (1GB)
- Maximum repetitions per step: 99
Functions
- DXF file import
- 3D import from IGES & SAT via LITE T3D
- Creation of 3D part drawings directly on the display
- Automatic program generation based on 3D models
- Automatic stroke and force calculation depending on material
- Automatic backgauge positioning according to bending program
- 3D bending simulation (step-by-step)
CYBELEC 12
Display
- 12” TFT LCD touchscreen
- Colour display
System
- Multilingual user interface
- Stable Windows CE operating system
- Maximum punches: 100
- Maximum programs: 300
- Maximum step repetitions: 24
- Maximum materials: 10
Functions
- User-friendly HMI interface
- 2D and 3D profile visualisation
- Automatic bending sequence generation
- High accuracy through advanced algorithms
- Tandem operation
- Tool import capability
- Pre-bend and post-bend support
- Angle measurement support
- Barcode reader integration
- Industry 4.0 compatible
ESA S640
Display
- 15” TFT LCD touchscreen
- Colour display
System
- Multilingual, intuitive controller
- Stable Windows CE operating system
- Flash memory capable of storing over 30,000 programs
- Integrated Monoboard architecture – single mainboard for greater reliability and compact design
Functions
- Supports up to 6 axes
- Interactive 2D graphic editor
- Automatic bending sequence optimisation
- Dynamic crowning compensation
- Tandem mode
- Integrated PLC (32 inputs and 32 outputs)
- Pre-bend and post-bend operations
- Angle measurement function
- Equipped with Ethernet, two RS-232 ports, two USB ports, and CANopen interface for easy integration with other systems
The machine combines advanced technology with intuitive operation, making it ideal for both precise manual work and efficient serial production. High-quality components and advanced safety systems ensure reliability and operator protection.
Safety

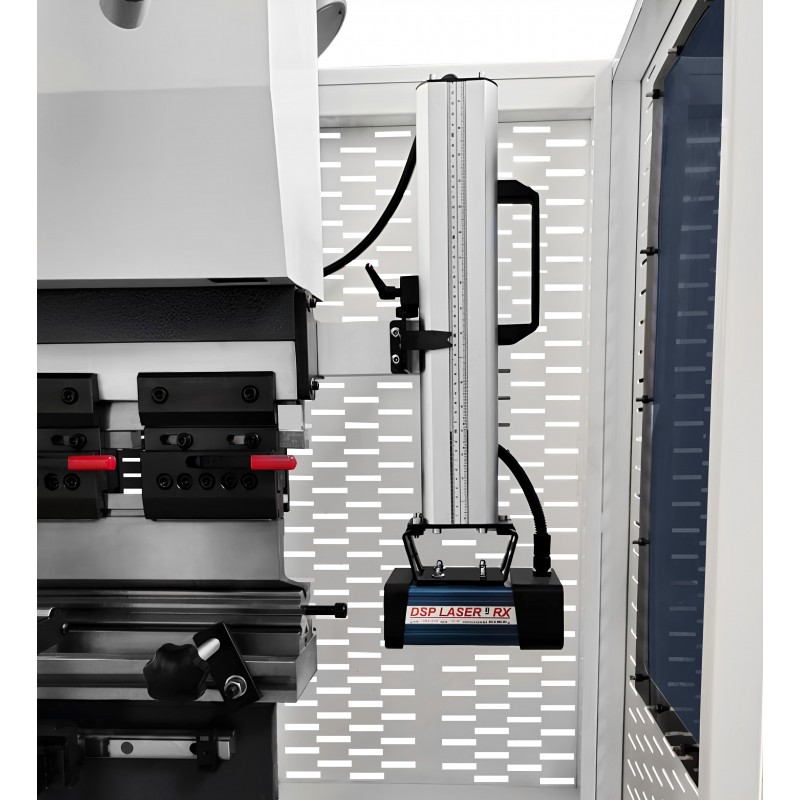

Laser Safety System
Included as standard — the highest-class laser safety system protecting the operator and more than doubling the efficiency of the bending process.
IRIS Plus laser system (option*)
The IRIS Plus laser system is an advanced solution for press brakes, ensuring precise and safe positioning of tools and material. It enables real-time bend angle measurement and correction, greatly improving accuracy and process efficiency.
Beware of pseudo safety systems such as gates or light curtains — they are not CE compliant and may put workers at risk. As the employer, you are responsible for the safety of your employees!
CE-Compliant Safety Enclosures
Ergonomics and Additional Features:
- Mobile controller on articulated arm
- LED lighting: improves comfort and safety at work
- Front supports on linear guides
- Follow-up supports (option*)
Servo-driven follow-up supports enable the bending of large-format sheets by lifting them synchronously with the bending motion, preventing deformation and ensuring accurate bending angles.
We care about the safety of our clients and their teams — that’s why our press brakes are equipped with advanced safety systems, including clear labelling, side guards, a rear safety gate and easily accessible emergency stops.
Each machine is supplied with a clear and detailed user manual in English.
Remember — a CE declaration alone does not guarantee safety; the actual safety systems used are what matter most!
SCO – Oil Cooling System
Included as standard — ensures stable machine performance even during prolonged continuous operation.
Tool Clamping System:
- Standard configuration includes sectional, multi-groove four-sided dies and sectional punches.
- The standard clamping system in CORMAK press brakes is the manual AMADA (European) quick-change system for fast tool replacement.
- Punches are side-mounted and locked with screws.
Die and Punch Selection
Proper selection of tools — both die and punch — is essential to achieve the desired bending results.
CORMAK press brakes perform continuous bending monitoring and can automatically correct deviations for optimal precision.
Depending on press capacity, sectional punches and dies may vary in length.
Included in machine price
Telephone Consultations with a Specialist
You can always count on professional assistance.
Terms of Cooperation
- 24-month warranty.
- The machine is brand new.
- Warranty and post-warranty service provided by the seller.
Training and Machine Commissioning
It is possible to arrange professional training and machine commissioning carried out by a Cormak technician — this service is priced individually.
Contact our advisor to get more information.
Contact us
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
▶
