The high-lift pallet stacker is a specialised device designed for storing and handling pallets at considerable heights. The electric lifting mechanism allows effortless lifting of pallets weighing up to 1,000 kg to a height of 4,000 mm. The high-quality steel construction provides increased rigidity and stability during lifting operations. A safety cut-off switch and brake ensure protection during work, while the built-in controller protects the battery against discharge and the charge level indicator allows energy monitoring. The stacker is also equipped with a sealed, maintenance-free AGM battery, eliminating the need for servicing. It is a reliable and efficient solution for optimising warehouse storage operations.

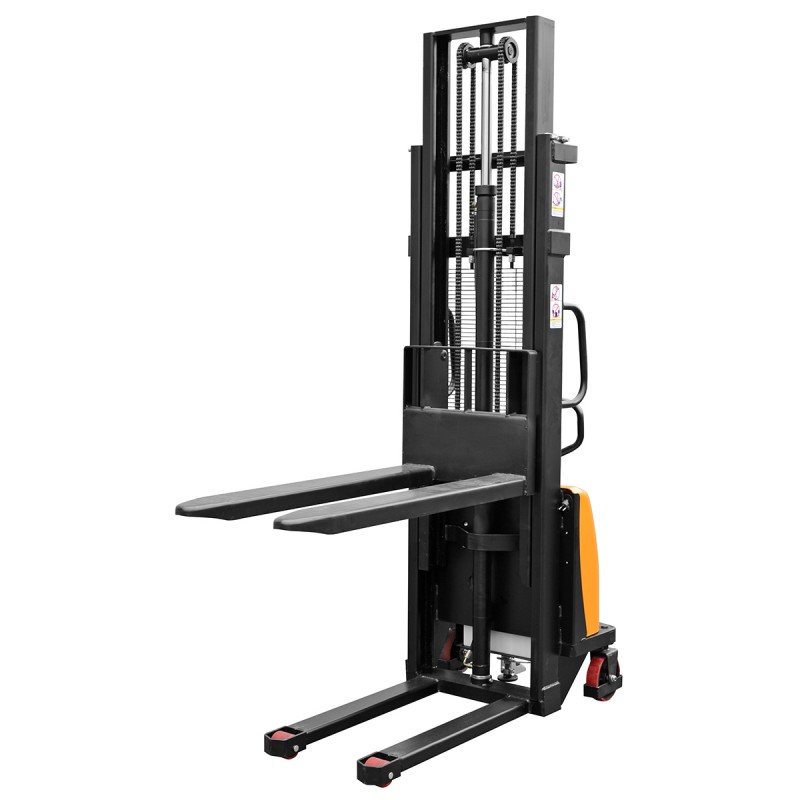

Semi-electric pallet stacker B1040 is a specialised device for transporting and storing loads at height, combining a 1,000 kg load capacity, a 4,000 mm lifting height and advanced safety and power control systems. Thanks to the use of a double-mast column, robust steel construction and a maintenance-free AGM battery 12V 135 Ah, the B1040 model performs exceptionally well in intensive warehouse applications, ensuring precise, efficient and safe pallet handling in narrow working aisles.
The B1040 pallet stacker has been engineered with a strong focus on durability, ergonomics and operational safety. The steel mast structure offers high resistance to deformation and excellent stability at maximum lift height. Forks with a length of 1,150 mm and an outer width of 550 mm ensure compatibility with Euro pallets and easy load handling. The use of polyurethane wheels minimises vibration, reduces noise and protects warehouse floors from damage.
Thanks to its compact dimensions – an overall width of 740 mm and an overall length of 1,735 mm – the stacker is perfectly suited for narrow aisles. A turning radius of 1,430 mm and a low-profile ground clearance of 30 mm facilitate manoeuvring and maintain stability even under maximum load.
The B1040 stacker delivers excellent performance in terms of lifting and lowering speeds: 100/120 mm/s when lifting and 120/100 mm/s when lowering loads. These parameters enable smooth and controlled work cycles without time losses. The integrated power controller supervises the battery condition, protecting it against overload and enabling optimal charging management.

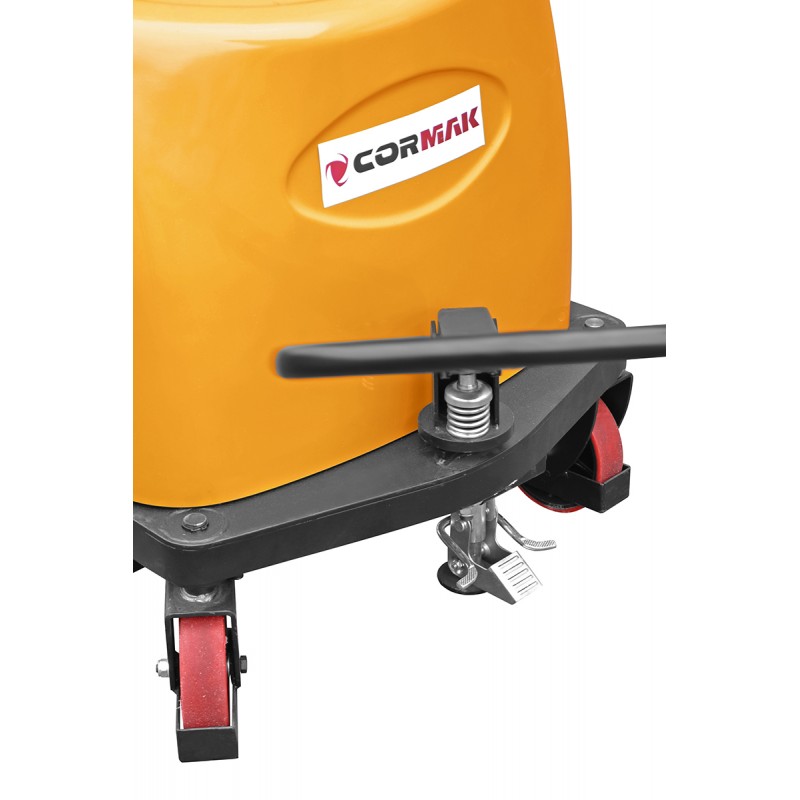

The stacker is also equipped with a safety cut-off switch that ensures immediate stopping in emergency situations, as well as an electromagnetic braking system that increases operational stability on slopes and loading ramps.
The B1040 pallet stacker is suitable for professional environments such as:
Its design allows safe operation even in demanding working conditions where precision, time efficiency and safety are essential.
|
MAX LIFTING HEIGHT |
4,000 mm |
| LOAD CAPACITY | 1,000 kg |
| LOAD CENTRE | 500 mm |
|
FORK LENGTH |
1,150 mm |
|
OUTER FORK WIDTH |
550 mm |
|
HEIGHT WITH FORKS LOWERED |
2,610 mm |
|
HEIGHT OF RAISED LIFTING STRUCTURE |
4,560 mm |
|
LOWERED FORK HEIGHT |
90 mm |
| OVERALL WIDTH | 740 mm |
| OVERALL LENGTH | 1,735 mm |
|
GROUND CLEARANCE |
30 mm |
|
TURNING RADIUS |
1,430 mm |
|
LIFTING SPEED WITH LOAD / WITHOUT LOAD |
100 / 120 mm/s |
|
LOWERING SPEED WITH LOAD / WITHOUT LOAD |
120 / 100 mm/s |
|
BATTERY VOLTAGE / CAPACITY |
12V 135 Ah |
|
WHEEL MATERIAL |
polyurethane |
|
WEIGHT |
450 kg |
Increase the efficiency of your storage operations with the semi-electric pallet stacker CORMAK B1040 – enquire about availability and purchasing terms today!
