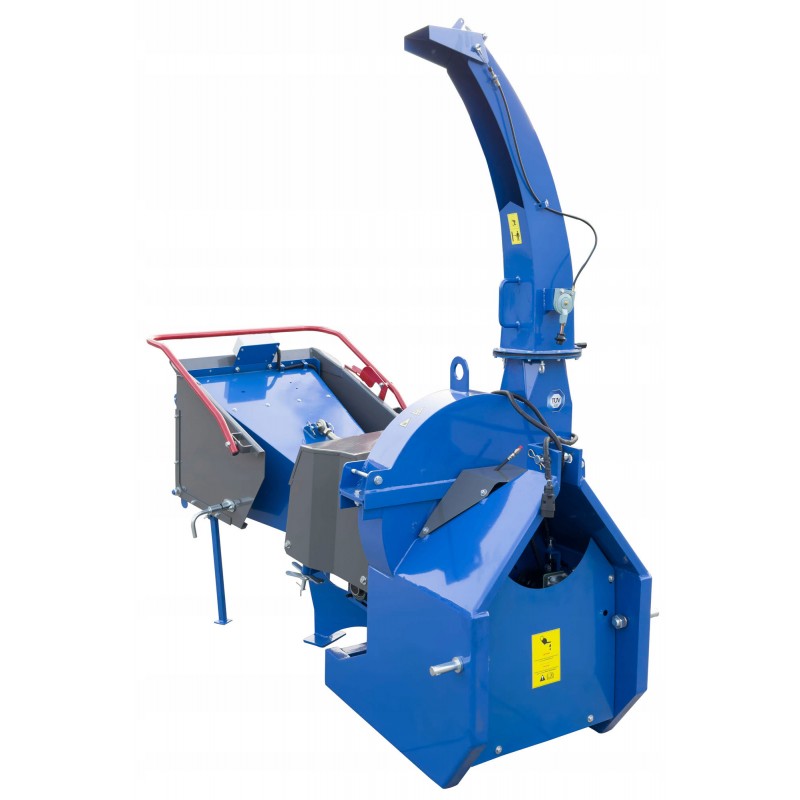

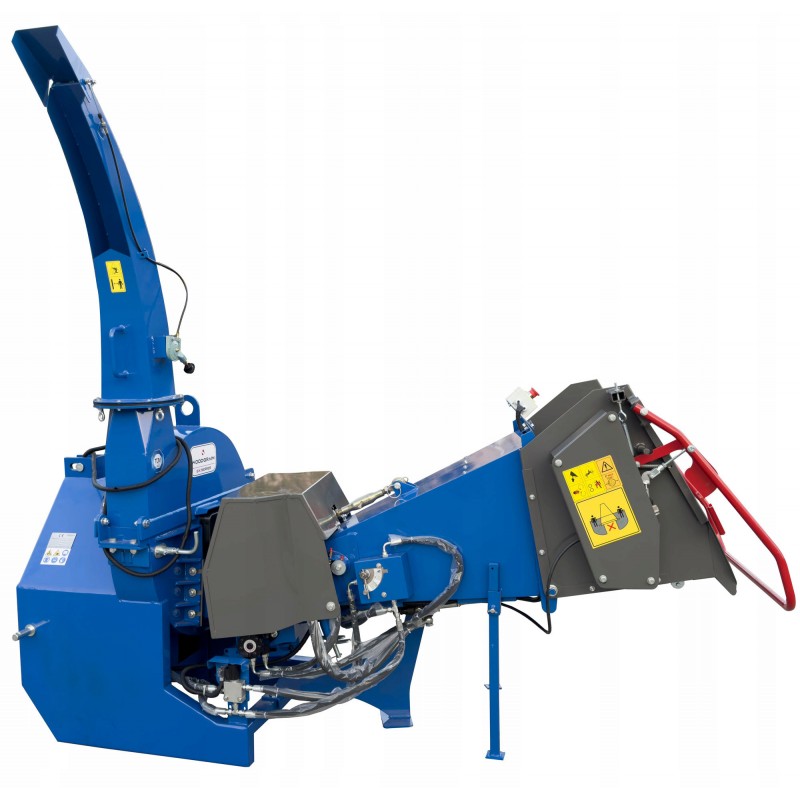

Introducing the powerful BX72RS disc chipper from the WOODGRAIN brand. This modern equipment is equipped with a hydraulic feed system powered by its own pump, making work extremely efficient and productive.
EQUIPPED WITH A SAFETY SWITCH that allows for immediate power cut-off, effectively eliminating or minimizing potential hazards!
This chipper is not only powerful but also safe, fully compliant with the latest EU standards.
The new version has been additionally equipped with its own hydraulic pump and hydraulic oil tank, which power the two feed rollers that push the material onto the cutting disc—accelerating and simplifying the chipping process.
The WOODGRAIN BX72RS is designed for efficient shredding of branches, tree trunks up to an impressive 17 cm in diameter, and even coppice shoots up to 30 cm. The chipper uses a three-point hitch system, making it ideal for tractors with a minimum 50 HP engine.
It features a hydraulic self-feeding hopper with two high-powered hydraulic feed rollers. The mechanism includes a smooth 10-level feed speed controller, reverse function, and emergency stop, making operation intuitive and safe.
The hydraulic system is powered by a built-in hydraulic pump, driven by the PTO shaft (Power Take-Off) from the tractor.
The wood chips are discharged through a 360° rotatable chute.
The heavy-duty cutting disc has a diameter of 750 mm and thickness of 27 mm, equipped with 4 double-sided sharpened knives and 1 counter-knife, ensuring efficient shredding with reduced engine load.
Additional features include:
Blade-locking slide for easy knife replacement
Disc ventilation system
Continuous feed lock, selectable feed modes (forward, neutral, reverse)
Dust-proof bearings with easily accessible grease nipples
The foldable feed hopper allows quick transformation into transport position, saving space during transport.
The unit is supplied with a Polish user manual and EU conformity certificates.
WOODGRAIN BX72RS – more than just a machine, it’s a specialist partner ready for your toughest jobs.
BONUS: PTO SHAFT + 30 cm DISCHARGE CHUTE EXTENSION INCLUDED
| Specification | Value |
|---|---|
| Max chipping diameter | 17 cm (up to 30 cm with coppice shoots) |
| Drive system | Direct drive, PTO shaft (WOM) |
| Recommended tractor power | 50–150 HP |
| PTO speed range | 540–1100 RPM |
| Number of feed rollers | 2 (upper + lower) |
| Cutting disc diameter | 75 cm |
| Number of cutting knives | 4 + 1 counter-knife |
| Knife type | Double-sided sharpened |
| Material feeding mechanism | Hydraulic feed – 2 rollers |
| Mounting system | Three-point hitch (Category I/II) |
| Dimensions (L × W × H) | 211 cm × 135 cm × 229 cm |
| Feed hopper size | 83 × 60 cm |
| Discharge chute rotation | 360° |
| Discharge chute height | 229 cm |
| PTO angle adjustment | 4 levels |
| Cutting disc weight | 84 kg |
| Total machine weight | 590 kg |
