Manufacturer:
CORMAK

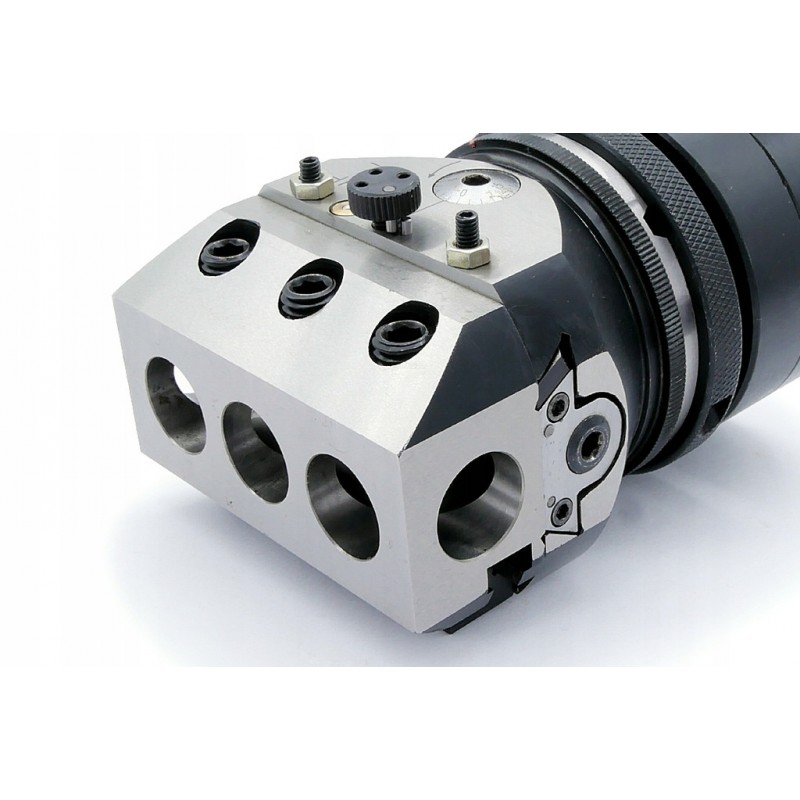

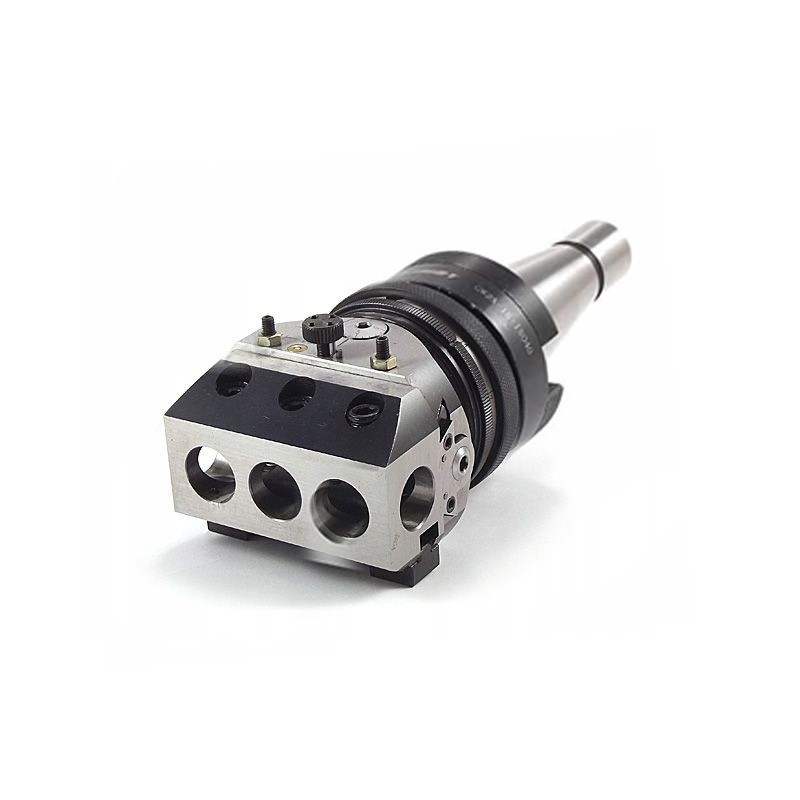

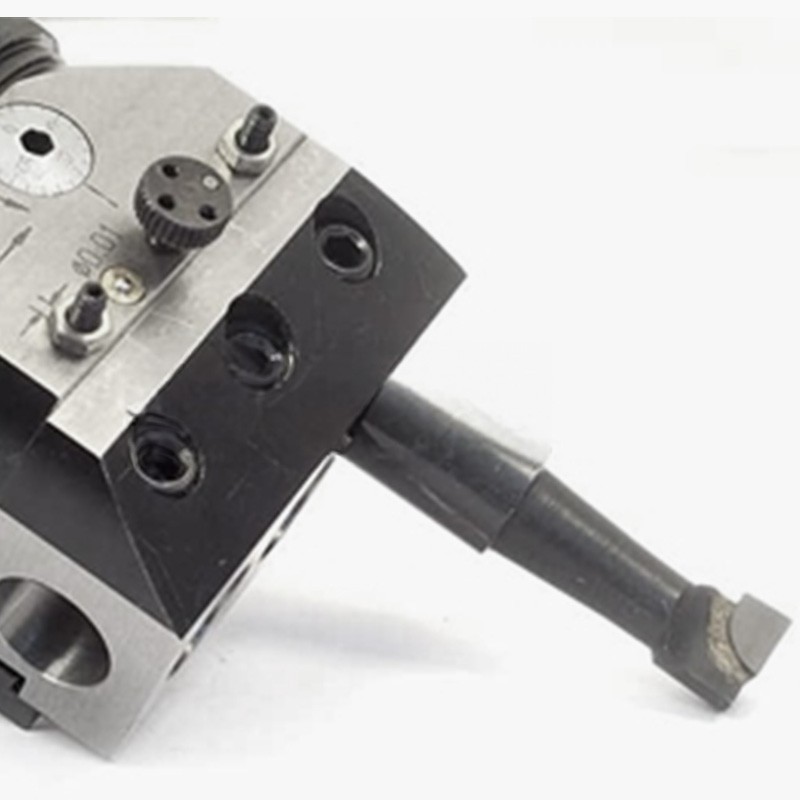

Automatic Boring and Facing Head GWZA-18 performs the same operations as a standard manually adjusted boring head, but its automatic feed mechanism enables the tool slide to move laterally by a preset value with each spindle revolution. It allows for efficient, precise boring and facing operations on both conventional and CNC machines.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Machine Description
The universal boring and facing head is a precision tool that, thanks to its multi-position tool mounting system and automatic tool slide feed, allows a wide range of machining operations, including:
- Boring holes over a wide diameter range,
- Transverse turning of front and rear faces of holes and turning external surfaces,
- Grooving operations,
- Internal and external turning by combining the machine spindle feed with the head’s automatic tool slide feed,
- Thread cutting,
- Multi-tool machining, and more.
Technical Data:
| Boring diameter range [mm] | 5–250 |
| Tool shank diameter [mm] | 18 |
| Tool slide travel [mm] | 15 |
| Feed scale adjustment [mm] | 0.005 |
| Manual feed per revolution [mm] | 3 |
| Automatic feed per revolution [mm] | 0.02; 0.04; 0.06 |
| Overall dimensions [mm] | 77 × 58 × 80 |
