Petrol Firewood Processor ( Wood Saw and Splitter) CORMAK RPL380 20t 60cm Cut

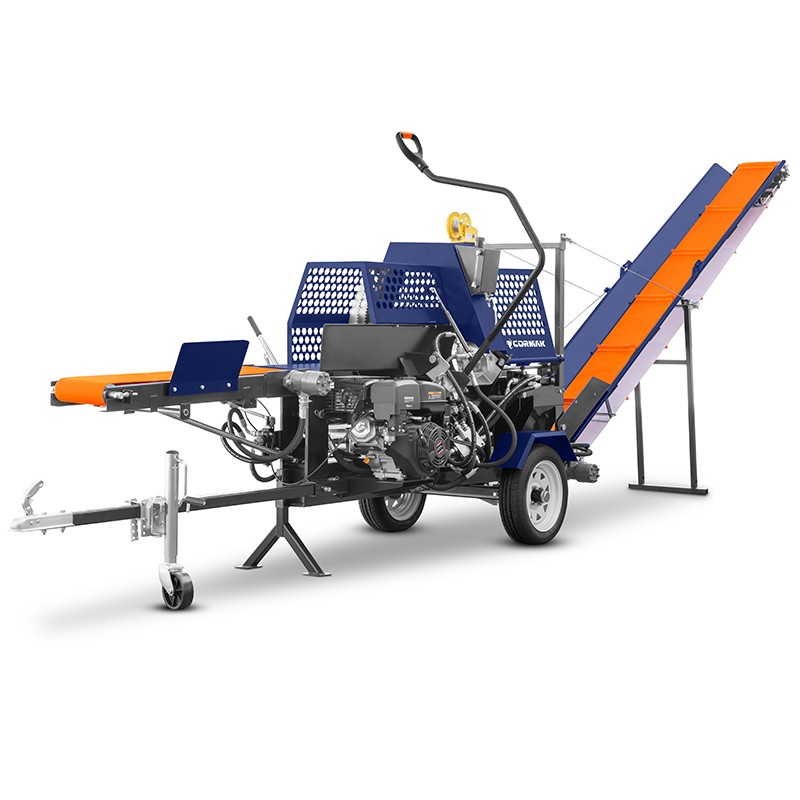

The CORMAK RPL380 petrol log saw and splitter is a professional 3-in-1 machine combining a chainsaw, hydraulic log splitter, and conveyor. Powered by a 9.0kW (15HP) engine with 20 tonnes of splitting force, it efficiently processes logs up to 500mm in diameter. Designed for sawmills, farms, and firewood production facilities, it ensures precise, fast, and safe wood processing in all conditions.
Machine characteristics
The CORMAK RPL380 petrol-powered log saw and splitter is an advanced multifunctional unit that combines the capabilities of three machines in one: a chainsaw, a hydraulic log splitter, and a conveyor system. Equipped with a powerful petrol engine, precise working components, and efficient transport mechanisms, it delivers maximum productivity and reliability. Its durable, mobile construction makes it a professional solution for the woodworking and firewood industries, as well as for agricultural use.
Main features and advantages:
- High efficiency: Processes up to 8m³ of wood per hour, depending on the type of timber.
- Multifunctionality: Combines a chainsaw, splitter, and conveyor in one machine—saving time and space.
- Versatility: Suitable for professionals and individual users working with various wood species.
- Powerful engine: 15HP petrol engine provides the strength required for smooth cutting and splitting.
- Time efficiency: Significantly reduces processing time through integrated cutting and splitting operations.
- Reliability: Designed for operation in sawmills, timber yards, and firewood production facilities.
- Equipment: Features a STIHL guide bar and chain, with an integrated oil reservoir at the rear of the housing.
- Precision: A cross wedge ensures accurate splitting, while cutting length can be precisely adjusted.
- Adjustability: Splitting wedge height is easily adjustable using a lever for different log diameters.
- Safety: Built-in safety guards and protective systems ensure operator protection.

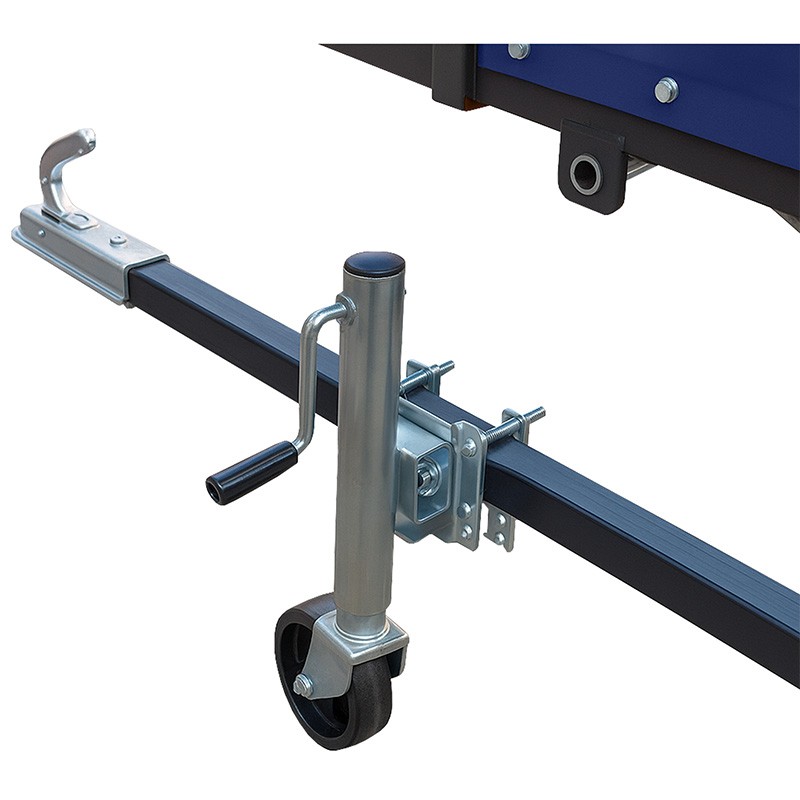

- Mobility: The wheeled chassis and tow hitch allow convenient movement between work locations.

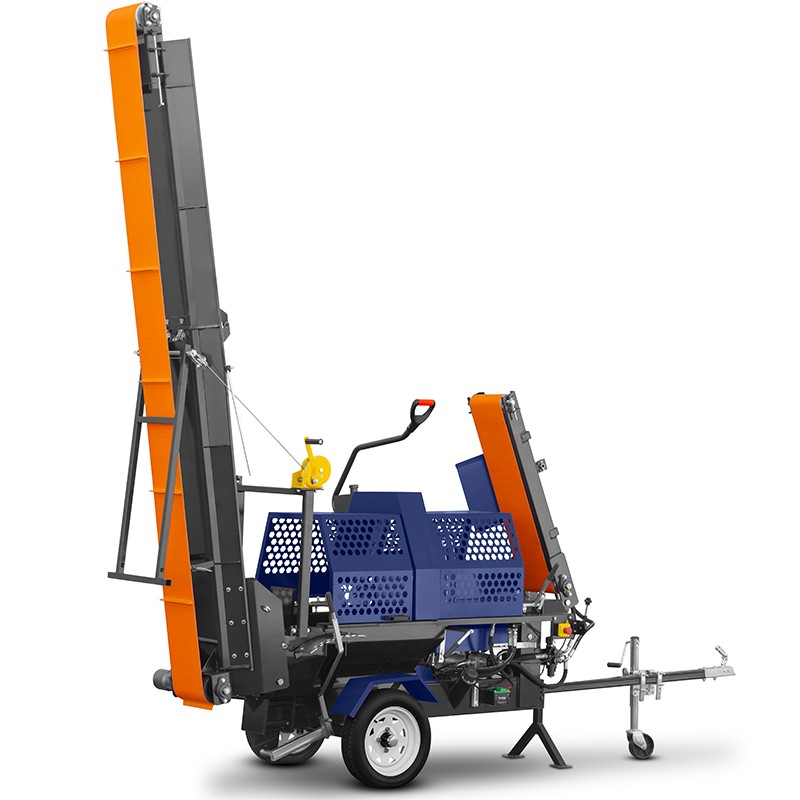

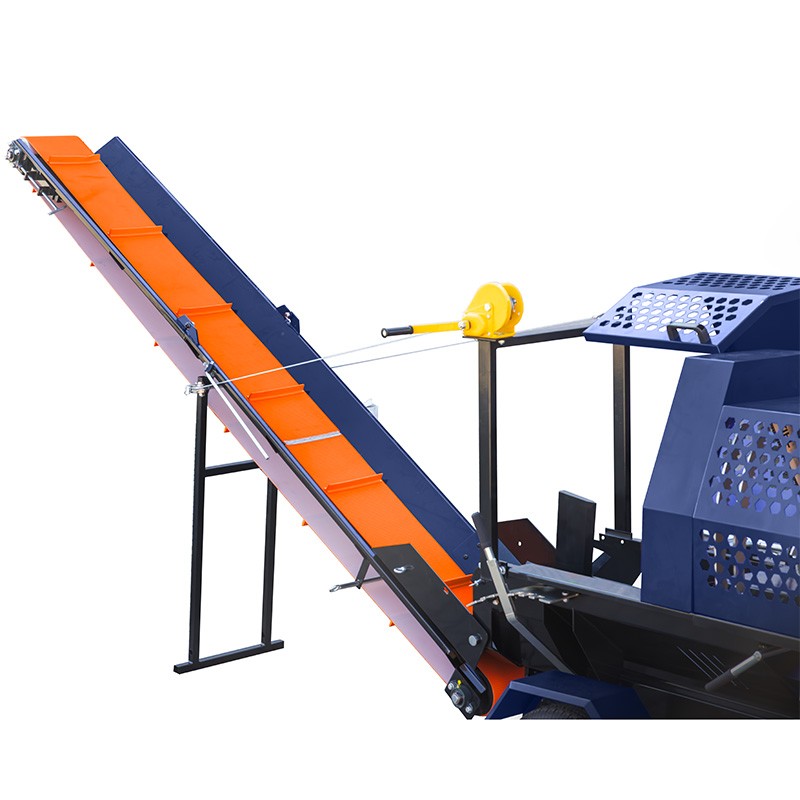

- Conveyor system: The belt feeds logs into the splitter and transports split wood away. The conveyor can be folded and positioned vertically for storage or transport.
- Certification: The machine complies with CE standards and includes a CE Declaration.
Hydraulic system driven by a 24L pump powers:
- Feeding conveyor
- Chainsaw unit
- Splitting cylinder with up to 20 tonnes of pressure
- Output conveyor
The splitter features a 9-step adjustable cross wedge for splitting logs of various diameters into 2 or 4 pieces, as well as length adjustment for cutting and a log holding clamp. A central chain lubrication system ensures long service life of the cutting components.
Technical data
| Engine | |
| Engine model | Lancin G420F |
| Engine power | 9.0kW (15HP) |
| Displacement | 420cc |
| Fuel | Petrol |
| Fuel tank capacity | 5.4L |
| Start system | Electric / manual recoil start |
| Recommended engine oil | 15W40 (1.7L) |
| Hydraulic system | |
| Hydraulic oil tank capacity | 24L |
| Recommended hydraulic oil | HL46 / HL32 |
| Performance and cutting parameters | |
| Maximum splitting force | 20t |
| Splitting wedge | 4-way cross wedge |
| Maximum log diameter | 380mm |
| Minimum / maximum cutting length | 190 – 600mm |
| Chainsaw bar length | 18" (45cm) |
| Performance | approx. 8m³/h |
| Feeding conveyor | |
| Conveyor length / height | 1000mm / 910mm |
| Conveyor dimensions (L × W) | 1040 × 254mm |
| Maximum conveyor incline | 40° |
| Output conveyor | |
| Output belt dimensions (L × W) | 3200 × 254mm |
| Output belt speed | 27m/min |
| Wheels and tyres | |
| Tyre size | 135/70R12 |
| Tyre pressure | 2.5 bar |
| Dimensions and weight | |
| Machine dimensions | 6600 × 1380 × 2000mm |
| Weight | 680kg |
▶
▶
