Wood Dust and Chip Extractor CORMAK FM340 230V + 3 m Antistatic Hose

CORMAK FM340 230V is a modern wood dust and chip extractor designed for efficient and quiet operation in woodworking and semi-industrial environments. Thanks to a 1.5 kW suction unit and a dynamically balanced 300 mm metal impeller, the unit delivers an impressive 3200 m³/h airflow on a single-phase 230 V supply. Compact, mobile and reliable, it ensures clean air and high extraction performance during all woodworking operations. The set includes a 3 m antistatic hose that prevents static charge build-up for safe and stable performance.

Main advantages of the machine

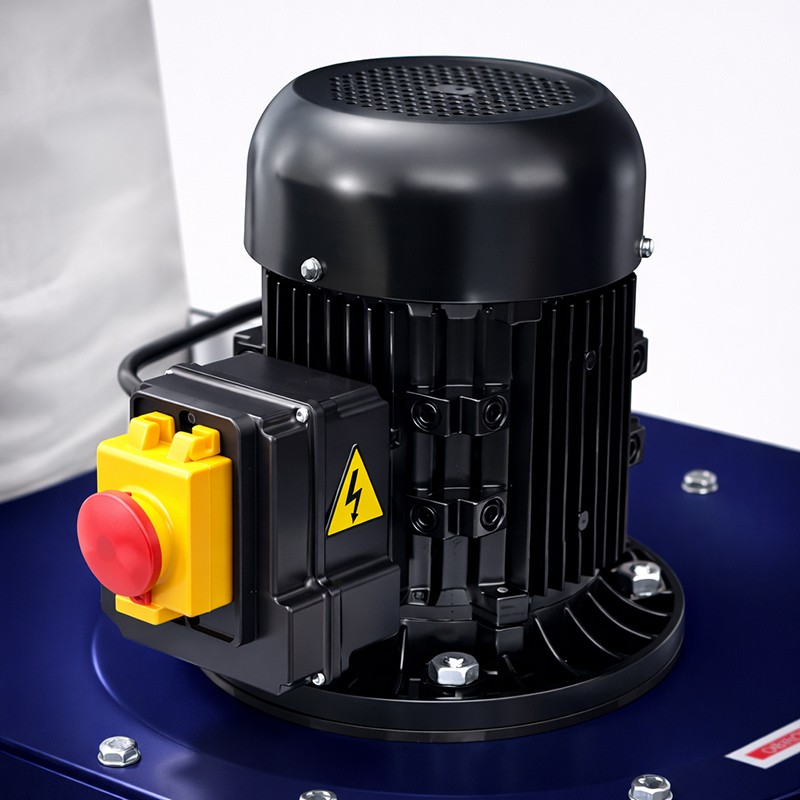

• 1.5 kW / 230 V suction motor – high performance without the need for a three-phase connection.
• Airflow up to 3200 m³/h – efficient extraction from several machines simultaneously.
• 300 mm metal impeller – dynamically balanced for quiet, vibration-free operation.
• Durable steel housing – strong and fully sealed to prevent leaks.
• 180° rotatable suction head – easy hose positioning for optimal connection layout.
• Mobile steel frame with wheels – easy movement within the workspace.
• Quick bag replacement system – tool-free, fast and convenient servicing.
• 3 m antistatic hose – increases safety and prevents static discharges during operation.

Design and technology

The FM340 230V features a high-efficiency metal dust fan mounted in a solid steel housing that ensures rigidity and long lifespan. The 180° adjustable air inlet allows flexible hose configurations, while the included filter bag and 190 L collection bag offer long intervals between emptying. The antistatic hose provides safe and reliable suction, even in continuous use.

Performance and precision

With a 2850 rpm motor and 300 mm impeller, the CORMAK FM340 extractor maintains smooth airflow and efficient separation of wood dust and chips. It handles high-volume dust sources such as saws, planers and spindle moulders. The suction ports (Ø150 mm or 3 × Ø100 mm) provide complete flexibility for workshop setups.

Applications

• Woodworking workshops – for cutting, planing and routing operations.
• Production facilities – as a central dust extraction system for multiple machines.
• Educational and training workshops – compact, mobile and easy to maintain.
• Professional and hobbyist workshops – high performance at 230 V power supply.

Standard equipment

• 1 × fabric filter bag
• 1 × plastic collection bag
• Transport wheels
• Suction port Ø150 mm / 3 × Ø100 mm
• 3 m antistatic hose

Optional equipment*

• Suction hoses Ø100 mm (different lengths)
• Galvanised hose clamps
• Additional filter or collection bags

*The price applies to the machine as described and does not include installation, transport or training. Please contact our consultant for details.

Technical data

Summary

CORMAK FM340 230V with a 3 m antistatic hose is a reliable and powerful wood dust and chip extractor operating on single-phase power. Its high efficiency, mobility and safety features make it ideal for workshops requiring effective dust control without a 400 V power source.

Order the CORMAK FM340 230V dust extractor with antistatic hose and improve safety and cleanliness in your workshop today!
