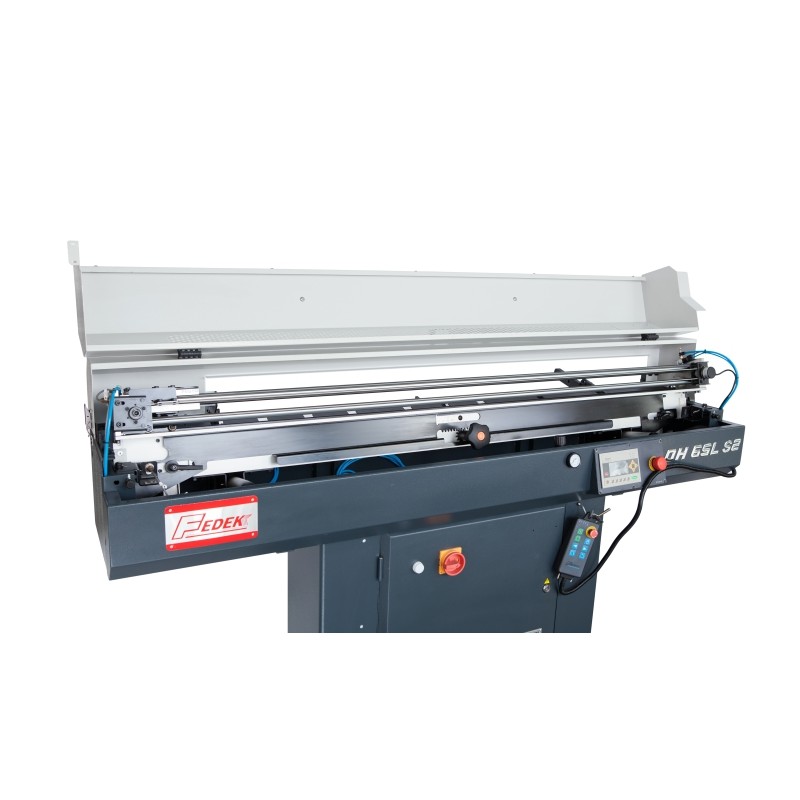

The bar feeder is an ideal solution for those wishing to implement serial production with relatively low investment costs. The automatic magazine feeder feeds the bar through the spindle of a CNC lathe while monitoring proper loading. Equipped with a bar magazine and automatic loading system, it significantly shortens machining time and eliminates human error when mounting parts in the chuck.
The bar feeder is an ideal solution for all those who wish to introduce serial production with relatively low investment costs. The magazine feeder is a device that feeds bars through the spindle of a CNC lathe and monitors the correctness of feeding. Thanks to the bar magazine and automatic loading system, it significantly reduces machining time and eliminates human error during part mounting in the chuck.
| BAR DIAMETER | 5–65 mm |
| BAR LENGTH | 1200 / 1500 mm |
| LOADING SYSTEM | Side loading table |
| LOADING CAPACITY | 650 mm |
| LOADING DIRECTION | Left / right |
| SPINDLE TYPE | Fixed |
| TRAVEL IN X OR Z AXES | X: 300 mm / Z: 600 mm |
| DRIVE | Pneumatic |
